Manufacturer
GE
Model Number
VTW565ASV0WB
Description

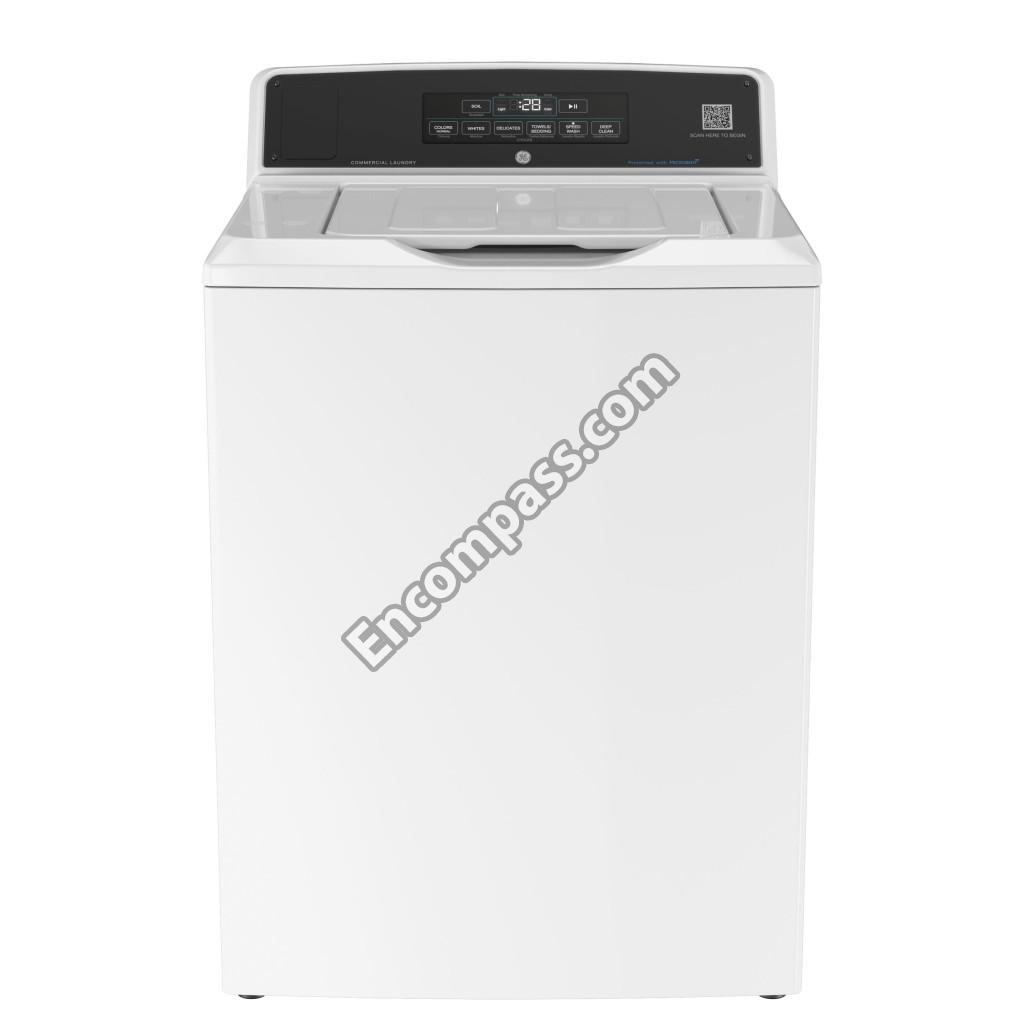

Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
1/4-20 TAPTITE HWH |
|
|
AASM BOX MONEY VKAUNICBT |
|
|
AASM COIN DROP SINGLE VTA56SCDT |
|
|
AASM KIT COIN HOUSING VTA56CHKT |
|
|
BELT DRIVE |
|
|
BRACE FRONT UPPER 27"" |
|
|
BUMPER LID |
|
|
BUSHING HINGE |
|
|
CAP NUT |
|
|
CAPACITOR |
|
|
CLAMP |
|
|
CLAMP TUB OUTLET |
|
|
CLIP COVER |
|
|
CLUTCH |
|
|
COIN BOX JUMPER HARNESS |
|
|
CONTROL BOARD SHIELD |
|
|
CONTROL PANEL TL COMM WASHER WHITE |
|
|
DAMPER PAD |
|
|
DRAIN HOSE |
|
|
DRAIN HOSE CLAMP |
|
|
DRAIN HOSE COVER |
|
|
DRAIN PUMP HARNESS |
|
|
FAN MAGNET ASM |
|
|
FRONT PANEL TL COMM WASHER WHITE |
|
|
FUNNEL BLEACH |
|
|
HEX. PT SCREW K80 X 3.59 |
|
|
HINGE LID |
|
|
HINGE WASHER COVER LH |
|
|
HOSE INTAKE & BAG ASM |
|
|
HWH SCR 8-18 BT |
|
|
INLET DRAIN HOSE |
|
|
KIT BASKET 27, HUB NUT, WASHERS & AGITAT |
|
|
KIT TRANSMISSION PULLEY, NUT, WASHERS, H |
|
|
KIT TUB 27, HUB NUT, WASHERS & WASHER AGITATOR |
|
|
LEG LEVELING |
|
|
LID ACTUATOR |
|
|
LID LOCK & HARNESS |
|
|
LID LOCK BEZEL |
|
|
LID LOCK HARNESS CLIP |
|
|
LID TL COMM WASHER WHITE |
|
|
MAIN CONTROL BOARD & CHASSIS W/INSTRUCTI |
|
|
MAIN HARNESS |
|
|
MODE SHIFTER |
|
|
MOTOR PULLEY & NUT |
|
|
NUT HUB |
|
|
NUT PULLEY |
|
|
PIN ALIGNMENT |
|
|
PLTFRM, TRANSMISSION & FASTENERS ASSEMBL |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM OWNERS MANUAL |
|
|
POWER CORD |
|
|
PUMP DRAIN |
|
|
REAL PANEL |
|
|
SCR 10-16 GX IHXW Q2 3/8 S ZN |
|
|
SCR 10-32 GX 1.309 HWX S |
|
|
SCR 4-16 H/L PNT10 .315S |
|
|
SCR 6-18 B B1Q1 3/4 S ZN |
|
|
SCR 8-16 B FLP .525 S ZN |
|
|
SCR 8-18 AB 13/4 S HXW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 8-18 HI/LO 5/8 |
|
|
SCREW WASHER AGITATOR |
|
|
SPEED SENSOR |
|
|
SPRING SHIFTER |
|
|
STOP - DRAIN HOSE |
|
|
SUSP, BALL JOINT, GREASE KIT - BLU FOAM |
|
|
THERMISTOR ASSEMBLY |
|
|
THERMISTOR CLIP |
|
|
TOP COVER WHITE |
|
|
TUB COVER 27 |
|
|
UI TO WIFI, MC, RJ45 JUMPER HARNESS |
|
|
USER INTERFACE BOARD TL COMM WASHER |
|
|
WASHER AGITATOR |
|
|
WASHER AGITATOR CAP |
|
|
WASHER CONICAL |
|
|
WASHER HUB |
|
|
WATER VALVE |
|
|
WATER VALVE HARNESS |
|
|
WIFI BOARD W/INSTRUCTIONS |
