Model Image
Manufacturer

GE

Model Number

VW331C*117

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WH1X2010 WH1X2010 *NLA*INSUL PAD
WH2X739 WH2X739 *NLA*STAKE NUT
WH38M44 WH38M44 *NLA*WH38X39
WH1M701 WH1M701 1/8 TERM FEM
WH5X227 WH5X227 A PINION GR
WH1X2090 WH1X2090 ACTUATOR ARM
WH4X85 WH4X85 AG SHAFT BRG
WH1X1944 WH1X1944 AGITATR COUP
WH1X1986 WH1X1986 AGT SUPT ASM
WH4X12 WH4X12 BALL BEARING
WH17X69 WH17X69 BASKET HUB
WH1X2026 WH1X2026 BELT
WZ2X514D WZ2X514D BOLT-PKG 12
WH2X801D WH2X801D BOLT-RET12PK
WH16X376 WH16X376 BRKT-ACTUATR
WH2X798 WH2X798 CARRIAGE BLT
WH41X121 WH41X121 CHAMBER HOSE
WH1X1292 WH1X1292 CLAMP ASM
WH1X1580 WH1X1580 CLAMP ASM
WH1X1169 WH1X1169 CLAMP PLATE
WH2X786 WH2X786 CLIP (P) **NLA*
WH5X174 WH5X174 CLUTCH DRUM
WE9X50 WE9X50 COIN BX GSKT **NLA*
WH19X311 WH19X311 CORDSET ASM
WH1X1621 WH1X1621 COUPL CLAMP
WH8X312 WH8X312 COVER SHIELD
WH1X2187 WH1X2187 COVER STOP
WH40X149 WH40X149 CR GEAR SHFT **NLA*
WH5X216 WH5X216 CRANK GEAR **NLA*
WH42X2090 WH42X2090 DOOR MTR CASE ACCESS WHITE
WH41M54 WH41M54 DR HOSE KIT
WH4X92 WH4X92 DR TUBE BRG
WH41X116 WH41X116 DRAIN HOSE
WH5X209 WH5X209 DUAL GEAR **NLA*
WH40X145 WH40X145 DUAL GR SHFT
WH1X2267 WH1X2267 FILT&WASHER
WH1X1722 WH1X1722 FLEX COUPLNG
WH1X2296 WH1X2296 FRICTION PAD
WH1X2088 WH1X2088 GASKET
WL39X3 WL39X3 GREASE **NLA*
WH41X118 WH41X118 GROMMET
WZ1X32 WZ1X32 HEX HD SCREW **NLA*
WZ7X40D WZ7X40D HEXNT-PKG 12
WH16X431 WH16X431 HINGE BCKT **NLA*
WH1X2086 WH1X2086 HINGE-PAD R
WH41M1 WH41M1 HOSE
WH41X158 WH41X158 HOSE ADAPTER
WH1X2435 WH1X2435 HOSE HANGER
WH41X297 WH41X297 HOSE RECIRC
WH1X1584 WH1X1584 HOSE REDUCER
WE1X952 WE1X952 HSG SUPPORT
WH7X57 WH7X57 HUB
WH8M53 WH8M53 HUB BOOT **NLA*
WH41X170 WH41X170 INLET HOSE
WH49X297 WH49X297 KIT WALK FIX
WH12X624 WH12X624 LAMP ASM

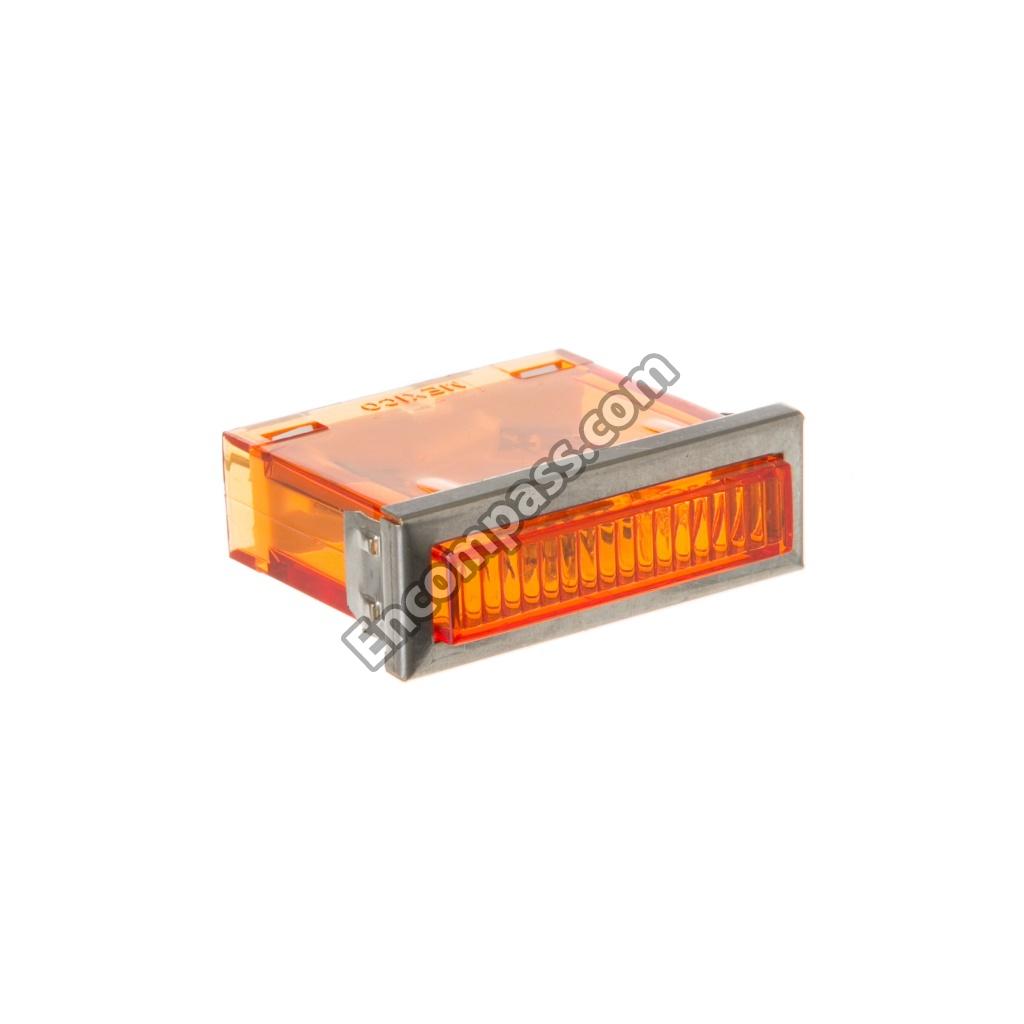

WE1X950 WE1X950 LAMP ASSEMBLY - AMBER
WH10X45 WH10X45 LATCH SLIDE
WH1X2147 WH1X2147 LATCH TUBE **NLA*
WH1X1309 WH1X1309 LEAF SPRING
WH1X1480 WH1X1480 LID BUMPER **NLA*
WH5X188 WH5X188 LINK
WE1X913 WE1X913 MNTG BRKT
WH17M6 WH17M6 MOUNT MOTOR
WH2X201 WH2X201 N.L.A. (1) WASHER (P)
WH60X12 WH60X12 N.L.A. ADHESIVE ** 01/06/
WH1X1842 WH1X1842 N.L.A.LATCH SPRING
WE2X274 WE2X274 N.L.A.SCREW
WH16X379 WH16X379 N/L/A 01/16/03
WH17X68 WH17X68 N/L/A 02/05/05
WH2X671 WH2X671 N/L/A 03/13/02
WH1X2083 WH1X2083 N/L/A 05/14/02
WH12X494 WH12X494 N/L/A 06/03/05
WH7X58 WH7X58 N/L/A 06/14/04
WH8X242 WH8X242 N/L/A 07/25/01
WH1X2087 WH1X2087 N/L/A 09/08/05
WH8X347 WH8X347 N/L/A 12/02/02
WH12X673 WH12X673 N/L/A 12/22/95
WZ7X37 WZ7X37 NUT **NLA*
WH2X707D WH2X707D NUT-PKG 12
WH2X936D WH2X936D NUT-PKG 12
WH2X659D WH2X659D NUT-PKG 12
WZ8X6D WZ8X6D NUT-PKG 12
WZ11X55 WZ11X55 PIN **NLA*
WH1X1633 WH1X1633 PIN STOP
WE1X953 WE1X953 PIVOT BLOCK
WH1X2222 WH1X2222 PIVOT HINGE
WH1X2085 WH1X2085 PIVOT HNG L
WH1X2266 WH1X2266 PLUG BUTTON
WH1X2042 WH1X2042 PULLEY SLEEV
WH7X40 WH7X40 PULLEY&BRKT
WH23X42 WH23X42 PUMP ASM.
WH41X139 WH41X139 PUMP ELBOW
WH8X286 WH8X286 PUMP GASKET
WH41X140 WH41X140 REC IN HOSE
WH41X172 WH41X172 RECIR NOZZLE
WH1X2335 WH1X2335 RETAINER
WH1X2268 WH1X2268 RETAINER
WZ13X32D WZ13X32D RTRNG PKG 12
WZ13X31D WZ13X31D RTRNG PKG 12
WH2X1137 WH2X1137 SCR LEVELING
WH1X2210 WH1X2210 SCREEN
WH2X888 WH2X888 SCREW
WH2X940 WH2X940 SCREW
WE2X331 WE2X331 SCREW
WE2X343 WE2X343 SCREW
WH2X931 WH2X931 SCREW
WH1X484 WH1X484 SCREW CAP
WH2X882D WH2X882D SCREW-PKG 12
WH2X893D WH2X893D SCREW-PKG 12
WH2X735D WH2X735D SCREW-PKG 12
WZ5X120D WZ5X120D SCREW-PKG 12
WH2X935D WH2X935D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WZ2X468D WZ2X468D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WH2X939D WH2X939D SCREW-PKG 12
WH2X820D WH2X820D SCREW-PKG 12
WZ4X268D WZ4X268D SCREW-PKG 12
WH2X715D WH2X715D SCREW-PKG 12
WH2X795D WH2X795D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WH2X681D WH2X681D SCRWSH-PKG12
WH8X281 WH8X281 SEAL
WH8X291 WH8X291 SEAL ASM
WH40X159 WH40X159 SHAFT-PINION
WH40X151 WH40X151 SHFT EXT ASM
WH16X264 WH16X264 SHIELD RETNR
WL2X71D WL2X71D SNUT-PKG 12 **NLA*
WH2X581 WH2X581 SPACR- EACH
WH40X157 WH40X157 SPIN TUBE **NLA*
WZ11X50D WZ11X50D SPPIN-PKG 12
WH7X41 WH7X41 STRAP&SHAFT
WE13X133 WE13X133 SW BRACKET
WH41X128 WH41X128 SWITCH HOSE
WH12X604 WH12X604 TERMINAL HSN
WH12X674 WH12X674 TIMER SWITCH
WH2X934 WH2X934 TORXHD SCREW
WH45M30 WH45M30 TUB ASM.
WH8X305 WH8X305 TUB GASKET
WH1X1966 WH1X1966 TUB HOSE CPL
WH1X1980 WH1X1980 TUB PLUG
WH1X2194 WH1X2194 TUBE PLUG
WH2X543D WH2X543D UBOLT-PKG 12
WH41X99 WH41X99 VALVE HOSE
WH1X2036 WH1X2036 WASHER HOSE CLAMP KIT
WH2X42D WH2X42D WASHR PKG 12
WH2X539D WH2X539D WASHR-PKG 12
WH2X207D WH2X207D WASHR-PKG 12
WH1X2082D WH1X2082D WASHR-PKG 12
WH41X132 WH41X132 WATER INLET
WH13X81 WH13X81 WATER VALVE
WE2X279D WE2X279D WE2X279D
WH1X1923D WH1X1923D WH1X1923D
WH2X190D WH2X190D WH2X190D
WH2X819D WH2X819D WH2X819D
WH7X127 WH7X127 WH7X127
WH16X370 WH16X370 WIRE
WH1X1951 WH1X1951 YOKE
WH1X1862 WH1X1862 YOKE CLAMP
WH1X1953 WH1X1953 YOKE CUSHION
