Manufacturer
GE
Model Number
WCVH6800J1MB
Description

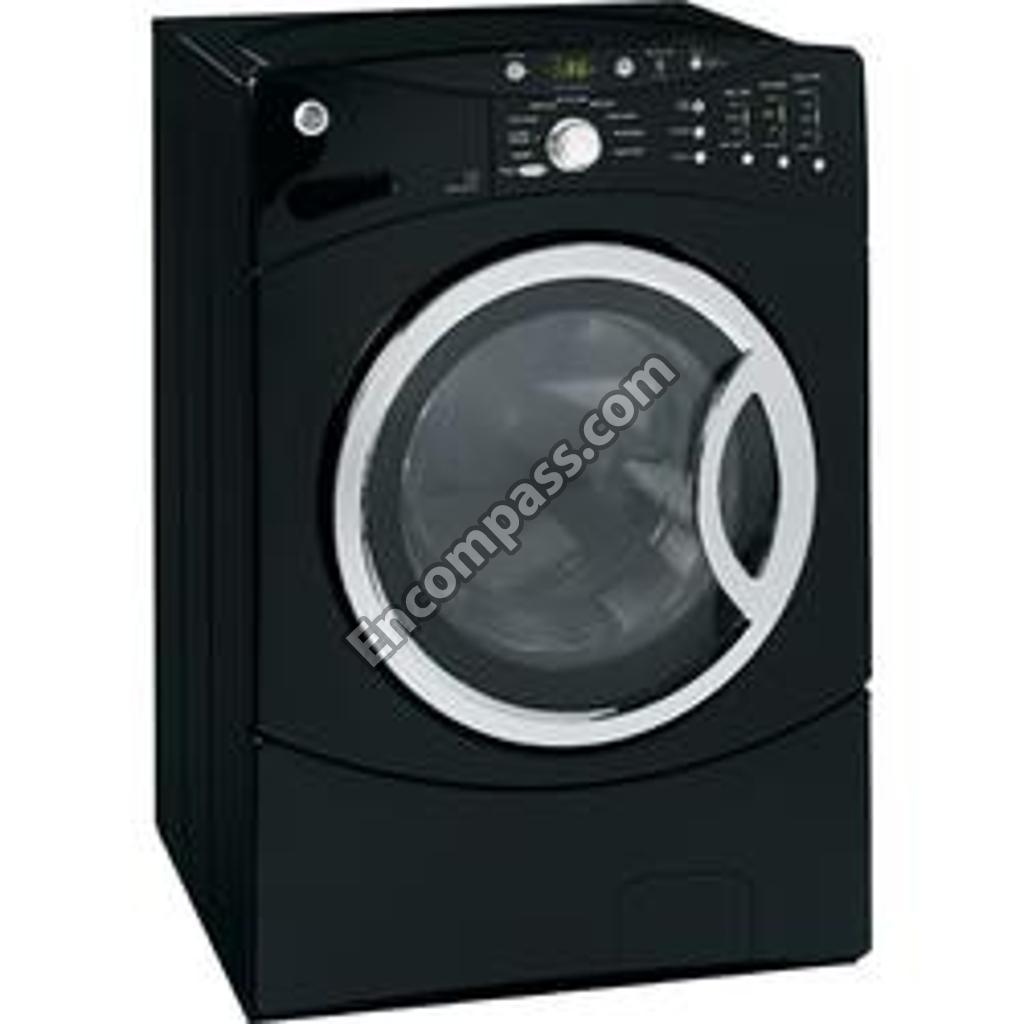

Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3_WAY_PIPE |
|
|
3_WAY_PIPE_CLAMP |
|
|
3_WAY_PIPE_CLAMP |
|
|
AIR_CHAMBER |
|
|
BAFFLE ASM |
|
|
BASKET ASM |
|
|
BLEACH_COVER |
|
|
BOLT 8X58 |
|
|
BOLT M8 48 |
|
|
BOTTOM_VENT_HOSE_CLAMP |
|
|
CABINET_REAR_COVER |
|
|
CHILD LOCK BUTTON |
|
|

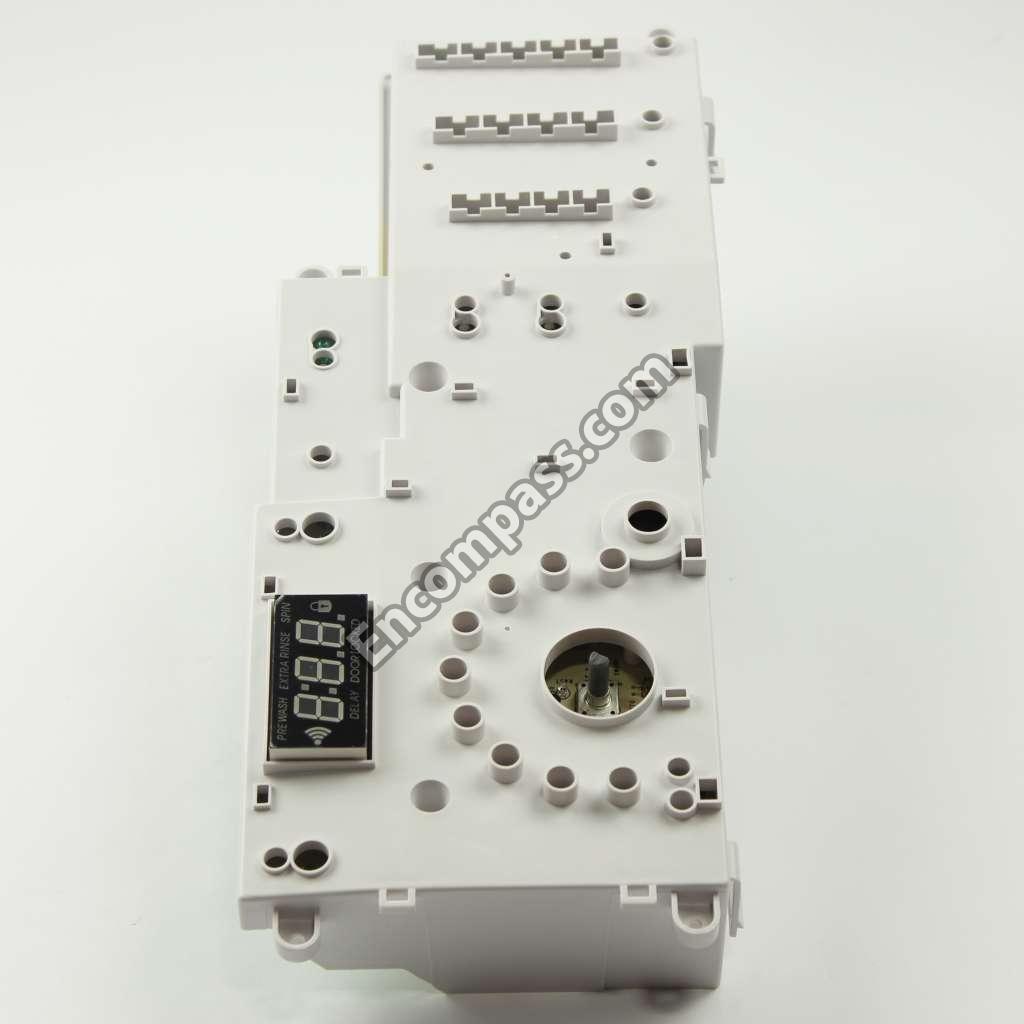

CONTROL BOARD |
|
|
CONTROL PANEL ASM BB |
|
|
CONTROL PANEL ASM MR |
|
|
CONTROL PANEL ASM MS |
|
|
CONTROL PANEL ASM WW |
|
|
CONTROL PANEL MOTHERBOARD |
|
|
CONTROL_REAR_COVER |
|
|
CORNER BRACKET |
|
|
COUNTERWEIGHT FRONT LOWER |
|
|
COUNTERWEIGHT FRONT UPPER |
|
|
COUNTERWEIGHT REAR |
|
|

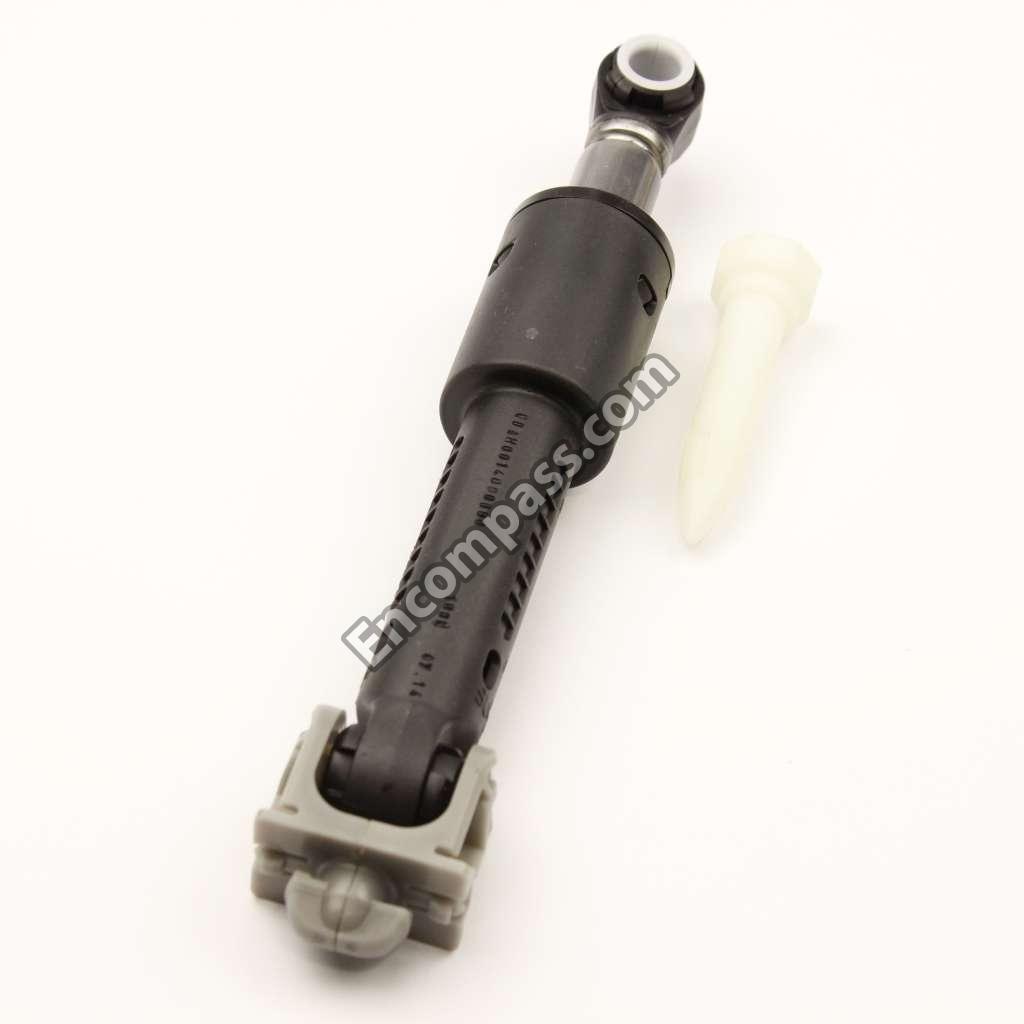

DAMPER - SHOCK |
|
|
DAMPER_PIN |
|
|
DISPENSER DWR FRONT BB |
|
|
DISPENSER DWR FRONT MOTHERBOARD |
|
|
DISPENSER DWR FRONT MR |
|
|
DISPENSER DWR FRONT MS |
|
|
DISPENSER DWR FRONT WW |
|
|
DISPENSER_CLAMP |
|
|
DISPENSER_INLET |
|
|
DISPENSER_SEAL |
|
|
DISPENSER_VENT_HOSE |
|
|
DISPENSER_VENT_HOSE_CLAM |
|
|
DIVERTER |
|
|
DIVERTER LEVER PLATE |
|
|
DIVERTER_INDICATOR |
|
|
DOOR COVER ASM |
|
|
DOOR FRAME-OUTER ASM |
|
|
DOOR GLASS |
|
|
DOOR PLUNGER |
|
|
DOOR_LOCK |
|
|
DRAIN HOSE GUIDE U-SHAPE |
|
|
DRAIN_HOSE |
|
|
DRAIN_HOSE_CLAMP |
|
|
DRAIN_HOSE_COUPLING |
|
|
DRAWER DISPENSER |
|
|
DRAWER LATCH LEVEL |
|
|
DRIVE PULLEY KIT |
|
|
DRIVING_BELT |
|
|
EMI_FILTER |
|
|
FLANGE_BOLT_M8 35 |
|
|
FRONT PANEL BB |
|
|
FRONT PANEL MB |
|
|
FRONT PANEL MR |
|
|
FRONT PANEL MS |
|
|
FRONT PANEL WW |
|
|
FRONT TUB |
|
|
FRONT_PANEL_HANGER |
|
|
FRONT_PANEL_PIN |
|
|
FRONT_TOP_BRACKET |
|
|
GASKET |
|
|
GASKET INSIDE CLAMP |
|
|
GASKET OUTSIDE CLAMP |
|
|
GASKET_NOZZLE |
|
|
GASKET_NOZZLE_WASHER |
|
|
HEATER |
|
|
HEATER SUPPORT |
|
|
HEATER THERMISTOR |
|
|
HEATER THERMISTOR |
|
|
HINGE |
|
|
HINGE COVER |
|
|
HINGE DOOR PLATE |
|
|
HINGE DOOR SHORT PIN |
|
|
HOSE - PRESSURE SWITCH |
|
|
INLET_WATER_HOSE |
|
|
INLET_WATER_HOSE_1 |
|
|
INSIDE_DRAIN_HOSE |
|
|
INSIDE_DRAIN_HOSE_CATCH |
|
|
INVERTER - METAL CASE |
|
|
INVERTER CONNECTORS SHIE |
|
|
KIT - SHIPPING BOLT |
|
|
KIT - STACKING WSH/DRY |
|
|
LEG |
|
|
LIQUID_DETERGENT_INSERT |
|
|
LOCK WASHER |
|
|
MAIN BOX DIVERTER ASM |
|
|
MAIN WATER HOSE COLD |
|
|
MAIN WATER HOSE HOT |
|
|
MINI MANUAL |
|
|
MOTOR ASM KIT |
|
|
MOTOR_SHIELD |
|
|
MOTOR_WASHER |
|
|
MY-CYCLE_BUTTON |
|
|
NUT_M16 |
|
|
NUT_M5 |
|
|
NUT_M8 |
|
|
OUTSIDE_DRAIN_HOSE |
|
|
OUTSIDE_DRAIN_HOSE_CATCH |
|
|
OWNER'S MANUAL |
|
|
POWER BUTTON |
|
|
POWER_CORD |
|
|
PRESSURE SWITCH |
|
|
PRESSURE_HOSE_CLAMP |
|
|
PROTECT COVER & RING |
|
|
PUMP |
|
|
PUMP ACCESS DOOR BB |
|
|
PUMP ACCESS DOOR MOTHERBOARD |
|
|
PUMP ACCESS DOOR MR |
|
|
PUMP ACCESS DOOR MS |
|
|
PUMP ACCESS DOOR WW |
|
|
PUMP ACCESS SHROUD |
|
|
PUMP DRAIN CHANNEL |
|
|
PUMP FILTER |
|
|
PUMP_CLAMP |
|
|
REAR_TUB |
|
|
RINSE_BUTTON |
|
|
SCREW M4 17 |
|
|
SCREW M5 12 |
|
|
SCREW ST 4 20 |
|
|
SCREW ST4.2 11 |
|
|
SCREW ST4.4 9.5 |
|
|
SCREW ST4X11 |
|
|
SCREW ST8 45 |
|
|
SCREW_M5 12 |
|
|
SCREW_M5 12 |
|
|
SCREW_M5 6 |
|
|
SCREW_ST 4.2X14 |
|
|
SCREW_ST3.5 9.5 |
|
|
SCREW_ST3.5 X 11 |
|
|
SCREW_ST4 10 |
|
|
SCREW_ST4 13 |
|
|
SCREW_ST4 13 |
|
|
SCREW_ST4 20 |
|
|
SCREW_ST4 20 |
|
|
SCREW_ST4 25 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST4.2 13 |
|
|
SCREW_ST6 35 |
|
|
SCREW_WASHER_ST4 25 |
|
|
SELECT CYCLE KNOB |
|
|
SERVICE PANEL BB |
|
|
SERVICE PANEL MOTHERBOARD |
|
|
SERVICE PANEL MR |
|
|
SERVICE PANEL MS |
|
|
SERVICE PANEL WW |
|
|
SHIPPING_SCREW_COVER |
|
|
SIDE_BRACKET |
|
|
SIPHON_PIPE |
|
|
SOFTENER COVER |
|
|
SOIL_SPEED_TEMP_BUTTON |
|
|
SPRAY_HOSE |
|
|
SPRING_HANGER |
|
|
START PAUSE BUTTON |
|
|
SUSPENSION_SPRING |
|
|
TOP DECOR COVER WW |
|
|
TOP DECORATION COVER BB |
|
|
TOP DECORATION COVER MB |
|
|
TOP DECORATION COVER MR |
|
|
TOP DECORATION COVER MS |
|
|
TOP PANEL ASM BB |
|
|
TOP PANEL ASM MB |
|
|
TOP PANEL ASM MR |
|
|
TOP PANEL ASM WW |
|
|
TOP_PANEL_PIN |
|
|
TUB DRAIN HOSE CLAMP |
|
|
TUB_SEAL |
|
|
VENT_HOSE |
|
|
VENT_HOSE_CLAMP |
|
|
VENT_HOSE_COUPLING |
|
|
WASHER |
|
|
WASHER |
|
|
WATER VALVE |
|
|
WATER_INLET_PIPE |
|
|
WIRE_CATCH |
|
|
WIRE_CATCH |
|
|
WIRE_CATCH_1 |
|
|
WIRE_HARNESS |
|
|
WIRING_COVER |
