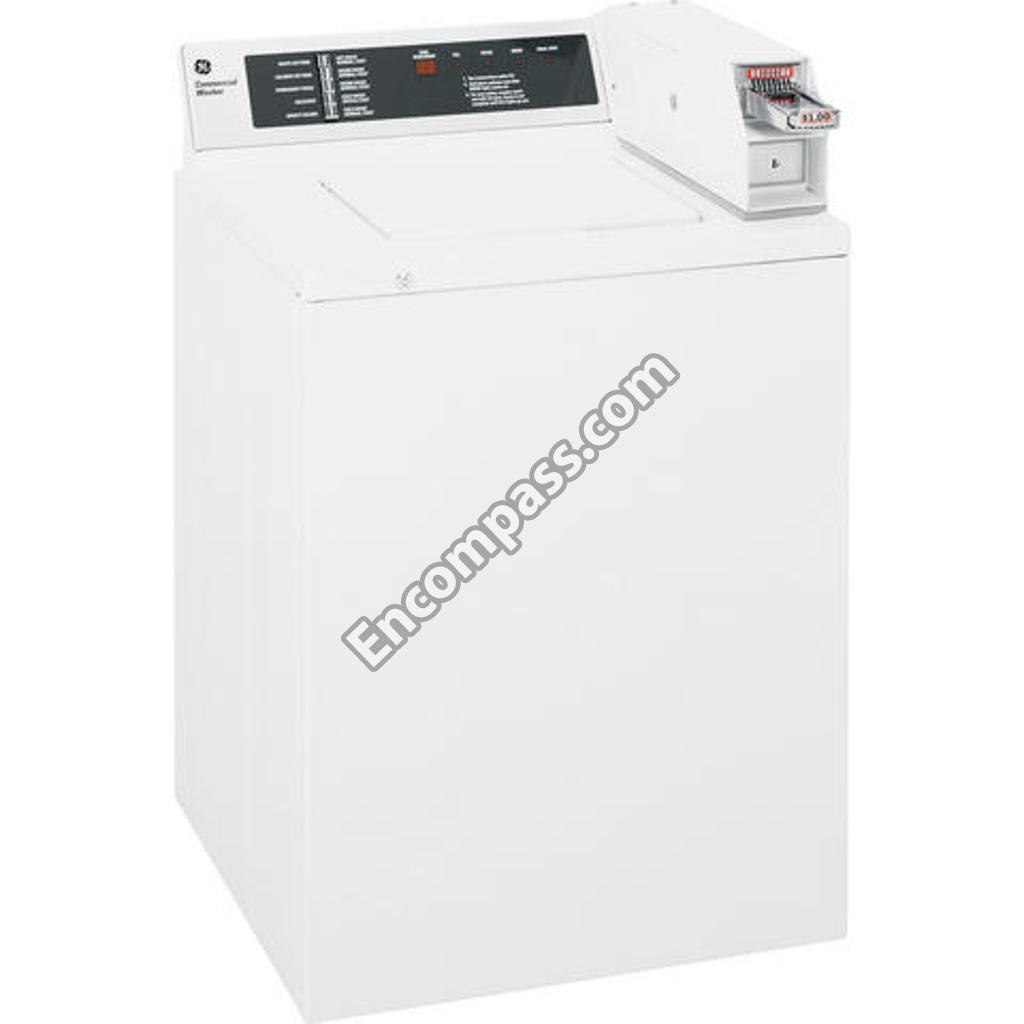

Model Image
Manufacturer

GE

Model Number

WMCD2050H2WC

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH41X10020 WH41X10020 GE ADAPTER DRAIN HOSE
WH42X2506 WH42X2506 GE ADAPTER METER CASE WHITE
WH43X10034 WH43X10034 GE AGITATOR ASSEMBLY MULTI
WH1X2784 WH1X2784 GE AGITATOR CAP
WH46X10118 WH46X10118 GE BACK PANEL
WH45X152 WH45X152 GE BAL RING ASM
WH45X0152 WH45X0152 GE BALANCE RING ASM
WH46X10148 WH46X10148 GE BASE ASM
WH01X10302 WH01X10302 GE BELT - 6 RIB
WH49X20708 WH49X20708 GE BRACKET COUNTERWEIGHT
WH01X2742 WH01X2742 GE BUMPER HINGE
WH1X2742 WH1X2742 GE BUMPER HINGE
WH01X2722 WH01X2722 GE BUMPER LID
WH1X2722 WH1X2722 GE BUMPER LID
WH01X10025 WH01X10025 GE BUSHING HINGE
WH1X2741 WH1X2741 GE BUSHING HNGE.
WH01X2266 WH01X2266 GE BUTTON PLUG
WH1X2745 WH1X2745 GE BUTTON PLUG
WH43X25443 WH43X25443 GE CAP AGITATOR SHORT
WH01X2730 WH01X2730 GE CLAMP - TUB
WH1X2730 WH1X2730 GE CLAMP - TUB
WH01X10134 WH01X10134 GE CLAMP HOSE
WH16X513 WH16X513 GE CLIP
WH1X2725 WH1X2725 GE CLIP ANT-SIP
WH01X2725 WH01X2725 GE CLIP ANTI-SIPHON
WH02X1207 WH02X1207 GE CLIP GROUND
WH2X1207 WH2X1207 GE CLIP GROUND
WH02X10279 WH02X10279 GE CLIP LOCKING
WH01X2784 WH01X2784 GE CLIP WASHER AGITATOR CAP
WH41X10036 WH41X10036 GE CONDUIT
WH12X10363 WH12X10363 GE CONTROL COIN-OP ASM
WH42X10737 WH42X10737 GE CONTROL PANEL ASM
WH19X0305 WH19X0305 GE CORD POWER ASM
WH19X10069 WH19X10069 GE CORD POWER ASM
WH01X10303 WH01X10303 GE COUNTERWEIGHT
WH43X10032 WH43X10032 GE COUPLING AGITATOR
WH44X1218 WH44X1218 GE COVER ASSEMBLY FINISHED WHITE
WH01X2723 WH01X2723 GE COVER CLIP
WH01X10422 WH01X10422 GE COVER CLIP
WH49X21274 WH49X21274 GE COVER TUB
WH42X2507 WH42X2507 GE DOOR & LATCH ASSEMBLY
WH07X10019 WH07X10019 GE DRIVE PULLEY
WH42X10735 WH42X10735 GE END CAP LH BK
WH42X10734 WH42X10734 GE END CAP RH BK
WH49X0264 WH49X0264 GE ENVELOPE ASM LOCKDOWN
WH12X10408 WH12X10408 GE FILTER POWER LINE
WH02X1199 WH02X1199 GE FLAT WASHER
WH41X10165 WH41X10165 GE FUNNEL SHOWER HEAD
WH08X10006 WH08X10006 GE GASKET COIN BOX WASHER
WH1X2729 WH1X2729 GE GASKET FL HD
WH49X10041 WH49X10041 GE HARNESS SERVICE KIT
WH02X10233 WH02X10233 GE HEX NUT OVERMOLD ASM
WH41X10053 WH41X10053 GE HOSE & SPRING ASSEMBLY
WH41X374 WH41X374 GE HOSE DR INT
WH41X0374 WH41X0374 GE HOSE DRAIN ASM
WH41X22935 WH41X22935 GE HOSE DRAIN INLET
WH41X0369 WH41X0369 GE HOSE FLOOD
WH41X369 WH41X369 GE HOSE FLOOD
WH41X10251 WH41X10251 GE HOSE INTAKE ASSEMBLY
WH41X365 WH41X365 GE HOSE PRES SW
WH41X0365 WH41X0365 GE HOSE PRESSURE
WH02X0042 WH02X0042 GE HOSE WASHER
WH12X0538 WH12X0538 GE HOUSING TERMINAL
WH12X0497 WH12X0497 GE HOUSING TERMINAL
WH12X0870 WH12X0870 GE HOUSING TERMINAL BK
WH12X870 WH12X870 GE HSG TERM BLK
WH45X10027 WH45X10027 GE HUB
WH01X2724 WH01X2724 GE ISOLATOR
WH1X2724 WH1X2724 GE ISOLATOR
WH49X10043 WH49X10043 GE KIT - FUSE LINK (2 PACK)
WH17X10016 WH17X10016 GE LEG AND PLATFORM ASM
WH02X1187 WH02X1187 GE LEG LEVELING
WH2X1187 WH2X1187 GE LEG LEVELING
WH44X20022 WH44X20022 GE LID ASSEMBLY FINISHED
WH12X1051 WH12X1051 GE LID SWITCH ASSEMBLY
WH42X2508 WH42X2508 GE METER CASE WHITE
WH20X10055 WH20X10055 GE MOTOR/INVERTER 2-SPD E/M
WH46X0364 WH46X0364 GE NO ITEM DESCRIPTION
WH41X0035 WH41X0035 GE NOZZLE DRAIN
WH41X35 WH41X35 GE NOZZLE DRAIN
WH16X528 WH16X528 GE NUT & BRKT
WH16X0528 WH16X0528 GE NUT BRACKET ASM
WH02X1193 WH02X1193 GE NUT HUB
WH2X1193 WH2X1193 GE NUT HUB
WH02X1203 WH02X1203 GE NUT PULLEY
WH2X1203 WH2X1203 GE NUT PULLEY
WH46X10110 WH46X10110 GE PANEL & BRACE ASM WH/EXP
WH46X10083 WH46X10083 GE PANEL BACK
WH01X10072 WH01X10072 GE PCB COVER COIN-OP
WH02X1189 WH02X1189 GE PIN ALIGNMENT
WH2X1189 WH2X1189 GE PIN ALIGNMNT
WH02X1188 WH02X1188 GE PIN ROLL
WH2X1188 WH2X1188 GE PIN ROLL
WH1X2266 WH1X2266 GE PLUG BUTTON
WH49X10053 WH49X10053 GE PM ENVELOPE ASM LOCKDOWN
31-16545 31-16545 GE PM INSTRUCTION INSTALL
49-90306 49-90306 GE PM MANUAL USE & CARE
31-16554 31-16554 GE PM SHEET MINI MANUAL
WH23X10030 WH23X10030 GE PUMP
WD09X0206 WD09X0206 GE PUSHBUTTON
WD9X206 WD9X206 GE PUSHBUTTON
WB17X5060 WB17X5060 GE RANGE CONNECTOR KIT
WH1X2268 WH1X2268 GE RETAINER
WH01X2268 WH01X2268 GE RETAINER BUTTON
WH16X0513 WH16X0513 GE RETAINER HOSE
WH1X2726 WH1X2726 GE RETAINER S
WH01X2726 WH01X2726 GE RETAINER STRAP
WH45X10047 WH45X10047 GE RIBBED ENERGY BASKET
WH16X0544 WH16X0544 GE ROD & SPRING ASM
WH16X10057 WH16X10057 GE ROD & SPRING ASSEMBLY/GREEN
WH16X544 WH16X544 GE ROD/SPRG BLK
WH2X1201 WH2X1201 GE SCR 1/4-20 B
WH02X10235 WH02X10235 GE SCR 1/4-20 B HXW 3.9 SNS
WH02X1201 WH02X1201 GE SCR 1/4-20 B HXW 3/4 SNS
WH02X10237 WH02X10237 GE SCR 1/4-20 MCH HXW 5/8 S
WH02X1234 WH02X1234 GE SCR 1/4-20MAC PNT .95
WH02X0694 WH02X0694 GE SCR 10-12 A HX 1/2 S
WZ02X0468 WZ02X0468 GE SCR 10-32 M HS 1/8 S
WH02X0946 WH02X0946 GE SCR 10-32 M HXW 1/4 S
WH02X10267 WH02X10267 GE SCR 5/16-18 TPT IHW S N
WH02X1209 WH02X1209 GE SCR 5/16-18 X 7/8 HWH S
WH01X10423 WH01X10423 GE SCR 6-20 B TRT 3/8 S
WH02X1217 WH02X1217 GE SCR 8-18 AB IHW 7/16 SN
WH02X1233 WH02X1233 GE SCR 8-18 AB TRT 5/8 S
WH2X1205 WH2X1205 GE SCR 8-18 B
WH02X1205 WH02X1205 GE SCR 8-18 B 1/2 HXW P
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WH02X10282 WH02X10282 GE SCR 8-18 B IHW 1 S
WH02X1185 WH02X1185 GE SCR 8-18 B IHW 5/16 S
WH02X10280 WH02X10280 GE SCR 8-32 SN 5/16 S
WH02X1211 WH02X1211 GE SCREW
WH2X1234 WH2X1234 GE SCREW
WH2X1233 WH2X1233 GE SCREW
WH2X1217 WH2X1217 GE SCREW
WH2X1211 WH2X1211 GE SCREW
WH2X930 WH2X930 GE SCREW
WH02X10123 WH02X10123 GE SCREW 1/4-20 TPT 1H 1/2 SN
WH2X1194 WH2X1194 GE SCREW 10-18 PL
WH02X10001 WH02X10001 GE SCREW 14-10 A TRT 7/8 S
WH01X10109 WH01X10109 GE SCREW 8-15 A 3/4 SP HXW
WH02X10002 WH02X10002 GE SCREW 8-18 AB IHWP 7/8 S
WH02X10126 WH02X10126 GE SCREW 8-18 B 1HW 1/2 SN
WH02X10090 WH02X10090 GE SCREW 8-18 B HXW 5/16 S
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
8-32X5_16 8-32X5_16 GE SCREW-CAP
WB01X1158 WB01X1158 GE SCREW-NICKEL
WZ2X468D WZ2X468D GE SCREW-PKG 12
WH2X694D WH2X694D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WZ5X158D WZ5X158D GE SCREW-PKG 12
WH12X10208 WH12X10208 GE SELF LOCKING STRAIN RELF
WX05X20641 WX05X20641 GE SERVICE KIT BELT TOOL
WH38X10017 WH38X10017 GE SHAFT AND MODE SHIFTER ASSEMBLY
WH46X0344 WH46X0344 GE SHIPPING BAR ASM
WH01X2572 WH01X2572 GE SLEEVE SPLIT
WH1X2572 WH1X2572 GE SLEEVE SPLIT
WH01X10001 WH01X10001 GE SOCKET ROD SUPPORT
WH02X10265 WH02X10265 GE SPLIT RING
WH2X1190 WH2X1190 GE STUD GROUND
WH02X1190 WH02X1190 GE STUD GROUNDING
WH12X10311 WH12X10311 GE SWITCH PRESSURE
WH12X10496 WH12X10496 GE SWITCH PUSH-BUTTON ASSEMBLY
WH12X497 WH12X497 GE TERM HOUSING
WH12X538 WH12X538 GE TERM HSNG
WD01X1434 WD01X1434 GE TERMINAL SPECIAL
WD1X1434D WD1X1434D GE TERMN-PKG 12
WH12X10376 WH12X10376 GE TIMER COIN-OP
WH13X10026 WH13X10026 GE TRIPLE WATER VALVE
WH45X20473 WH45X20473 GE TUB ASSEMBLY X-LARGE
WH1X2036 WH1X2036 GE UNIV CLAMP
WH2X1199 WH2X1199 GE WASHER HUB
WH2X1197 WH2X1197 GE WASHER TUB BEARING
WH46X10094 WH46X10094 GE WASHING MACHINE SELF-LEVELING BAR
WH46X25157 WH46X25157 GE WASHING MACHINE SHIPPING BAR
WH2X1198 WH2X1198 GE WASHING MACHINE TUB BEARING
WH1X2727 WH1X2727 GE WASHING MACHINE TUB DAMPENING STRAP
WH02X10383 WH02X10383 GE WASHING MACHINE TUB SEAL
WH2X42D WH2X42D GE WASHR PKG 12
WH46X10270 WH46X10270 GE WELD ASM ROD SUPPORT
WH01X10704 WH01X10704 GE WIRE TIE/PLUG
WH01X2783 WH01X2783 GE WIREFORM HINGE
WH01X10033 WH01X10033 GE WIREFORM HINGE
WH1X2783 WH1X2783 GE WIREFORM HNG
