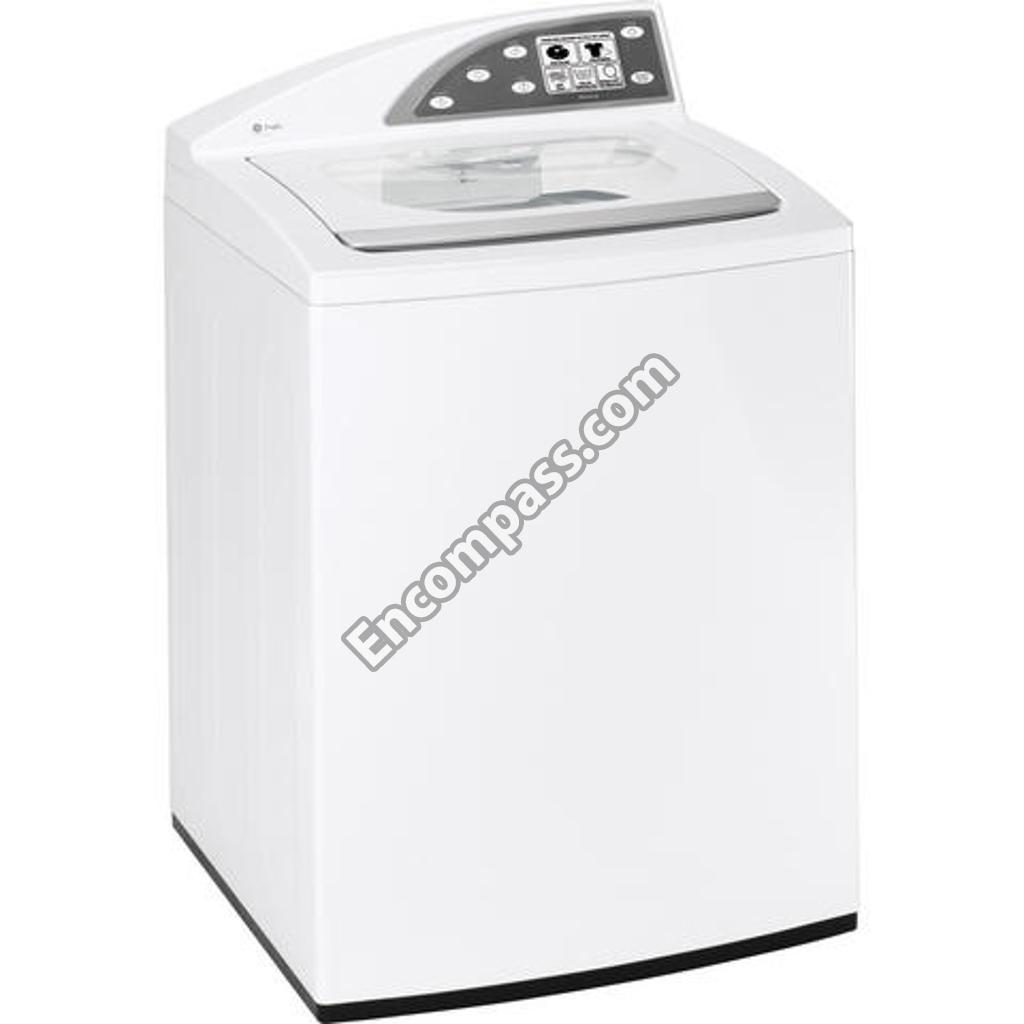

Model Image
Manufacturer

GE

Model Number

WPGT9360E0WW

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH46X10101 WH46X10101 BACK COVER
WH45X10054 WH45X10054 BALANCE ASM
WH01X10213 WH01X10213 BLEACH CAP
WH02X10149 WH02X10149 BOLT
WH47X10007 WH47X10007 BOX BLEACH
WH16X10070 WH16X10070 BRACKET HEATER
WE08X10058 WE08X10058 CABLE ASM - 11 PIN-WHITE
WH19X10030 WH19X10030 CABLE ASSEMBLY - BLUE
WH47X10005 WH47X10005 CAP INSERT - LEFT
WH47X10006 WH47X10006 CAP INSERT - MIDDLE
WH47X10016 WH47X10016 CAP INSERT - RIGHT

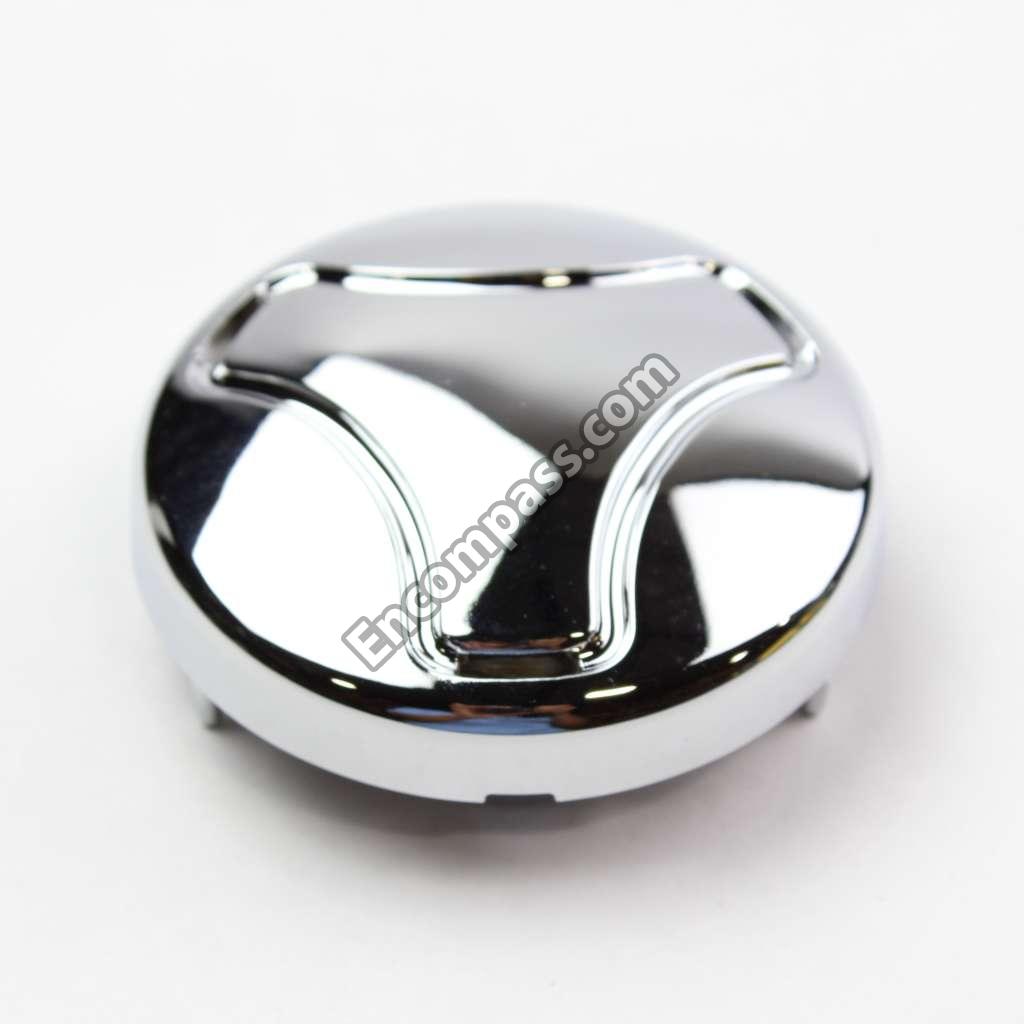

WH43X10049 WH43X10049 CAP PULSATOR
WH01X10204 WH01X10204 CLAMP
WH01X10212 WH01X10212 CLAMP

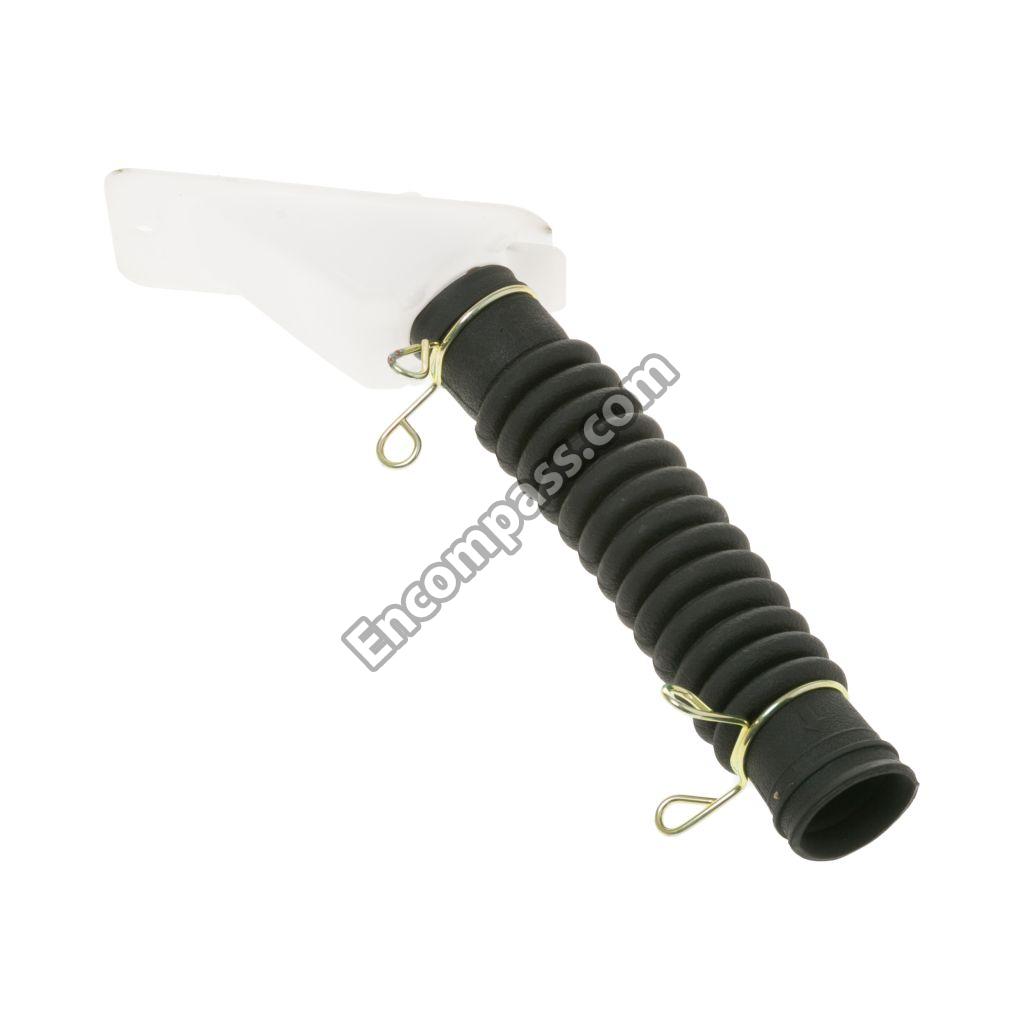

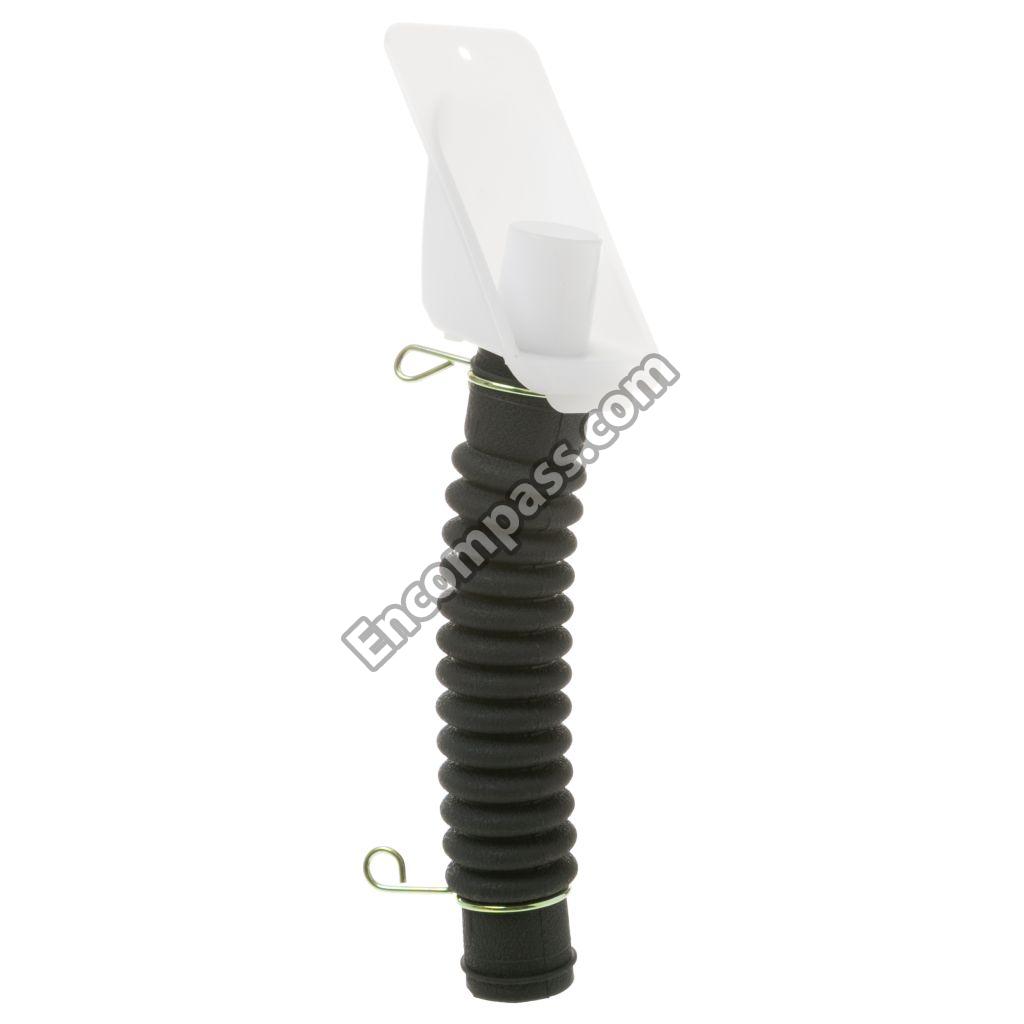

WH41X10081 WH41X10081 CONNECTOR - HOSE ASM
WH41X10091 WH41X10091 CONNECTOR - HOSE ASM
WE19X10072 WE19X10072 CONTROL PANEL ASM WH-RH
WH46X10100 WH46X10100 CONTROL PANEL ASSEMBLY PL-LH
WE19X10071 WE19X10071 CONTROL PANEL ASSEMBLY PL-RH

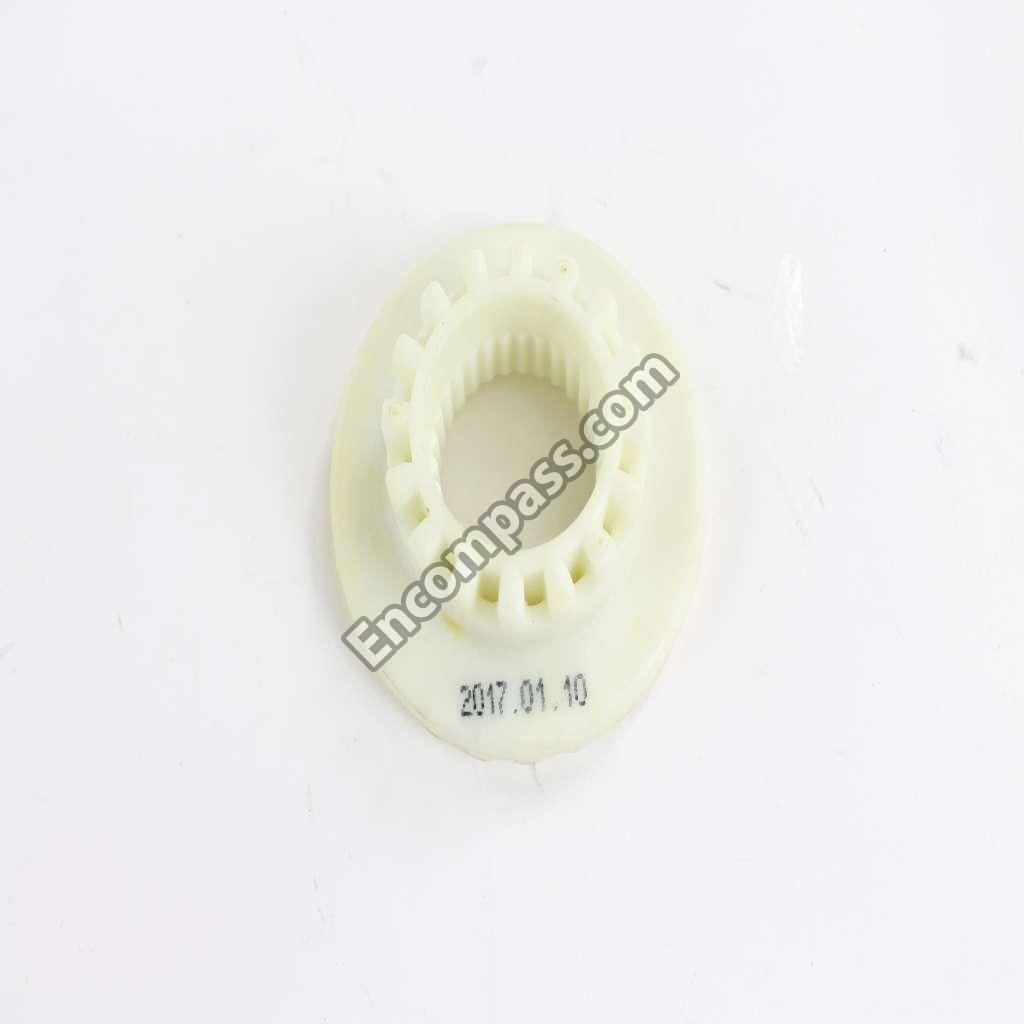

WH01X10211 WH01X10211 COUPLING

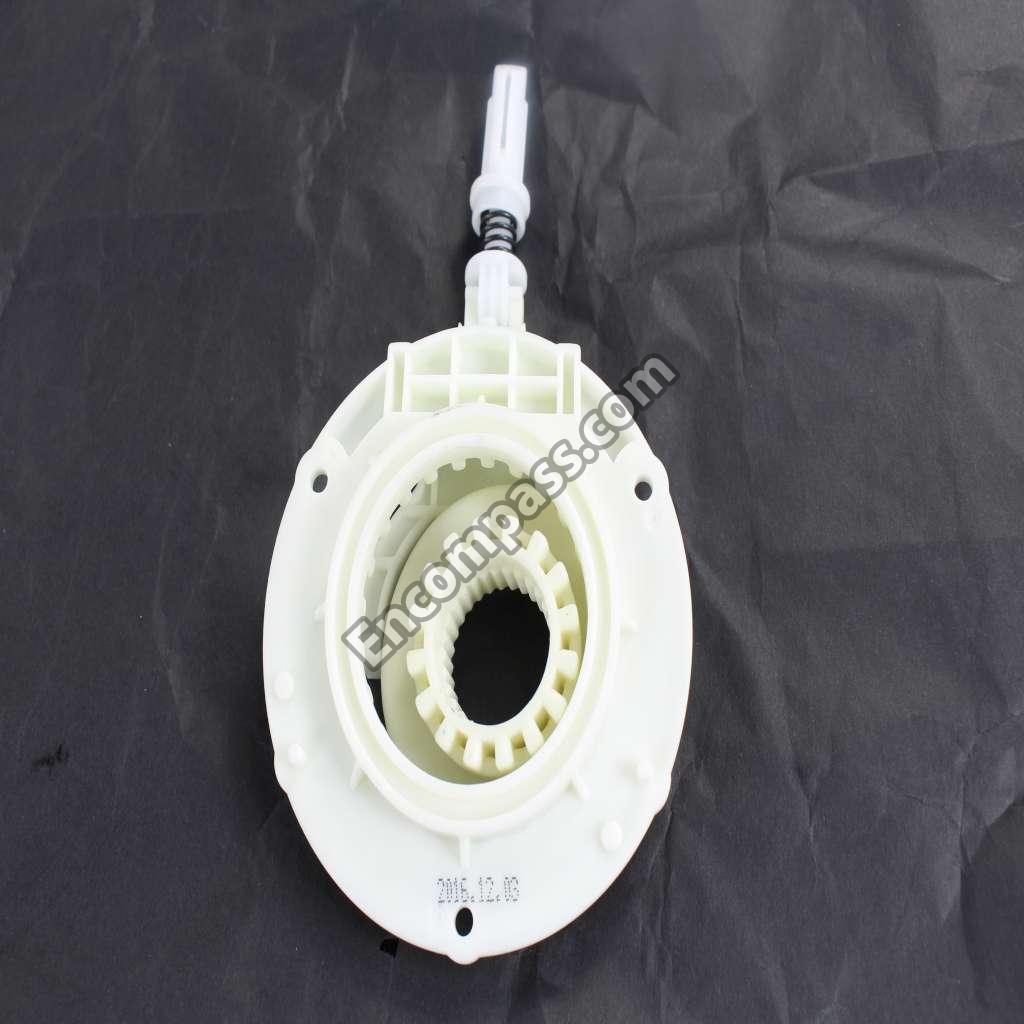

WH01X10210 WH01X10210 COUPLING ASM
WH44X10117 WH44X10117 COVER ASSEMBLY TUB
WH46X10099 WH46X10099 COVER PROTECT
WH44X10166 WH44X10166 COVER PROTECT
WH44X10119 WH44X10119 COVER, PROTECT
WH47X25042 WH47X25042 DETERGENT BOX ASM

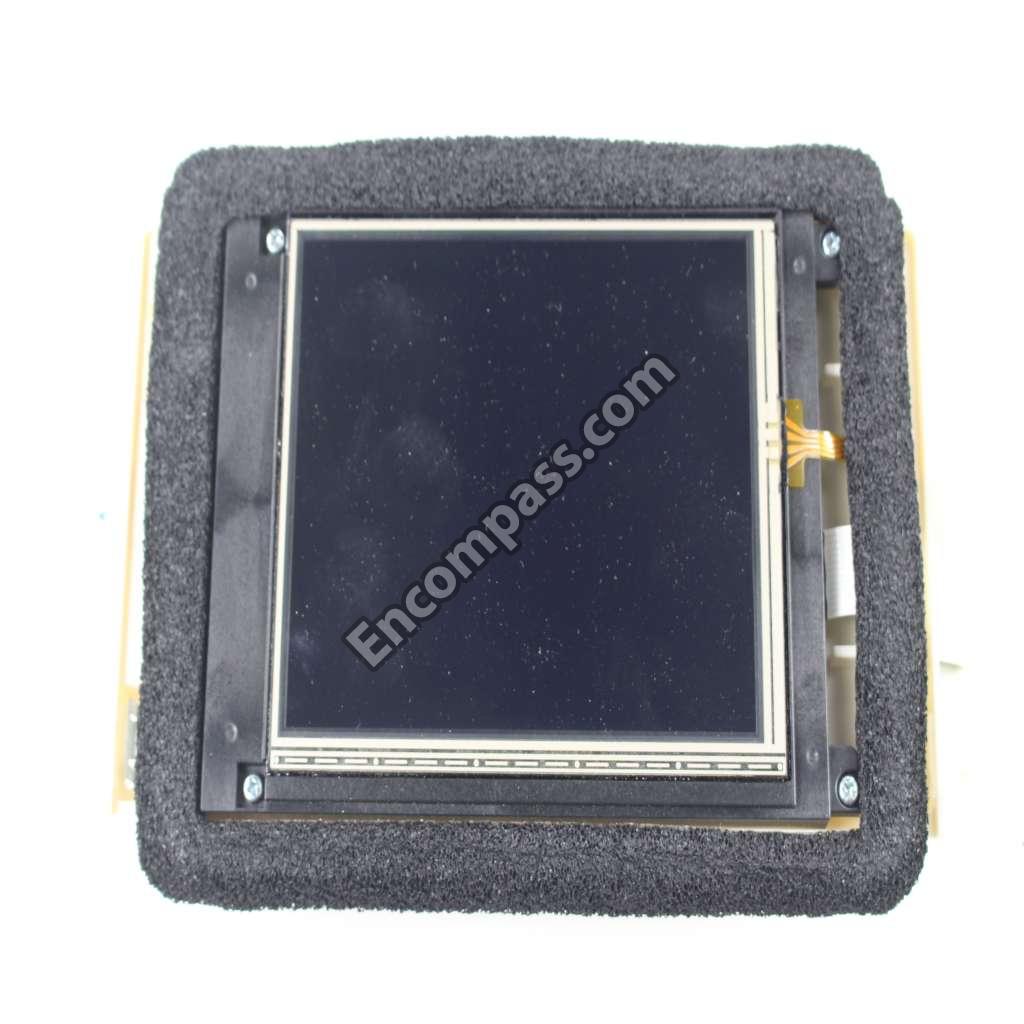

WH12X10282 WH12X10282 DISPLAY ASM - PWB/PCB

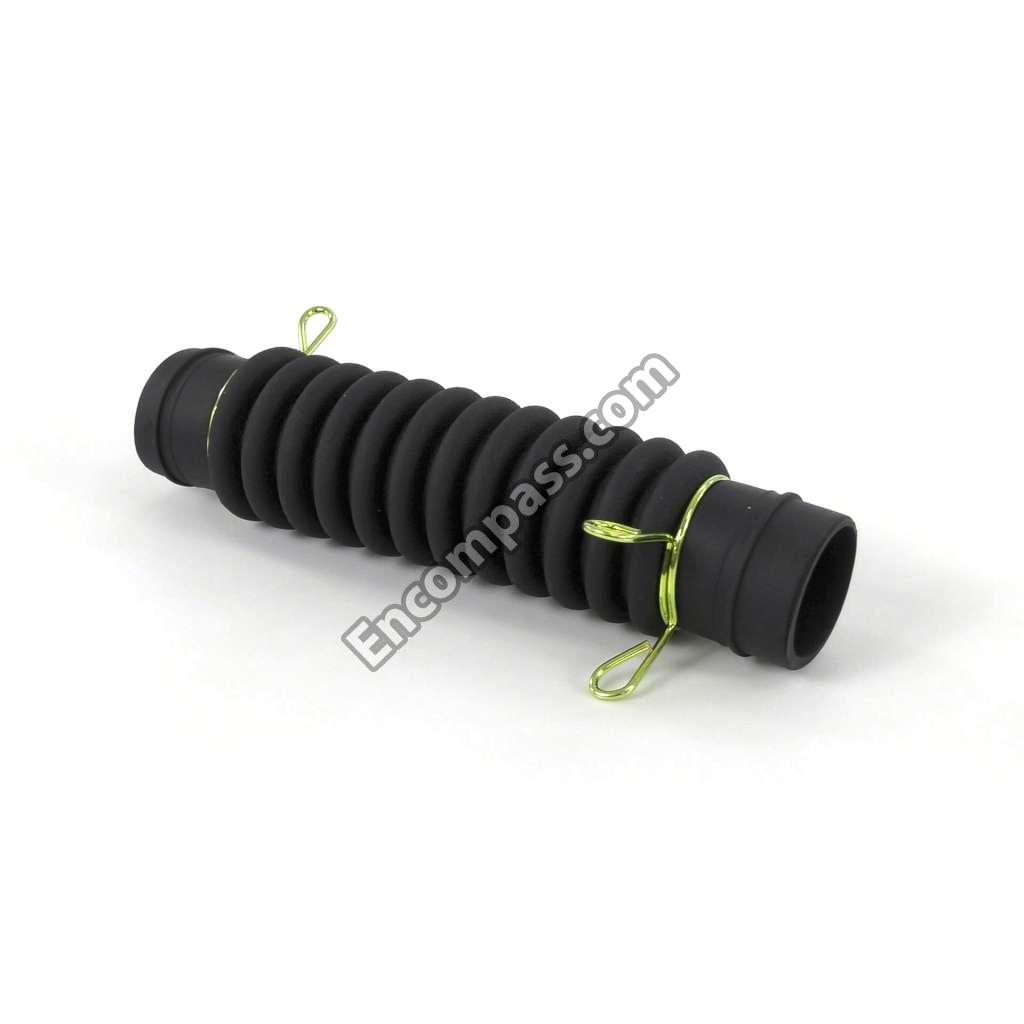

WH41X10083 WH41X10083 DRAIN HOSE
WH41X10082 WH41X10082 DRAIN HOSE ASM
WH12X10283 WH12X10283 FILTER ASM -CIRC
WH41X10090 WH41X10090 GUIDE WATER
WH16X10055 WH16X10055 HANGER ASM PIVOT
WH16X10054 WH16X10054 HANGER ASM PIVOT
WH16X10053 WH16X10053 HANGER ASM PIVOT
WH16X10052 WH16X10052 HANGER ASM PIVOT
WH19X10040 WH19X10040 HARNESS MOTOR
WH19X10041 WH19X10041 HARNESS PWB
WH19X10043 WH19X10043 HARNESS PWB
WH12X10284 WH12X10284 HEATER ASSEMBLY
WH01X10223 WH01X10223 HINGE LEFT
WH01X10224 WH01X10224 HINGE RIGHT
WH41X10088 WH41X10088 HOSE INLET
WH41X10085 WH41X10085 HOSE INLET
WH41X10100 WH41X10100 HOSE INLET
WH41X10170 WH41X10170 HOSE INLET - COLD
WH45X10055 WH45X10055 HUB INNER TUB
WE08X10060 WE08X10060 INTERNAL COMM CABLE
WH02X10144 WH02X10144 LEG ASM - REAR
WH02X10145 WH02X10145 LEG ASM W/CAP

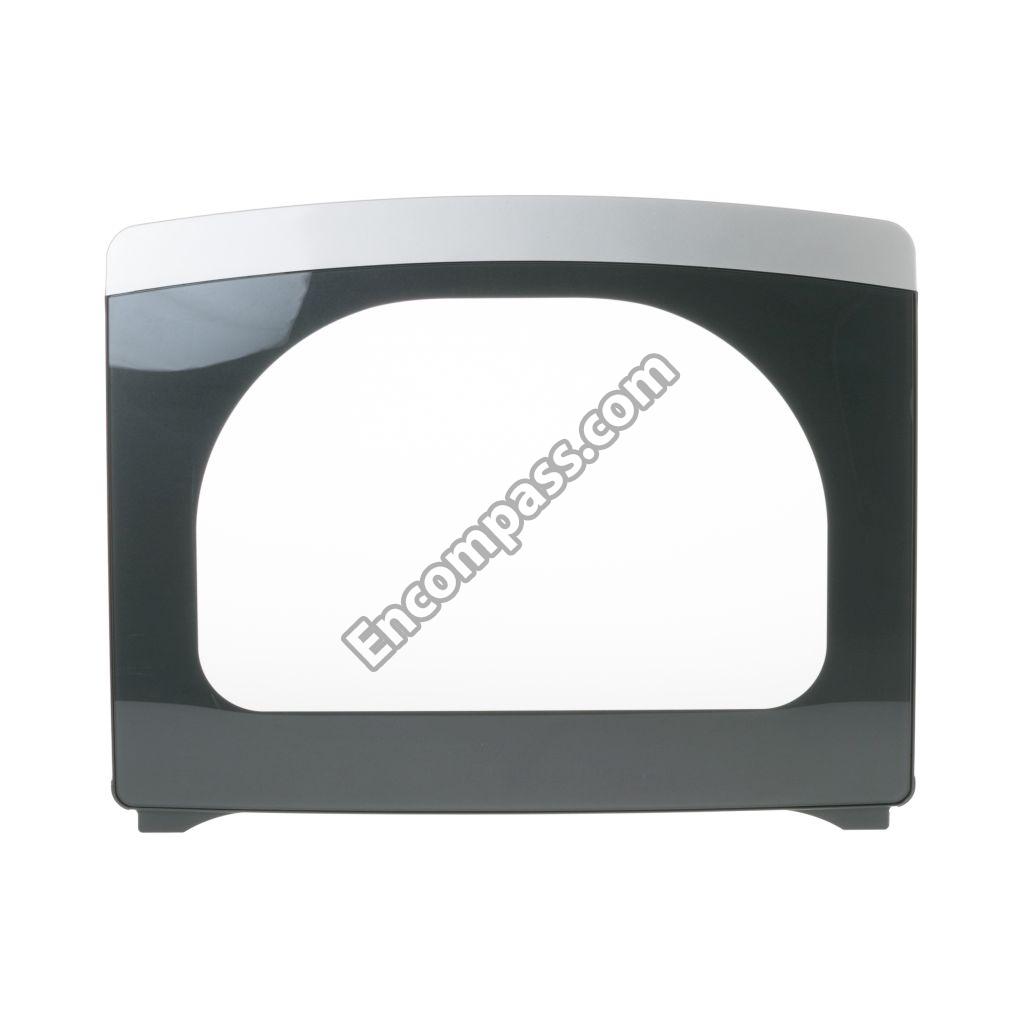

WH44X10167 WH44X10167 LID ASM PL GREY

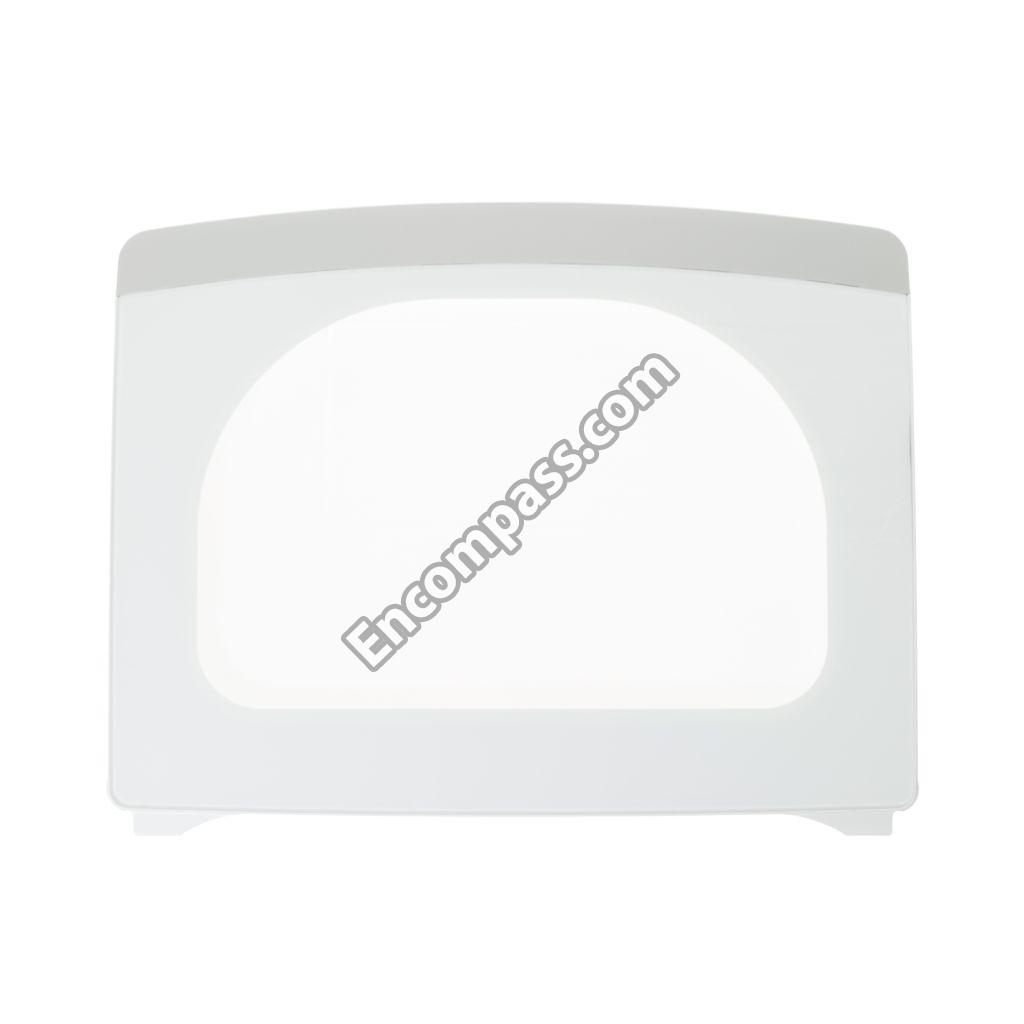

WH44X10165 WH44X10165 LID ASM WHITE
WH12X10244 WH12X10244 LID SWITCH ASM
WH01X10206 WH01X10206 LID TRIM

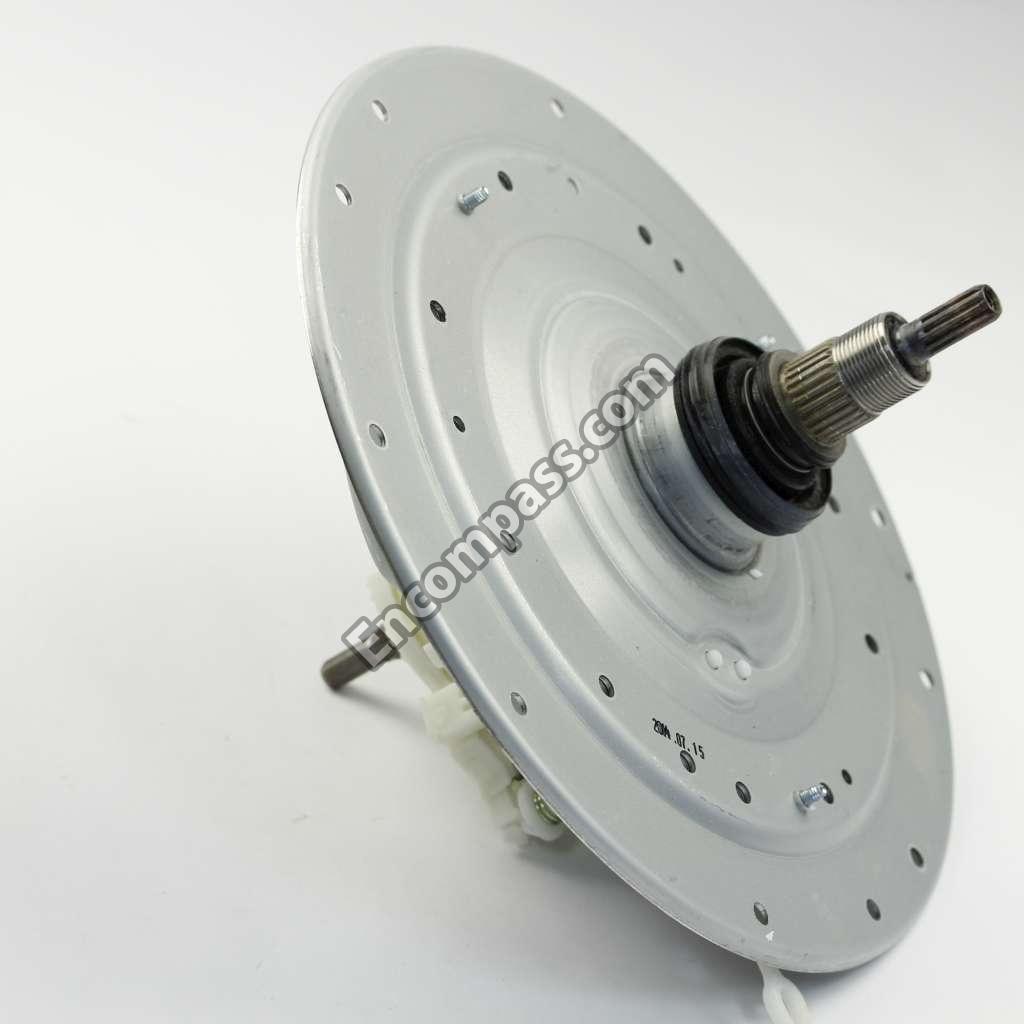

WH39X10003 WH39X10003 MECH HSNG ASM - BEARING
31-15567 31-15567 MINI MANUAL
WH20X10024 WH20X10024 MOTOR ASM

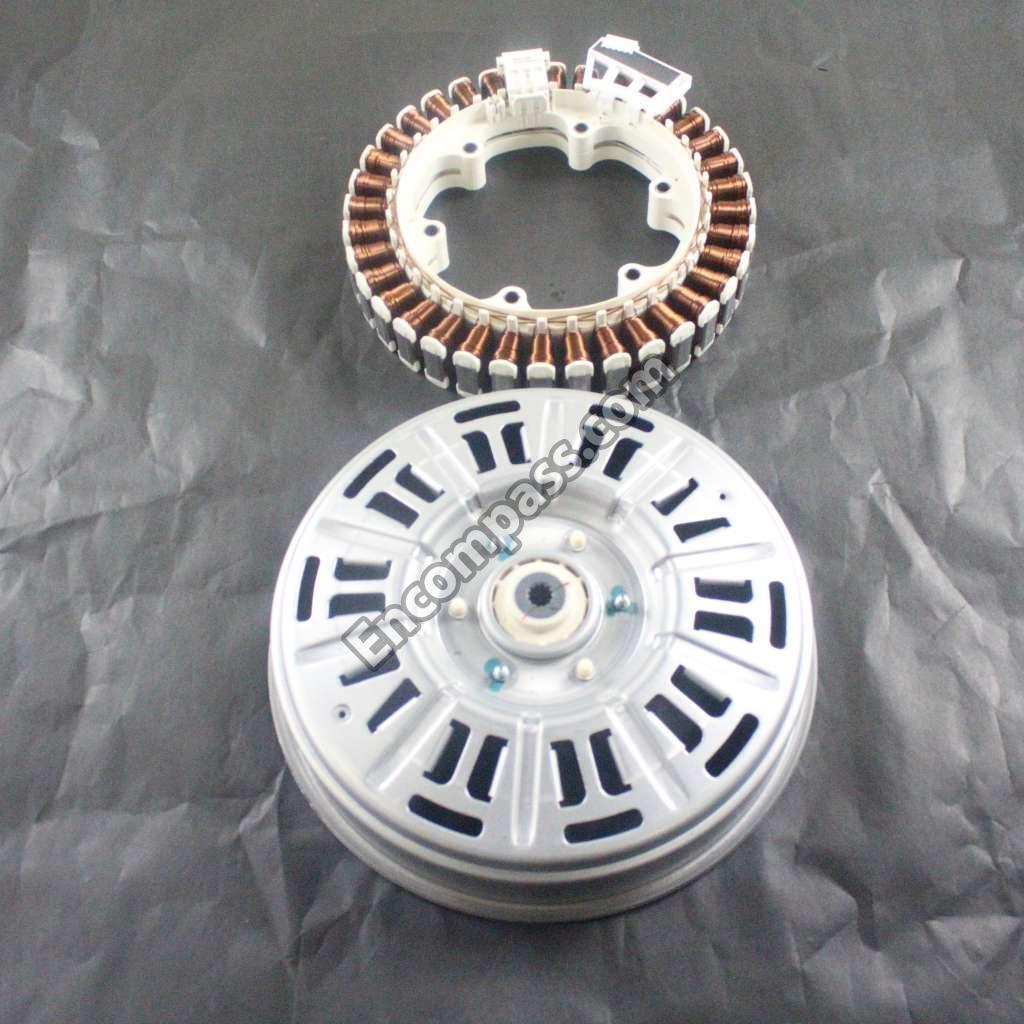

WH49X25041 WH49X25041 MOTOR ASSEMBLY KIT

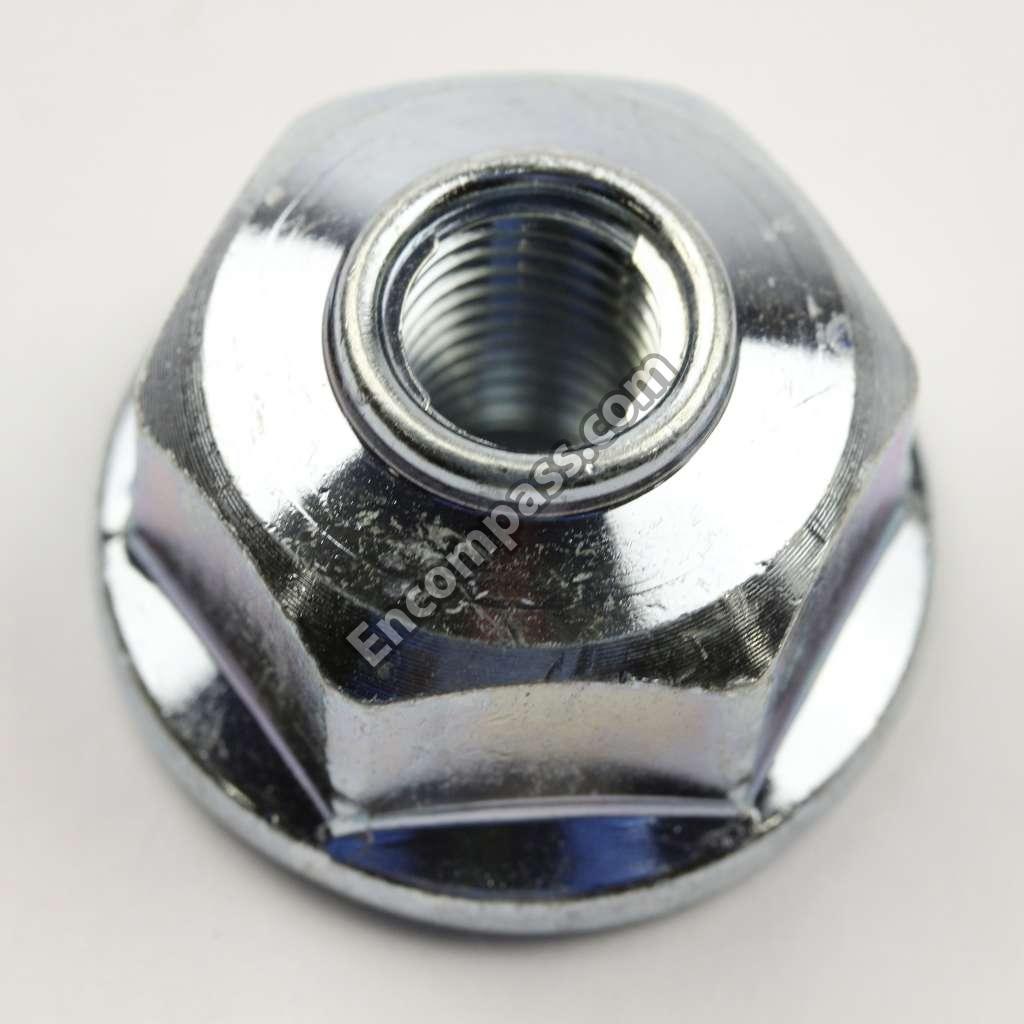

WH01X10209 WH01X10209 NUT
WH01X10205 WH01X10205 NUT

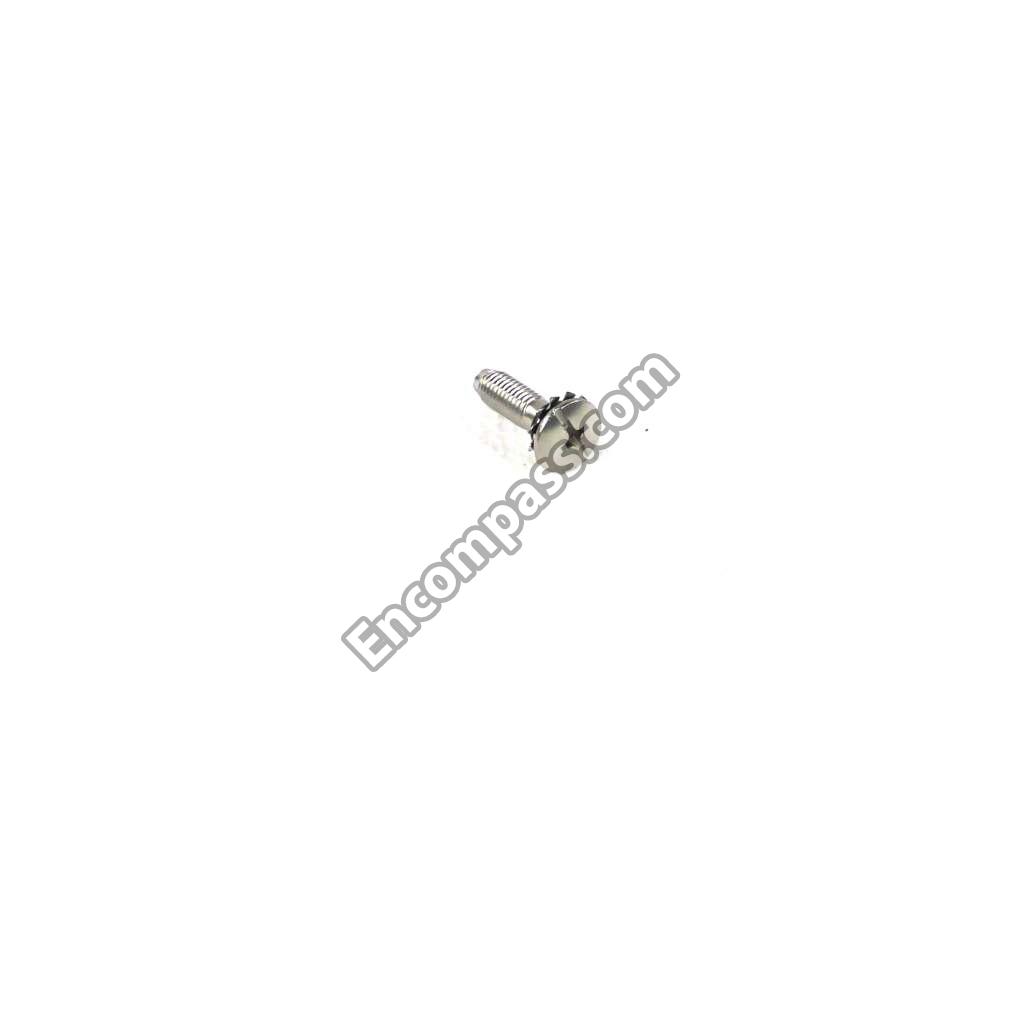

WH02X10151 WH02X10151 P F SCREW ASSEMBLY
WH46X10098 WH46X10098 PANEL ASSEMBLY FRONT WH-LH
WH46X10119 WH46X10119 PANEL BACK
WH46X10097 WH46X10097 PANEL BACK
WH41X10084 WH41X10084 PIPE
WH19X10042 WH19X10042 POWER CORD ASM

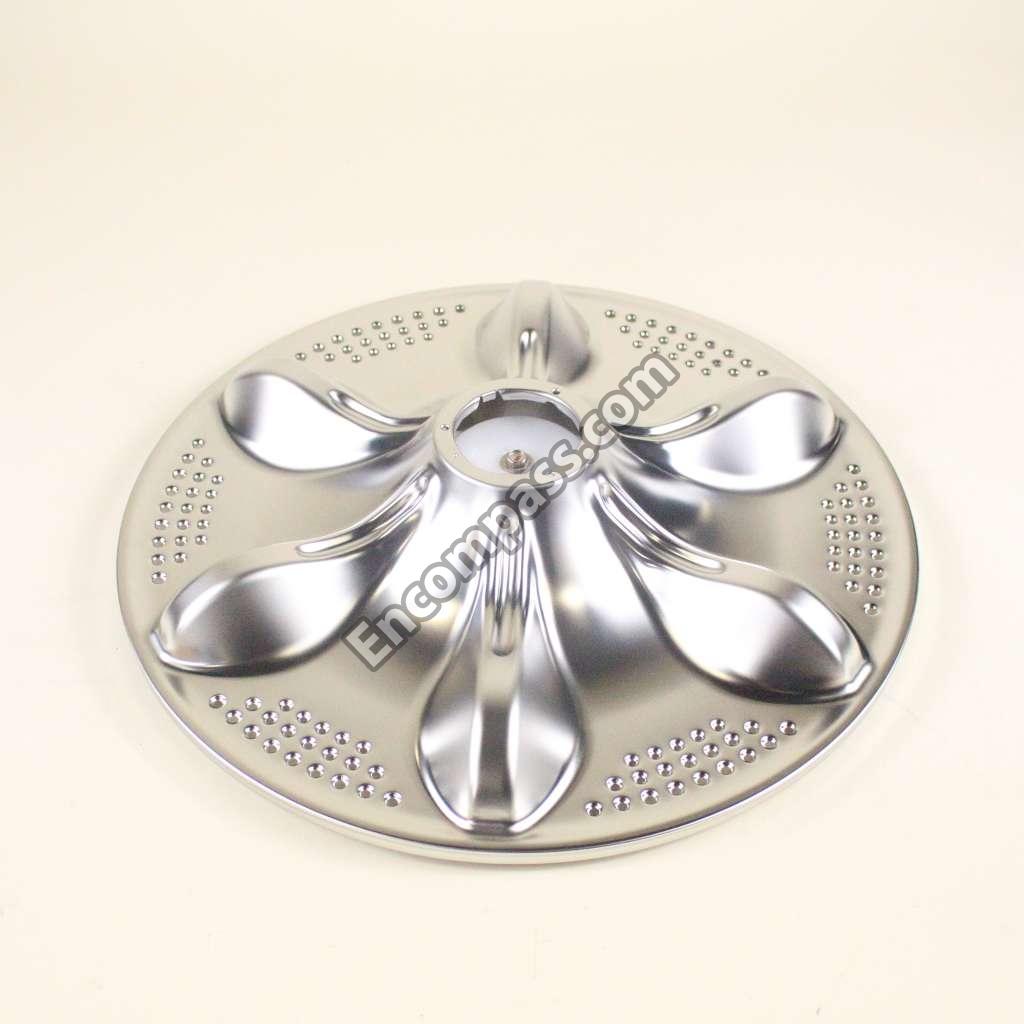

WH43X10027 WH43X10027 PULSATOR ASM

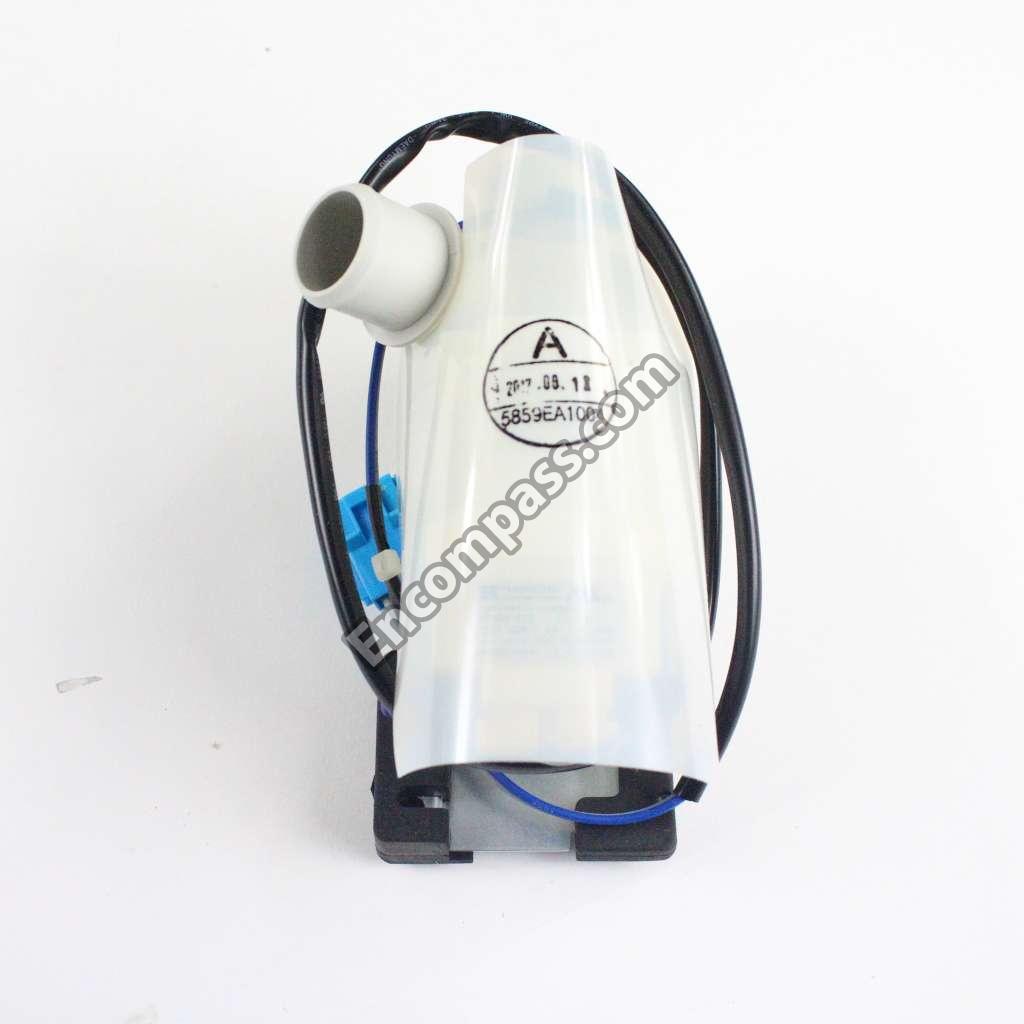

WH23X10020 WH23X10020 PUMP ASM - DRAIN
WH12X10286 WH12X10286 PWB(PCB) ASM HEATER
WH12X10281 WH12X10281 PWB/PCB) ASM - MAIN
WH12X10250 WH12X10250 RESISTOR
WH01X10208 WH01X10208 RING SNAP
WH02X10147 WH02X10147 SCREW
WE02X10060 WE02X10060 SCREW
WH02X10264 WH02X10264 SCREW & GASKET ASM
WH02X10159 WH02X10159 SCREW PACK
WH02X10160 WH02X10160 SCREW PACK
WH02X10158 WH02X10158 SCREW PACK
WH02X10143 WH02X10143 SCREW TAPPING TRUSS HD

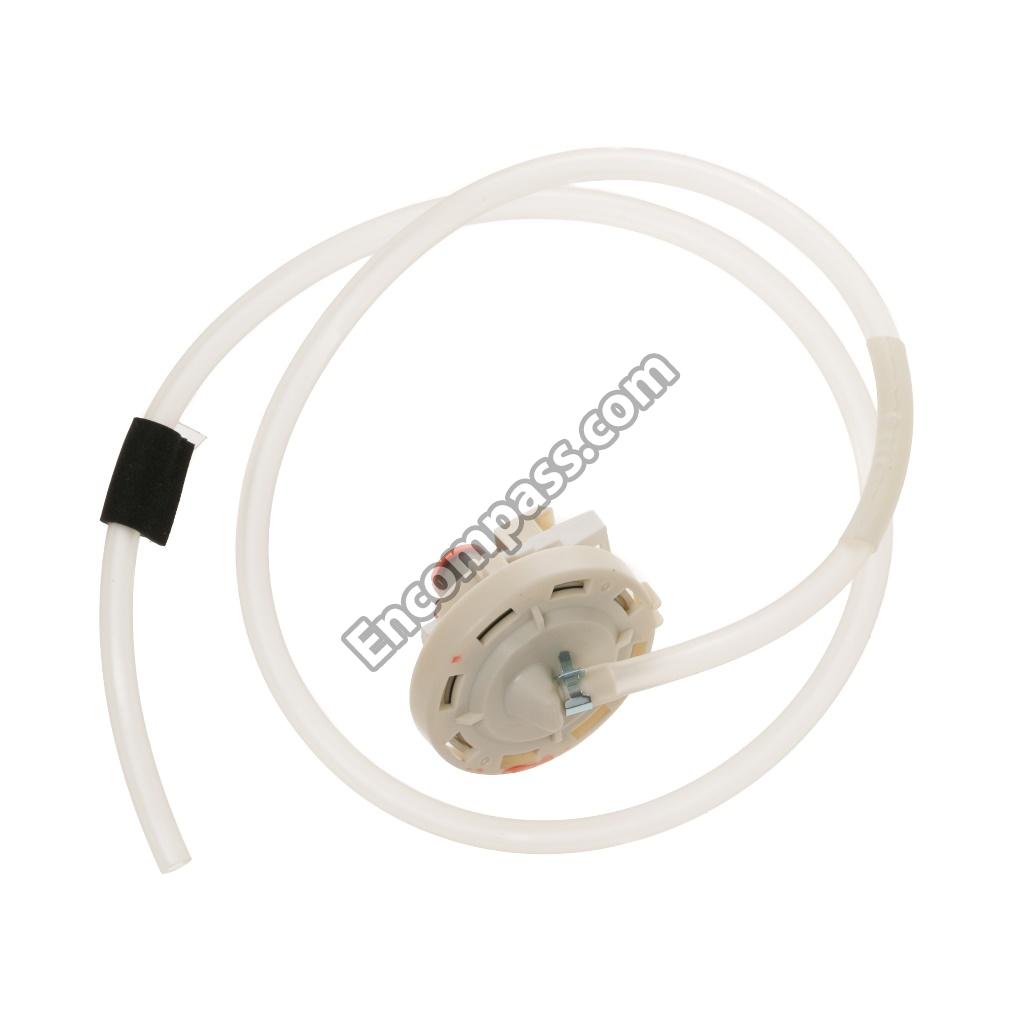

WH12X10247 WH12X10247 SENSOR SWITCH ASM
WH47X10013 WH47X10013 SHOWER DETERGENT PL
WH47X10014 WH47X10014 SHOWER DETERGENT WH
WH16X10056 WH16X10056 SUSPENSION ASM

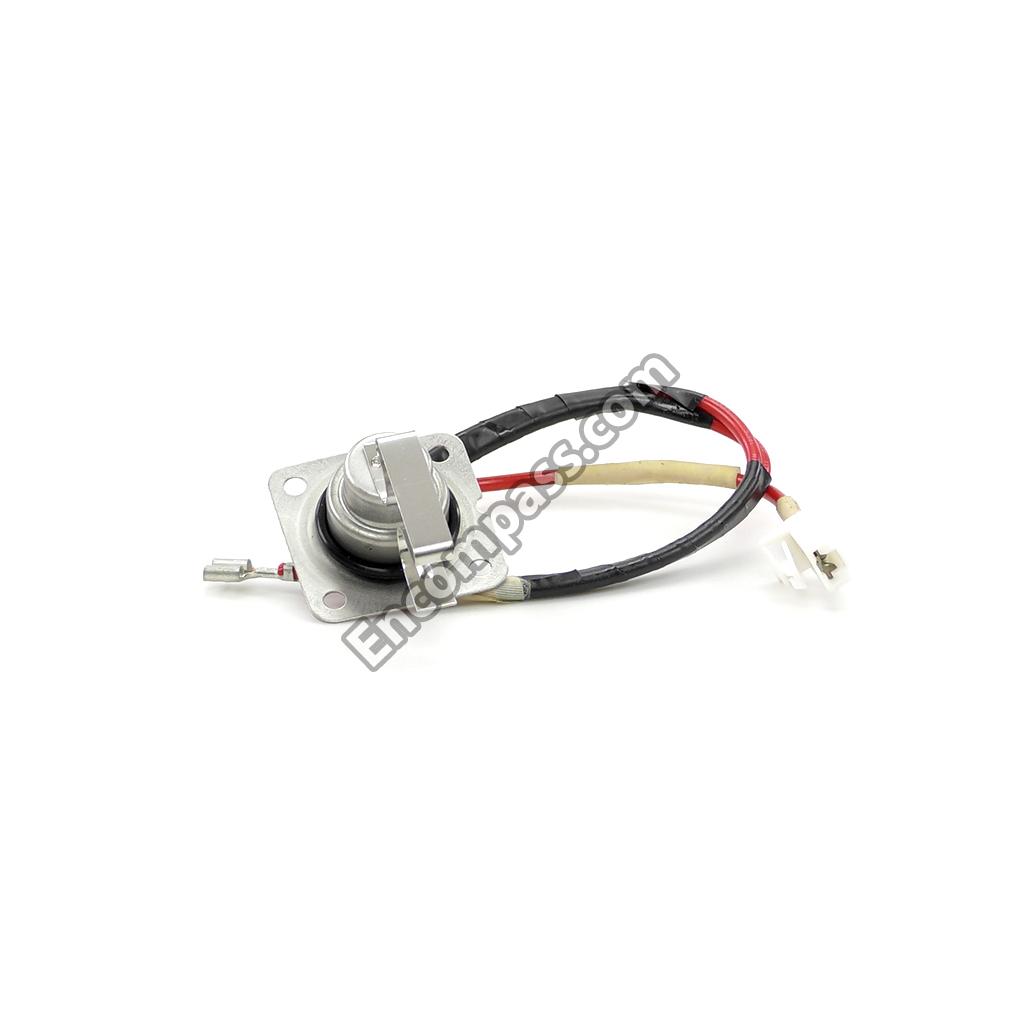

WH12X10249 WH12X10249 THERMISTOR ASM
WH12X10285 WH12X10285 THERMOSTAT ASSEMBLY
WH44X10121 WH44X10121 TOP COVER PL
WH44X10118 WH44X10118 TOP COVER WH
WH45X10056 WH45X10056 TUB ASM - INNER
WH45X10063 WH45X10063 TUB OUTER

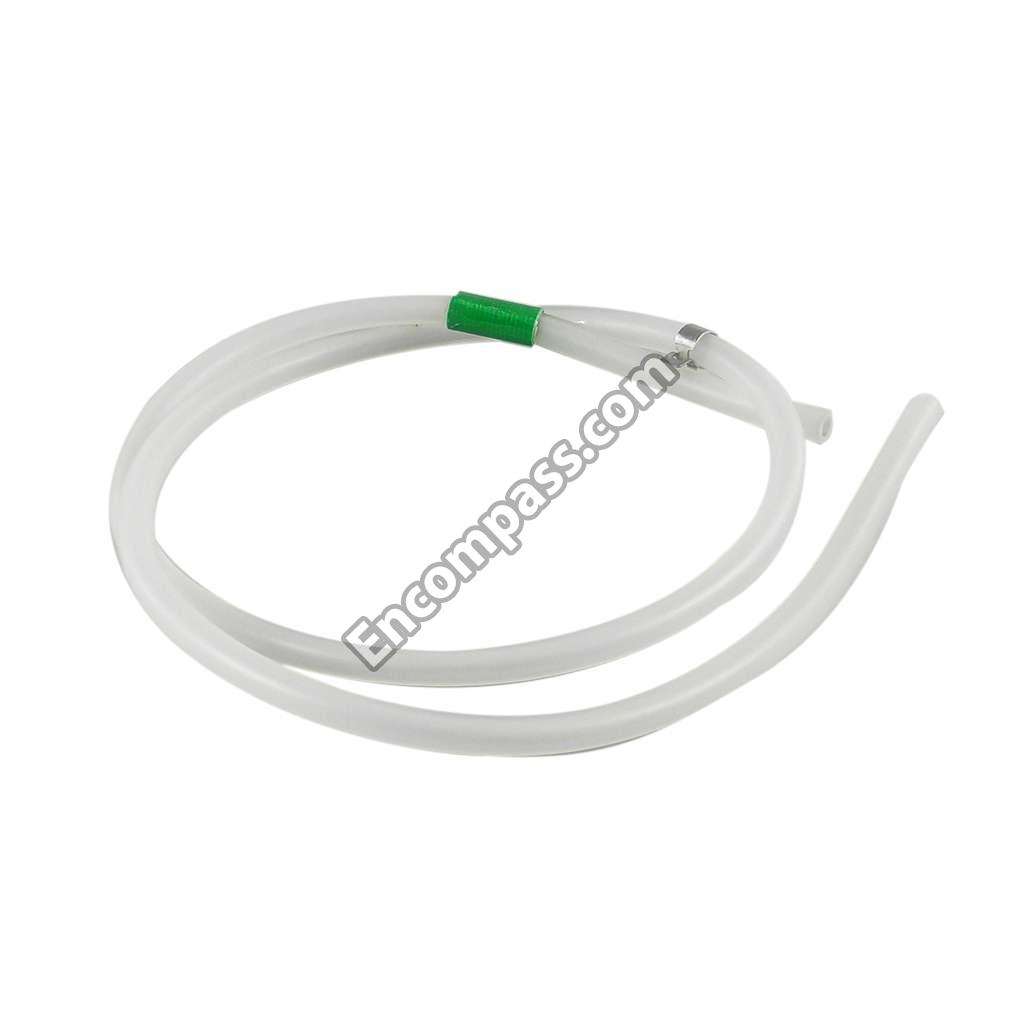

WH41X10087 WH41X10087 TUBE PRESSURE S/W
49-90221 49-90221 USE & CARE MANUAL
14-X025 14-X025 USE & CARE/INSTL DVD
WH13X10017 WH13X10017 VALVE ASM - INLET

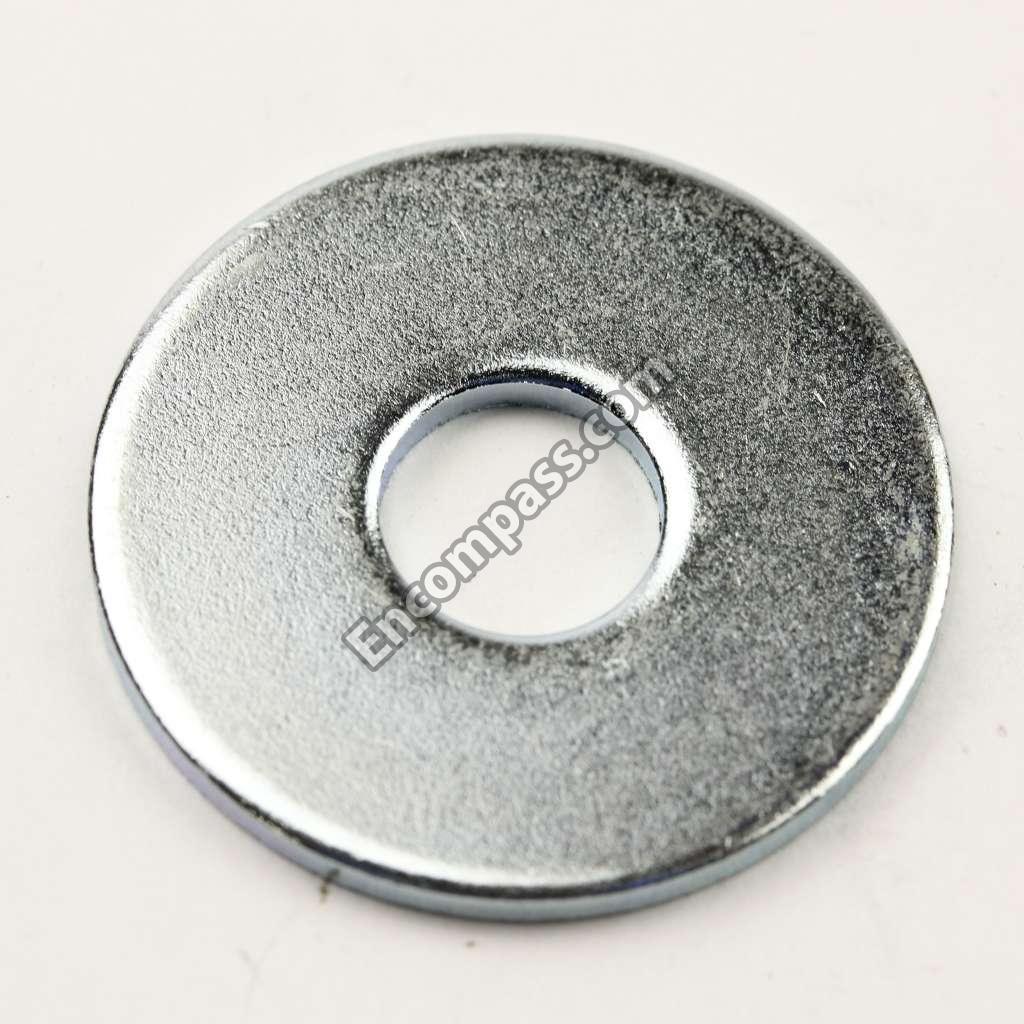

WH02X10150 WH02X10150 WASHER

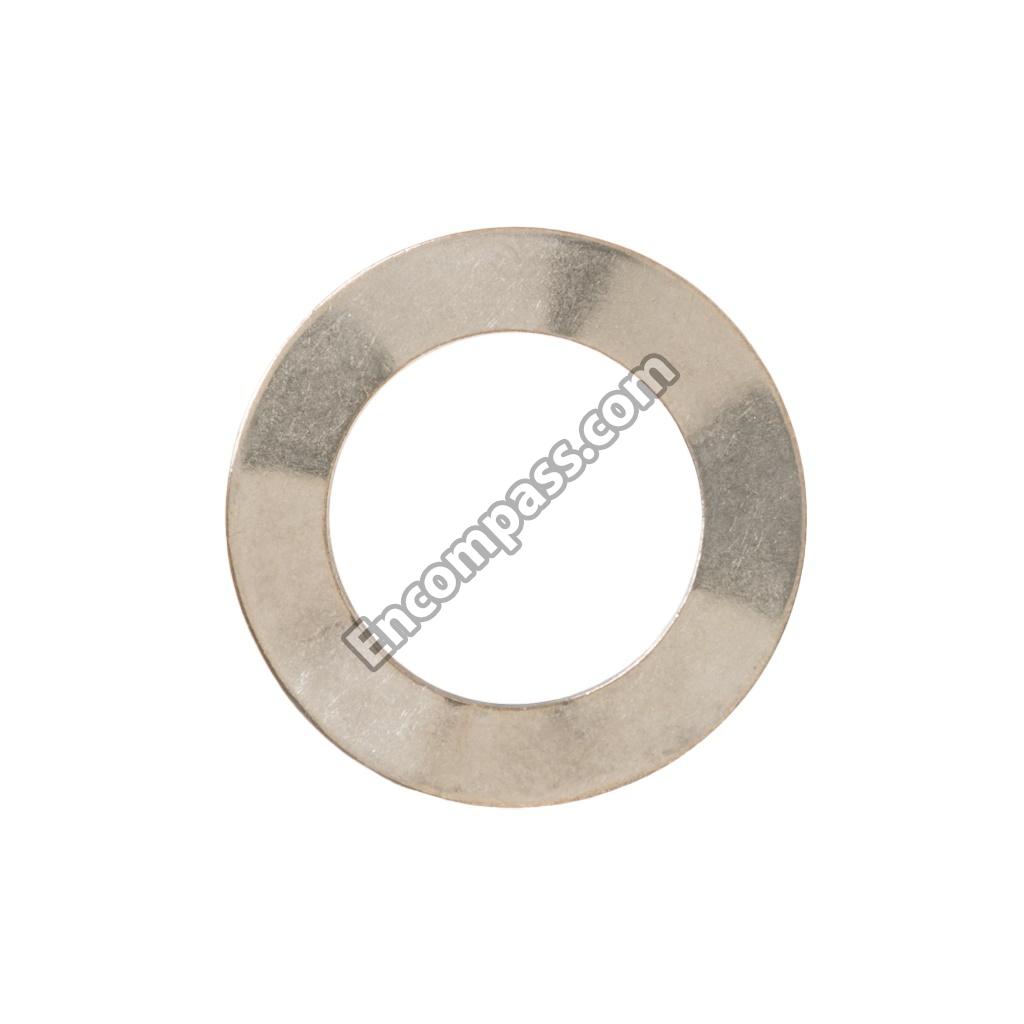

WH02X10146 WH02X10146 WASHER
WH02X10152 WH02X10152 WASHER
