Manufacturer
GE
Model Number
WPRB9220DCWW
Description

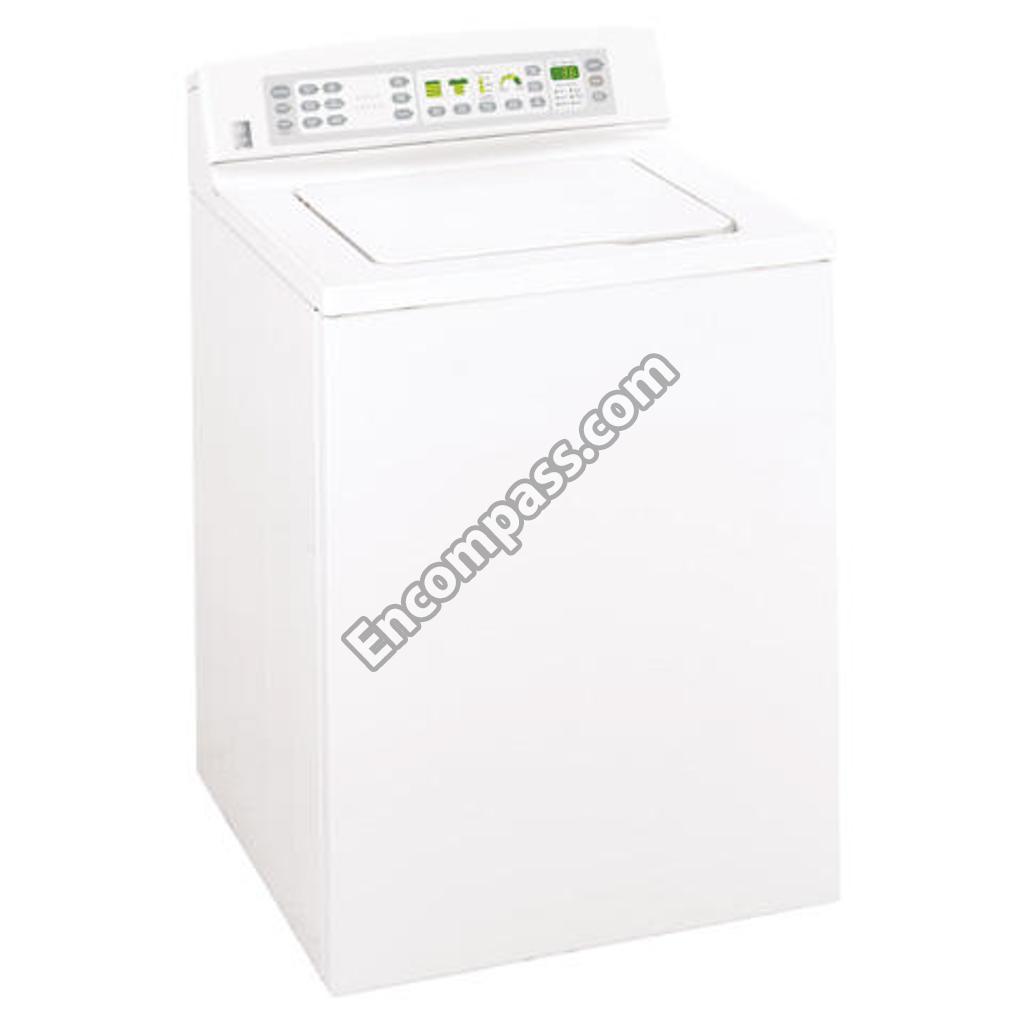

Washer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCELEROMETER ASSEMBLY |
|
|
AGITATOR ASM MULTI |
|
|
BACKSPLASH ASM CC/JR |
|
|
BACKSPLASH ASSEMBLY WW/JR |
|
|
BAL RING ASM |
|
|
BALANCE RING ASM |
|
|
BAR SELF LEVELING |
|
|
BASE ASM |
|
|
BASKET & HUB ASM |
|
|
BELT - 6 RIB |
|
|
BRACKET COUNTERWEIGHT |
|
|
BRACKET PRESSURE SWITCH |
|
|
BUMPER HINGE |
|
|
BUMPER HINGE |
|
|
BUMPER LID |
|
|
BUMPER LID |
|
|
BUSHING HINGE |
|
|
BUSHING HINGE |
|
|
BUSHING HNGE. |
|
|
BUSHING WIRE |
|
|
BUTTON PLUG |
|
|
CLAMP - TUB |
|
|
CLAMP - TUB |
|
|
CLAMP HOSE |
|
|
CLIP |
|
|
CLIP ANT-SIP |
|
|
CLIP ANTI-SIPHON |
|
|
CLIP GROUND |
|
|
CLIP GROUND |
|
|
CLIP LOCKING |
|
|
CONDUIT |
|
|
CONNECTOR MODEL SELECT |
|
|
COUNTERWEIGHT |
|
|
COUPLING AGITATOR |
|
|
COVER ASM FINISHED CC |
|
|
COVER ASM FINISHED WH |
|
|
COVER CLIP |
|
|
COVER CLIP |
|
|
COVER TUB |
|
|
DAMPER FRONT PANEL |
|
|
DISP ASM FS |
|
|
DISPENSER ASM. |
|
|
DRIVE PULLEY |
|
|
END CAP LH WH |
|
|
END CAP RH CC |
|
|
END CAP RH WH |
|
|
FILTER |
|
|
FLAT WASHER |
|
|
FOAM BARRIER |
|
|
FRT PNL DAMP |
|
|
FUNNEL BLEACH |
|
|
GASKET FL HD |
|
|
GROMMET LID LOCK |
|
|
HEX NUT OVERMOLD ASM |
|
|
HOSE & WATER INLET |
|
|
HOSE DR INT |
|
|
HOSE DRAIN ASM |
|
|
HOSE DRAIN EXTERNAL |
|
|
HOSE DRAIN INLET |
|
|
HOSE DRAIN INLET (TUB TO |
|
|
HOSE FLOOD |
|
|
HOSE FLOOD |
|
|
HOSE INLET ASSEMBLY |
|
|
HOSE PRES SW |
|
|
HOSE PRESSURE |
|
|
HOUSING SPECIAL |
|
|
HOUSING SPECIAL |
|
|
INSULATION PACK |
|
|
INVERTER HIGH SPEED ASSEMBLY |
|
|
ISOLATOR |
|
|
ISOLATOR |
|
|
LEG AND PLATFORM ASSEMBLY |
|
|
LEG LEVELING |
|
|
LEG LEVELING |
|
|
LID ASM FINISHED |
|
|
LID ASM FINISHED |
|
|
LID LOCK ASM |
|
|
LID SWITCH ASSEMBLY |
|
|
MAGNET ASM |
|
|
MOTOR AND INVERTER ASSEMBLY |
|
|
NO ITEM DESCRIPTION |
|
|
NUT |
|
|
NUT HUB |
|
|
NUT HUB |
|
|
NUT PULLEY |
|
|
NUT PULLEY |
|
|
OVERLAY ASM CC/JR WASHER |
|
|
OVERLAY ASM WH/JR WASHER |
|
|
PANEL AND BRACE ASSEMBLY WH |
|
|
PANEL BACK |
|
|
PIN ALIGNMENT |
|
|
PIN ALIGNMNT |
|
|
PIN ROLL |
|
|
PIN ROLL |
|
|
PM INSTRUCTION INSTALL |
|
|
PM MANUAL U&C P49-90245 |
|
|
PM SHEET MINI MANUAL |
|
|
PROBE SENSOR ATC |
|
|
PUMP |
|
|
RETAINER HOSE |
|
|
RETAINER S |
|
|
RETAINER STRAP |
|
|
ROD & SPRING ASM |
|
|
ROD & SPRING ASM |
|
|
ROD & SPRING ASM |
|
|
ROD & SPRING ASM |
|
|
ROD & SPRING ASSEMBLY/GREEN |
|
|
ROD/SPR YLLW |
|
|
ROD/SPRG BLK |
|
|
SCR 1/4-20 B |
|
|
SCR 1/4-20 B HXW 3.9 SNS |
|
|
SCR 1/4-20 B HXW 3/4 SNS |
|
|
SCR 10-12 A HX 1/2 S |
|
|
SCR 10-16 DR HXW 1 SS |
|
|
SCR 10-32 B TRT-25 5/8 |
|
|
SCR 5/16-18 TPT IHW S N |
|
|
SCR 5/16-18 X 7/8 HWH S |
|
|
SCR 6-20 B TRT 3/8 S |
|
|
SCR 8-16 B FLP .625 ZN |
|
|
SCR 8-18 AB IHW 7/16 SN |
|
|
SCR 8-18 B |
|
|
SCR 8-18 B 1/2 HXW P |
|
|
SCR 8-18 B IHW 1 S |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 1/4-20 TPT 1H 1/2 SN |
|
|
SCREW 10-18 PL |
|
|
SCREW 8-15 A 3/4 SP HXW |
|
|
SCREW 8-18 AB IHWP 7/8 S |
|
|
SCREW 8-18 B 1HW 1/2 SN |
|
|
SCREW 8-18 HI/LO 5/8 |
|
|
SCREW ST 8-18 X 437 HX NI |
|
|
SCREW-PKG 12 |
|
|
SCREW-PKG 12 |
|
|
SERVICE KIT BELT TOOL |
|
|
SHAFT AND MODE SHIFTER ASSEMBLY |
|
|
SHIPPING BAR ASM |
|
|
SNUBBER |
|
|
SOCKET ROD SUPPORT |
|
|
SPLIT RING |
|
|
STRAIN RELEF |
|
|
STRAIN RELIEF |
|
|
STUD GROUND |
|
|
STUD GROUNDING |
|
|
SWITCH PRESSURE |
|
|
TUB ASSEMBLY X-LARGE |
|
|
UNIV CLAMP |
|
|
VALVE WATER |
|
|
WASHER AGITATOR ASM MULTI |
|
|
WASHER FLAT |
|
|
WASHER HUB |
|
|
WASHER TUB BEARING |
|
|
WASHING MACHINE SHIPPING BAR |
|
|
WASHING MACHINE TUB BEARING |
|
|
WASHING MACHINE TUB DAMPENING STRAP |
|
|
WASHING MACHINE TUB SEAL |
|
|
WELD ASM ROD SUPPORT |
|
|
WHITE CABLE TIE 17-INCH LONG X 3/16 WIDE |
|
|
WIRE SADDLE |
|
|
WIRE TIE/PLUG |
|
|
WIREFORM HINGE |
|
|
WIREFORM HINGE (SHORT) |
|
|
WIREFRM HNGE |
|
|
WIREFRM HNGE |
