Model Image
Manufacturer

GE

Model Number

WRW3305KBL

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WH12X631 WH12X631 #1 SWITCH
WH41X10207 WH41X10207 2 PK RUBBER INLT HOSE 4
WH5X227 WH5X227 A PINION GR
WH1X2090 WH1X2090 ACTUATOR ARM
WH40X152 WH40X152 AG SHAFT
WH4X85 WH4X85 AG SHAFT BRG
WH1X1944 WH1X1944 AGITATR COUP
WH43X100 WH43X100 AGT CAP
WH1X1986 WH1X1986 AGT SUPT ASM
WH43X102 WH43X102 AGT&CPLG ASM
WH46X195 WH46X195 APRON ASM **NLA*
WH46X172 WH46X172 APRON&BRACE **NLA*
WH44X1134 WH44X1134 BACK APRON
WH12X700 WH12X700 BACK PLATE **NLA*
WH4X12 WH4X12 BALL BEARING
WH46X182 WH46X182 BASE BRKT-L
WH46X181 WH46X181 BASE BRKT-R
WH17X69 WH17X69 BASKET HUB
WH1X2026 WH1X2026 BELT
WH2X812 WH2X812 BOLT
WZ2X514D WZ2X514D BOLT-PKG 12
WH2X801D WH2X801D BOLT-RET12PK
WH16X493 WH16X493 BRACKET HOSE
WH16X483 WH16X483 BRACKET VALV
WH16X474 WH16X474 BRKT TIMER
WH16X376 WH16X376 BRKT-ACTUATR
WH1X1654 WH1X1654 BUMPER
WH2X798 WH2X798 CARRIAGE BLT
WH41X121 WH41X121 CHAMBER HOSE
WH1X1580 WH1X1580 CLAMP ASM
WH1X1292 WH1X1292 CLAMP ASM
WH1X1169 WH1X1169 CLAMP PLATE
WE1X762 WE1X762 CLIP
WH2X896 WH2X896 CLIP
WH01X10106 WH01X10106 CLIP KNOB
WH5X174 WH5X174 CLUTCH DRUM
WH2X650 WH2X650 COMP RING
WH19X225 WH19X225 CORD SET
WH1X2056 WH1X2056 COUNTERWEIGH
WH1X1621 WH1X1621 COUPL CLAMP
WH44X901 WH44X901 COVER
WH44X980 WH44X980 COVER ASM AD
WH39X46 WH39X46 COVER GEAR C
WH8X312 WH8X312 COVER SHIELD
WH1X2187 WH1X2187 COVER STOP
WH1X1946 WH1X1946 COVER STRAP
WH40X149 WH40X149 CR GEAR SHFT **NLA*
WH5X216 WH5X216 CRANK GEAR **NLA*
WH1X2081 WH1X2081 CUP WASHER
WH16X413 WH16X413 CVR SH RETNR
WH16X368 WH16X368 DAMP FIN
WH16X369 WH16X369 DAMPING FIN
WH1X2281 WH1X2281 DETENT SPR
WH11X133 WH11X133 DIAL ASM
WH41X116 WH41X116 DRAIN HOSE
WH5X209 WH5X209 DUAL GEAR **NLA*
WH40X145 WH40X145 DUAL GR SHFT
WH12X701 WH12X701 DUST COVER
WE19X793 WE19X793 END TRIM-LH
WE19X792 WE19X792 END TRIM-RH
WH1X2267 WH1X2267 FILT&WASHER
WH45X142 WH45X142 FILTER RING
WH1X1722 WH1X1722 FLEX COUPLNG
WH8X253 WH8X253 FLOW NOZZLE
WH12X699 WH12X699 FR PLATE ASM
WH1X2296 WH1X2296 FRICTION PAD
WH1X2088 WH1X2088 GASKET
WL39X3 WL39X3 GREASE **NLA*
WH41X118 WH41X118 GROMMET
WH1X2595 WH1X2595 GROMMET HOSE
WZ1X32 WZ1X32 HEX HD SCREW **NLA*
WZ7X40D WZ7X40D HEXNT-PKG 12
WH1X2086 WH1X2086 HINGE-PAD R
WH41X158 WH41X158 HOSE ADAPTER
WH41X325 WH41X325 HOSE DRAIN
WH41X324 WH41X324 HOSE DRAIN
WH1X2435 WH1X2435 HOSE HANGER
WH41X297 WH41X297 HOSE RECIRC
WH1X1584 WH1X1584 HOSE REDUCER
WH46X212 WH46X212 HSNG&NUT ASM
WH7X57 WH7X57 HUB
WH8X292 WH8X292 HUB BOOT
WH41X170 WH41X170 INLET HOSE
WH49X297 WH49X297 KIT WALK FIX
WH1X2582 WH1X2582 KNOB ASM
WH1X2089 WH1X2089 KNOB-ACTUATR
WH10X45 WH10X45 LATCH SLIDE
WH1X2147 WH1X2147 LATCH TUBE **NLA*
WH1X1309 WH1X1309 LEAF SPRING
WH44X1148 WH44X1148 LID ALMOND
WH44X1163 WH44X1163 LID WH
WH5X188 WH5X188 LINK
WH1X2282 WH1X2282 LINKAGE
WH20X10002 WH20X10002 MOTOR ASM
WH17X86 WH17X86 MOTOR MOUNT
WH16X405 WH16X405 MTR HANGR AS
WH2X201 WH2X201 N.L.A. (1) WASHER (P)
WH42X2151 WH42X2151 N.L.A. TRIM TOP 05/21/
WH1X1842 WH1X1842 N.L.A.LATCH SPRING
WH44X1149 WH44X1149 N.L.A.LID ASM-STD
WH16X379 WH16X379 N/L/A 01/16/03
WH1X2583 WH1X2583 N/L/A 01/27/02
WH17X68 WH17X68 N/L/A 02/05/05
WH2X671D WH2X671D N/L/A 03/12/02
WH2X786D WH2X786D N/L/A 03/27/02
WH1X1480D WH1X1480D N/L/A 04/24/06
WH1X2083 WH1X2083 N/L/A 05/14/02
WH7X58 WH7X58 N/L/A 06/14/04
WH1X2280 WH1X2280 N/L/A 06/26/06
WH1X2087 WH1X2087 N/L/A 09/08/05
WH8X367 WH8X367 N/L/A 10/25/01
WH8X347 WH8X347 N/L/A 12/02/02
WH37X36 WH37X36 NLA G CASE & TUBE
WE19X719 WE19X719 NLA PART
WH1X1998 WH1X1998 NLA PART
WH2X936D WH2X936D NUT-PKG 12
WH2X659D WH2X659D NUT-PKG 12
WZ8X6D WZ8X6D NUT-PKG 12
WH2X707D WH2X707D NUT-PKG 12
340653 340653 PART
WZ11X55 WZ11X55 PIN **NLA*
WH1X1633 WH1X1633 PIN STOP
WH1X2222 WH1X2222 PIVOT HINGE
WH1X2085 WH1X2085 PIVOT HNG L
WH49X10017 WH49X10017 PK PACK ASSEMBLY INSTALLATION
WH1X2042 WH1X2042 PULLEY SLEEV
WH7X40 WH7X40 PULLEY&BRKT
WH23X42 WH23X42 PUMP ASM.
WH41X139 WH41X139 PUMP ELBOW
WH8X286 WH8X286 PUMP GASKET
WH41X140 WH41X140 REC IN HOSE
WH41X172 WH41X172 RECIR NOZZLE
WH12X235 WH12X235 RELAY
WH1X2335 WH1X2335 RETAINER
WH12X725 WH12X725 ROTARY SW AS
WZ13X31D WZ13X31D RTRNG PKG 12
WZ13X32D WZ13X32D RTRNG PKG 12
WZ13X24D WZ13X24D RTRNG PKG 12 **NLA*
WH12X722 WH12X722 RTY PRESS SW
WH2X1137 WH2X1137 SCR LEVELING
WH2X930 WH2X930 SCREW
WH2X940 WH2X940 SCREW
WH2X888 WH2X888 SCREW
WH2X1121 WH2X1121 SCREW (P) **NLA*
WH2X1120 WH2X1120 SCREW **NLA*
WH1X484 WH1X484 SCREW CAP
WH2X947D WH2X947D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WH2X715D WH2X715D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WH2X795D WH2X795D SCREW-PKG 12
WH2X882D WH2X882D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WH2X694D WH2X694D SCREW-PKG 12
WH2X820D WH2X820D SCREW-PKG 12
WD2X5063D WD2X5063D SCREW-PKG 12
WH2X935D WH2X935D SCREW-PKG 12
WH2X893D WH2X893D SCREW-PKG 12
WZ5X248D WZ5X248D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WZ4X268D WZ4X268D SCREW-PKG 12
WH2X681D WH2X681D SCRWSH-PKG12
WH8X281 WH8X281 SEAL
WH8X291 WH8X291 SEAL ASM
WH1X2060 WH1X2060 SEAT RETANR **NLA*
WH40X159 WH40X159 SHAFT-PINION
WH40X151 WH40X151 SHFT EXT ASM
WH1X2572 WH1X2572 SLEEVE SPLIT
WL2X71D WL2X71D SNUT-PKG 12 **NLA*
WH2X581 WH2X581 SPACR- EACH
WH40X157 WH40X157 SPIN TUBE **NLA*
WZ11X50D WZ11X50D SPPIN-PKG 12
WH1X2117 WH1X2117 SPRING CLIP
WH7X41 WH7X41 STRAP&SHAFT
WH16X372 WH16X372 SUPPORT
WH17X87 WH17X87 SUSPENSION
WE13X137 WE13X137 SW BRACKET
WH41X128 WH41X128 SWITCH HOSE
WH12X497 WH12X497 TERM HOUSING
WH12X417 WH12X417 TERM HSNG
WH12X538 WH12X538 TERM HSNG
WB17X5054 WB17X5054 TERMINAL
WH12X604 WH12X604 TERMINAL HSN

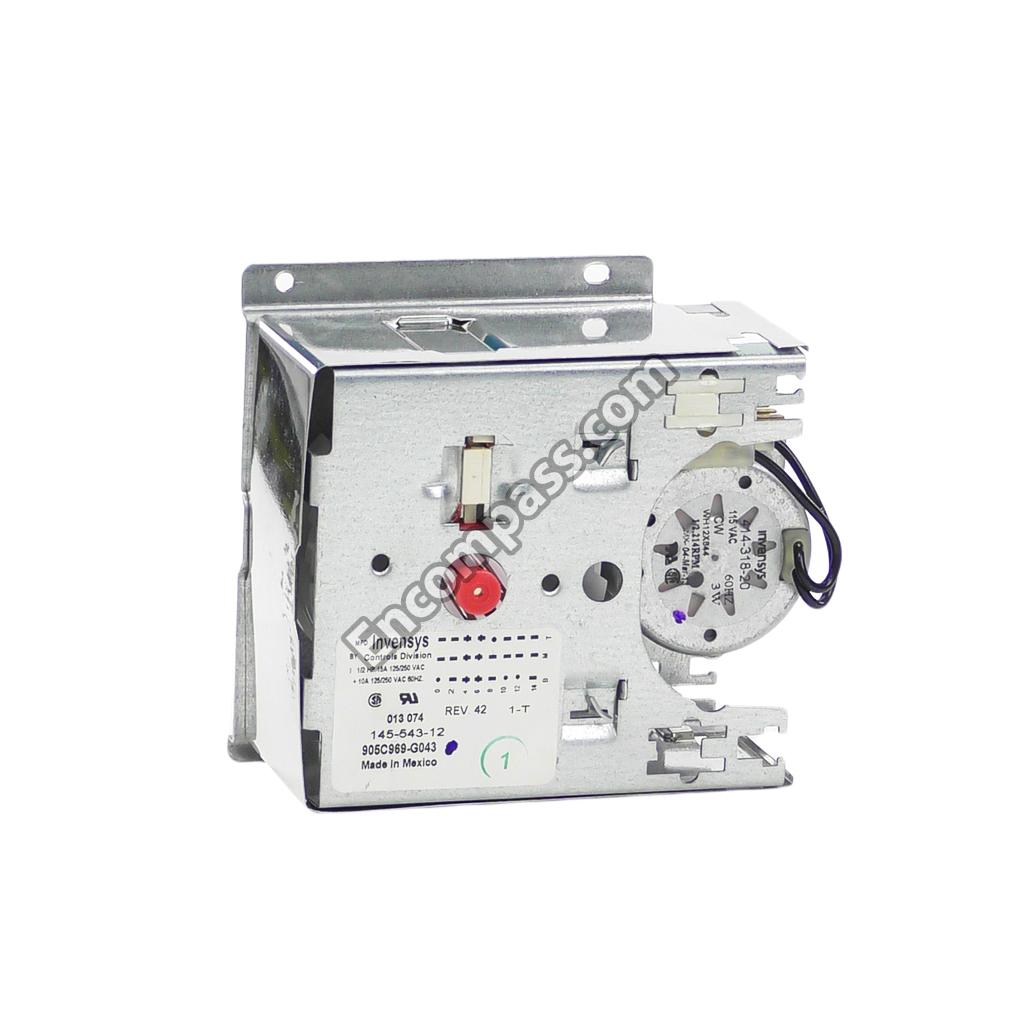

WH12X929 WH12X929 TIMER
WH12X644 WH12X644 TIMER MOTOR
WH1X2008 WH1X2008 TRIM CLIP
WH49X10008 WH49X10008 TUB FIX KIT
WH8X305 WH8X305 TUB GASKET
WH1X1966 WH1X1966 TUB HOSE CPL
WH1X1980 WH1X1980 TUB PLUG
WH1X1807 WH1X1807 TUBING
WH7X110 WH7X110 TWO CL SHOES
WH2X543D WH2X543D UBOLT-PKG 12
WH1X1732 WH1X1732 VAL BODY CAP
WH41X99 WH41X99 VALVE HOSE
WH1X2036 WH1X2036 WASHER HOSE CLAMP KIT
WH2X811D WH2X811D WASHR PKG 12
WH2X42D WH2X42D WASHR PKG 12
WH2X207D WH2X207D WASHR-PKG 12
WH1X2082D WH1X2082D WASHR-PKG 12
WH2X539D WH2X539D WASHR-PKG 12
WH2X810D WH2X810D WASHR-PKG 12 **NLA*
WH41X132 WH41X132 WATER INLET
WH13X81 WH13X81 WATER VALVE
WE2X279D WE2X279D WE2X279D
WE2X281D WE2X281D WE2X281D
WH12X603D WH12X603D WH12X603D
WH1X1923D WH1X1923D WH1X1923D
WH2X190D WH2X190D WH2X190D
WH2X819D WH2X819D WH2X819D
WH7X127 WH7X127 WH7X127
WH16X370 WH16X370 WIRE
WE1X553 WE1X553 WRAPP GASKET
WH1X1951 WH1X1951 YOKE
WH1X1862 WH1X1862 YOKE CLAMP
WH1X1953 WH1X1953 YOKE CUSHION
