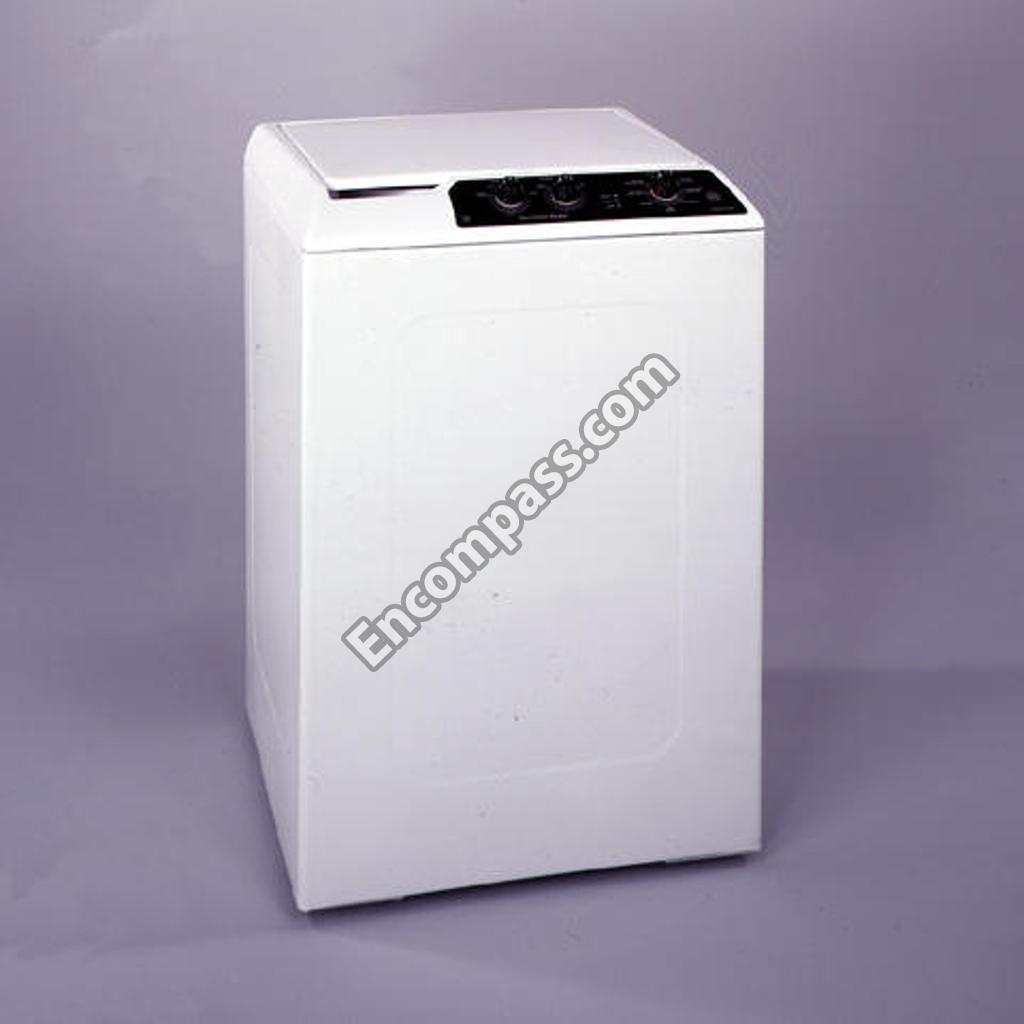

Model Image
Manufacturer

GE

Model Number

WSKS2060T2AB

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH44X1225 WH44X1225 *NLA*LID AD
49-9887 49-9887 49-9988
WH43X145 WH43X145 AGITATOR
WH4X113 WH4X113 BALL SUSPENS
WH04X0113 WH04X0113 BALL SUSPENSION ROD KIT
WH07X0131 WH07X0131 BAND BRAKE
WH7X131 WH7X131 BAND BRAKE
WH45X0166 WH45X0166 BASKET
WH45X10072 WH45X10072 BASKET & HUB SS
WH4X111 WH4X111 BEARING HNGE
WH4X112 WH4X112 BEARING HNGE
WH04X0112 WH04X0112 BEARING LH HINGE
WH04X0111 WH04X0111 BEARING RH HINGE
WH07X0136 WH07X0136 BELT DRIVE
WH7X136 WH7X136 BELT DRIVE
WH1X2803 WH1X2803 BLOCK DISCON
WH01X2803 WH01X2803 BLOCK DISCONNECT
WH01X2798 WH01X2798 BLOCK SADDLE
WH02X10050 WH02X10050 BOLT MOTOR
WH02X10051 WH02X10051 BOLT MOTOR
WH16X531 WH16X531 BRACKET CAB
WH16X0531 WH16X0531 BRACKET CAB-TOP
WH16X10022 WH16X10022 BRACKET CAPACITOR
WH16X532 WH16X532 BRACKET VALV
WH16X0532 WH16X0532 BRACKET VALVE
WH01X2795 WH01X2795 BUMPER
WH1X2795 WH1X2795 BUMPER
WH1X2671 WH1X2671 BUMPER LID
WH01X2671 WH01X2671 BUMPER, LID HINGE
WH1X2797 WH1X2797 BUTTON START
WH01X2797 WH01X2797 BUTTON START/PAUSE
WH07X0133 WH07X0133 CAM DRIVE
WH7X133 WH7X133 CAM DRIVE
WH1X2658 WH1X2658 CAP MIX VLV
WH01X2658 WH01X2658 CAP, MIXING VALVE
WH12X1066 WH12X1066 CAPACITOR
WH49X0304 WH49X0304 CONVERSION KIT,STATIONAR
WH49X303 WH49X303 CONVT KIT
WH19X0316 WH19X0316 CORD POWER
WH19X316 WH19X316 CORD POWER
WH16X0530 WH16X0530 COVER PUMP
WH16X530 WH16X530 COVER PUMP
WH01X2796 WH01X2796 EXTRUDE TOP
WH1X2796 WH1X2796 EXTRUDE TOP
WH45X0164 WH45X0164 FILTER
WH45X164 WH45X164 FILTER
WH9X42 WH9X42 FLOOR LEVEL
WH09X0042 WH09X0042 FOOR LEVELLING
WH41X390 WH41X390 FUNNEL ASSEMBLY
WH41X0390 WH41X0390 FUNNEL INLET ASSEMBLY
WH08X0392 WH08X0392 GASKET HUB
WH8X392 WH8X392 GASKET HUB
WH07X0130 WH07X0130 GEARCASE ASSEMBLY
WH08X0390 WH08X0390 GROMMET PUMP
WH8X390 WH8X390 GROMMET PUMP
WH16X10019 WH16X10019 GUSSET LOWER LH
WH16X10020 WH16X10020 GUSSET LOWER RH
WH02X10047 WH02X10047 HEX NUT
WH02X10048 WH02X10048 HEX NUT
WH02X10049 WH02X10049 HEX NUT
WH01X2792 WH01X2792 HINGE LID LH
WH1X2792 WH1X2792 HINGE LID LH
WH01X2791 WH01X2791 HINGE LID RH
WH1X2791 WH1X2791 HINGE LID RH
WH41X0394 WH41X0394 HOSE BLEACH
WH41X394 WH41X394 HOSE BLEACH
WH41X392 WH41X392 HOSE CORRUGA
WH41X364 WH41X364 HOSE DRAIN
WH41X10028 WH41X10028 HOSE DRAIN 4 FT
WH41X0364 WH41X0364 HOSE DRAIN 9 FT.
WH41X0399 WH41X0399 HOSE INLET
WH41X10098 WH41X10098 HOSE INLET
WH41X349 WH41X349 HOSE PRES SW
WH41X0389 WH41X0389 HOSE PRESSURE SWITCH
WH41X10097 WH41X10097 HOSE PRESSURE SWITCH
WH41X0392 WH41X0392 HOSE PUMP-TUB
WH41X396 WH41X396 HOSE TUB OF
WH41X0396 WH41X0396 HOSE TUB OVERFLOW
WH41X0391 WH41X0391 HOSE VALVE-INLET
WH40X0187 WH40X0187 HUB DRIVE
WH40X10004 WH40X10004 HUB DRIVE
31-2806 31-2806 INSTALLATION INSTRUCTION
WH49X304 WH49X304 KIT CONVERT
WH49X0303 WH49X0303 KIT PORT. TO STATIONARY
WH49X10036 WH49X10036 KIT-TIMER/CONTROL
WH11X145 WH11X145 KNOB CYCLE S
WH11X0145 WH11X0145 KNOB CYCLE SELECTOR
WH1X2802 WH1X2802 LOCK SOLENID
WH01X2802 WH01X2802 LOCK SOLENOID
31-15060 31-15060 MINI MANUAL
WH20X0873 WH20X0873 MOTOR
WH20X873 WH20X873 MOTOR
WH02X1236 WH02X1236 NUT WELL
WH2X1236 WH2X1236 NUT WELL
WH49X10033 WH49X10033 PANEL CABINET
WH42X2512 WH42X2512 PANEL CONTROL
WH01X2801 WH01X2801 PIN BRAKE BAND
WH1X2801 WH1X2801 PIN BRK BND
WH17X99 WH17X99 PLACE MTR MT
WH17X0099 WH17X0099 PLATE MOTOR MOUNT
WH01X2799 WH01X2799 PROTECTOR RING
WH07X0132 WH07X0132 PULLEY DRIVE
WH7X132 WH7X132 PULLY DRIVE
WH23X0086 WH23X0086 PUMP
WH23X10022 WH23X10022 PUMP & SHIELD KIT
WH45X0168 WH45X0168 RING BALANCE
WH07X0135 WH07X0135 RING CAM
WH7X135 WH7X135 RING CAM
WH1X2799 WH1X2799 RING PROTECT
WH1X2800 WH1X2800 RING RETAIN
WH01X2800 WH01X2800 RING RETAINER
WH45X0165 WH45X0165 RING TUB
WH45X165 WH45X165 RING TUB
WH16X0538 WH16X0538 ROD FRONT SUSPENSION ROD KIT
WH16X0539 WH16X0539 ROD REAR SUSPENSION ROD KIT
WH16X539 WH16X539 ROD SUSPENSI
WH16X538 WH16X538 ROD SUSPENSI
WH01X10229 WH01X10229 SADDLE BLOCK
WH02X1235 WH02X1235 SCREW
WH02X10043 WH02X10043 SCREW
WH02X10044 WH02X10044 SCREW
WH2X1235 WH2X1235 SCREW AGITAT
WH02X10052 WH02X10052 SCREW GROUND
WH02X10045 WH02X10045 SCREW WELL NUT
WH08X0394 WH08X0394 SEAL
WH08X0393 WH08X0393 SEAL
WH08X0388 WH08X0388 SEAL
WH8X394 WH8X394 SEAL
WH08X10014 WH08X10014 SEAL
WH8X388 WH8X388 SEAL
WH8X389 WH8X389 SEAL PRESSUR
WH08X0389 WH08X0389 SEAL PRESSURE SWITCH
WH16X10021 WH16X10021 SHEILD MOTOR
WH44X1226 WH44X1226 SHIELD ASSEMBLY TOP
WH16X535 WH16X535 SHIELD MOTOR
WH16X0537 WH16X0537 SHIELD MOTOR CONNECTOR
WH16X537 WH16X537 SHIELD MTR C
WH17X0100 WH17X0100 SHIELD PULLEY
WH17X100 WH17X100 SHIELD PULLY
WH16X0536 WH16X0536 SHIELD SOLENOID
WH16X10030 WH16X10030 SHIELD SOLENOID
WH16X0535 WH16X0535 SHIELD TUB/MOTOR
WH01X10051 WH01X10051 SHIELD WATER VALVE
WH07X0134 WH07X0134 SLIDER
WH07X10013 WH07X10013 SLIDER SPLUTCH
WH12X1065 WH12X1065 SOLENOID
WH08X0391 WH08X0391 SPACER PUMP
WH8X391 WH8X391 SPACER PUMP
WH02X1237 WH02X1237 SPRING BRAKE
WH2X1237 WH2X1237 SPRING BRAKE
WH02X1238 WH02X1238 SPRING DRIVE
WH02X10163 WH02X10163 SPRING DRIVE
WH01X2804 WH01X2804 STRAP SNUBBER
WH01X10069 WH01X10069 STRAP SNUBBER
WH1X2672 WH1X2672 STRIKE LID
WH01X2793 WH01X2793 STRIKE LID SWITCH
WH16X10018 WH16X10018 SUPPORT CONTROL
WH38X10006 WH38X10006 SUPPORT TUB
WH12X1063 WH12X1063 SWITCH CYCLE SELECTOR
WH12X1060 WH12X1060 SWITCH LID
WH12X10038 WH12X10038 SWITCH WATER LEVEL
WH12X10039 WH12X10039 SWITCH WATER TEMP
WH44X1223 WH44X1223 TOP AD
WH45X167 WH45X167 TUB & INLET
WH45X0167 WH45X0167 TUB INLET ASSEMBLY
WH41X0395 WH41X0395 TUBE ASSEMBLY INLET
WH41X395 WH41X395 TUBE INLET
WH41X391 WH41X391 VALVE INLET
WH13X90 WH13X90 VALVE WATER
WH13X0090 WH13X0090 VALVE, WATER
WH02X10042 WH02X10042 WASHER
WH43X0145 WH43X0145 WASHER AGITATOR
WH1X2036 WH1X2036 WASHER HOSE CLAMP KIT
WH02X10046 WH02X10046 WASHER NUT
