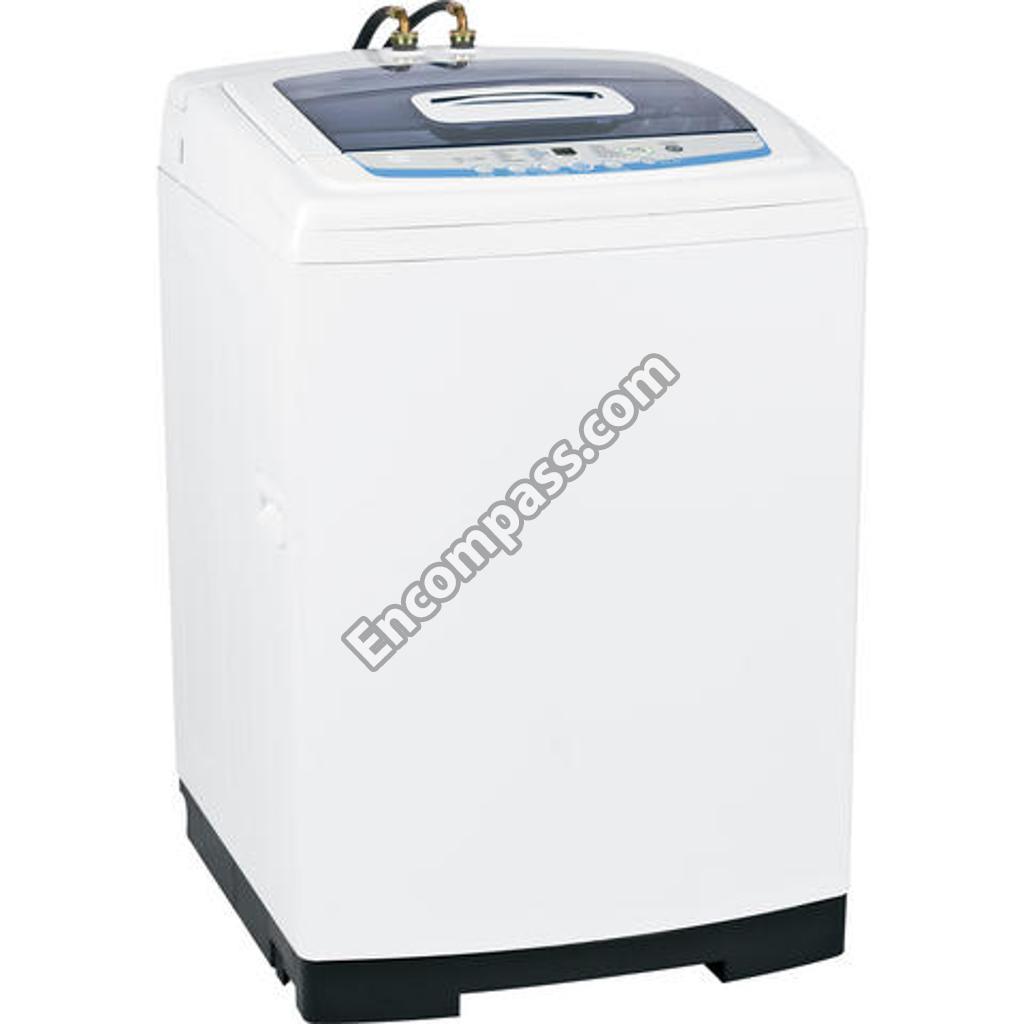

Model Image
Manufacturer

GE

Model Number

WSLP1500J0WW

Description

Washer

Interactive Exploded View

Parts List

Part Number Description

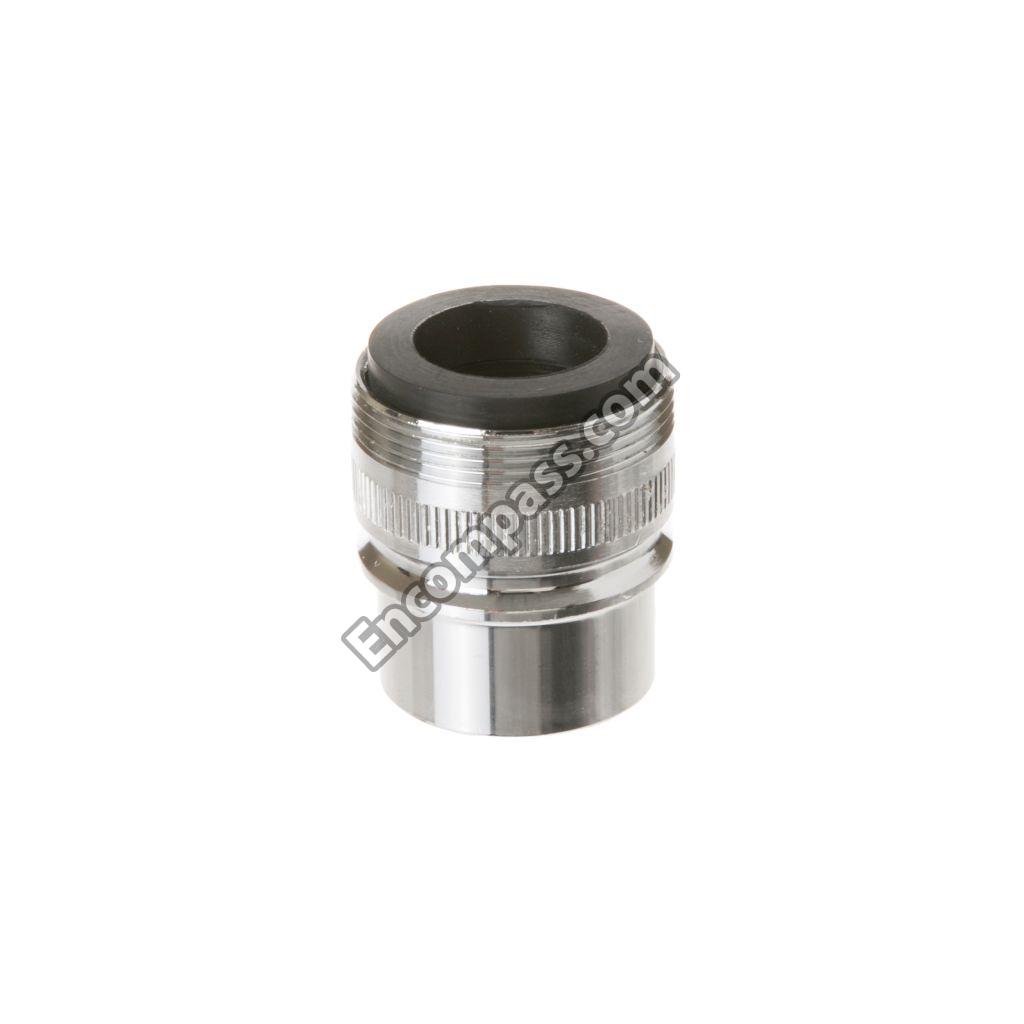

WH41X10212 WH41X10212 ADAPTER ASM FAUCET(MALE)
WH12X10102 WH12X10102 ASSEMBLY-CHECKER S/W
WH16X10035 WH16X10035 ASSEMBLY-DAMPER (FRONT)
WH16X10036 WH16X10036 ASSEMBLY-DAMPER (REAR)
WH41X10046 WH41X10046 ASSEMBLY-HOSE(O)
WH02X10084 WH02X10084 ASSEMBLY-SCREW
WH44X10216 WH44X10216 BACK COVER (WH)
WH45X10084 WH45X10084 BALANCER ASM
WH46X10049 WH46X10049 BASE
WH45X10083 WH45X10083 BASKET SPIN ASM
WH01X10448 WH01X10448 BOLT-PULSATOR
WH09X10003 WH09X10003 BRACKET-ROLLER
WH13X10044 WH13X10044 CAP - WATER VALVE
WH43X10047 WH43X10047 CAP-FABRIC SOFTNER
WH01X10443 WH01X10443 CAP-HOSE RUBBER
WH02X10286 WH02X10286 CAP-SCREW
WH12X10428 WH12X10428 CAPACITOR
WD01X10341 WD01X10341 CLAMP
WH01X10451 WH01X10451 CLAMP HOSE
WH01X10452 WH01X10452 CLAMP HOSE
WH12X10426 WH12X10426 CONTROL BOARD ASM

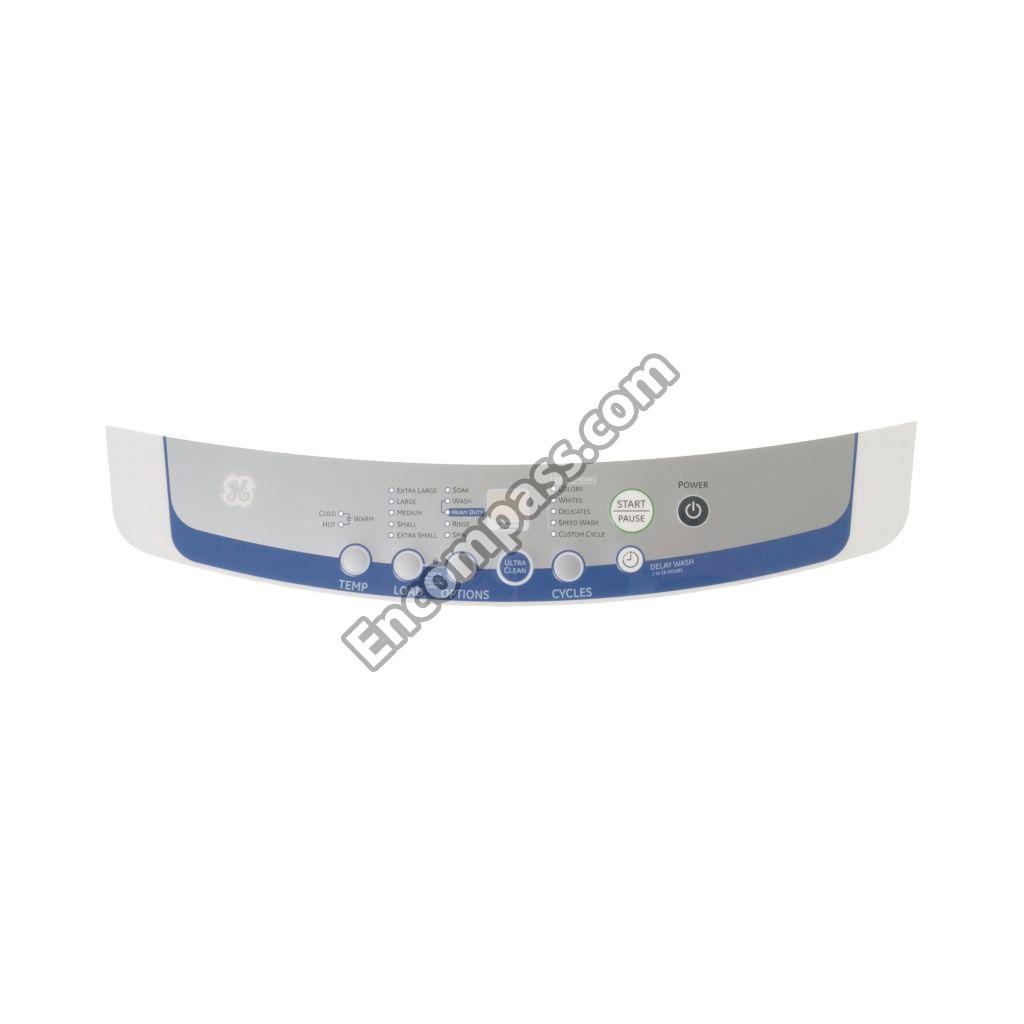

WH42X10808 WH42X10808 CONTROL PANEL (WH)
WH44X10219 WH44X10219 COVER - PUMP
WH44X10127 WH44X10127 COVER-BACK
WH44X10215 WH44X10215 COVER-TOP (WH)
WH44X10214 WH44X10214 COVER-TUB
WH01X10464 WH01X10464 COVER-WIRE HARNESS

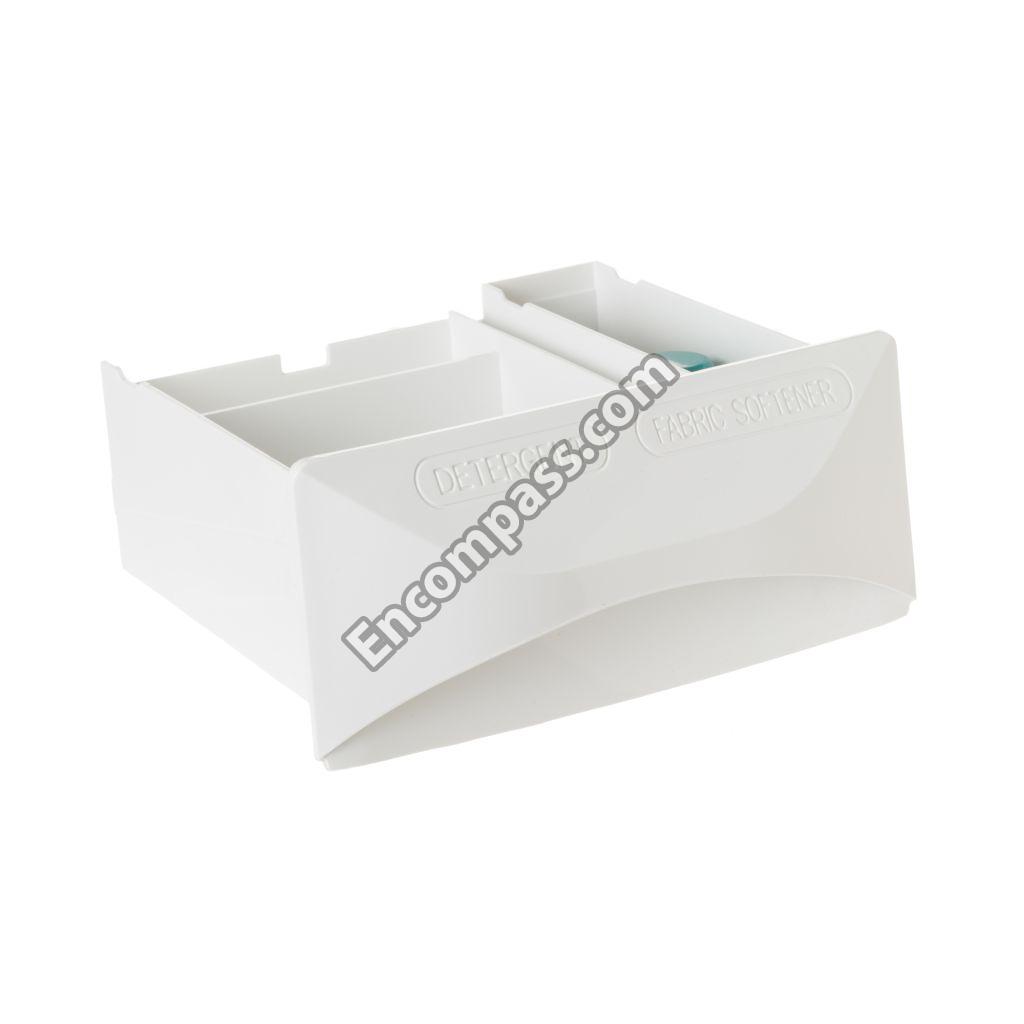

WH43X10048 WH43X10048 DETERGENT TRAY ASM (WH)

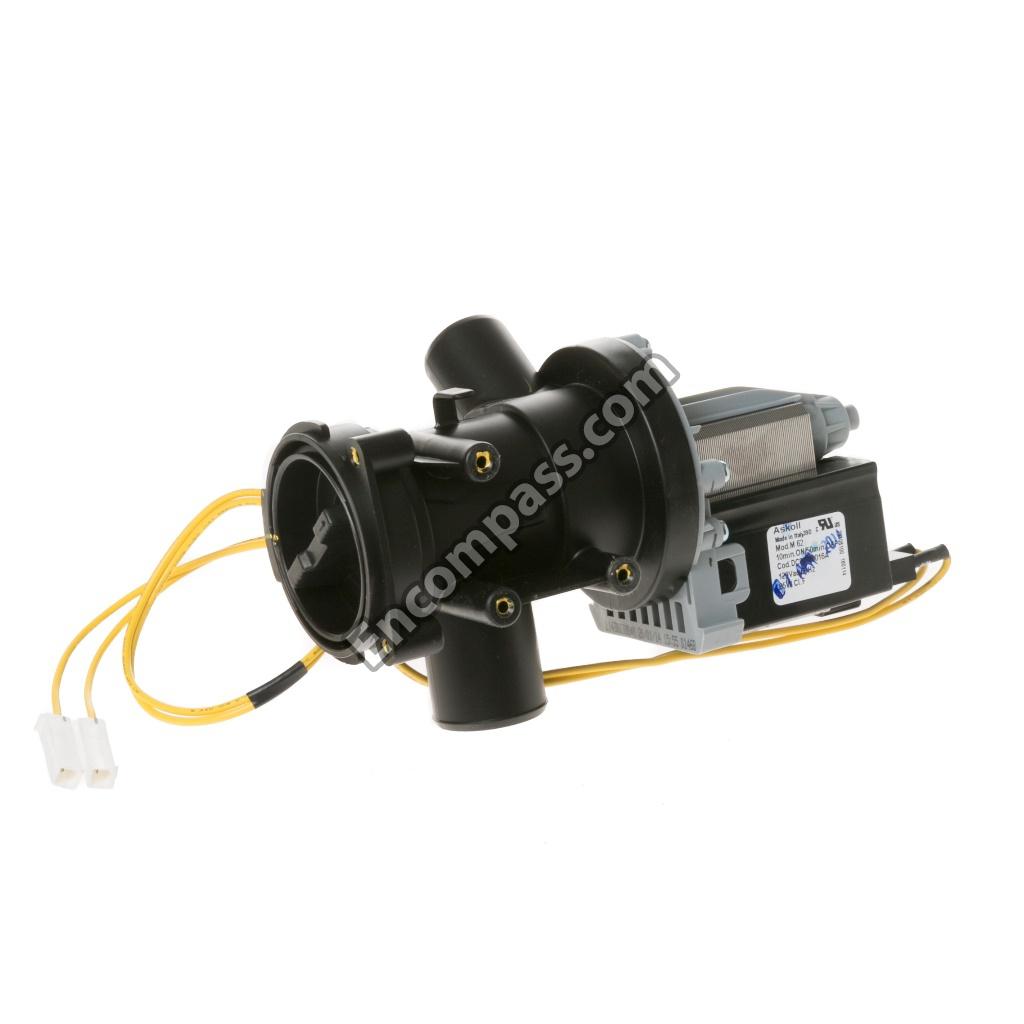

WH23X10032 WH23X10032 DRAIN PUMP ASM W/JOINT
WH23X10033 WH23X10033 DRAIN PUMP-120V~60HZ
WH40X10007 WH40X10007 FLANGE-SHAFT
WH43X10044 WH43X10044 FRAME LINT FILTER
WH01X10457 WH01X10457 FUSE 12A~250V
WH43X10045 WH43X10045 GUIDE-W.F(S)
WH01X10447 WH01X10447 GUIDE-WATER
WH43X10042 WH43X10042 GUIDE-WIRE
WH01X10438 WH01X10438 HANDLE (WH)
WH16X10033 WH16X10033 HINGE-DOOR(L)
WH16X10034 WH16X10034 HINGE-DOOR(R)
WH01X10456 WH01X10456 HOLDER-WIRE SADDLE
WH49X10062 WH49X10062 HOSE OVERFLOW KIT

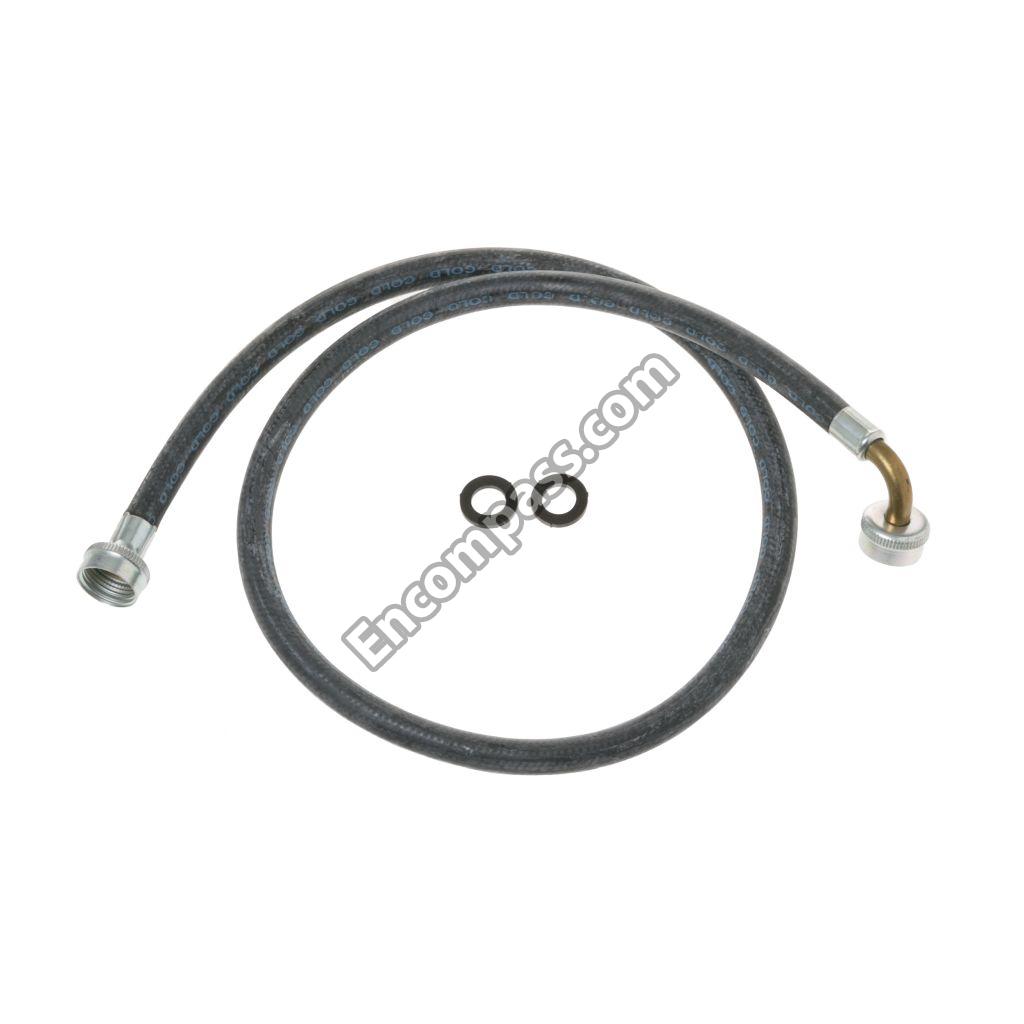

WH41X10214 WH41X10214 HOSE WATER COLD
WH01X10085 WH01X10085 HOSE-DRAIN
WH49X10061 WH49X10061 HOSE-PUMP
WH41X10045 WH41X10045 HOSE-PUMP

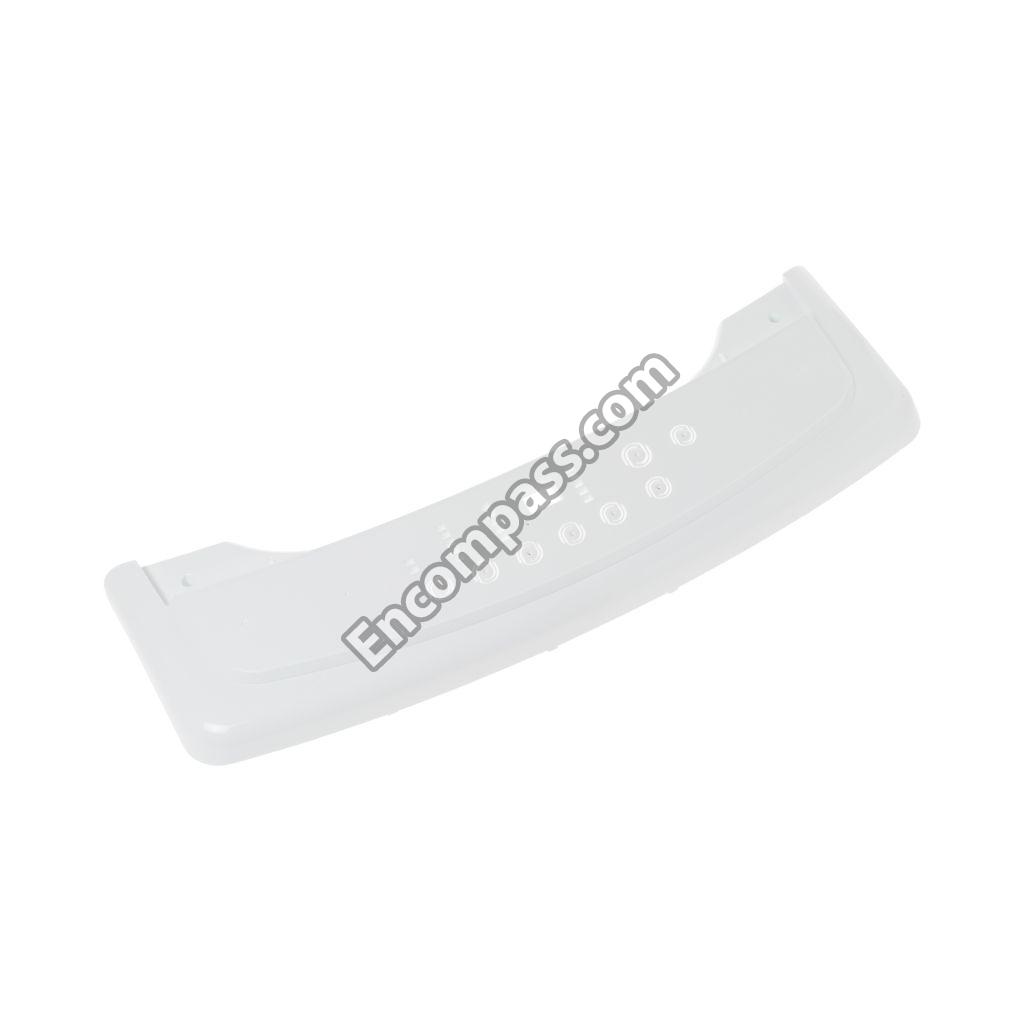

WH42X10807 WH42X10807 INLAY-PANEL (WH)
WH41X10044 WH41X10044 JOINT-HOSE PUMP
WH01X10082 WH01X10082 LINK-DRAIN
WH42X10020 WH42X10020 LINT FILTER ASM
WH02X10285 WH02X10285 M24 NUT-HEXAGON FLANGE
WH01X10449 WH01X10449 M8 NUT- HEX
WH01X10076 WH01X10076 MAGNET-R.S
31-16606 31-16606 MIMI MANUAL
WH20X10061 WH20X10061 MOTOR INDUCTION
WH20X10062 WH20X10062 MOTOR-DRAIN
49-9031-1 49-9031-1 OWNER'S MANUAL
WH01X10450 WH01X10450 PIN-LINK
WH01X10446 WH01X10446 PLAIN WASHER
WH17X10018 WH17X10018 PLATFORM-MOTOR
WH19X10062 WH19X10062 POWER CORD ASM-120V~60HZ
WH12X10427 WH12X10427 PRESSURE SWITCH
WH07X10021 WH07X10021 PULLEY-MOTOR
WH43X10043 WH43X10043 PULSATOR ASM
WH43X10040 WH43X10040 PULSATOR-CAP (BLUE)
WH01X10366 WH01X10366 PUMP FILTER CAP
WH09X10001 WH09X10001 ROLLER-WHEEL
WH17X10006 WH17X10006 SADDLE
WH02X10288 WH02X10288 SCR (M4 L10)
WH02X10294 WH02X10294 SCR (M4 L12)
WH02X10290 WH02X10290 SCR (M4 L14)
WH02X10289 WH02X10289 SCR (M4 L14)
WH02X10292 WH02X10292 SCR (M5 L20)
WH02X10295 WH02X10295 SCR BALANCER
WH02X10287 WH02X10287 SCR COVER-BACK (M4 L8)
WH02X10291 WH02X10291 SCR COVER-TUB M5
WH02X10296 WH02X10296 SCR FLNGE SHFT(M5.5 L25)
WH02X10298 WH02X10298 SCR MOTOR - M8 40
WH02X10293 WH02X10293 SCR SADDLE (M6.5 L20)
WH02X10299 WH02X10299 SCREW (M6.5 L25)
WR01X10463 WR01X10463 SCREW-TAPPING
WH02X10297 WH02X10297 SCREW-TAPPING
WR02X12114 WR02X12114 SCREW-TAPPING
WH02X10081 WH02X10081 SCREW-TAPPING
WR01X10520 WR01X10520 SCREW-TAPPING
WH09X10002 WH09X10002 SHAFT-WHEEL
WH01X10453 WH01X10453 SPRING-CLIP
WH01X10440 WH01X10440 SPRING-LID(LEFT)
WH01X10441 WH01X10441 SPRING-LID(RIGHT)
WH12X10104 WH12X10104 SWITCH REED
WH40X10008 WH40X10008 TRANSMISSION & SHAFT ASM
WH49X10063 WH49X10063 TUB-OUTER
WH41X10047 WH41X10047 UNICOUPLE

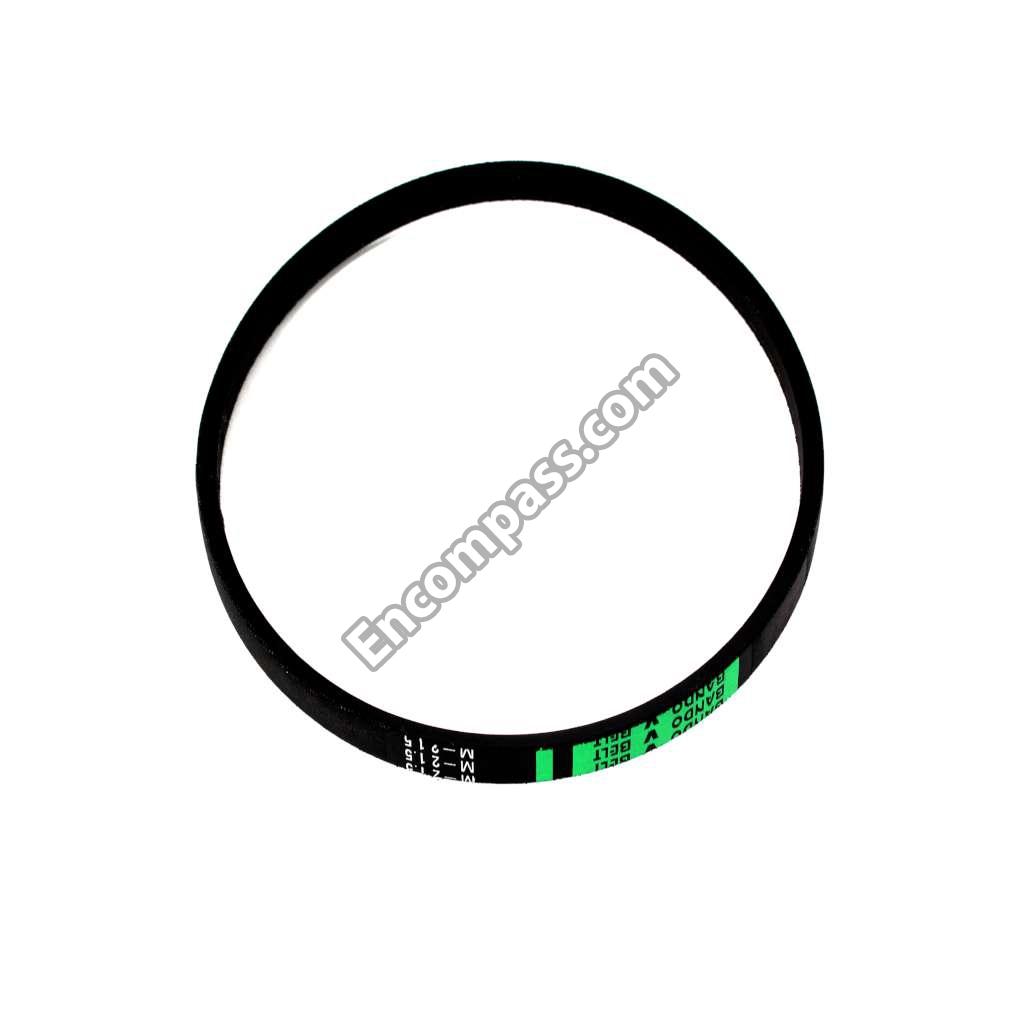

WH01X10442 WH01X10442 V BELT-RUBBER

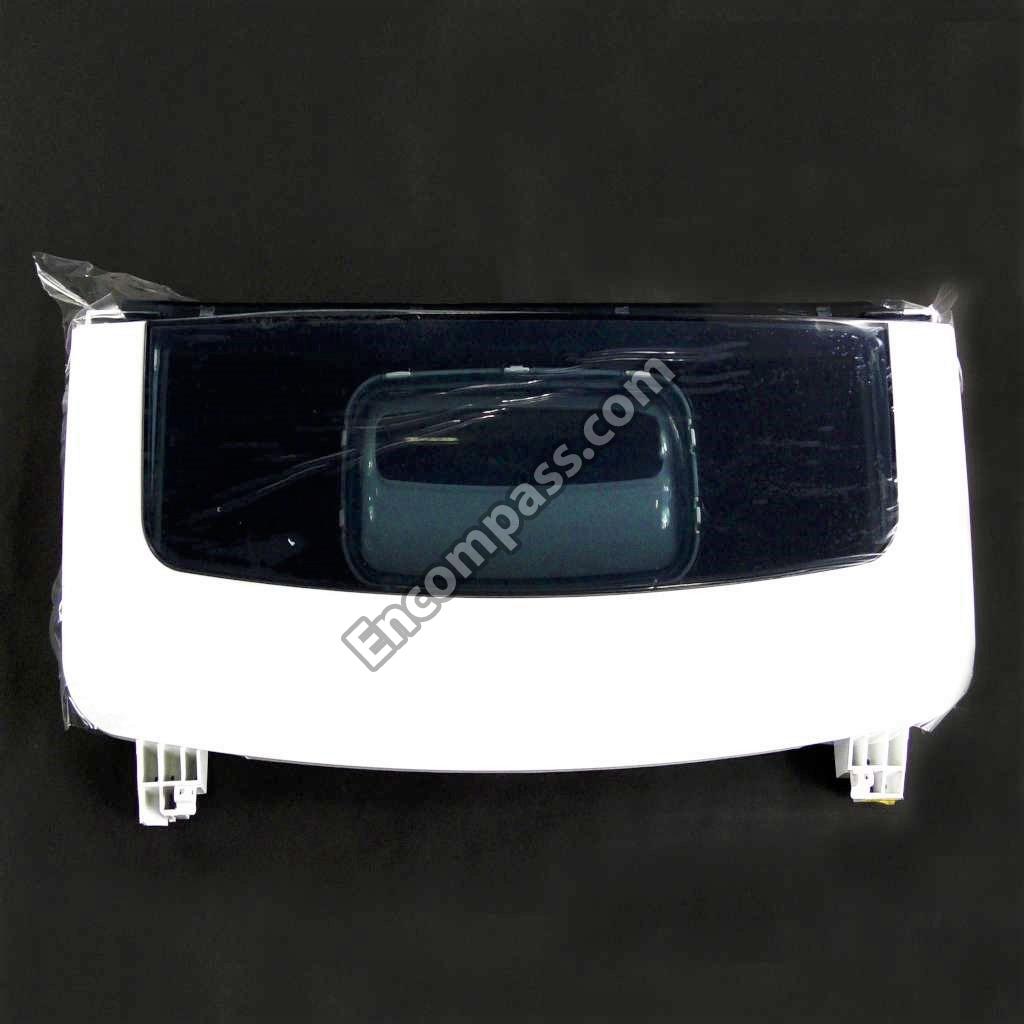

WH44X10217 WH44X10217 WASHER LID - TOP WH
WH13X10040 WH13X10040 WASHER-WAVE

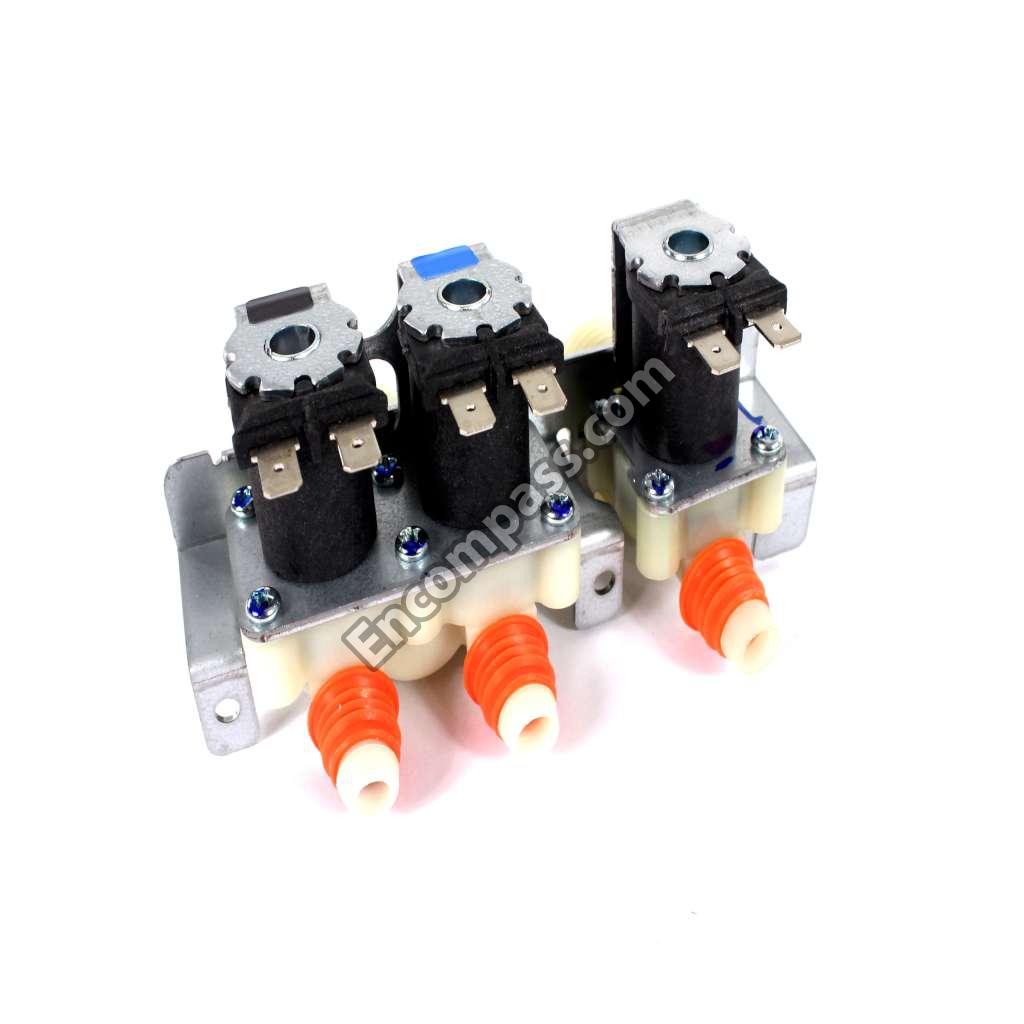

WH13X10039 WH13X10039 WATER VALVE ASM
WH13X10043 WH13X10043 WATER VALVE COLD
WH13X10042 WH13X10042 WATER VALVE HOT
WH1X2594 WH1X2594 WHITE CABLE TIE 11 1/2 LONG X
