Model Image
Manufacturer

GE

Model Number

WSM2480TAZWW

Description

Ge Washer/dryer Combo Model Wsm2480tazww Parts

Interactive Exploded View

Parts List

Part Number Description
WH41X10207 WH41X10207 2 PK RUBBER INLT HOSE 4
WX14X10005 WX14X10005 2PK-POLYMER COATED 4HOSES
WH43X10025 WH43X10025 AGITATOR
WE14X227 WE14X227 AIR DUCT & BRACKET AS
WE21X73 WE21X73 BAFFLE DRUM
WH46X10144 WH46X10144 BASE
WE14X228 WE14X228 BASE BURNER
WE20X799 WE20X799 BASE DRYER
WH45X146 WH45X146 BASKET
WH4X107 WH4X107 BEARING
WH4X109 WH4X109 BEARING BALL
WH4X105 WH4X105 BEARING LID
WE3X78 WE3X78 BEARING&SEAL
WH4X106 WH4X106 BEARINGS

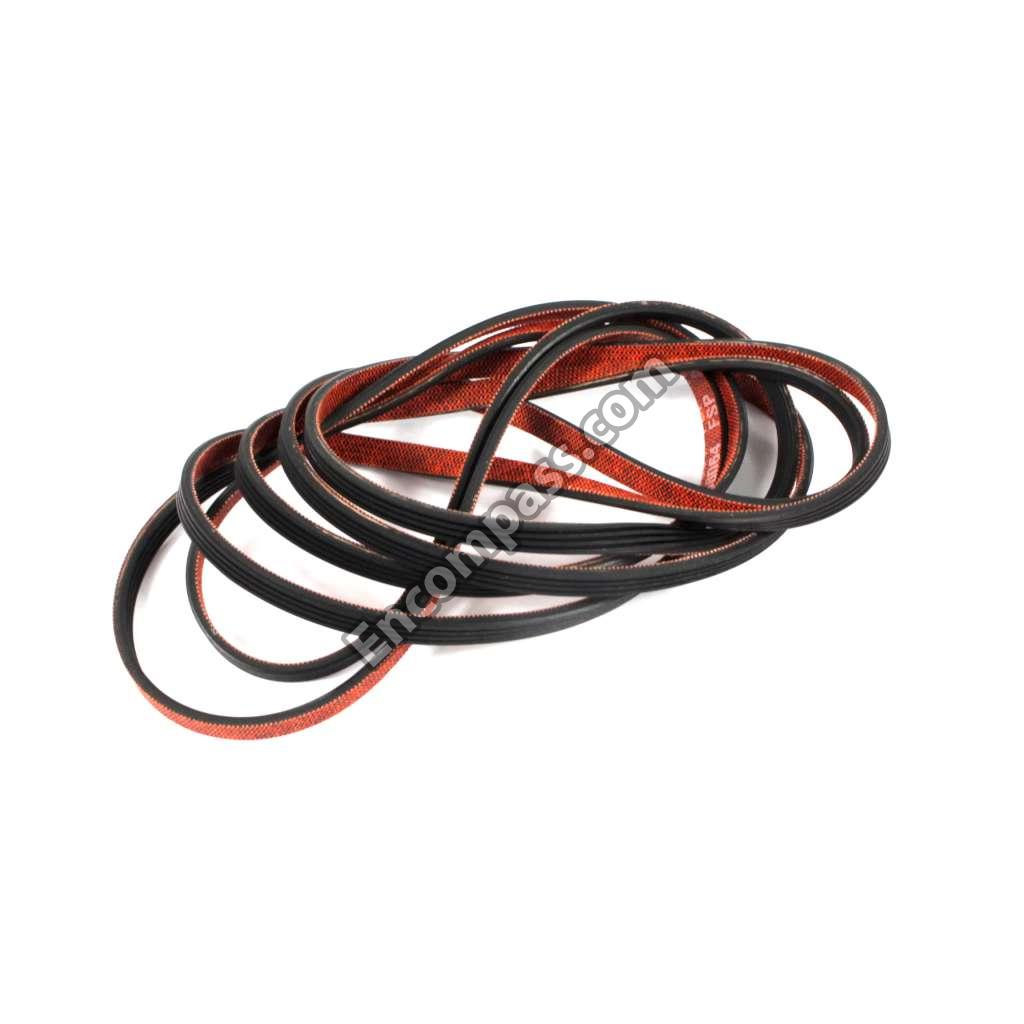

WE12X93 WE12X93 BELT DRIVE
WH40X180 WH40X180 BLOCK BSKT D
WH1X2703 WH1X2703 BLOCK RESTRA
WE4X825 WE4X825 BLOCK TERM
WE13X201 WE13X201 BRACKET MTR
WH16X509 WH16X509 BRACKET SPRG
WH16X512 WH16X512 BRKT CNTRL
WE13X209 WE13X209 BRKT SENSOR
WE20X790 WE20X790 BULKHEAD
WH1X2671 WH1X2671 BUMPER LID
WH1X2667 WH1X2667 BUMPER LID KIT
WE14X232 WE14X232 BURNER
WH12X954 WH12X954 BUZZER
WH5X246 WH5X246 CAM BRK REL
WH43X133 WH43X133 CAP AGITATOR
WH1X2695 WH1X2695 CAP SIPHON B
WH12X949 WH12X949 CAPACITOR
WE1X1195 WE1X1195 CATCH DOOR
WE2X383 WE2X383 CLAMP MTR MT
WE1X1226 WE1X1226 CLIP
WH1X2704 WH1X2704 CLIP
WH1X2698 WH1X2698 CLIP
WE1X1239 WE1X1239 CLIP
WH2X1181 WH2X1181 CLIP CONDENS
WH1X2686 WH1X2686 CLIP CONSOLE
WE1X1193 WE1X1193 CLIP FELTPAD
WE01X25997 WE01X25997 CLIP FRT PNL
WH1X2694 WH1X2694 CLIP SPRING
WE20X788 WE20X788 CLOSURE WH
WH39X47 WH39X47 CLUTCH ASM
WE20X782 WE20X782 COVE TRANS
WE13X203 WE13X203 COVER CHANN
WE13X208 WE13X208 COVER MANIFD
WE18X25155 WE18X25155 CVR LINT SCR
WE13X202 WE13X202 CVR TERM BLK
WH1X2689 WH1X2689 DIAL TIMER
WE10X328 WE10X328 DOOR FRT WH
WE10X327 WE10X327 DOOR REAR
WE21X72 WE21X72 DRUM DRYER
WE14X223 WE14X223 ELBOW LOWER
WE14X222 WE14X222 ELBOW UPPER
WH42X2313 WH42X2313 END CAP
WE14X225 WE14X225 FAN SCROLL
WH45X144 WH45X144 FILTER AGITR
WH1X2702 WH1X2702 FOOT REAR
WE4X828 WE4X828 FUSE THERMAL
WH08X25999 WH08X25999 GASKET CTRPT
WH8X372 WH8X372 GASKET TUB
WE1X1227 WE1X1227 GAURD SOCK
WH37X46 WH37X46 GEARCASE ASM
WH2X1169 WH2X1169 GROMMET MTR
WE1X1196 WE1X1196 HANDLE DR WH
WH01X25417 WH01X25417 HANDLE LID
WE11X100 WE11X100 HEATER BOX
WE1X1198 WE1X1198 HINGE & PIN
WH16X506 WH16X506 HINGE LID
WH16X507 WH16X507 HINGE LID
WH41X355 WH41X355 HOSE CONNEC
WH41X354 WH41X354 HOSE DRAIN
WH41X364 WH41X364 HOSE DRAIN
WH41X357 WH41X357 HOSE PRES SW
WH41X350 WH41X350 HOSE TUBPUMP
WH41X356 WH41X356 HOSE WTR IN
WH41X353 WH41X353 HOSE WTR INL
WH37X47 WH37X47 HOUSING
WE12X95 WE12X95 IDLER & BRKT
WE4X843 WE4X843 IGNITOR
WE1X1199 WE1X1199 KNOB
WH1X2687 WH1X2687 KNOB START
WH01X10291 WH01X10291 KNOB WATER LVL TEMP WH
WE1X1216 WE1X1216 LATCH LID
WE4X815 WE4X815 LEVER DR SW
WH1X2697 WH1X2697 LINK LEVELNG
WH1X2693 WH1X2693 LOCK CONSOLE
WH1X2700 WH1X2700 LOCK TOP
WH20X10010 WH20X10010 MOTOR
WE17X50 WE17X50 MOTOR SW
WE1X1237 WE1X1237 NIPPLE SHORT
WE2X384 WE2X384 NUT IDLER
WE2X385 WE2X385 NUT PUSH-IN
WH2X1163 WH2X1163 NUT SPANNER
WE14X230 WE14X230 ORIFICE
WE14X231 WE14X231 ORIFICE
WH42X2314 WH42X2314 PANEL CONTROL WHITE
WE20X776 WE20X776 PANEL FRT WH
WE20X778 WE20X778 PANEL REAR
WH17X92 WH17X92 PLATE MTR MT
WH46X332 WH46X332 PNL FRT WH
WE20X786 WE20X786 PNL RH SIDE
WE20X779 WE20X779 PNL SIDE WH
WE20X783 WE20X783 PNL TRANS WH
WE12X10003 WE12X10003 PULLEY MOTOR
WH23X10018 WH23X10018 PUMP COMPLETE
WH5X251 WH5X251 RACK CONNECT
WE1X1215 WE1X1215 RESTRAINER
WH1X2676 WH1X2676 RETAINER
WH1X2677 WH1X2677 RETAINER MTR
WH08X25877 WH08X25877 RING & GASKET ASM
WE3X80 WE3X80 RING BEARING
WH2X1173 WH2X1173 RING RETAIN
WH2X1176 WH2X1176 RING RETAIN
WH2X1167 WH2X1167 RING RETAINR
WH8X374 WH8X374 RING SOUND
WH2X1166 WH2X1166 RING SPIN
WH2X1171 WH2X1171 RING THRUST
WE3X82 WE3X82 ROLLER SUPP
WH2X1164 WH2X1164 SCR & WASHER
WH2X1160 WH2X1160 SCR LID HNGE
WH2X1159 WH2X1159 SCR TIMER MT
WH2X1162 WH2X1162 SCR/WSHR
WH2X1168 WH2X1168 SCREW
WC36X5089 WC36X5089 SCREW 10-24 X 3/8
WH2X1179 WH2X1179 SCREW CONS
WE2X379 WE2X379 SCREW DR SW
WE2X386 WE2X386 SCREW&WASHER
WE2X387 WE2X387 SCREW&WASHER
WE9X114 WE9X114 SEAL
WE9X112 WE9X112 SEAL
WE9X111 WE9X111 SEAL DOOR
WE9X113 WE9X113 SEAL FAN SCR
WH8X375 WH8X375 SEAL OIL
WH60X28 WH60X28 SEALER GSKT
WE1X1235 WE1X1235 SENSOR RADIA
WH40X181 WH40X181 SHAFT ASM
WE3X79 WE3X79 SHAFT ROLLER
WE3X86 WE3X86 SHAFT ROLLER
WH16X511 WH16X511 SHIELD MOTOR
WH16X508 WH16X508 SHIELD TUB
WH16X510 WH16X510 SHIELD TUB
WH7X121 WH7X121 SHOES BRAKE
WH1X2662 WH1X2662 SIPHON BREAK
WH5X247 WH5X247 SLEEVE CAM
WH1X2683 WH1X2683 SLEEVE SCREW
WH1X2670 WH1X2670 SPRG&BUTTON
WH1X2673 WH1X2673 SPRG&BUTTON
WH1X2675 WH1X2675 SPRING
WH1X2684 WH1X2684 SPRING LOCK
WE1X1194 WE1X1194 STRIKE DOOR
WH1X2672 WH1X2672 STRIKE LID
WE13X205 WE13X205 SUPPORT
WE13X204 WE13X204 SUPPORT
WH17X25998 WH17X25998 SUPPORT TUB
WE13X206 WE13X206 SUPT HEATER
WH17X10017 WH17X10017 SUSPENSION ASM 3 PK
WH12X951 WH12X951 SW WTR LVL
WH12X952 WH12X952 SW WTR TEMP
WE4X814 WE4X814 SWITCH DOOR
WH12X955 WH12X955 SWITCH LID
WH12X953 WH12X953 SWITCH START
WE8X46 WE8X46 TERM & NUTS
WE4X842 WE4X842 THERMO HEATR
WE4X856 WE4X856 THERMOSTAT

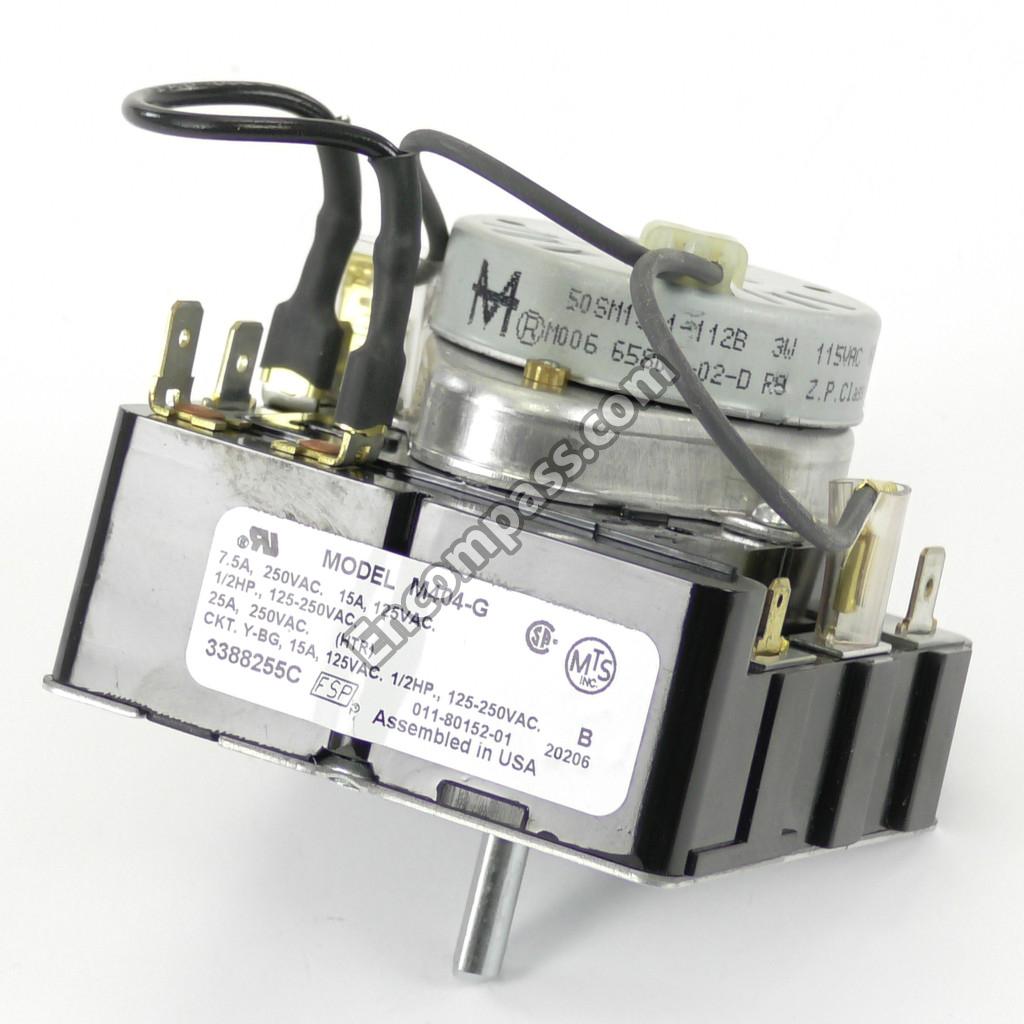

WH12X950 WH12X950 TIMER
WE4X822 WE4X822 TIMER DRYER
WH01X24654 WH01X24654 TIMER KNOB
WE20X785 WE20X785 TOP DRYER
WH44X1160 WH44X1160 TOP WH
WE2X392 WE2X392 TRI-RING
WH45X147 WH45X147 TUB
WH40X182 WH40X182 TUBE BSKT DR
WH41X351 WH41X351 TUBE DRAINOF
WE1X1238 WE1X1238 TUBE SUPPLY
WE14X229 WE14X229 VALVE 60 HZ
WE1X1236 WE1X1236 VALVE SHUTOF
WH13X10014 WH13X10014 VALVE WATER
WH2X1165 WH2X1165 WASHER
WE2X393 WE2X393 WASHER
WE2X390 WE2X390 WASHER
WH2X1177 WH2X1177 WASHER THRUS
WE16X29 WE16X29 WHEEL BLOWER
WH2X1180 WH2X1180 {{NLA}} SCREW & WASHER
