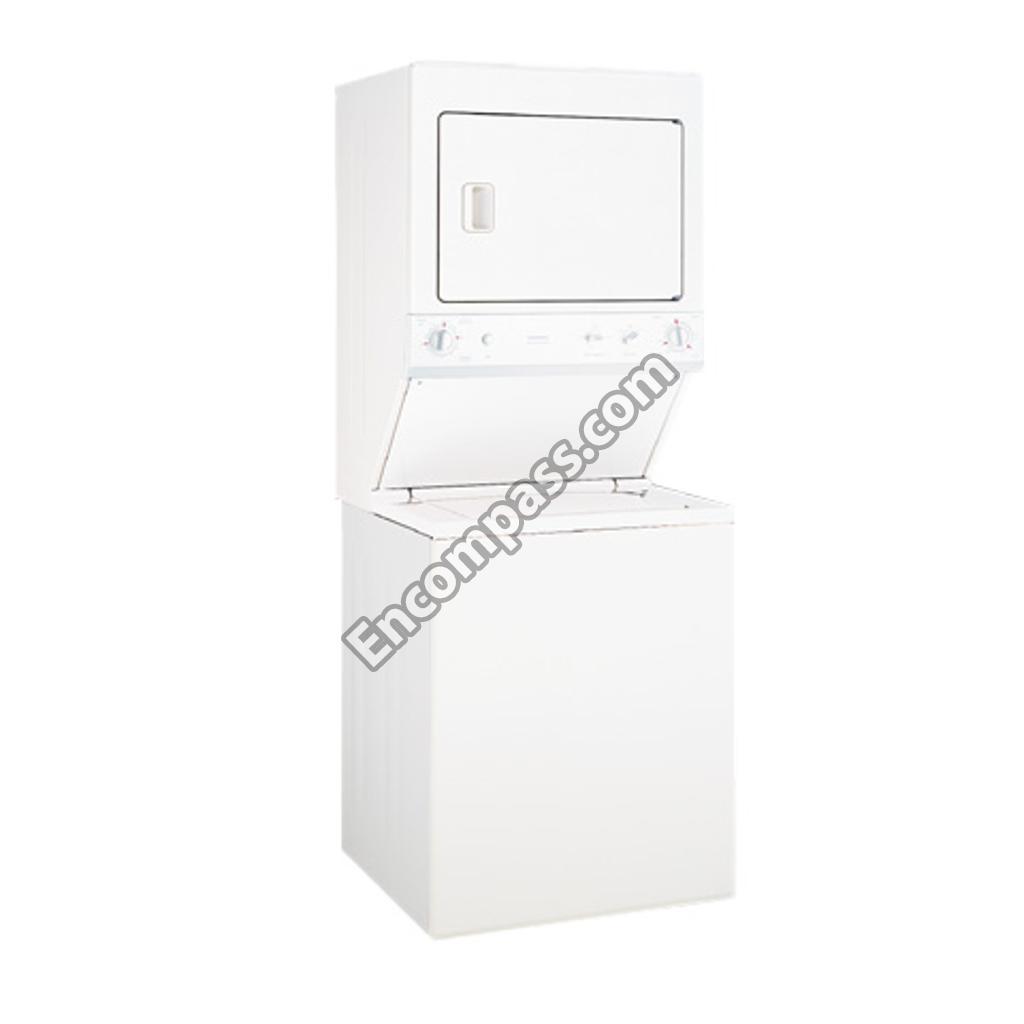

Model Image
Manufacturer

GE

Model Number

WSM2780TEWWB

Description

Washer/dryer Combo

Interactive Exploded View

Parts List

Part Number Description
WH41X10207 WH41X10207 2 PK RUBBER INLT HOSE 4
WE02X10071 WE02X10071 8-18AB X0.44 SCREW QUAD
WH43X119 WH43X119 AGITATOR
WE14X10020 WE14X10020 ASSEMBLY FRT BLW HSG/SEAL
WE01X10051 WE01X10051 ASSEMBLY-BURNER

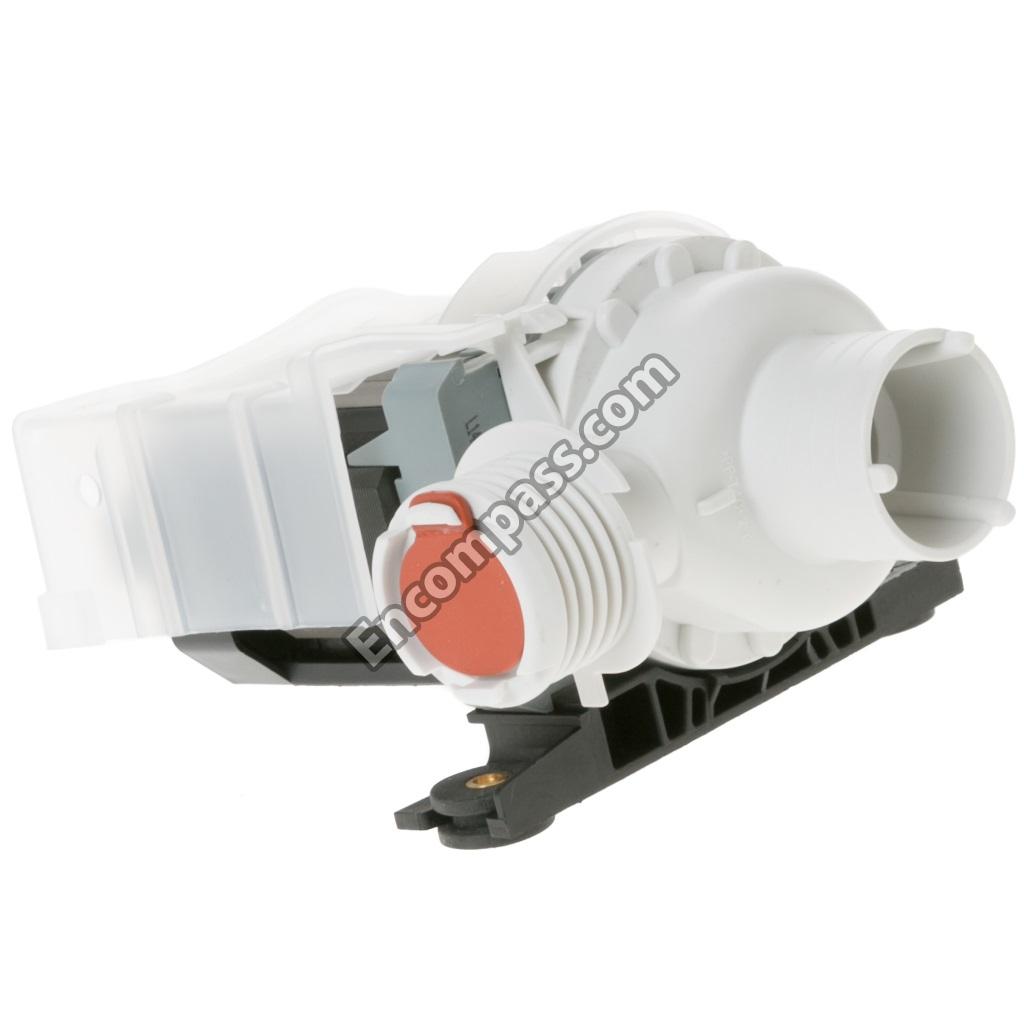

WH23X10041 WH23X10041 ASSEMBLY-PUMP
WE01X1152 WE01X1152 BALL
WE1X1152 WE1X1152 BALL
WH01X2600 WH01X2600 BAR HINGE
WH1X2600 WH1X2600 BAR HINGE
WH46X10025 WH46X10025 BASE ASSEMBLY
WH4X104 WH4X104 BEARING
WE3X70 WE3X70 BEARING
WH04X0104 WH04X0104 BEARING UPPER SPIN
WE03X0070 WE03X0070 BEARING-SHAFT
WE12X0090 WE12X0090 BELT DRYER
WE12X10009 WE12X10009 BELT-DRYER
WH1X2622 WH1X2622 BLOCK HINGE
WH01X2622 WH01X2622 BLOCK-SUPPORT
WE16X0028 WE16X0028 BLOWER WHEEL
WE16X28 WE16X28 BLOWER WHEEL
WE13X28680 WE13X28680 BRACKET BEARING
WH16X10097 WH16X10097 BRACKET CONTROL PANEL
WE13X0189 WE13X0189 BRACKET EXTERIOR
WE13X0188 WE13X0188 BRACKET INTERIOR JOINT
WE13X0191 WE13X0191 BRACKET VALVE
WH16X0502 WH16X0502 BRACKET-MARRIAGE LH
WH16X0501 WH16X0501 BRACKET-MARRIAGE RH
WE13X189 WE13X189 BRKT EXT.
WH16X502 WH16X502 BRKT JOINER
WH16X501 WH16X501 BRKT JOINER
WE13X188 WE13X188 BRKT JOINER
WE13X191 WE13X191 BRKT VALVE
WH1X2604 WH1X2604 BUMPER
WH01X2604 WH01X2604 BUMPER LID
WH1X2769 WH1X2769 BUSHING SNAP
WH01X2769 WH01X2769 BUSHING-DRAIN HOSE
WE01X10002 WE01X10002 BUTTON-START
WH43X118 WH43X118 CAP AGT.
WH43X0118 WH43X0118 CAP WASHER AGITATOR
WH12X1001 WH12X1001 CAPACITOR
WH01X10048 WH01X10048 CLAMP
WH02X10031 WH02X10031 CLAMP-PUMP
WE2X358 WE2X358 CLIP
WH2X1143 WH2X1143 CLIP
WE02X0358 WE02X0358 CLIP BALL
WH02X1131 WH02X1131 CLIP END CAP
WH2X1129 WH2X1129 CLIP GROUND
WH02X1129 WH02X1129 CLIP GROUNDING
WE2X361 WE2X361 CLIP GUIDE
WE02X10023 WE02X10023 CLIP IGNITER
WH02X1143 WH02X1143 CLIP SHIELD
WE02X0361 WE02X0361 CLIP-GUIDE
WE02X10010 WE02X10010 CLIP-WIRING
WE04X10020 WE04X10020 COIL
WE04X0748 WE04X0748 COIL SECONDARY
WH40X162 WH40X162 CONN ROD
WH40X10002 WH40X10002 CONNECTING ROD
WE20X0753 WE20X0753 COVER SAFETY
WE20X753 WE20X753 COVER SAFETY
WE20X744 WE20X744 COVER T BLK
WE20X0744 WE20X0744 COVER TERM BLOCK
WH45X0150 WH45X0150 COVER TUB
WJ45X10027 WJ45X10027 COVER TUB
WE13X10001 WE13X10001 CRADLE MOTOR
WH05X0241 WH05X0241 CRANK GEAR
WH47X41 WH47X41 DISPENSER BL
WH47X0041 WH47X0041 DISPENSER BLEACH
WE01X10023 WE01X10023 DOOR CATCH
WE01X10050 WE01X10050 DOOR HANDLE WHITE
WE10X10004 WE10X10004 DOOR INNER WHITE
WE10X10011 WE10X10011 DOOR OUTER ALMOND
WE10X10002 WE10X10002 DOOR OUTER WHITE
WE10X10006 WE10X10006 DOOR-INNER ALMOND
WE10X10009 WE10X10009 DOOR-OUTER WH
WH40X175 WH40X175 DRIVE HUB
WE21X10003 WE21X10003 DRUM-DRYER GALVANIZED BA
WE16X29397 WE16X29397 DRYER LINT FILTER
WE14X22454 WE14X22454 DUCT-AIR
WE14X206 WE14X206 ELBOW
WE14X0206 WE14X0206 ELBOW EXHAUST
WH42X10055 WH42X10055 END CAP L.H.
WH42X10056 WH42X10056 END CAP R.H.
WE01X1262 WE01X1262 FASTENER
WH02X10061 WH02X10061 FASTENER-RATCHET
WH01X10047 WH01X10047 FILTER-LINT
WE25X0206 WE25X0206 GAS CONV KIT NAT TO LP
WE25X10017 WE25X10017 GAS CONV KIT NAT TO LP
WE14X207 WE14X207 GAS VALVE AS
WE14X0207 WE14X0207 GAS VALVE ASM
WH08X0365 WH08X0365 GASKET
WH8X365 WH8X365 GASKET
WE09X0107 WE09X0107 GASKET DOOR
WE9X107 WE9X107 GASKET DOOR
WE03X10001 WE03X10001 GLIDE DRUM
WE03X0073 WE03X0073 GLIDE-DRUM
WH01X2592 WH01X2592 GROMMET
WH1X2592 WH1X2592 GROMMET
WE01X10049 WE01X10049 HANDLE DOOR ALMOND
WE14X0201 WE14X0201 HEATER & HSNG ASM
WE04X10041 WE04X10041 HEATER THERMOSTAT
WE01X10012 WE01X10012 HINGE-DOOR
WH1X2718 WH1X2718 HORIZ SPRING
WH41X10160 WH41X10160 HOSE ASSEMBLY ATC W/NOZZLE
WH41X378 WH41X378 HOSE DRAIN
WH41X10027 WH41X10027 HOSE PUMP TO TUB
WH41X0378 WH41X0378 HOSE-DRIAN, 90""
WH37X10001 WH37X10001 HOUSING ASSEMBLY UPPER
WE14X201 WE14X201 HSNG & DUCT
WH7X115 WH7X115 IDLER ARM.
WH05X0242 WH05X0242 IDLER GEAR
WH5X242 WH5X242 IDLER GEAR
WH07X0115 WH07X0115 IDLER PULLEY ASM
WE4X750 WE4X750 IGNITER
WE04X0750 WE04X0750 IGNITOR ASM
WH01X2599 WH01X2599 INDICATOR TIMER WASHER
WH41X0058 WH41X0058 INLET HOSE
31-2810 31-2810 INSTALLATION INSTR.
WE10X0322 WE10X0322 INSULATOR HEAT SHEILD
WE25X10019 WE25X10019 KIT - MOTOR & HOUSING
WH49X10032 WH49X10032 KIT-MOTOR CONVERSION
WE01X1151 WE01X1151 KNOB ASM TIMER DRYER
WH01X2598 WH01X2598 KNOB ASM TIMER WASHER
WE1X1151 WE1X1151 KNOB ASSEMBLY.
WE01X1149 WE01X1149 KNOB ROTARY
WE1X1149 WE1X1149 KNOB ROTARY
WH1X2598 WH1X2598 KNOB TIMER W
WH01X2720 WH01X2720 LEG DOME ASM
WH1X2720 WH1X2720 LEG&DOME ASM
WH01X10336 WH01X10336 LEG-LEVELING W/PAD
WH44X1137 WH44X1137 LID WASHERWH
WH44X1138 WH44X1138 LID-ALMOND
WH01X2549 WH01X2549 LOCK PLATE
WH01X10437 WH01X10437 LOCK PLATE
WE9X105 WE9X105 LOWER FELT
WH39X10001 WH39X10001 LOWER HSG ASSEMBLY
WH40X0183 WH40X0183 LOWER SHAFT ASM
WE25X0207 WE25X0207 LP TO NAT CONVERSION KIT
31-15065 31-15065 MINI MANUAL DRYER
31-15066 31-15066 MINI MANUAL WASHER
WE01X10003 WE01X10003 MOTOR CLAMP
WE13X210 WE13X210 MOTOR CRADLE
WE17X0054 WE17X0054 MOTOR,SWITCH,PULLEY ASM
WH2X1031 WH2X1031 N/L/A 09/21/09
WE02X0371 WE02X0371 NUT UNION GAS VALVE
WH60X10003 WH60X10003 OIL TRANSMISSION 1 QT
WE25X207 WE25X207 ORF CONV KIT
WE01X1167 WE01X1167 ORIFICE NATURAL GAS
WE01X10022 WE01X10022 ORIFICE NATURAL GAS
WH01X10043 WH01X10043 PAD LEVEL LEG
WH01X10044 WH01X10044 PAD LEVEL LEG
WE13X0210 WE13X0210 PAN MOTOR CRADLE UPPER
WE13X10012 WE13X10012 PAN-BOTTOM
WE20X743 WE20X743 PANEL ACCESS
WE20X0743 WE20X0743 PANEL ACCESS DRYER
WE20X0772 WE20X0772 PANEL ACCESS WH
WH42X10134 WH42X10134 PANEL CONTROL
WE20X0766 WE20X0766 PANEL SIDE DRYER L.H. WH
WE20X0768 WE20X0768 PANEL SIDE RIGHT WH
WE20X0741 WE20X0741 PANEL TOP
WE20X10071 WE20X10071 PANEL-FRONT
WE20X10007 WE20X10007 PANEL-FRONT ALMOND
WE20X23274 WE20X23274 PANEL-REAR
WH46X10027 WH46X10027 PANEL-TOP ALMOND
WH46X10026 WH46X10026 PANEL-TOP WHITE
WH01X10042 WH01X10042 PIN-LOCATING
WH01X10013 WH01X10013 PIN-LOCATING
WE01X1163 WE01X1163 PIPE GAS
WE1X1163 WE1X1163 PIPE GAS
WH1X2320 WH1X2320 PIPE LUG
WH01X2320 WH01X2320 PIPE PLUG
WE1X1262 WE1X1262 PLUG
WE20X25421 WE20X25421 PNL ACCES WH
WE20X766 WE20X766 PNL SIDE L W
WE20X768 WE20X768 PNL SIDE R W
WE08X0044 WE08X0044 POWER CORD
WE8X44 WE8X44 POWER CORD
WH41X10038 WH41X10038 PRESSURE TUBE
WH07X0116 WH07X0116 PULLEY MOTOR
WH7X116 WH7X116 PULLEY MTR.
WH07X0123 WH07X0123 PULLEY TRANSMISSION
WH07X10006 WH07X10006 PULLEY TRANSMISSION
WE4X744 WE4X744 RESISTOR
WE04X0744 WE04X0744 RESISTOR,3.0K
WH01X10063 WH01X10063 RING DRAIN HOSE
WH02X1136 WH02X1136 RING RETAINING
WH2X1136 WH2X1136 RING RETN.
WH2X1132 WH2X1132 RING RETNG.
WH02X1132 WH02X1132 RING-RETAINING
WH01X2615 WH01X2615 ROLL PIN
WH1X2615 WH1X2615 ROLL PIN
WH02X1142 WH02X1142 SCREW
WH02X1128 WH02X1128 SCREW
WH2X1107 WH2X1107 SCREW
WH2X1126 WH2X1126 SCREW
WH02X25419 WH02X25419 SCREW
WH2X1150 WH2X1150 SCREW
WE02X10003 WE02X10003 SCREW 1/4-14 X 625
WE02X10007 WE02X10007 SCREW 10-14 X 1 00
WR2X9494 WR2X9494 SCREW 10-16 X 375
WE02X10002 WE02X10002 SCREW 10-16 X 625
WH02X10040 WH02X10040 SCREW 10-16X3/8
WH02X1107 WH02X1107 SCREW 5/16-18 X 1 5/8 HX
WH01X10045 WH01X10045 SCREW 5/16-18 X 85
WH02X1126 WH02X1126 SCREW 6-20 X 3/8
WH02X10060 WH02X10060 SCREW 6-32 X 312
WH01X10004 WH01X10004 SCREW 8-18AB X 375
WR02X9494 WR02X9494 SCREW 8-18B X 0.31
WH02X1150 WH02X1150 SCREW 8-32 X .250
WE02X10016 WE02X10016 SCREW 8-32CA X 375
WE02X0365 WE02X0365 SCREW AB 10-16 X 1/2
WE02X10020 WE02X10020 SCREW GND 10-32T X 37
WE02X10004 WE02X10004 SCREW PUMP BRKT
WR1X2209 WR1X2209 SCREW TOE GR
WH2X1128 WH2X1128 SCREW W
WR01X2209 WR01X2209 SCREW, BACK LID
WE02X10005 WE02X10005 SCREW-BRACKET
WH02X10009 WH02X10009 SCREW-LOCK 10-16X 50
WH02X10004 WH02X10004 SCREW-SW 6032X 19-2A
WH8X368 WH8X368 SEAL AG CAP
WE09X10001 WE09X10001 SEAL AIR DUCT
WE09X0105 WE09X0105 SEAL BASKET LOWER
WH8X364 WH8X364 SEAL UPPER
WH08X0368 WH08X0368 SEAL WASHER AGITATOR CAP
WH08X10004 WH08X10004 SEAL-TUB
WH05X0240 WH05X0240 SECTOR GEAR
WH5X240 WH5X240 SECTOR GEAR
WE04X0751 WE04X0751 SENSOR
WE4X751 WE4X751 SENSOR
WH2X1138 WH2X1138 SET SCREW
WE01X10044 WE01X10044 SHIELD ACCESS
WE10X322 WE10X322 SHIELD DOOR
WH16X0515 WH16X0515 SHIELD HEAT
WH16X515 WH16X515 SHIELD HEAT
WH16X529 WH16X529 SHIELD MOTOR
WH02X1111 WH02X1111 SLEEVE IDLER
WH01X2608 WH01X2608 SLIDE PIN
WH1X2608 WH1X2608 SLIDE PIN
WH01X2324 WH01X2324 SMALL LGS SPRING
WH01X2312 WH01X2312 SNUBBER RING
WH1X2312 WH1X2312 SNUBBER RING
WH02X1127 WH02X1127 SPACER TIMER SHAFT
WH2X1127 WH2X1127 SPACER W
WH1X2324 WH1X2324 SPR SM L G S
WH1X2623 WH1X2623 SPR. ASSIST
WH01X2718 WH01X2718 SPRING HORIZONTAL
WE01X1159 WE01X1159 SPRING IDLER
WE1X1159 WE1X1159 SPRING IDLER
WH01X2623 WH01X2623 SPRING LID
WH1X2616 WH1X2616 SPRING TORS.
WH01X2616 WH01X2616 SPRING TORSION
WH01X10371 WH01X10371 SPRING VERTICAL
WH01X2624 WH01X2624 SPRING VERTICAL (BLUE)
WH01X10370 WH01X10370 SPRING VERTICAL SHORT
WH2X1094 WH2X1094 SPRING WASHR
WH01X2625 WH01X2625 SPRING-VERTICAL
WE01X1158 WE01X1158 STRIKE DOOR
WE1X1158 WE1X1158 STRIKE DOOR
WH01X10041 WH01X10041 STRIKE LID
WH02X10039 WH02X10039 STUD-AGITATOR CAP
WE13X0212 WE13X0212 SUPPORT SHAFT
WE13X10011 WE13X10011 SUPPORT SHAFT
WE4X743 WE4X743 SW START
WE04X0743 WE04X0743 SWITCH START
WH12X10083 WH12X10083 SWITCH WATER LEVEL
WE04X10003 WE04X10003 SWITCH-DOOR
WH12X10036 WH12X10036 SWITCH-TEMPERATURE
WE1X1166 WE1X1166 TAIL PIECE
WE01X1166 WE01X1166 TAIL PIECE GAS VALVE
WE04X0747 WE04X0747 THERMOSTAT CONTROL
WE04X10040 WE04X10040 THERMOSTAT SAFETY
WH02X1032 WH02X1032 THRUST WASHER
WH02X1016 WH02X1016 THRUST WASHER
WH02X1009 WH02X1009 THRUST WASHER
WH2X1016 WH2X1016 THRUST WASHR
WH2X1032 WH2X1032 THRUST WASHR
WH2X1009 WH2X1009 THRUST WASHR
WH12X1040 WH12X1040 TIMER WASHER
WE04X10005 WE04X10005 TIMER-DRYER
WH17X95 WH17X95 TRUNNION
WE4X747 WE4X747 TSTAT CONTRL
WH45X10018 WH45X10018 TUB & BEARING ASSEMBLY
WH45X134 WH45X134 TUB-SPIN AND TRUNNION
WE14X0208 WE14X0208 TUBE BURNER
WE14X208 WE14X208 TUBE BURNER
WH1X2036 WH1X2036 UNIV CLAMP
WH08X0364 WH08X0364 UPPER LIP SEAL
WH07X10009 WH07X10009 V-BELT
WE01X10248 WE01X10248 VALVE GAS SHUT-OFF
WE21X0069 WE21X0069 VANE
WE21X69 WE21X69 VANE DRUM
WH2X1133 WH2X1133 WASHER
WH02X1133 WH02X1133 WASHER PIVOT SHAFT
WH02X1031 WH02X1031 WASHER SPACER
WH02X1094 WH02X1094 WASHER SPRING
WH02X10041 WH02X10041 WASHER-INLET HOSE
WH38X10014 WH38X10014 WASHING MACHINE TRANSMISSION
WH13X78 WH13X78 WATER VALVE
WE03X29378 WE03X29378 WE01X10071
WH12X10035 WH12X10035 WH12X10035
WH2X1118 WH2X1118 WH2X1118
49-9897 49-9897 WSM2700T 2780T USE & CARE
