Model Image
Manufacturer

GE

Model Number

WWA5009VCL

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH12X631 WH12X631 #1 SWITCH
WH2X739 WH2X739 *NLA*STAKE NUT
WH41X10207 WH41X10207 2 PK RUBBER INLT HOSE 4
WH1X2090 WH1X2090 ACTUATOR ARM
WH01X2090 WH01X2090 ACTUATOR SWITCH
WH41X0158 WH41X0158 ADAPTER HOSE
WH41X0157 WH41X0157 ADAPTER-HOSE
WH1X1944 WH1X1944 AGITATR COUP
WH43X87 WH43X87 AGT ASM-14#
WH43X89 WH43X89 AGT CAP
WH1X1986 WH1X1986 AGT SUPT ASM
WH46X0195 WH46X0195 APRON & BRACE ASM AD
WH46X0196 WH46X0196 APRON & BRACE ASM CF
WH46X0197 WH46X0197 APRON & BRACE ASM FA
WH46X0198 WH46X0198 APRON & BRACE ASM HA
WH46X0172 WH46X0172 APRON & BRACE ASM WH
WH46X198 WH46X198 APRON ASEM.-HARVEST **NLA*
WH46X195 WH46X195 APRON ASM **NLA*
WH46X172 WH46X172 APRON&BRACE **NLA*
WH44X1097 WH44X1097 BACK APRON **NLA*
WH44X0925 WH44X0925 BACK-APRON
WH46X0213 WH46X0213 BACKSPLASH WRAPPER CF
WH46X0214 WH46X0214 BACKSPLASH WRAPPER FA
WH46X0211 WH46X0211 BACKSPLASH WRAPPER WH
WH4X12 WH4X12 BALL BEARING
WH46X182 WH46X182 BASE BRKT-L
WH46X181 WH46X181 BASE BRKT-R
WH45X0103 WH45X0103 BASKET ASM STD CAP
WH04X0012 WH04X0012 BEARING BALL
WH01X2026 WH01X2026 BELT
WH1X2026 WH1X2026 BELT
WH2X812 WH2X812 BOLT
WH02X0543 WH02X0543 BOLT U
WZ2X514D WZ2X514D BOLT-PKG 12
WH2X801D WH2X801D BOLT-RET12PK
WH08X0292 WH08X0292 BOOT HUB
WH08X0246 WH08X0246 BOOT MECH
WH01X1998 WH01X1998 BRACKET
WH16X0376 WH16X0376 BRACKET ACTUATOR
WH46X0182 WH46X0182 BRACKET BASE LH
WH46X0181 WH46X0181 BRACKET BASE RH
WH16X483 WH16X483 BRACKET VALV
WH16X0373 WH16X0373 BRACKET VALVE
WH16X376 WH16X376 BRKT-ACTUATR
WH1X1654 WH1X1654 BUMPER
WH01X1480 WH01X1480 BUMPER LID
WH01X1654 WH01X1654 BUMPER LID
WE01X0833 WE01X0833 BUTTON-PLUG
WH16X374 WH16X374 CABLE ASM
WH16X0374 WH16X0374 CABLE STD CAPACITY
WH01X0484 WH01X0484 CAP LEVELING SCREW K
WH43X0089 WH43X0089 CAP WASHER AGITATOR
WH01X1732 WH01X1732 CAP WATER VALVE
WH2X798 WH2X798 CARRIAGE BLT
WH41X130 WH41X130 CHAMBER HOSE
WH01X1292 WH01X1292 CLAMP ASM
WH01X1580 WH01X1580 CLAMP ASM
WH1X1580 WH1X1580 CLAMP ASM
WH1X1292 WH1X1292 CLAMP ASM
WH01X1621 WH01X1621 CLAMP COUPLING
WH1X1169 WH1X1169 CLAMP PLATE
WH01X1862 WH01X1862 CLAMP YOKE
WH01X2021 WH01X2021 CLAMP-HOSE M
WH01X0203 WH01X0203 CLAMP-HOSE M
WH02X0896 WH02X0896 CLIP
WH2X896 WH2X896 CLIP
WH01X1923 WH01X1923 CLIP COVER
WH02X0739 WH02X0739 CLIP NUT
WH01X2117 WH01X2117 CLIP SPRING
WH5X174 WH5X174 CLUTCH DRUM
WH2X650 WH2X650 COMP RING
WH19X225 WH19X225 CORD SET
WH19X0225 WH19X0225 CORDSET ASM
WH1X2056 WH1X2056 COUNTERWEIGH
WH01X2056 WH01X2056 COUNTERWEIGHT
WH1X1621 WH1X1621 COUPL CLAMP
WH01X1944 WH01X1944 COUPLING ASM WASHER AGITATOR
WH01X1722 WH01X1722 COUPLING FLEXIBLE
WH44X901 WH44X901 COVER
WH44X0980 WH44X0980 COVER ASM AD
WH44X980 WH44X980 COVER ASM AD
WH44X0981 WH44X0981 COVER ASM CF
WH44X0982 WH44X0982 COVER ASM FA
WH44X0983 WH44X0983 COVER ASM HA
WH44X0894 WH44X0894 COVER ASM WH
WH8X295 WH8X295 COVER SHIELD
WH1X2187 WH1X2187 COVER STOP
WH1X1946 WH1X1946 COVER STRAP
WH1X2081 WH1X2081 CUP WASHER
WH01X2081 WH01X2081 CUP WASHER BLACK
WH01X2082 WH01X2082 CUP WASHER WHITE
WH01X1953 WH01X1953 CUSHION YOKE
WH16X413 WH16X413 CVR SH RETNR
WH16X361 WH16X361 DAMPING FIN
WH16X364 WH16X364 DAMPING FIN
WH16X0361 WH16X0361 DAMPING FIN & SUPT 14#
WH16X0364 WH16X0364 DAMPING FIN STD. CAP.
WH11X0091 WH11X0091 DIAL ASM
WH11X133 WH11X133 DIAL ASM
WH41X184 WH41X184 DR HOSE ASM
WH05X0174 WH05X0174 DRUM CLUTCH
WE19X0655 WE19X0655 END TRIM-RH
WH42X2016 WH42X2016 ESCUTCHEON ASM
WH1X2267 WH1X2267 FILT&WASHER
WH1X1722 WH1X1722 FLEX COUPLNG
WH8X253 WH8X253 FLOW NOZZLE
WH1X2296 WH1X2296 FRICTION PAD
WH01X2088 WH01X2088 GASKET
WH1X2088 WH1X2088 GASKET
WE01X0553 WE01X0553 GASKET INSULATING
WH08X0296 WH08X0296 GASKET PUMP
WH08X0305 WH08X0305 GASKET TUB
WL39X3 WL39X3 GREASE **NLA*
WH16X0405 WH16X0405 HANGER ASM MOTOR
WZ7X40D WZ7X40D HEXNT-PKG 12
WH01X2085 WH01X2085 HINGE PIVOT L.H.
WH01X2222 WH01X2222 HINGE PIVOT R.H.
WH1X2086 WH1X2086 HINGE-PAD R
WH41X158 WH41X158 HOSE ADAPTER
WH41X0130 WH41X0130 HOSE CHAMBER
WH41X0184 WH41X0184 HOSE DRAIN
WH41X0091 WH41X0091 HOSE DRAIN INLET
WH41X0170 WH41X0170 HOSE INLET
WH01X1584 WH01X1584 HOSE REDUCER
WH1X1584 WH1X1584 HOSE REDUCER
WH41X0099 WH41X0099 HOSE VALVE
WH02X0042 WH02X0042 HOSE WASHER
WH41X0012 WH41X0012 HOSE-SWITCH
WH12X0538 WH12X0538 HOUSING TERMINAL
WH12X0497 WH12X0497 HOUSING TERMINAL
WH12X0417 WH12X0417 HOUSING TERMINAL
WH46X215 WH46X215 HSNG&NUT ASM
WH46X212 WH46X212 HSNG&NUT ASM
WH8X292 WH8X292 HUB BOOT
WH41X0132 WH41X0132 INLET ASM
WH41X0058 WH41X0058 INLET HOSE
WH41X170 WH41X170 INLET HOSE
WH49X297 WH49X297 KIT WALK FIX
WH01X2089 WH01X2089 KNOB ACTUATOR
WH01X2119 WH01X2119 KNOB ASM
WH1X2757 WH1X2757 KNOB ASM CTL
WH1X2089 WH1X2089 KNOB-ACTUATR
WH1X1309 WH1X1309 LEAF SPRING
WH46X0188 WH46X0188 LEG & STRAP ASM
WH44X0976 WH44X0976 LID AD
WH44X1148 WH44X1148 LID ALMOND
WH44X0977 WH44X0977 LID CF
WH44X0978 WH44X0978 LID FA
WH44X0979 WH44X0979 LID HA
WH44X0525 WH44X0525 LID WH
WH44X1163 WH44X1163 LID WH
WL39X0003 WL39X0003 LUBRICANT
WH20X10002 WH20X10002 MOTOR ASM
WH20X0061 WH20X0061 MOTOR ASM 1-3 HP
WH12X0647 WH12X0647 MOTOR TIMER
WH17X0074 WH17X0074 MOUNT-MOTOR
WH16X405 WH16X405 MTR HANGR AS
WH44X1149 WH44X1149 N.L.A.LID ASM-STD
WH45X103 WH45X103 N/L/A 02/26/99
WH1X1480D WH1X1480D N/L/A 04/24/06
WH1X2087 WH1X2087 N/L/A 09/08/05
WH1X1998 WH1X1998 NLA PART
WH41X157 WH41X157 NOZZLE ADPTR
WH41X0035 WH41X0035 NOZZLE DRAIN
WH41X35 WH41X35 NOZZLE DRAIN
WH08X0253 WH08X0253 NOZZLE OVERFLOW
WZ07X0040 WZ07X0040 NUT
WH02X0936 WH02X0936 NUT
WZ08X0006 WZ08X0006 NUT & LOCKWASHER 10-32
WH02X0707 WH02X0707 NUT LOCK
WL02X0071 WL02X0071 NUT SHEET METAL
WZ8X6D WZ8X6D NUT-PKG 12
WH2X707D WH2X707D NUT-PKG 12
WH2X936D WH2X936D NUT-PKG 12
49-9351 49-9351 OWNER'S MANUAL
WH01X1952 WH01X1952 PAD-FRICTION
WH01X2087 WH01X2087 PAD-HINGE L.H.
WH01X2086 WH01X2086 PAD-HINGE R.H.
WH01X1633 WH01X1633 PIN STOP
WH1X1633 WH1X1633 PIN STOP
WH1X2222 WH1X2222 PIVOT HINGE
WH1X2085 WH1X2085 PIVOT HNG L
WH01X1169 WH01X1169 PLATE CLAMP
WH07X0045 WH07X0045 PLATE LOWER DRIVE
WH08X0284 WH08X0284 PLUG TUB
WH01X1813 WH01X1813 PLUG TUB
WH01X1980 WH01X1980 PLUG TUB
WH49X0136 WH49X0136 PM ENVELOPE ASM INSTALL
49-9091 49-9091 PM INSTAL INSTR 055
WH49X263 WH49X263 PT PKINSTALL **NLA*
WH07X0040 WH07X0040 PULLEY & BRACKET ASM
WH07X0041 WH07X0041 PULLEY AND BRKT ASM
WH7X40 WH7X40 PULLEY&BRKT
WH23X0053 WH23X0053 PUMP ASM
WH23X42 WH23X42 PUMP ASM
WH8X296 WH8X296 PUMP GASKET **NLA*
WH41X91 WH41X91 PUMP INLET
WH12X235 WH12X235 RELAY
WH12X0235 WH12X0235 RELAY ASM
WH02X0801 WH02X0801 RETAINER BOLT
WH42X1062 WH42X1062 RETAINER CLOTHES
WH16X0413 WH16X0413 RETAINER COVER SHIELD
WZ13X0024 WZ13X0024 RETAINER SEAT
WH01X2060 WH01X2060 RETAINER-SEAT
WH02X0650 WH02X0650 RING COMPRESSION
WZ13X0031 WZ13X0031 RING E
WH02X0190 WH02X0190 RING RETAINING
WZ11X0050 WZ11X0050 ROLL PIN
WZ13X31D WZ13X31D RTRNG PKG 12
WZ13X24D WZ13X24D RTRNG PKG 12 **NLA*
WH02X0935 WH02X0935 SCR
WH02X0888 WH02X0888 SCR 1/4-14 BT HXW 1 S
WH02X0820 WH02X0820 SCR 1/4-14 HX 3/4 S
WZ02X0514 WZ02X0514 SCR 1/4-20 M HX 13/16 S
WH02X0798 WH02X0798 SCR 1/4-20 M RD 11/16 S
WH02X0694 WH02X0694 SCR 10-12 A HX 1/2 S
WH02X0938 WH02X0938 SCR 10-16 AB HXW 1 3/8 S
WH02X0715 WH02X0715 SCR 12-14 B HX 3/4 S
WH02X0882 WH02X0882 SCR 14-10 A HX 3/4 S
WH01X0209 WH01X0209 SCR 3/8-24 LVL 2 S
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WE02X0281 WE02X0281 SCR 8-18 AB HWX 3/8 S
WZ04X0238 WZ04X0238 SCR 8-18 AB HX 1/2 S
WH02X0819 WH02X0819 SCR 8-18 B RT 1/2 SS
WD02X5063 WD02X5063 SCR 8-18 PH HX 13/32 S
WH02X0940 WH02X0940 SCR 8-32 TT FL 1/2 S
WH2X1137 WH2X1137 SCR LEVELING
WH01X2077 WH01X2077 SCREEN
WH02X0812 WH02X0812 SCREW
WE02X0186 WE02X0186 SCREW
WZ05X0120 WZ05X0120 SCREW
WH2X940 WH2X940 SCREW
WH2X930 WH2X930 SCREW
WH2X888 WH2X888 SCREW
WH2X937 WH2X937 SCREW
WH02X0795 WH02X0795 SCREW 1/4-14 3/8 B HXW
WZ04X0288 WZ04X0288 SCREW 10-16 X 1/2"" HEX
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WH02X0681 WH02X0681 SCREW 5/16-18X7/8
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WH1X484 WH1X484 SCREW CAP
WH02X0653 WH02X0653 SCREW-MACH
WE2X186D WE2X186D SCREW-PKG 12
WH2X935D WH2X935D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WD2X5063D WD2X5063D SCREW-PKG 12
WZ5X120D WZ5X120D SCREW-PKG 12
WH2X820D WH2X820D SCREW-PKG 12
WH2X795D WH2X795D SCREW-PKG 12
WH2X882D WH2X882D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WZ4X288D WZ4X288D SCREW-PKG 12
WZ4X268D WZ4X268D SCREW-PKG 12
WH2X715D WH2X715D SCREW-PKG 12
WH2X694D WH2X694D SCREW-PKG 12
10-12X1_8 10-12X1_8 SCREW-TYPE A
WH02X0937 WH02X0937 SCREW-TYPE A
WH42X0893 WH42X0893 SCREW-TYPE B
WH2X681D WH2X681D SCRWSH-PKG12
WH1X2060 WH1X2060 SEAT RETANR **NLA*
WH40X0151 WH40X0151 SHAFT EXTENSION ASM
WH40X151 WH40X151 SHFT EXT ASM
WH08X0295 WH08X0295 SHIELD-COVER
WH07X0064 WH07X0064 SHOE ASM-PRIMARY
WL2X71D WL2X71D SNUT-PKG 12 **NLA*
WH02X0581 WH02X0581 SPACER
WH02X0810 WH02X0810 SPACER
WH2X581 WH2X581 SPACR- EACH
WZ11X50D WZ11X50D SPPIN-PKG 12
WH1X2117 WH1X2117 SPRING CLIP
WH01X1309 WH01X1309 SPRING CLUTCH LEAF
WH01X2187 WH01X2187 STOP COVER
WH01X1946 WH01X1946 STRAP COVER
WH7X41 WH7X41 STRAP&SHAFT
WH16X372 WH16X372 SUPPORT
WH16X0372 WH16X0372 SUPPORT DRAIN HOSE
WH17X0067 WH17X0067 SUSPENSION ROD KIT ASM
WH12X0494 WH12X0494 SWITCH & BRACKET ASM
WH12X0631 WH12X0631 SWITCH PANEL TIMER ASM
WH12X0657 WH12X0657 SWITCH WATER LEVEL
WH12X497 WH12X497 TERM HOUSING
WH12X417 WH12X417 TERM HSNG
WH12X538 WH12X538 TERM HSNG
WE17X0151 WE17X0151 TERMINAL
WB17X5053 WB17X5053 TERMINAL
WB17X5054 WB17X5054 TERMINAL
WH12X0603 WH12X0603 TERMINAL SPECIAL
WH38X0038 WH38X0038 TRANSMISSION ASM STD CAP
WE19X0654 WE19X0654 TRIM-END
WH45X0069 WH45X0069 TUB ASM. STD. CAP.
WH49X10008 WH49X10008 TUB FIX KIT
WH8X305 WH8X305 TUB GASKET
WH1X1813 WH1X1813 TUB PLUG
WH8X284 WH8X284 TUB PLUG
WH1X1980 WH1X1980 TUB PLUG
WH01X1807 WH01X1807 TUBE OVERFLOW
WH1X1807 WH1X1807 TUBING
WH2X543D WH2X543D UBOLT-PKG 12
49-9377 49-9377 USE - CARE BOOK
WH1X1732 WH1X1732 VAL BODY CAP
WH13X0062 WH13X0062 VALVE ASM-WATER
WH41X99 WH41X99 VALVE HOSE
WE02X0279 WE02X0279 WASHER
WH43X0087 WH43X0087 WASHER AGITATOR & COUPLING WH
WH02X0539 WH02X0539 WASHER FLAT
WH02X0811 WH02X0811 WASHER FLAT
WH01X1986 WH01X1986 WASHER FLAT
WH1X2036 WH1X2036 WASHER HOSE CLAMP KIT
WH2X42D WH2X42D WASHR PKG 12
WH2X811D WH2X811D WASHR PKG 12
WH1X2082D WH1X2082D WASHR-PKG 12
WH2X539D WH2X539D WASHR-PKG 12
WH2X810D WH2X810D WASHR-PKG 12 **NLA*
WH41X132 WH41X132 WATER INLET
WH13X81 WH13X81 WATER VALVE
WE2X279D WE2X279D WE2X279D
WE2X281D WE2X281D WE2X281D
WH46X0212 WH46X0212 WELD ASM-HOUSING AD
WH46X0215 WH46X0215 WELD ASM-HOUSING HA
WH7X110 WH7X110 WH07X0110
WH12X603D WH12X603D WH12X603D
WH17X86 WH17X86 WH17X86
WH1X1923D WH1X1923D WH1X1923D
WH2X190D WH2X190D WH2X190D
WH2X819D WH2X819D WH2X819D
WH7X127 WH7X127 WH7X127
WH16X0370 WH16X0370 WIRE
WH16X370 WH16X370 WIRE
WE1X553 WE1X553 WRAPP GASKET

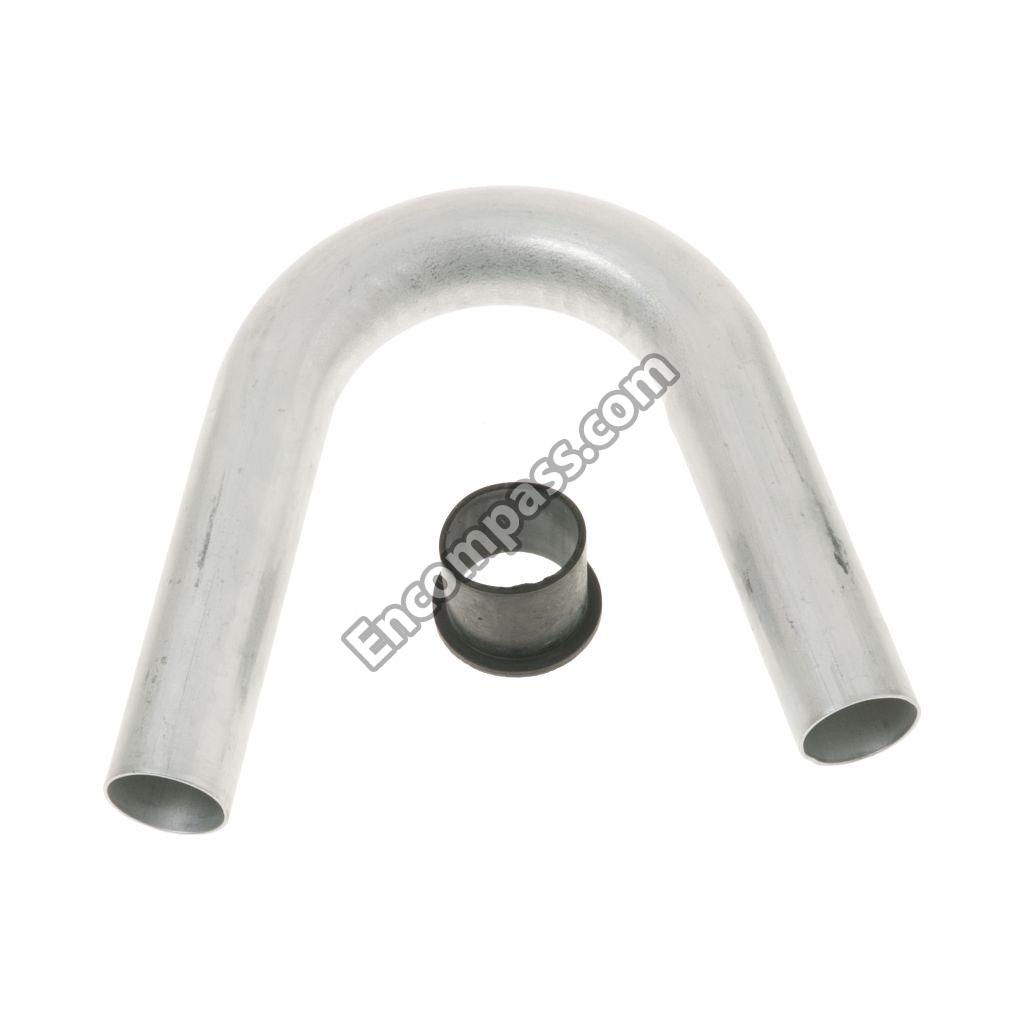

WH01X1951 WH01X1951 YOKE
WH1X1951 WH1X1951 YOKE
WH1X1862 WH1X1862 YOKE CLAMP
WH1X1953 WH1X1953 YOKE CUSHION
Main Menu x
