Model Image
Manufacturer

GE

Model Number

WWP1150BAJ

Description

Washer

Interactive Exploded View

Parts List

Part Number Description

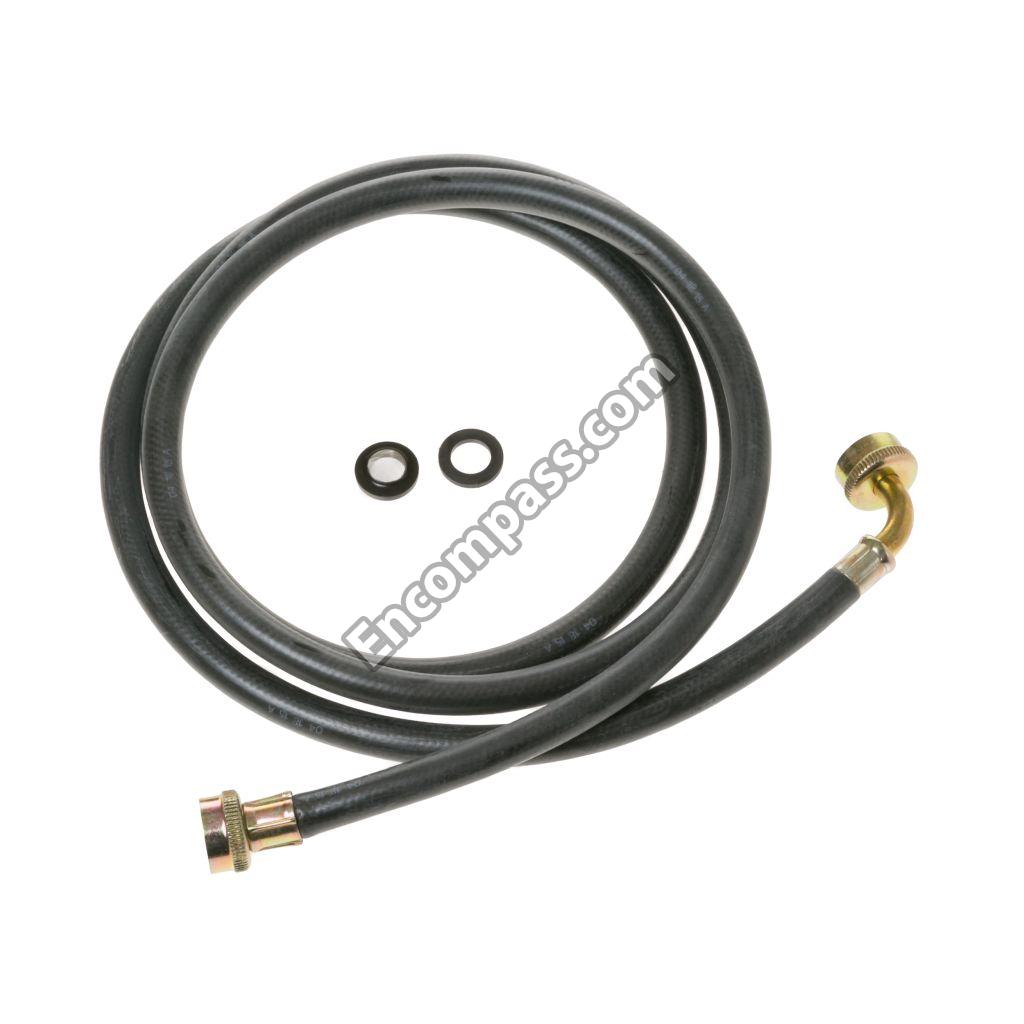

WH41X10207 WH41X10207 2 PK RUBBER INLT HOSE 4
WH41X185 WH41X185 8 RUBBER INLET HOSE WITH 90 D
WD10X0316 WD10X0316 ADAPTER FAUCET
WH45X0105 WH45X0105 BASKET
WH01X2237 WH01X2237 BELT
WH02X0902 WH02X0902 BOLT
WH02X0864 WH02X0864 BOLT
WH02X0950 WH02X0950 BOLT
WH02X0966 WH02X0966 BOLT ASM.
WH16X0412 WH16X0412 BRACKET LEFT
WH16X0425 WH16X0425 BRACKET MTG. PANEL
WH16X0411 WH16X0411 BRACKET RIGHT
WH07X0078 WH07X0078 BRAKE LEVER SPRING
WH01X2133 WH01X2133 BUSHING GORDSET
WH46X0218 WH46X0218 CABINET ASM. AD
WH46X0217 WH46X0217 CABINET ASM. HA
WH46X0216 WH46X0216 CABINET ASM. WH
WH12X0710 WH12X0710 CAPACITOR
WH16X0386 WH16X0386 CAPACITOR BAND
WH19X0019 WH19X0019 CASTER
WH39X0035 WH39X0035 CLUTCH BASE ASM.
WH39X0036 WH39X0036 CLUTCH COVER ASM.
WH01X2288 WH01X2288 CLUTCH LEVER
WH12X0711 WH12X0711 CLUTCH SOLENOID
WH07X0065 WH07X0065 CLUTCH SPRING
WH02X0904 WH02X0904 CONE WASHER
WH16X0393 WH16X0393 CORD HOOK
WE08X0029 WE08X0029 CORD SET
WE8X29 WE8X29 CORDSET **NLA*
WH44X1013 WH44X1013 COVER ASM
WH44X1022 WH44X1022 COVER ASM. AD
WH44X1015 WH44X1015 COVER ASM. HA
WH44X1031 WH44X1031 COVER PLATE BACK
WH01X2243 WH01X2243 DETENT KNOB
WH11X0090 WH11X0090 DIAL POINTER
WH02X0956 WH02X0956 DOUBLE WASHER
WH41X0175 WH41X0175 DRAIN HOSE ASM.
WH01X2283 WH01X2283 DRAIN JOINT
WH1X2283 WH1X2283 DRAIN JOINT
WH16X0440 WH16X0440 DRAIN VALVE BASE
WH01X2116 WH01X2116 FAN PUMP
WD10X21376 WD10X21376 FAUCET ADAPT
WH1X2267 WH1X2267 FILT&WASHER
WH01X2221 WH01X2221 FILTER WASHER - FAUCET E
WH02X0955 WH02X0955 FLANGE WASHER
WH41X0190 WH41X0190 FLEXIBLE HOSE
WH05X0238 WH05X0238 GEAR ASM.
WH17X0076 WH17X0076 GEAR BOX ASM.
WH37X0037 WH37X0037 GEAR DRUM ASM.
WH08X0317 WH08X0317 GEAR DRUM PACKING
WH40X0160 WH40X0160 GEAR SHAFT
WH41X0176 WH41X0176 GOOSE NECK
WH41X176 WH41X176 GOOSENECK
WH01X2261 WH01X2261 HAND GRIP HA
WH01X2235 WH01X2235 HAND GRIP WH
WH01X2262 WH01X2262 HANDI GRIP AD
WH01X2265 WH01X2265 HINGE PIN AD
WH01X2264 WH01X2264 HINGE PIN HA
WH01X2245 WH01X2245 HINGE PIN WH
WH16X0417 WH16X0417 HOSE HOLDER
WH41X0185 WH41X0185 HOSE INTAKE ASM
WH12X0042 WH12X0042 HOSE WASHER VALVE-END
WH01X2284 WH01X2284 IMPELLER
WH1X2284 WH1X2284 IMPELLER **NLA*
WH41X0191 WH41X0191 INLET HOSE
WH41X0058 WH41X0058 INLET HOSE
WH49X0195 WH49X0195 INSTALL PACKAGE
WH01X2295 WH01X2295 INSTRUCTION PLATE
WH01X2239 WH01X2239 INSULATOR
WH01X2242 WH01X2242 KNOB CONTROL
WH01X2290 WH01X2290 KNOB SWITCH
WH16X0441 WH16X0441 LEVER ASM.
WH44X1034 WH44X1034 LID ASM
WH44X1033 WH44X1033 LID ASM
WH01X2124 WH01X2124 LID BUMPER
WH1X2124 WH1X2124 LID CUSHION **NLA*
WH12X715 WH12X715 LID SWITCH
WH02X0918 WH02X0918 LOCKWASHER
WH02X0916 WH02X0916 LOCKWASHER
WH20X62 WH20X62 MOTOR (((NLA)))
WH20X0062 WH20X0062 MOTOR ASM
WH42X1106 WH42X1106 MOUNTING PANEL
WH1X2288 WH1X2288 N.L.A.CLUTCH LEVER
WH44X1032 WH44X1032 N.L.A.LID ASM
WH1X2116 WH1X2116 N.L.A.PUMP FAN
WH1X2237 WH1X2237 N/L/A 01/14/00
WH8X303 WH8X303 N/L/A 08/08/01
WH13X65 WH13X65 NLA WATER VALVE
WH02X0919 WH02X0919 NUT
WH02X0912 WH02X0912 NUT
WH02X0845 WH02X0845 NUT
WH02X0949 WH02X0949 NUT
WH02X0859 WH02X0859 NUT CASTER
WH41X0197 WH41X0197 OVERFLOW HOSE
WH02X0952 WH02X0952 PIN
WH02X0921 WH02X0921 PIN BRAKE LEVER
WH11X90 WH11X90 POINTER DIAL
WH07X0077 WH07X0077 PULLEY
WH7X73 WH7X73 PULLEY **NLA*
WH07X0073 WH07X0073 PULLEY ASM. MOTOR
WH01X2287 WH01X2287 PULLEY BOSS
WH43X0101 WH43X0101 PULSATOR
WH02X0953 WH02X0953 PULSATOR SCREW
WH02X0954 WH02X0954 PULSATOR WASHER
WH01X2285 WH01X2285 PUMP CASING
WH41X0166 WH41X0166 PUMP HOSE
WH20X0063 WH20X0063 PUMP MOTOR ASM.
WH23X0057 WH23X0057 PUMP SEAL SUPPORT
WH23X74 WH23X74 PUMP&MTR ASM
WH5X239 WH5X239 RATCHET GEAR
WH05X0239 WH05X0239 RICHET GEAR
WH02X0960 WH02X0960 SCREW
WH02X0962 WH02X0962 SCREW
WH02X0959 WH02X0959 SCREW
WH02X0851 WH02X0851 SCREW
WH02X0958 WH02X0958 SCREW
WH02X0917 WH02X0917 SCREW
WH02X0915 WH02X0915 SCREW
WH02X0957 WH02X0957 SCREW
WH02X0951 WH02X0951 SCREW
WH02X0853 WH02X0853 SCREW
WH02X0900 WH02X0900 SCREW
WH08X0303 WH08X0303 SEAL
WH08X0302 WH08X0302 SEAL RING
WH8X302 WH8X302 SEAL RING (((NLA)))
WH23X57 WH23X57 SEAL SUPPORT
WH02X0920 WH02X0920 SNAP PIN 9
WH16X0435 WH16X0435 SNUBBER ASM. FRONT
WH16X0436 WH16X0436 SNUBBER ASM. REAR
WH16X0442 WH16X0442 SUPPORT LID SWITCH
WH16X0437 WH16X0437 SUPPORT OVERFLOW HOSE
WH16X0427 WH16X0427 SUPPORT WATER VALVE
WH12X0715 WH12X0715 SWITCH & BRACKET ASM
WH12X0714 WH12X0714 SWITCH ASM PRESSURE
WH42X1107 WH42X1107 SWITCH TRIM
WH12X0611 WH12X0611 SWITCH-SELECTOR
WH12X611 WH12X611 TEMP SWITCH
WH01X2135 WH01X2135 TERMINAL FEMALE
WH01X1742 WH01X1742 TERMINAL FEMALE 3/16
WH12X0528 WH12X0528 TERMINAL HOUSING
WH12X0608 WH12X0608 TERMINAL HOUSING FEMALE
WH12X0532 WH12X0532 TERMINAL HOUSING FEMALE
WH01X2238 WH01X2238 TERMINAL HOUSING MALE 3-
WH12X0529 WH12X0529 TERMINAL HOUSING MALE 6-
WH12X0612 WH12X0612 TERMINAL HSG. TO TIMER
WH01X2136 WH01X2136 TERMINAL MALE
WH01X2244 WH01X2244 TERMINAL TO TIMER
WH12X0713 WH12X0713 TIMER ASM
WH16X0424 WH16X0424 TIMER BRACKET
WH01X2286 WH01X2286 TRAP COVER
WH45X0104 WH45X0104 TUB ASM.
WH45X0106 WH45X0106 TUB COVER
WH16X0438 WH16X0438 TUB SUPPORT
WH41X0198 WH41X0198 TUBE
WH41X0188 WH41X0188 UNICOUPLE - HOSE
WH41X188 WH41X188 UNICPLE&HOSE **NLA*
WH02X0850 WH02X0850 WASHER
WH02X0961 WH02X0961 WASHER
WH1X2036 WH1X2036 WASHER HOSE CLAMP KIT
WH13X64 WH13X64 WATER VALVE
WH13X0064 WH13X0064 WATER VALVE COLD
WH13X0065 WH13X0065 WATER VALVE HOT
WH44X1164 WH44X1164 WH44X1164
