Model Image
Manufacturer

GE

Model Number

XGBS400DM1WW

Description

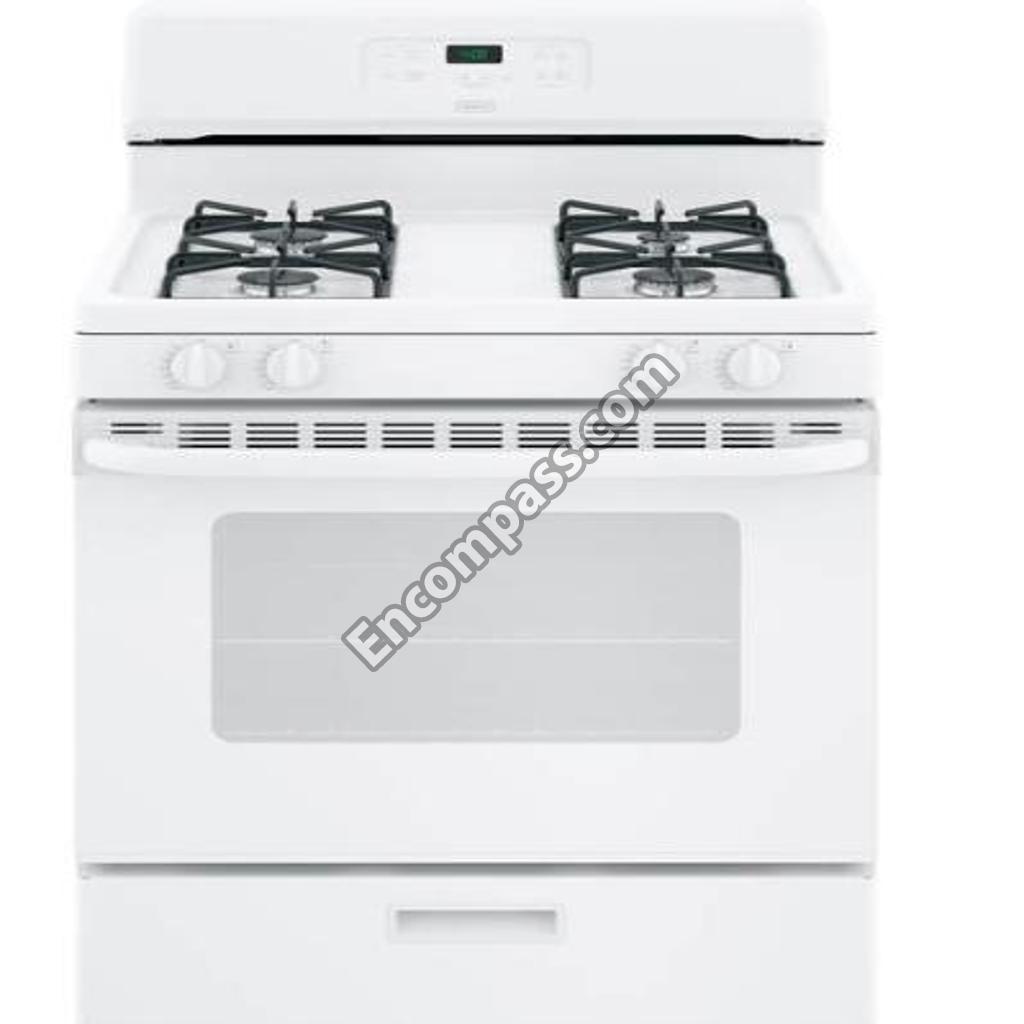

Free-standing Gas Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16X24724 WB16X24724 "BURNER, MEDIUM V2"
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 89MM RANGE ORIFICE SPUD - NG TO LP
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB35K10147 WB35K10147 BOTTOM INSULATION DOOR
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB63K10029 WB63K10029 BOTTOM RANGE
WB63K5 WB63K5 BRACE BOTTOM
WB63K0005 WB63K0005 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB02K10074 WB02K10074 BRACKET CONTROL
WB02X37586 WB02X37586 BRACKET MANIFOLD SIDE LEFT
WB02X37585 WB02X37585 BRACKET MANIFOLD SIDE RIGHT
WB02X22890 WB02X22890 BRACKET REGULATOR
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB2K65 WB2K65 BRKT SAF VLV
WB16X20253 WB16X20253 BURNER OVEN ASSEMBLY
WB7K267 WB7K267 CAP END DR
WB7K266 WB7K266 CAP END DR
WB01X24735 WB01X24735 CKT SCREW
WB2K36 WB2K36 CLAMP CABLE
WB02K0036 WB02K0036 CLAMP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K10267 WB02K10267 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB02K0038 WB02K0038 CLIP WIRE
WB27X42812 WB27X42812 CONTROL OVEN TO9 (GAS)
WB02K0004 WB02K0004 COVER ACCESS SPRING
WB34K10129 WB34K10129 COVER BACK LOWER
WB34K10144 WB34K10144 COVER BACK PANEL
WB34K10003 WB34K10003 COVER BACK UPPER
WB02K0024 WB02K0024 COVER VALVE
WB56X23809 WB56X23809 CRYSTAL WINDOW
WB2K4 WB2K4 CVR ACC SPRG
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB01K10037 WB01K10037 ECONOMIC NUT
WB18X26607 WB18X26607 ELECTRODES AND HARNESS H.V
WB07K0267 WB07K0267 END CAP DOOR LFT (WH)
WB07K0266 WB07K0266 END CAP DOOR RT (WH)
WB35K10005 WB35K10005 FOIL COOKTOP
WB02X28738 WB02X28738 FRAME FRONT BUMPER
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB28X26604 WB28X26604 FRONT ORIFICE HOLDER
WB28X26306 WB28X26306 FRONT ORIFICE HOLDER LEF
WB18K10036 WB18K10036 GAS RANGE CORD
WB31X20643 WB31X20643 GAS RANGE GRATE - BLACK
WB35X29720 WB35X29720 GASKET DOOR ASSEMBLY
WB57K5 WB57K5 GLASS DOOR
WB57K0005 WB57K0005 GLASS DOOR (WH)
WB02K10294 WB02K10294 GROMMET
WB2K8 WB2K8 GROMMET
WB56X43406 WB56X43406 GUARD INSULATION
WB15K10100 WB15K10100 HANDLE
WB15X26670 WB15X26670 HANDLE BROIL
WB18X31208 WB18X31208 HARNESS BURNER BOX
WB18X32406 WB18X32406 HARNESS CONTROL
WB10X21979 WB10X21979 HINGE DOOR
WB10X26678 WB10X26678 HINGE DOOR
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB02X24942 WB02X24942 HOLDER RANGETOP
WB02X24941 WB02X24941 HOLDER RANGETOP
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB13K21 WB13K21 IGNITER OVEN
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB13X24323 WB13X24323 IGNITION MODULE
WB35K16 WB35K16 INSUL OVBACK
WB35X29083 WB35X29083 INSULATION
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K10148 WB35K10148 INSULATION TOP DOOR
WB28X39141 WB28X39141 KIT LP CONVERSION ASSEMBLY
WB03K10218 WB03K10218 KNOB MINIVALVE
WB16X24723 WB16X24723 LARGE V2 BURNER
WB56X26676 WB56X26676 LINER DRAWER
WB28K10457 WB28K10457 MANIFOLD PIPE
WB34X20680 WB34X20680 MANIFOLD SUPPORT
WB1K6 WB1K6 NUT LOCK
WB01K0006 WB01K0006 NUT LOCK
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10032 WB28K10032 ORIFICE-LP LG 99MM
WB28X21079 WB28X21079 OVEN ORIFICE SPUD LP
WB48X26677 WB48X26677 OVEN RACK
WB02K0062 WB02K0062 PAD FELT (2-INCH )
WB2K62 WB2K62 PAD FELT 2
WB56X26688 WB56X26688 PANEL DRAWER
WB63X26606 WB63X26606 PANEL REAR BROIL
WB56X29122 WB56X29122 PANEL SIDE
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB35X26892 WB35X26892 PANEL SIDE FOIL
31-10934 31-10934 PM INSTALL INSTRUCTIONS
31-11148 31-11148 PM INSTALL INSTRUCTIONS
31-17307 31-17307 PM MANUAL MINI & WD ASM
49-2000224 49-2000224 PM QUICK OWNERS MANUAL
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB63K21 WB63K21 RANGE BACK
WB63K0021 WB63K0021 RANGE BACK
WB07X20288 WB07X20288 RANGE BARRIER DOOR
WB07K10250 WB07K10250 RANGE BOTTOM TRIM ASSEMBLY - WHITE
WB01X26891 WB01X26891 RANGE BROIL ELEMENT CLIP
WB16X28654 WB16X28654 RANGE BURNER CAP - SMALL - V2

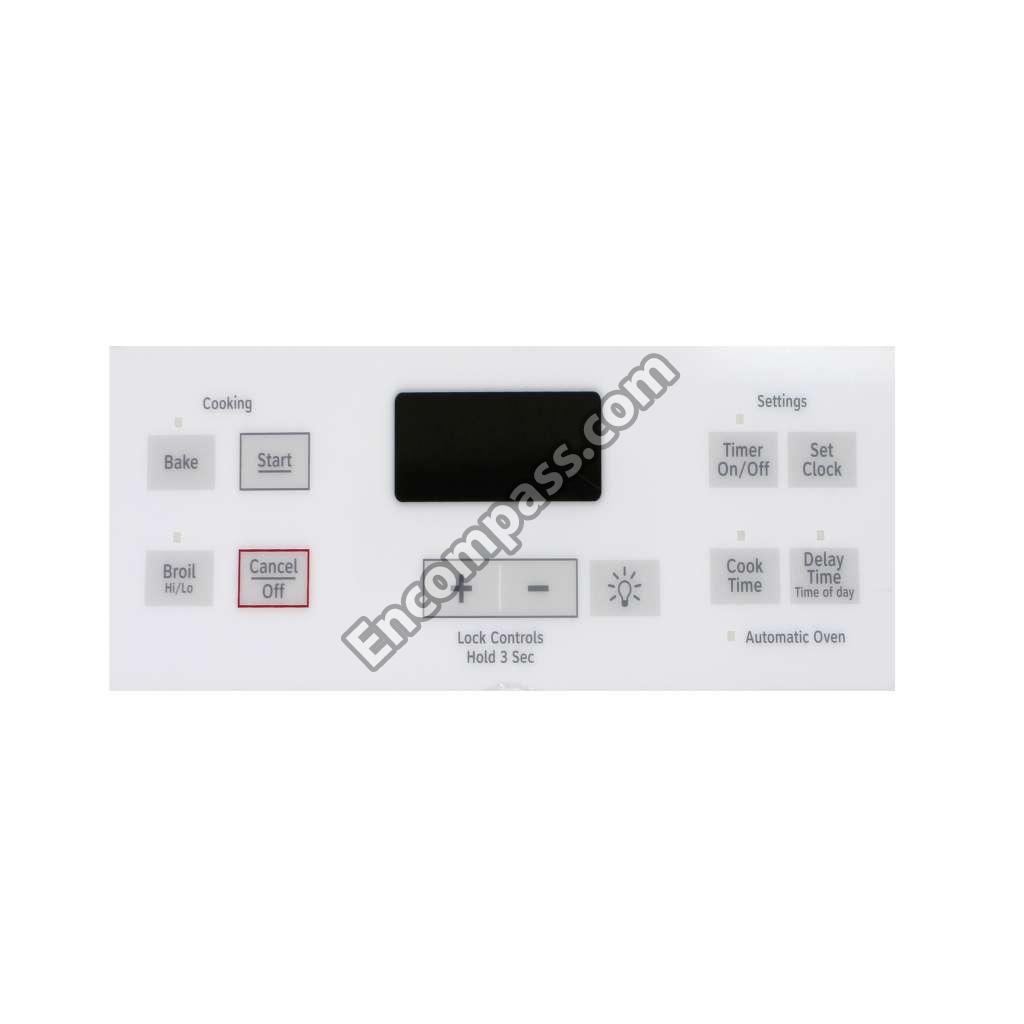

WB07X22662 WB07X22662 RANGE CONTROL PANEL - WHITE
WB02K10245 WB02K10245 RANGE DOOR BRACKET
WB56X20206 WB56X20206 RANGE DOOR PANEL
WB07K10196 WB07K10196 RANGE END SUPPORT - LEFT - WHITE
WB07K10195 WB07K10195 RANGE END SUPPORT - RIGHT - WHITE
WB10X20220 WB10X20220 RANGE HINGE RECEIVER
WB49X21392 WB49X21392 RANGE HINGE SERVICE KIT
WB02X24976 WB02X24976 RANGE IGNITER CLIP V2
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02X24726 WB02X24726 RANGE INJET LARGE
WB02X24727 WB02X24727 RANGE INJET MEDIUM
WB02X24728 WB02X24728 RANGE INJET SMALL
WB56K10033 WB56K10033 RANGE INSULATION
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB48X20249 WB48X20249 RANGE OVEN RACK
WB20K10015 WB20K10015 RANGE TEMPERATURE SENSOR
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB38K2 WB38K2 RANGE VENT BRACE
WB28X26308 WB28X26308 REAR ORIFICE HOLDER LEFT
WB28X26309 WB28X26309 REAR ORIFICE HOLDER RIGH
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB02K10263 WB02K10263 ROUND VALVE BRACKET
WB21K10169 WB21K10169 ROUND VALVE BURNER 140
WB21K10170 WB21K10170 ROUND VALVE BURNER 140
WB28K10578 WB28K10578 ROUND VALVE BURNER 140
WB01K10091 WB01K10091 SCREW
WB1X1261 WB1X1261 SCREW
WB01K0021 WB01K0021 SCREW
WB01X31119 WB01X31119 SCREW #8-18
WB1K66 WB1K66 SCREW (WH)/ NLA PER GE
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB01K0066 WB01K0066 SCREW MTG END CAP (WH)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K2 WB34K2 SHIELD VALVE
WB34K0002 WB34K0002 SHIELD VALVE
WB35K10146 WB35K10146 SIDE INSULATION DOOR
WB16X24721 WB16X24721 SMALL V2 BURNER
WB63X20216 WB63X20216 SUPPORT BASE
WB63X20215 WB63X20215 SUPPORT BASE
WB07X23480 WB07X23480 TRIM POST LEFT
WB07X23481 WB07X23481 TRIM POST RIGHT
WB07K10191 WB07K10191 TRIM VENT DOOR (WHITE)
WB28X25363 WB28X25363 TUBE MANIFOLD SUPPLY ASSEMBLY
WB21X38548 WB21X38548 VALVE CONTROL ASSEMBLY NOR. S
WB2K24 WB2K24 VALVE COVER
WB36X32366 WB36X32366 WHITE BACKGUARD
WB36X31444 WB36X31444 WHITE MANIFOLD PANEL
WB62X31580 WB62X31580 WHITE RANGE TOP
