Model Image
Manufacturer

GE

Model Number

YFD45ESSM0WW

Description

Electric Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE05X20431 WE05X20431 GE 120V DRYER BULB - 10W
WE10X28561 WE10X28561 GE BADGE
WE1M300 WE1M300 GE BEARING RETAINER
WE03X37320 WE03X37320 GE BEARING SLIDE
WE09X27636 WE09X27636 GE BLOWER GASKET (EXHAUST)
WE16X20393 WE16X20393 GE BLOWER WHEEL
WE01X21176 WE01X21176 GE BOARD DSM
WE1M468 WE1M468 GE BRACKET LVL SCREW REAR
WE13X21164 WE13X21164 GE BRACKET UI
WE04X26634 WE04X26634 GE BUTTON ADD TIME ASSEMBLY
WE22X29237 WE22X29237 GE BUTTON EDRY-VOLUME-LOCK ASSEMBLY
WE04X28678 WE04X28678 GE BUTTON TEMP/LEVEL ASSEMBLY
WE1M1057 WE1M1057 GE CAP BLIND
WE04X29099 WE04X29099 GE CHASSIS AND BOARD ASSEMBLY
WE01X20560 WE01X20560 GE CONNECTOR SERVICE
WE11X29438 WE11X29438 GE DIFFUSER
WE04X25134 WE04X25134 GE DISPLAY AND BUTTONS ASSEMBLY

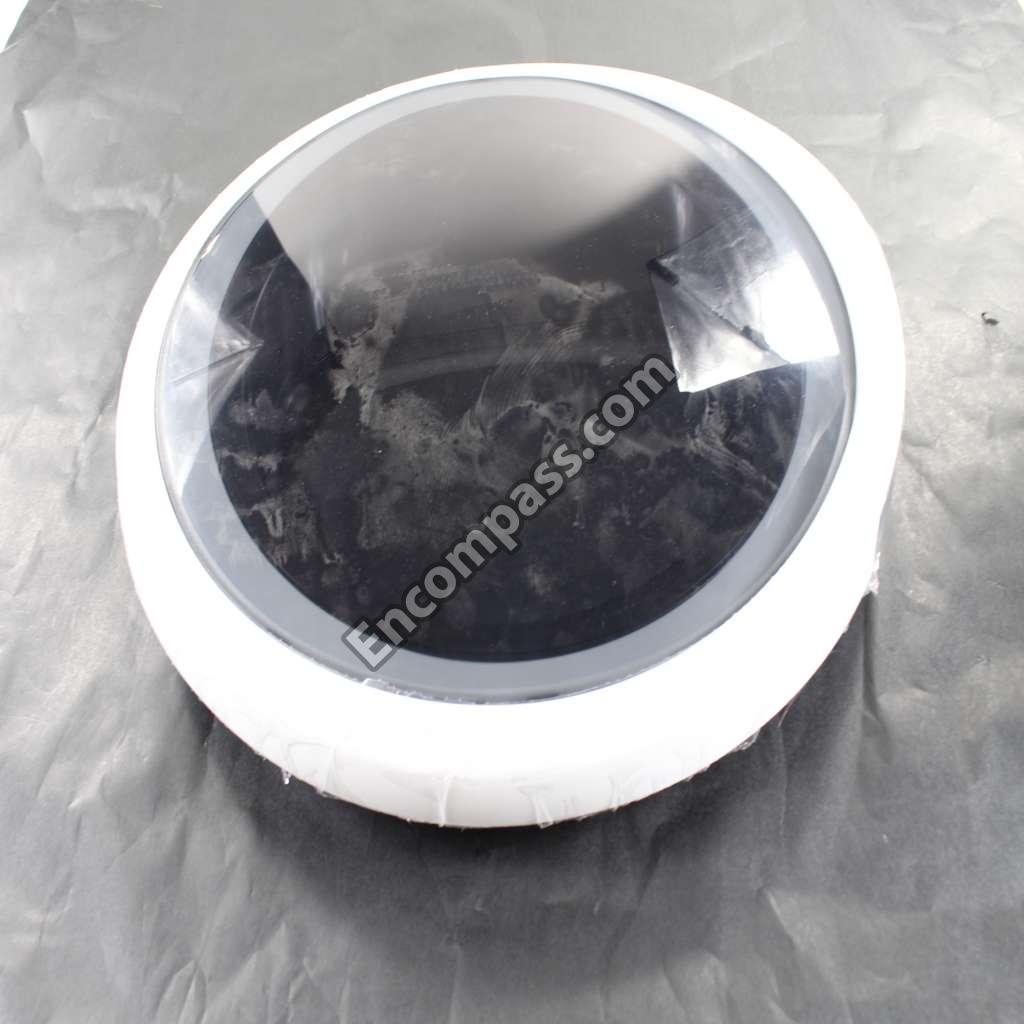

WE10X25497 WE10X25497 GE DOOR ASSEMBLY
WE1M755 WE1M755 GE DOOR GUIDE
WE1M929 WE1M929 GE DOOR HINGE COVER
WE14X21615 WE14X21615 GE DRYER BAFFLE
WE03X37319 WE03X37319 GE DRYER BEARING SLIDE
WE14M239 WE14M239 GE DRYER BLOWER HOUSING
WE20M429 WE20M429 GE DRYER BOTTOM CHASSIS BASE
WE1M1011 WE1M1011 GE DRYER DOOR LATCH
WE2M213 WE2M213 GE DRYER DOOR NUT GUIDE STRIP
WE4M415 WE4M415 GE DRYER DOOR SWITCH
WE21X21439 WE21X21439 GE DRYER DRUM AND BAFFLE ASSEMBLY
WE03X29897 WE03X29897 GE DRYER DRUM DRIVE BELT
WE1M462 WE1M462 GE DRYER DRUM SLEEVE
WE1M1015 WE1M1015 GE DRYER GROUND STRAP
WE12M50 WE12M50 GE DRYER IDLER ASSEMBLY
WE1M528 WE1M528 GE DRYER LEVELING LEG - REAR BRACKET
WE17X22215 WE17X22215 GE DRYER MOTOR AND PULLEY
WE1X921 WE1X921 GE DRYER MOTOR STRAP
WE20M381 WE20M381 GE DRYER REAR PANEL - 7.5 CF
WE1M575 WE1M575 GE DRYER SENSOR ROD
WE04X22535 WE04X22535 GE DRYER THERMOSTAT
WE1M932 WE1M932 GE DRYER THERMOSTAT SHIELD
WE4M503 WE4M503 GE DRYER WATER VALVE
WE1M933 WE1M933 GE DRYER WATER VALVE SHIELD
WE1M943 WE1M943 GE ELBOW AND NOZZLE ASSEMBLY
WE14X21035 WE14X21035 GE EXHAUST DUCT
WE09X27635 WE09X27635 GE FELT TOP BEARING
WE09X27634 WE09X27634 GE FELT TRAP DUCT
WE18X25098 WE18X25098 GE FILTER AND MESH ASSEMBLY
WE01X25435 WE01X25435 GE FILTER FELT
WE20M444 WE20M444 GE FRONT PANEL -INCH WHITE -INCH
WE09X20569 WE09X20569 GE GASKET
WE09X22578 WE09X22578 GE GASKET DOOR
WE01X21171 WE01X21171 GE HANDLE POCKET
WE15X23358 WE15X23358 GE HARNESS ELECT ASSEMBLY
WE5M54 WE5M54 GE HARNESS SENSORS
WE04X22494 WE04X22494 GE HARNESS TOP BEARING ASSEMBLY
WE11X21156 WE11X21156 GE HEATER AND HOUSING ASSEMBLY
WE11M43 WE11M43 GE HEATER HOUSING
WE01X22875 WE01X22875 GE HINGE ASSEMBLY
WE03X20434 WE03X20434 GE IDLER ARM
WE03X31620 WE03X31620 GE IDLER PULLEY
WE4M398 WE4M398 GE INLET CONTROL THERMISTOR
WE1M847 WE1M847 GE INLET HOSE (LONG)
WE01X21167 WE01X21167 GE KNOB
WE1M642 WE1M642 GE LEVELLING SCREW GRAY
WE11M10001 WE11M10001 GE MICA HEATER
WE1M1099 WE1M1099 GE MIST HOSE
WE1M1105 WE1M1105 GE MIST HOSE
WE01X0921 WE01X0921 GE MOTOR BRACKET
WE03X27285 WE03X27285 GE MOTOR PLATE NV
WE13M39 WE13M39 GE MOTOR SUPPORT
WE1M461 WE1M461 GE O RING
WE4M300 WE4M300 GE OUTLET BKUP ORG T-STAT
WE4M448 WE4M448 GE OUTLET CONTROL THERMISTOR
WE20X27598 WE20X27598 GE PANEL CONTROL ASSEMBLY
WE20X27475 WE20X27475 GE PANEL SIDE
WE20M10004 WE20M10004 GE PANEL TOP
WE01X25834 WE01X25834 GE PLASTIC BELT
WE1M741 WE1M741 GE PLASTIC SCREW PLUG
WE1M934 WE1M934 GE PLUG BUTTON WHITE
31-16769 31-16769 GE PM INSTALLATION INSTRUCT
WE1M780 WE1M780 GE PROTECTION BRACKET
49-90585 49-90585 GE PUB NUMBER MANUAL USE AND CARE
31-16933 31-16933 GE PUB NUMBER MINI MANUAL
WE20M476 WE20M476 GE REAR PLATE
WE09X23600 WE09X23600 GE RING OUTER DOOR
WE1M851 WE1M851 GE RUBBER WASHER FOR INTAKE HOSE
WE1M584 WE1M584 GE SCR 10-16 B FLQ2 1-1/8 S
WE2M281 WE2M281 GE SCR 8-18 AB 1/2
WE1M850 WE1M850 GE SCREEN FOR WASHER HOSE
WE2X21854 WE2X21854 GE SCREW
WE01X25535 WE01X25535 GE SCREW
WD2M101 WD2M101 GE SCREW
WE2M202 WE2M202 GE SCREW
WE2M174 WE2M174 GE SCREW # 10
WE2M163 WE2M163 GE SCREW #10
WE1M582 WE1M582 GE SCREW #8 X 5/8 SS DOOR H
WE1M583 WE1M583 GE SCREW #8-32 X 1/2 HINGE
WE2M278 WE2M278 GE SCREW 8-18 AB PNQ2 1/4 S Z
WE2M264 WE2M264 GE SCREW CENTER KNOB AREA
WE2M211 WE2M211 GE SCREW FRONT
WE2M225 WE2M225 GE SCREW WHITE #10-16 3/4
WZ5X158D WZ5X158D GE SCREW-PKG 12
WE00X181L WE00X181L GE SHAFT
WE0X181L WE0X181L GE SHAFT
WE3M33 WE3M33 GE SHAFT AND BRACKET ASSEMBLY
WE01X21163 WE01X21163 GE SHIELD FRONT
WE25X20060 WE25X20060 GE STEAM KIT
WE01X20423 WE01X20423 GE STRAIN RELIEF BRACKET EL
WE13X200 WE13X200 GE STRAP MOTOR
WE13X0200 WE13X0200 GE STRAP MOTOR
WE01M10007 WE01M10007 GE STRIKE
WE1M569 WE1M569 GE STRIKE PLATE
WE1M570 WE1M570 GE STRIKE PLATE W/STRK HOLE
WD21X10261 WD21X10261 GE SWITCH INTERLOCK
WE4M325 WE4M325 GE TERM BLK AND GRND STRAP
WE1M1102 WE1M1102 GE TERM. BLOCK COVER
WE4M450 WE4M450 GE THERMOSTAT INLET
WE03X25094 WE03X25094 GE TOP BEARING ASSEMBLY
WE14X25086 WE14X25086 GE TRAP DUCT ASSEMBLY
WE14M119 WE14M119 GE TRAP DUCT COMPLETE ASSEMBLY
WE2M275 WE2M275 GE WASHER
WE2M96 WE2M96 GE WE2X329
WE01X25534 WE01X25534 GE WINDOW OUTER DOOR
WE01X10401 WE01X10401 GE Y ADAPTER
