Manufacturer
GE
Model Number
ZBD6880N20SS
Description
Dishwasher

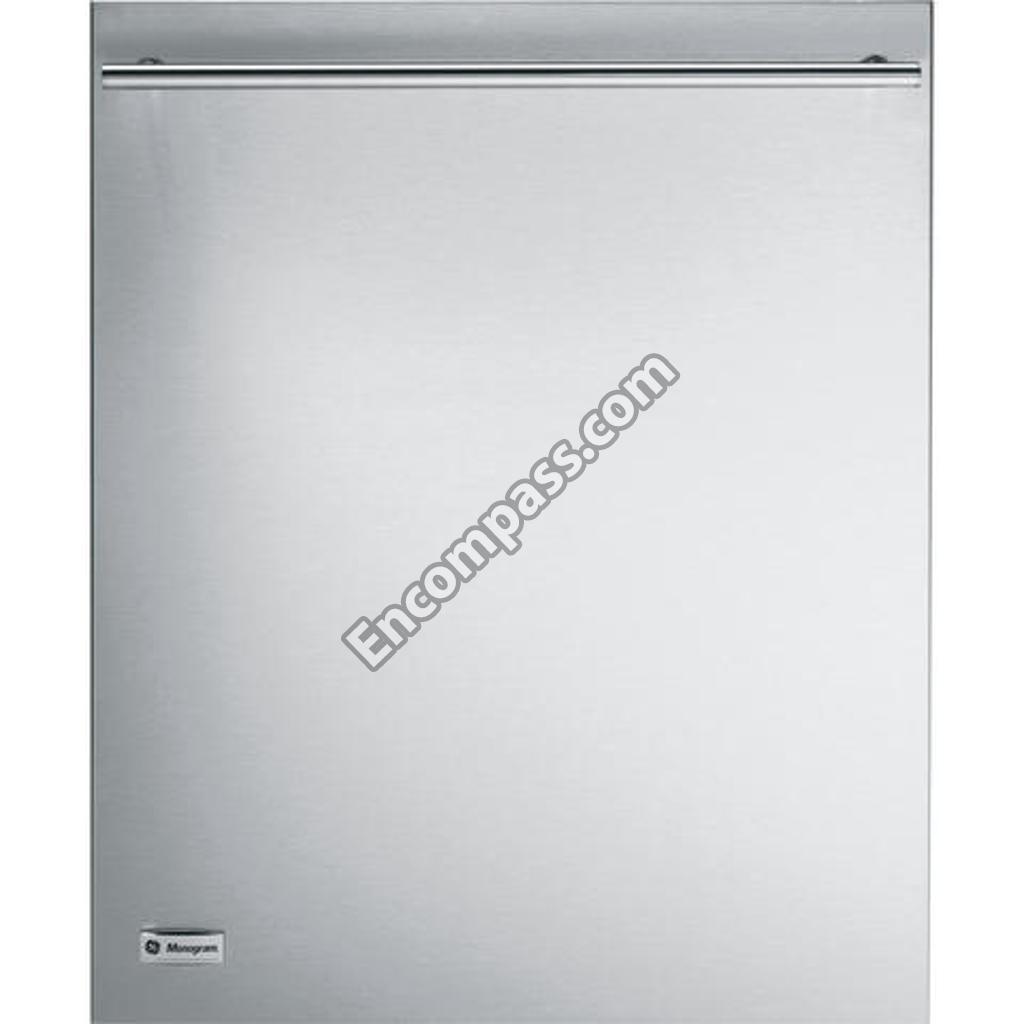

Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTOR PUMP ASM |
|
|
ARM HINGE LH ASM |
|
|
ARM HINGE RH ASSEMBLY |
|
|
ARM SPRAY LOW ASM |
|
|
ARM SPRAY MID ASM |
|
|
ARM SPRAY UPPER ASM |
|
|
BADGE MONOGRAM SMALL |
|
|
BASE FLOOD SWITCH |
|
|
BASKET SILVERWARE ASM |
|
|
BEARING HINGE ARM |
|
|
BEARING MID SPRAY ARM |
|
|
BEARING SPRAY ARM LOW |
|
|
BEARING SPRAY ARM UP |
|
|
BLOCK FOAM |
|
|
BLOWER DISHWASHER |
|
|
BRACKET DETERGENT DISPLAY |
|
|
BRACKET J BOX |
|
|
BRACKET SPRAY ARM MID |
|
|
CAGE ROLLER BEARING ASM |
|
|
CAP END - RACK SLIDE |
|
|
CAP RINSE ASM |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP SUMP |
|
|
COMB LOWER RACK ASM |
|
|
COMPLETE LOWER SERVICE RACK ASSEMBLY |
|
|
CONDUIT CARRIER MID |
|
|
CONDUIT MAIN |
|
|
CONDUIT MAIN |
|
|
CONDUIT SPRAY ARM MID |
|
|
CONNECTOR PUMP ASSEMBLY |
|
|
COVER JUNCTION BOX |
|
|
COVER VENT |
|
|
COVER WATER INLET |
|
|
CUP HINGE |
|
|
DISHWASHER HINGE CABLE |
|
|
DISHWASHER MOTOR WASH PUMP ASSEMBLY |
|
|
DOME FLOAT |
|
|
DOOR INNER ASM |
|
|
DRAIN TUBE ASSEMBLY |
|
|
ELEMENT HEATING ASSEMBLY |
|
|
FILTER COARSE |
|
|
FILTER FINE ASM |
|
|
FILTER SUMP AND COVER ASSEMBLY |
|
|
FLAPPER VENT |
|
|
FLOAT |
|
|
FUNNEL AND GASKET ASM |
|
|
FUNNEL AND GASKET ASM |
|
|
GASKET TUB |
|
|
GASKET WATER INLET |
|
|
GROMMET |
|
|
GROMMET HEATER |
|
|
HANDLE ASSEMBLY |
|
|
HANDLE SUPPORT BRACKET |
|
|
HANDLE SUPPORT BRACKET |
|
|
HANGER DOOR |
|
|
HANGER DRAIN PUMP |
|
|
HANGER MECH ASSEMBLY |
|
|
HOSE FILL |
|
|
HSNG SPECIAL-WATER VALVE |
|
|
HUB SPRAY ARM MID |
|
|
INLET TRANSITION |
|
|
INNER RAIL UPPER RACK |
|
|
INSULATED EXHAUST VENT |
|
|
INSULATION TUB BLANKET |
|
|
KEYPAD |
|
|
KIT - IMPELLER ASM |
|
|
KIT - PUMP & COUNTERWEIGHT |
|
|
KIT TOEKICK ASM |
|
|
LATCH |
|
|
LATCH KEEPER ASM |
|
|
LEVELING LEG |
|
|
LINK HINGE ARM |
|
|
LOCKNUT |
|
|
MODULE CONTROL ASSEMBLY |
|
|
MODULE RINSE AND CAP ASM |
|
|
NOZZLE SPRAY ASM |
|
|
NUT HUB FINE FILTER |
|
|
NUT TOWER HEATER ASM |
|
|
NUT WATER INLET |
|
|
PANEL ASM OUTER |
|
|
PLATE SUMP |
|
|
PLUG BUTTON |
|
|
PM INSTRUCTION INSTALL |
|
|
PM MANUAL USE & CARE |
|
|
PM SHEET MINI MANUAL |
|
|
PULLEY HINGE |
|
|
RACK LOW ROLL ASM |
|
|
RACK UPPER ROLL KIT |
|
|
RETAINER COMB |
|
|
RING SUCTION |
|
|
ROLLER LOWER RACK |
|
|
SCR 10-16X1/2 AB HEXW S |
|
|
SCR 10-24X3/8 TT HEX |
|
|
SCR 10-32 GX FLT25.615 S. |
|
|
SCR 10-32 GXTT FLP.595 S |
|
|
SCR 10-32 T HEX 7/16 S |
|
|
SCR 10-32 X 1.031 |
|
|
SCR 8-10 PL TRP 1/2 S |
|
|
SCR 8-18 AB TR 7/8S |
|
|
SCR 8-18 AB TR 7/8S |
|
|
SCR 8-18 AB TSQ 5/8 SS |
|
|
SCR 8-18 B POR 1/4 SS |
|
|
SCR 8-18 VA TRT 7/16 S N |
|
|
SCR 8-32 B HXW 1.13 SS |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 1/4-TPI FL HX 9/10 |
|
|
SCREW 10-32 GXTT FLP 595 S |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW 8-18 B 1HW 1/2 S N |
|
|
SCREW LEVEL |
|
|
SCREW-PKG 12 |
|
|
SEAL FLOOD SWITCH |
|
|
SEAT CHECK VALVE |
|
|
SENSOR TURBIDITY |
|
|
SHELF CUP |
|
|
SHELF CUP |
|
|
SPRING DOOR |
|
|
SPRING GASKET |
|
|
STEM FLOAT |
|
|
STUD ROLLER |
|
|
SUMP CLAMP |
|
|
SUMP INLET |
|
|
SWITCH FLOOD ASSEMBLY |
|
|
TOEKICK ASM SS |
|
|
TRIM GASKET |
|
|
TRIM GASKET |
|
|
UNIV CLAMP |
|
|
VALVE FLAPPER |
|
|
VALVE WATER INLET |
|
|
VENT BRACKET ASM |
|
|
VENT DRIVER ASM |
|
|
WORM GEAR CLAMP |
