Manufacturer
GE
Model Number
ZDBI240HAII
Description

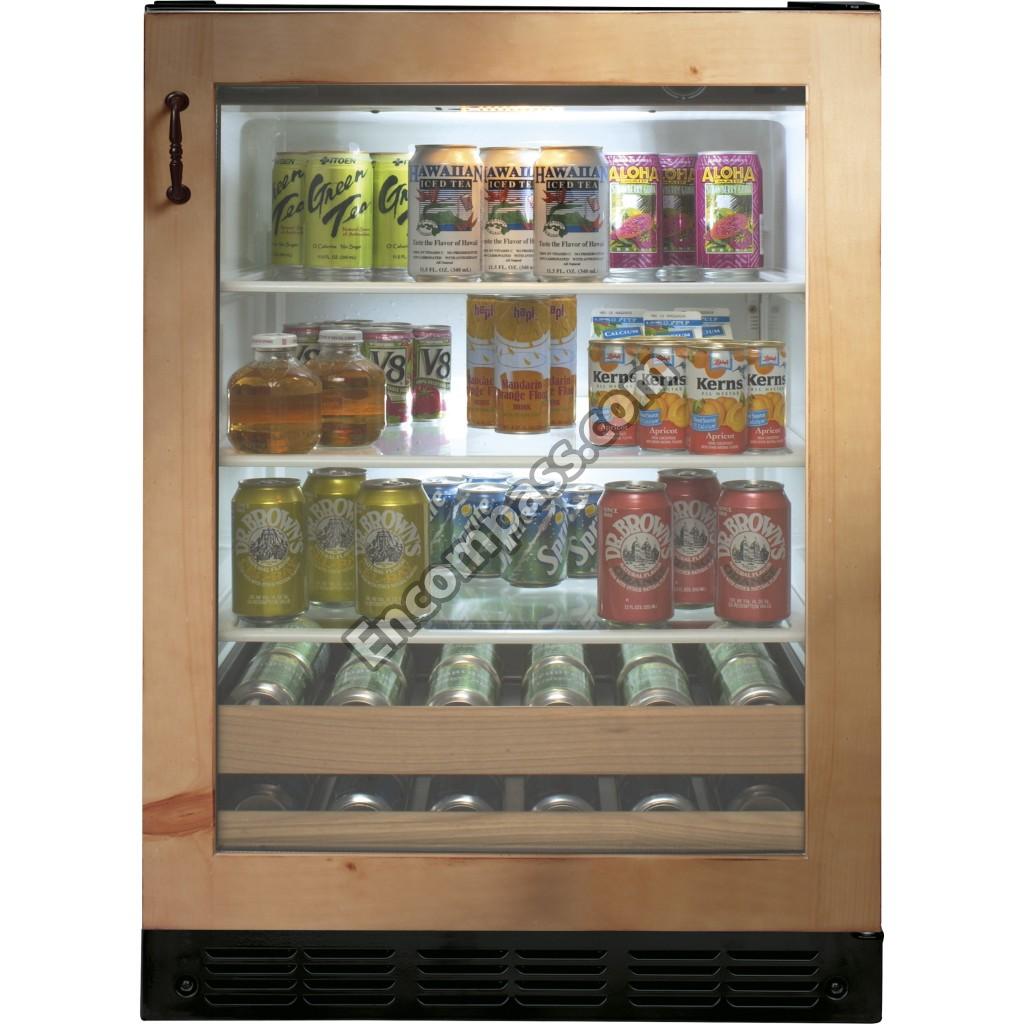

Monogram Beverage Center
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BOTTLE RACK - SHORT |
|
|
BOTTLE SHELF FRAME |
|
|
BOTTLE SHELF FRAME LOWER |
|
|
BULB LED 120V |
|
|
BULB SHIELD |
|
|
CAPACITOR COMPRESSOR |
|
|
COMPRESSOR MOUNTING KIT |
|
|
COMPRESSOR REPL. KIT |
|
|
CONDENSER ASM |
|
|
CONDENSER CANAL |
|
|
CONDENSER FAN HOUSING |
|
|
CONDENSER FAN MOTOR |
|
|
CONDENSER FAN SPRING PIN |
|
|
CONTROL HOUSING COVER |
|
|
CORNER PIECE |
|
|
COVER HINGE SUPPORT RH |
|
|
DRAIN PAN |
|
|
DRYER |
|
|
EVAP FAN COVER |
|
|
EVAP. FAN |
|
|
EVAPORATOR COVER |
|
|
FAN PROPELLER |
|
|
FAN RUBBER |
|
|
FRAME FRONT |
|
|
FRAME GUIDE SHORT SLID |
|
|
GLASS DOOR |
|
|
GLASS SHELF |
|
|
HANDLE ASM |
|
|
HARNESS ASM.COMP |
|
|
HINGE & CAM RISER ASM |
|
|
HINGE COVER |
|
|
HINGE FILL PLUG |
|
|
HMI HOUSING ASSEMBLY |
|
|
INNER-LINER GUIDE SHORT |
|
|
KICK PLATE FRONT BK |
|
|
KICK PLATE KIT - BLACK |
|
|
KICK PLATE SCREW - BLACK |
|
|
KICK PLATE SPACER |
|
|
LEVELING LEG REAR |
|
|
LEVELLING LEG |
|
|
LEVELLING LEG SUPPORT |
|
|

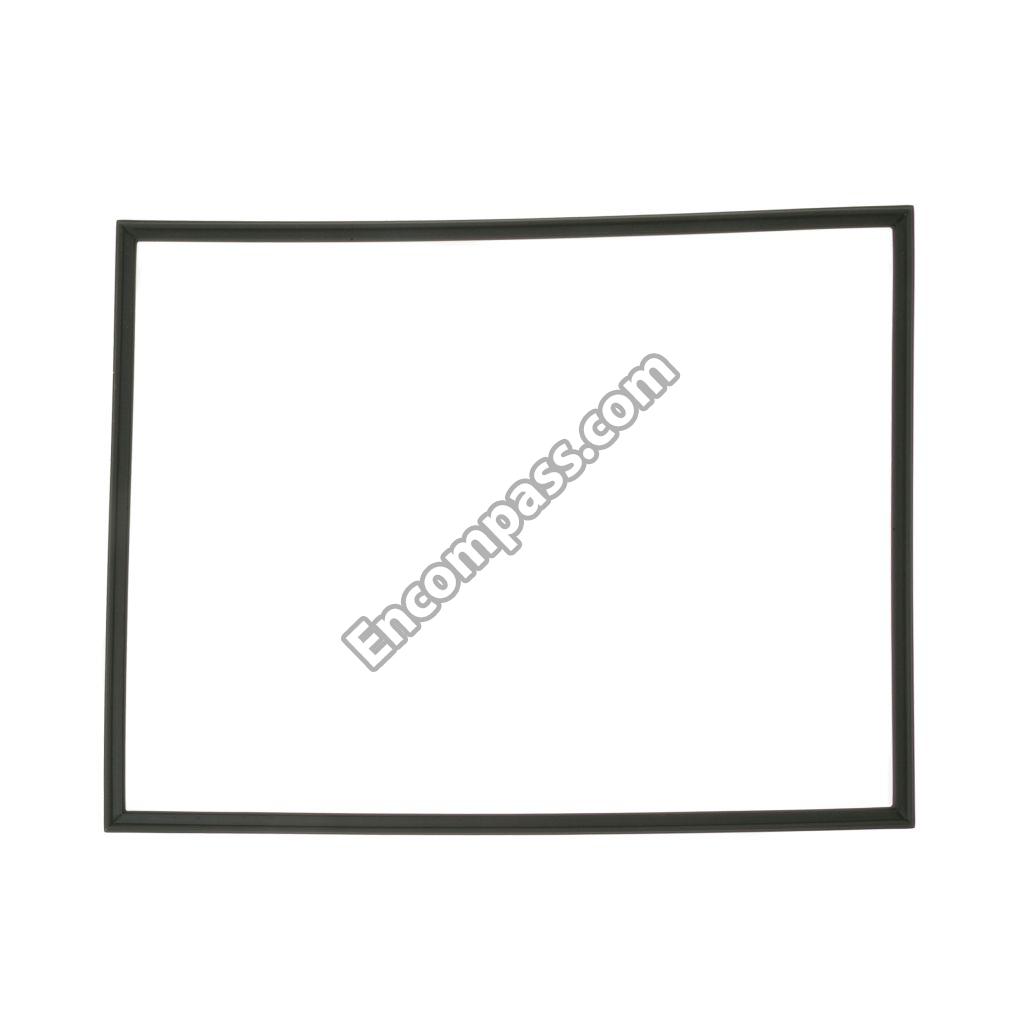

MAGNETIC GASKET |
|
|
OVERLOAD |
|
|
PM MINI MANUAL |
|
|
POWER CORD |
|
|
POWER SUPPLY BOARD ASM |
|
|
REAR ACCESS COVER |
|
|
RELAY START |
|
|
REVERSE DOOR HINGE KIT |
|
|
SCREW (FRAME FRONT) |
|
|
SOCKET LAMP |
|
|
TEMP SENSOR |
|
|
TEMP.CONTROL BULB COVER |
|
|
TEMP.CONTROL BULB COVER |
|
|
UPPER HINGE RIGHT |
|
|
UPPER HINGE SCREW |
