Manufacturer
GE
Model Number
ZDI15CWWP
Description

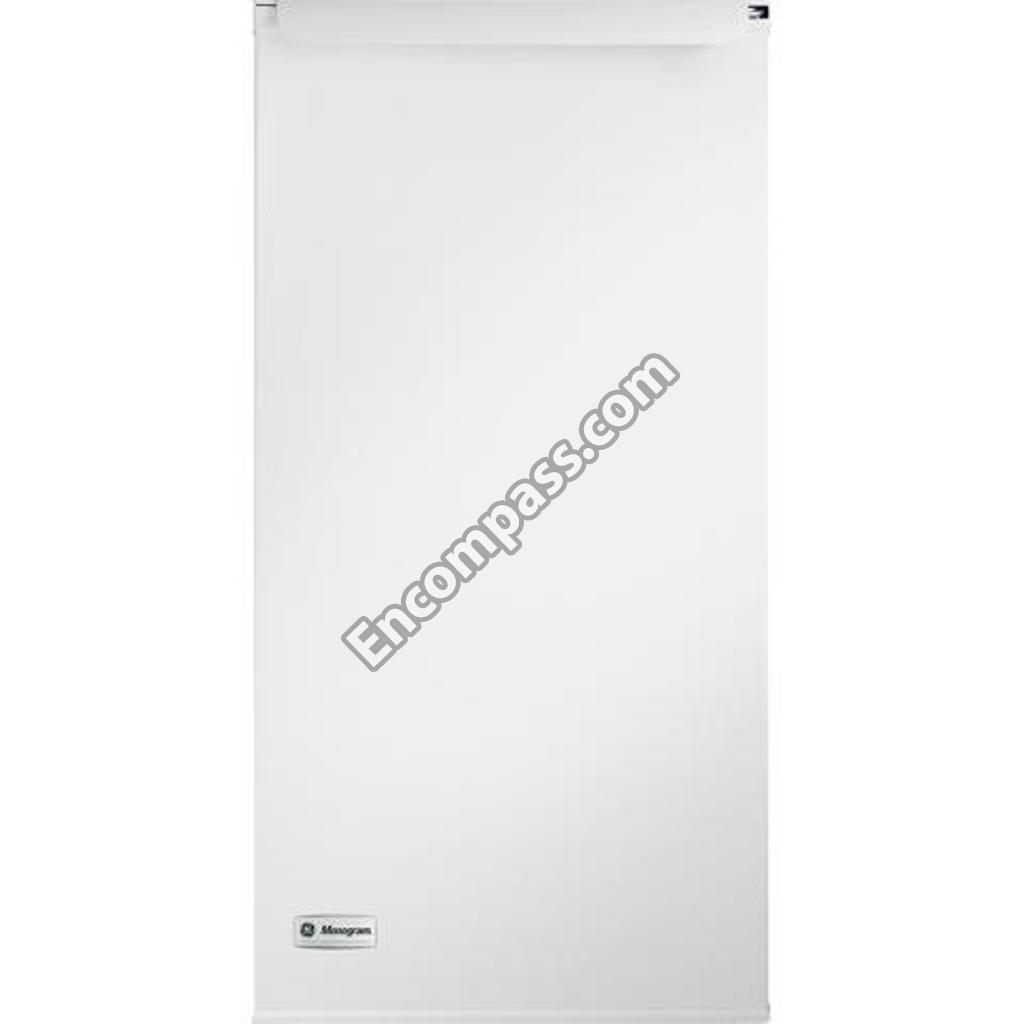

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
8-32 X .750 HW TT SG |
|
|
ASSEMBLY MAGNETIC CATCH |
|
|
ASSEMBLY SWITCH (ALSO O |
|
|
ASSEMBLY UNIT COVER |
|
|
BIN DOOR |
|
|
BLADE-COND FAN PLASTIC |
|
|
BOX CONTROL |
|
|
BRACKET CONNECTOR |
|
|
BRACKET-FAN MOUNTING |
|
|
CAM DOOR |
|
|
CAP DRAIN |
|
|
COIL SOLENOD |
|
|
COIL, SOLENOID |
|
|
CONDENSER |
|
|
COVER GRID |
|
|
COVER PUMP |
|
|
COVER TERMINAL |
|
|
DISPENSER WATER |
|
|
DOOR PANEL ASM WH |
|
|
EVAPORATOR ASSEMBLY |
|
|
FASTENER PUSHNUT |
|
|
FILL TUBE CLAMP |
|
|
FILLER END CAP LH WHITE |
|
|
FILLER END CAP RH WHITE |
|
|
GASKET BOTTOM STRIP |
|
|
GASKET DOOR |
|
|
GASKET TOP PANEL |
|
|
GRID ASM |
|
|
GRILLE FRONT WHITE |
|
|
GROMMET -4 |
|
|
GUIDE CUTTER GRID |
|
|
HANDLE DOOR WHITE |
|
|
HINGE BOTTOM |
|
|
HINGE STOP BTM RH/TOP LH |
|
|
HINGE STOP TOP RH/BTM LH |
|
|
HINGE TOP |
|
|
HOLDER SCOOP |
|
|
HOSE OVERFLOW |
|
|
LENS LED |
|
|
LEVELLING LEG |
|
|
MINI MANUAL |
|
|
MOTOR & MTG PLATE ASSEMBLY |
|
|
NAMEPLATE |
|
|
NUT |
|
|
NUT SPEED |
|
|
OVERLAY |
|
|
OVERLOAD |
|
|
P.C. BOARD |
|
|
PAD FOAM |
|
|
PIN HINGE |
|
|
PLUG BUTTON CABINET |
|
|
PLUG BUTTON DOOR |
|
|
PUMP |
|
|
RELAY START |
|
|
RESERVOIR WATER |
|
|
RESERVOIR WATER SLIDE |
|
|
SCOOP |
|
|
SCOOP PLASTIC |
|
|
SCREW 10-32 X 11/16 |
|
|
SCREW 6-32 X 3/4 |
|
|
SCREW 8-18 X 1 1/4 |
|
|
SCREW 8-18 X 1/2 |
|
|
SCREW 8-18 X 5/8 |
|
|
SCREW HANDLE WHITE |
|
|
SCREW8-18X1 |
|
|
SHIELD ELECTRICAL |
|
|
SPACER |
|
|
SPACER |
|
|
SWITCH PLUNGER |
|
|
THERMISTOR BIN |
|
|
THERMISTOR ICE CONTROL |
|
|
TOP WH |
|
|
TRANSFORMER |
|
|
TUBE |
|
|
TUBE DRAIN |
|
|
TUBE WATER INLET |
|
|
VALVE WATER COMPLETE |
|
|
WATER LINE 1/4 |
|
|
WIRING HARNESS COMPLETE |
|
|
WIRING HARNESS MAIN TO P |
