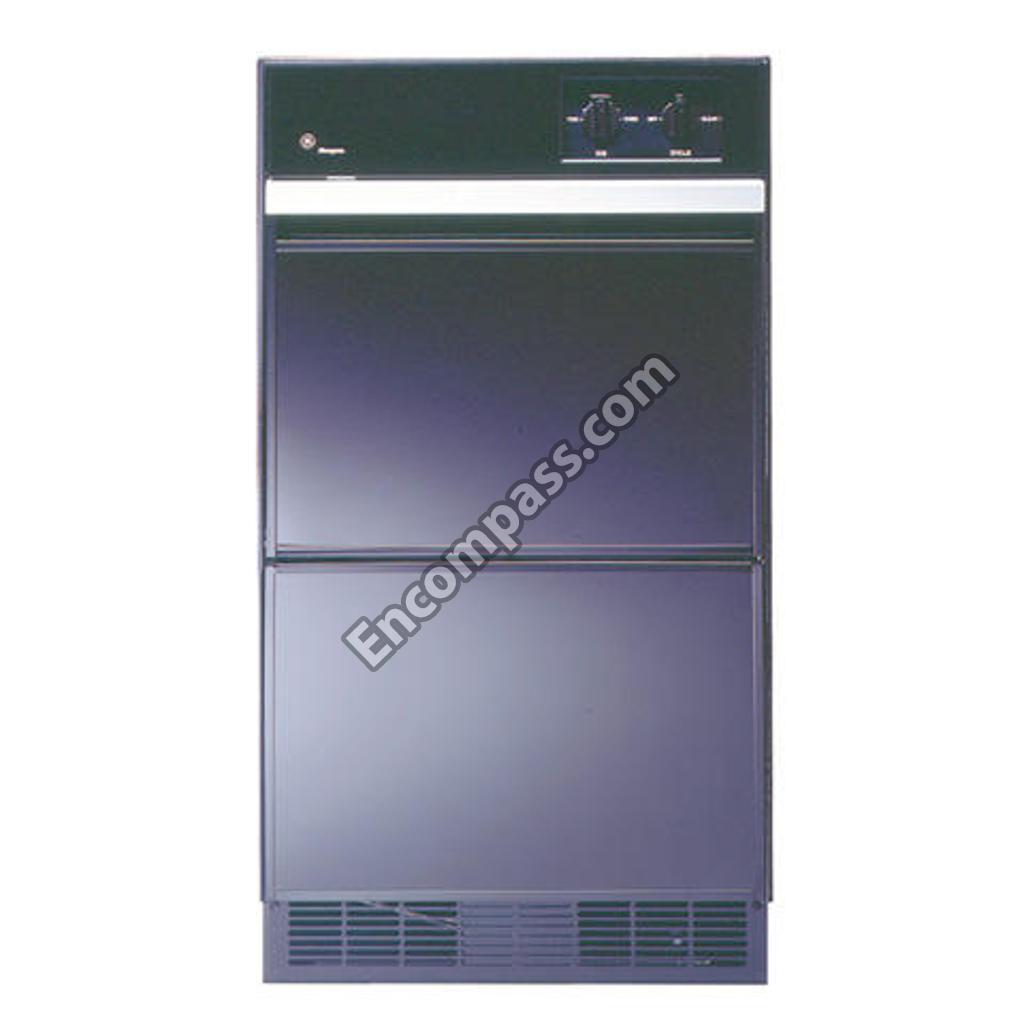

Model Image
Manufacturer

GE

Model Number

ZDIB50YB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR60X254 WR60X254 BLADE FAN
WR60X0254 WR60X0254 BLADE, FAN
WR02X9349 WR02X9349 BRACKET
WR2X9349 WR2X9349 BRACKET
WR2X9343 WR2X9343 BRACKET CTL
WR1X2099 WR1X2099 BRACKET GRID
WR2X9341 WR2X9341 BRACKET LAMP
WR02X9343 WR02X9343 BRACKET, CONTROL
WR01X2099 WR01X2099 BRACKET, GRID
WR02X9341 WR02X9341 BRACKET, LAMP
WR01X2098 WR01X2098 CLAMP
WR01X2088 WR01X2088 CLAMP
WR1X2098 WR1X2098 CLAMP
WR1X1843 WR1X1843 CLAMP TRI325006
WR1X2091 WR1X2091 CLIP PANEL
WR01X2091 WR01X2091 CLIP, PANEL
WR62X98 WR62X98 COIL SOLENOD
WR62X0098 WR62X0098 COIL, SOLENOID
WR87X0498 WR87X0498 COMPRESSOR
WR87X10224 WR87X10224 COMPRESSOR KIT EGYS60
WR84X0214 WR84X0214 CONDENSER
WR84X214 WR84X214 CONDENSER KIT
WR1X2107 WR1X2107 CONICAL WASH
WR01X2107 WR01X2107 CONICAL WASHER 1/4-20HEX
WR17X3974 WR17X3974 CONNECTOR HOSE
WR2X9564 WR2X9564 COVER TERMI
WR02X9564 WR02X9564 COVER, TERMINAL
WR29X203 WR29X203 CUBELET CUT
WR29X0210 WR29X0210 CUBELET CUTTER GRID ASM
WR4X227 WR4X227 DECAL ESCUTC
WR04X0227 WR04X0227 DECAL, ESCUTCHEON
WR02X9351 WR02X9351 DEFLECTOR, FRONT
WR2X9351 WR2X9351 DEFLECTR FRT
WR02X9337 WR02X9337 DISPENSER, WATER
WR2X9337 WR2X9337 DISPENSR WTR
WR02X9345 WR02X9345 DOOR LATCH
WR02X9323 WR02X9323 DOOR, INNER BIN
WR2X9323 WR2X9323 DR INNER BIN
WR32X1505 WR32X1505 DRAIN PAN
WR03X0418 WR03X0418 ESCUTCHEON
WR3X418 WR3X418 ESCUTCHEON
WR85X0312 WR85X0312 EVAPORATOR
WR85X312 WR85X312 EVAPORATOR
WR2X9322 WR2X9322 FRONT SHELL
WR02X9322 WR02X9322 FRONT, SHELL
WR24X0566 WR24X0566 GASKET
WR24X566 WR24X566 GASKET
WR14X475 WR14X475 GASKET BTM
WR14X0475 WR14X0475 GASKET, BOTTOM
WR74X257 WR74X257 GRILL FRONT
WR74X0257 WR74X0257 GRILL, FRONT
WR02X9356 WR02X9356 GROMMET
WR02X9329 WR02X9329 GROMMET
WR2X9329 WR2X9329 GROMMET
WR2X9356 WR2X9356 GROMMET (4)
WR38X2158 WR38X2158 HANDLE RECESSED
WR23X438 WR23X438 HARNESS CAB **NLA*
WR23X439 WR23X439 HARNESS GRID
WR23X0438 WR23X0438 HARNESS, CABINET
WR23X0439 WR23X0439 HARNESS, GRID
WR17X3976 WR17X3976 HOSE OVERFLOW
WR82X362 WR82X362 INSUL BTM FM
WR82X363 WR82X363 INSULATION
WR82X0362 WR82X0362 INSULATION BOTTOM, FOAM
WR82X0363 WR82X0363 INSULATION, DOOR
WR02X9344 WR02X9344 KNOB
WR2X9344 WR2X9344 KNOB
WR2X9374 WR2X9374 LATCH
WR77X669 WR77X669 LINER DOOR
WR77X0669 WR77X0669 LINER, DOOR
31-51031 31-51031 MINI MANUAL
WR60X250 WR60X250 MOTOR FAN
WR60X0250 WR60X0250 MOTOR, FAN
WR01X2090 WR01X2090 NUT
WR1X2090 WR1X2090 NUT
WR08X0200 WR08X0200 OVERLOAD
WR8X200 WR8X200 OVERLOAD
WR86X96 WR86X96 P/S DRYER KIT R134A
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR78X8766 WR78X8766 PANEL EXTERIOR
WR2X9333 WR2X9333 PANEL FILLER
WR2X9339 WR2X9339 PANEL GRID
WR77X670 WR77X670 PANEL INNER
WR02X9333 WR02X9333 PANEL, FILLER
WR02X9339 WR02X9339 PANEL, GRID
WR77X0670 WR77X0670 PANEL, INNER
WR78X8767 WR78X8767 PANEL, OUTER
WR01X2096 WR01X2096 PLUG
WR1X2096 WR1X2096 PLUG
WR2X9324 WR2X9324 PLUG HINGE
WR02X9324 WR02X9324 PLUG, HINGE
WR38X2157 WR38X2157 POCKET HANDLE
WR57X122 WR57X122 PUMP WATER
WR57X0122 WR57X0122 PUMP, WATER
WR2X9328 WR2X9328 RAIL L.S.
WR2X9327 WR2X9327 RAIL R.S.
WR02X9328 WR02X9328 RAIL, L.S.
WR02X9327 WR02X9327 RAIL, R.S.
WR7X256 WR7X256 RELAY START
WR07X0256 WR07X0256 RELAY, START
WR02X9336 WR02X9336 RETAINER, WIRE
WR2X9336 WR2X9336 RETAINR WIRE
WR29X209 WR29X209 SCOOP
WR29X0209 WR29X0209 SCOOP PLASTIC
WR1X5690 WR1X5690 SCR HANDLE
WR01X2112 WR01X2112 SCREW
WR01X2104 WR01X2104 SCREW
WR01X2094 WR01X2094 SCREW
WE2X394 WE2X394 SCREW
WR1X2104 WR1X2104 SCREW
WR01X2089 WR01X2089 SCREW #8 X 1/2
WR1X2112 WR1X2112 SCREW (4)
WR01X2097 WR01X2097 SCREW 10-12 X 1/2
WH02X10130 WH02X10130 SCREW 10-16 X 1/2
WR1X2092 WR1X2092 SCREW 10-32
WR1X2086 WR1X2086 SCREW 8-32X
WR01X2092 WR01X2092 SCREW, 10-32 X 3/8
WR01X2103 WR01X2103 SCREW, 8-32 X 1/4
WR01X2086 WR01X2086 SCREW, 8-32X 5/8
WR1X2069 WR1X2069 SCREW/VIS
WR2X9340 WR2X9340 SHEILD LAMP
WR02X9340 WR02X9340 SHEILD, LAMP
WR02X9338 WR02X9338 SHELF, WATER PAN
WR2X9338 WR2X9338 SHLF WTR PAN
WR02X9350 WR02X9350 SHROUD
WR2X9350 WR2X9350 SHROUD
WR01X2114 WR01X2114 SLEEVE
WR1X2114 WR1X2114 SLEEVE (4)
WR1X2102 WR1X2102 STOPPER PAN
WR01X2102 WR01X2102 STOPPER, PAN
WR2X9325 WR2X9325 STRIP TAPPNG
WR02X9325 WR02X9325 STRIP, TAPPING
WR02X9330 WR02X9330 STUD
WR2X9330 WR2X9330 STUD
WR2X9335 WR2X9335 SUPPORT FRNT
WR02X9335 WR02X9335 SUPPORT, FRONT
WR23X436 WR23X436 SWITCH SERV
WR23X0436 WR23X0436 SWITCH, SERVICE
WR50X137 WR50X137 THERMO BIN
WR50X0137 WR50X0137 THERMO, BIN CONTROL
WR50X136 WR50X136 THERMOSTAT
WR50X0136 WR50X0136 THERMOSTAT, EVAPORATOR
WR01X2100 WR01X2100 THUMBSCREW
WR1X2101 WR1X2101 THUMBSCREW
WR01X2205 WR01X2205 THUMBSCREW 10 X 1/2
WR01X2101 WR01X2101 THUMBSCREW 10-32 X 5/8
WR62X0090 WR62X0090 TRANSFORMER
WR62X90 WR62X90 TRANSFORMER
WR2X9332 WR2X9332 TRIM
WR02X9332 WR02X9332 TRIM (TOP & BOTTOM)
WR2X9326 WR2X9326 TRIM DOOR
WR2X9334 WR2X9334 TRIM DR LWR
WR2X9331 WR2X9331 TRIM SIDE
WR02X9326 WR02X9326 TRIM, DOOR
WR02X9334 WR02X9334 TRIM, DOOR (LOWER)
WR02X9331 WR02X9331 TRIM, SIDE
WR17X3975 WR17X3975 TUBE PLASTIC
WR17X3973 WR17X3973 TUBE WATER FILL
49-6857 49-6857 UC ZDI B/W 50 X Y ENG/SP-ICEMA
WR86X25463 WR86X25463 VALVE AND TUBE KIT
WR57X121 WR57X121 VALVE WATER
WR86X0106 WR86X0106 VALVE, BODY
WR57X0121 WR57X0121 VALVE, COMPLETE WATER
WR01X2113 WR01X2113 WASHER
WR01X2095 WR01X2095 WASHER
WR01X2087 WR01X2087 WASHER
WR1X2087 WR1X2087 WASHER
WR1X2095 WR1X2095 WASHER
WR1X2113 WR1X2113 WASHER (4)
WR50X138 WR50X138 WELL BIN THM
WR01X2093 WR01X2093 WELL NUT
WR1X2093 WR1X2093 WELL NUT
WR50X0138 WR50X0138 WELL, BIN THERMOSTAT
