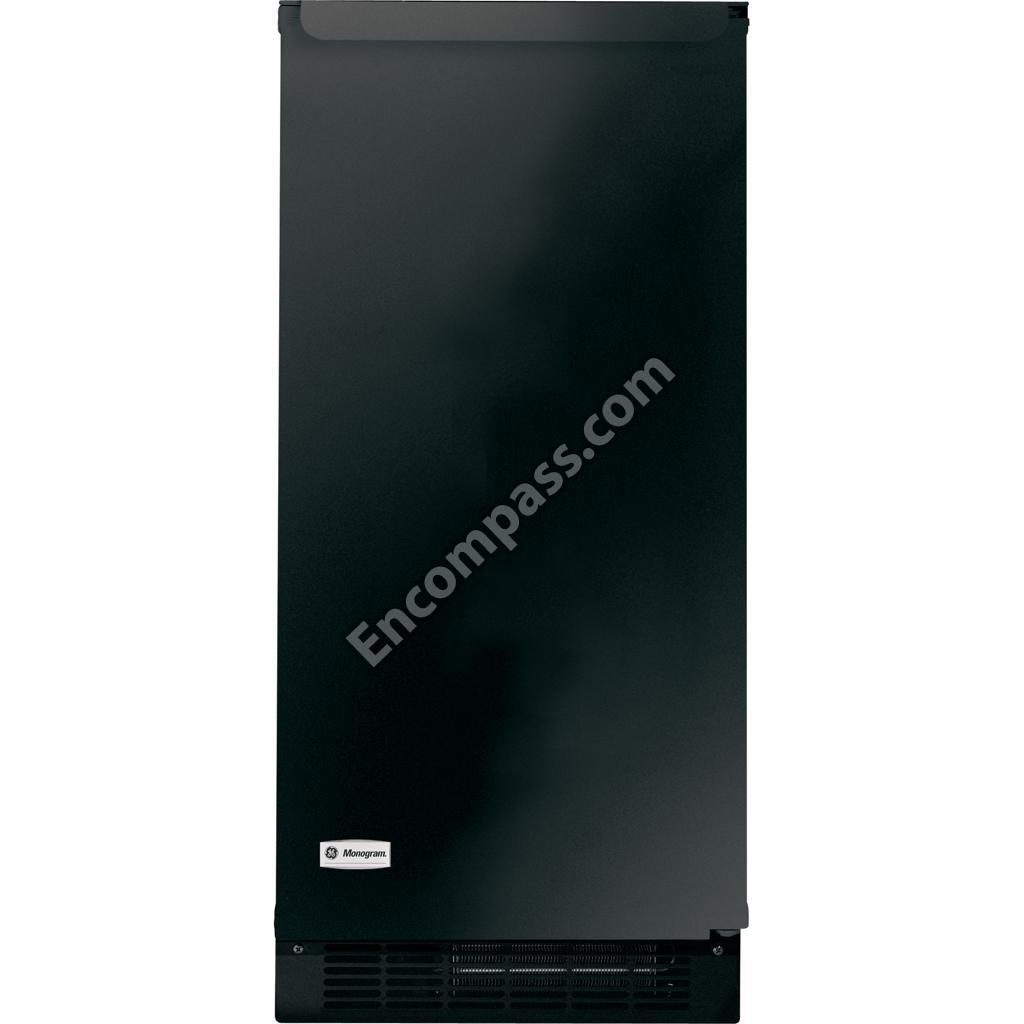

Model Image
Manufacturer

GE

Model Number

ZDIC150WBB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR01X10636 WR01X10636 8-32 X .750 HW TT SG
WR55X10729 WR55X10729 ASSEMBLY SWITCH (ALSO O
WR82X10116 WR82X10116 ASSEMBLY UNIT COVER
WR13X20553 WR13X20553 BIN DOOR
WR60X10218 WR60X10218 BLADE-COND FAN PLASTIC
WR02X26328 WR02X26328 BOX CONTROL
WR01X10768 WR01X10768 BRACKET CONNECTOR
WR02X12734 WR02X12734 BRACKET FRONT AND REAR
WR02X12735 WR02X12735 BRACKET SIDE LEFT AND R
WR02X12268 WR02X12268 BRACKET-FAN MOUNTING
WR02X12724 WR02X12724 BRACKET-PUMP
WR02X10372 WR02X10372 CAM DOOR
WR01X10140 WR01X10140 CAP DRAIN
WR01X10799 WR01X10799 CHANNEL WIRING
WR01X10808 WR01X10808 CLAMP
WR01X10812 WR01X10812 CLAMP
WR02X12740 WR02X12740 CLAMP
WR02X12720 WR02X12720 CLAMP (POWER CORD)
WR01X10815 WR01X10815 CLIP MOUNTING
WR02X12728 WR02X12728 CLIP-RETAINER (3)
WR02X12741 WR02X12741 CLIP-WIRING
WR62X98 WR62X98 COIL SOLENOD
WR62X0098 WR62X0098 COIL, SOLENOID
WR07X10113 WR07X10113 COMBO DEVICE
WR87X26540 WR87X26540 COMPRESSOR (INCLUDES ILL
WR84X10081 WR84X10081 CONDENSER
WR02X10382 WR02X10382 COVER GRID
WR02X10383 WR02X10383 COVER PUMP
WR2X9564 WR2X9564 COVER TERMI
WR02X12723 WR02X12723 COVER WIRING
WR02X10381 WR02X10381 DISPENSER WATER
WR78X11429 WR78X11429 DOOR PANEL ASM BK
WR87X26591 WR87X26591 DRIER SERVICE
WR14X10252 WR14X10252 EGDE GUARD
WR85X10045 WR85X10045 EVAPORATOR ASSEMBLY
WR57X10076 WR57X10076 FASTENER PUSHNUT
WR01X10763 WR01X10763 FILL TUBE CLAMP
WR02X10389 WR02X10389 FILLER END CAP LH BLACK
WR02X10390 WR02X10390 FILLER END CAP RH BLACK
WR24X10182 WR24X10182 GASKET BOTTOM STRIP
WR24X10192 WR24X10192 GASKET DOOR
WR24X10181 WR24X10181 GASKET TOP PANEL
WR29X10073 WR29X10073 GRID ASM
WR74X10037 WR74X10037 GRILLE FRONT BLACK
WR02X10387 WR02X10387 GROMMET -4
WR02X12727 WR02X12727 GROMMET CONDENSER
WR02X12214 WR02X12214 GUIDE CUTTER GRID
WR12X10317 WR12X10317 HANDLE DOOR BLACK
WR02X12736 WR02X12736 HARNESS GRID
WR13X10063 WR13X10063 HINGE BOTTOM
WR02X10376 WR02X10376 HINGE STOP BTM RH/TOP LH
WR02X10375 WR02X10375 HINGE STOP TOP RH/BTM LH
WR13X10062 WR13X10062 HINGE TOP
WR02X10388 WR02X10388 HOLDER SCOOP
WR02X12721 WR02X12721 HOLE PLUG HANDLE
WR57X10081 WR57X10081 HOSE OVERFLOW
WR87X20607 WR87X20607 HOT GAS VALVE
WR02X12144 WR02X12144 LEVELLING LEG

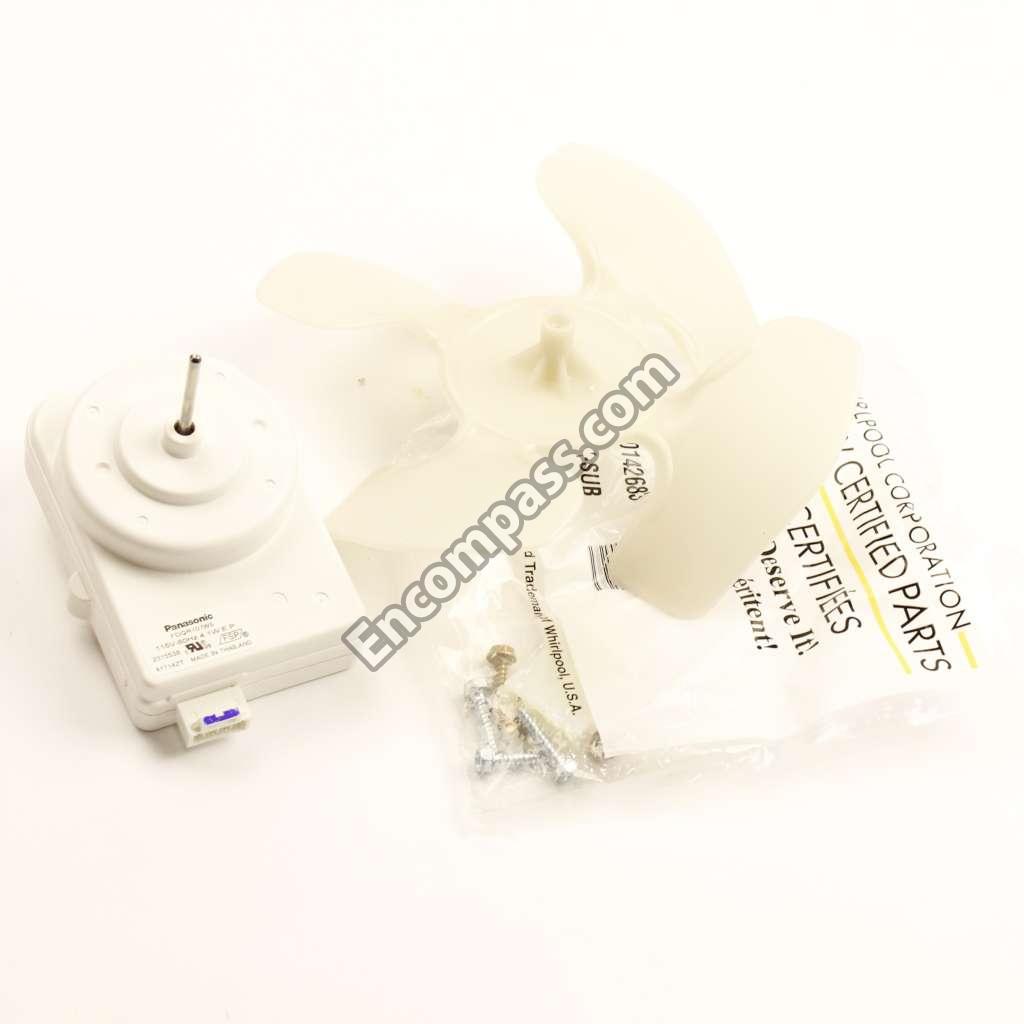

WR60X10217 WR60X10217 MOTOR & MTG PLATE ASSEMBLY
WR04X10167 WR04X10167 NAMEPLATE
WR01X10800 WR01X10800 NUT LEG LEVELER
WR01X10801 WR01X10801 NUT PUSH-IN
WR01X10764 WR01X10764 NUT SPEED
WR03X10004 WR03X10004 OVERLAY
WR08X10042 WR08X10042 OVERLOAD

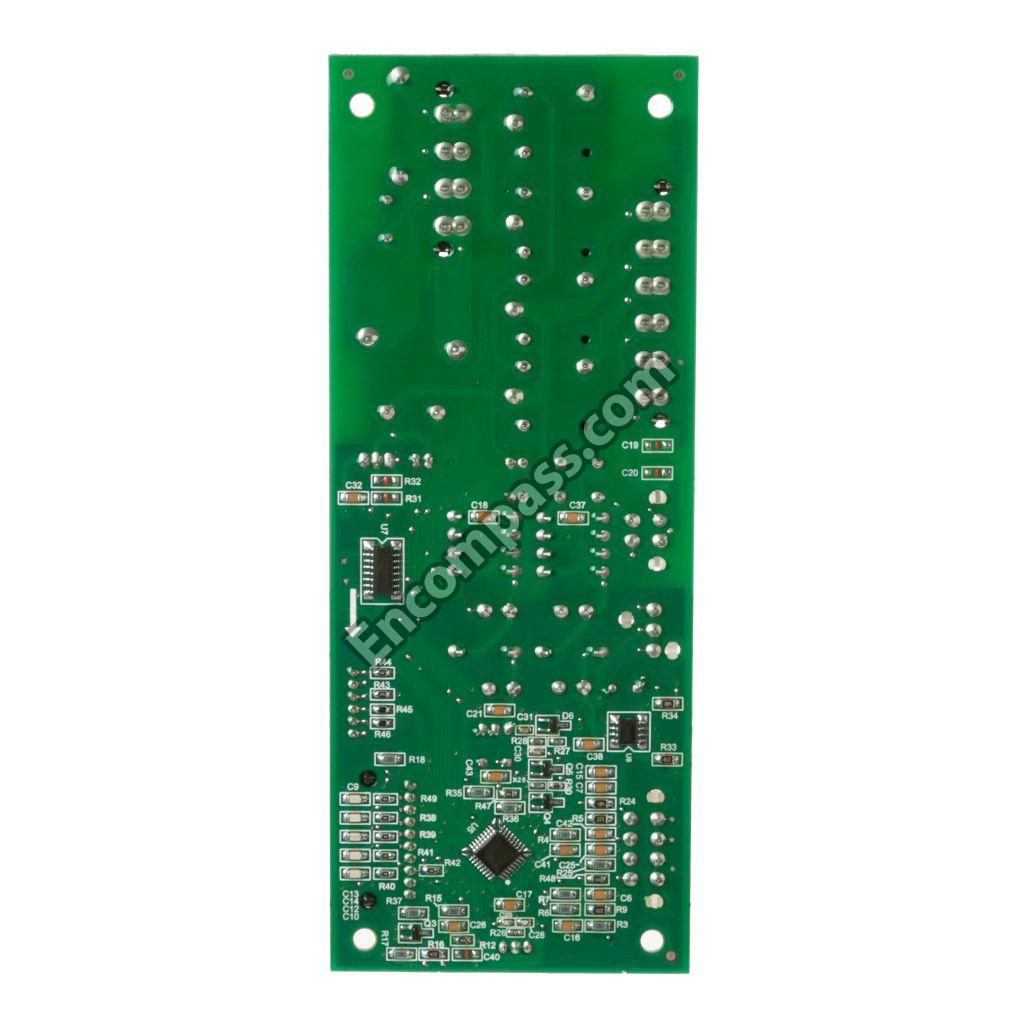

WR55X10713 WR55X10713 P.C. BOARD
WR14X10034 WR14X10034 PAD FOAM
WR14X10250 WR14X10250 PAD FOAM
WR14X10251 WR14X10251 PAD FOAM -2
WR01X10135 WR01X10135 PIN HINGE
WR02X10373 WR02X10373 PLUG BUTTON DOOR

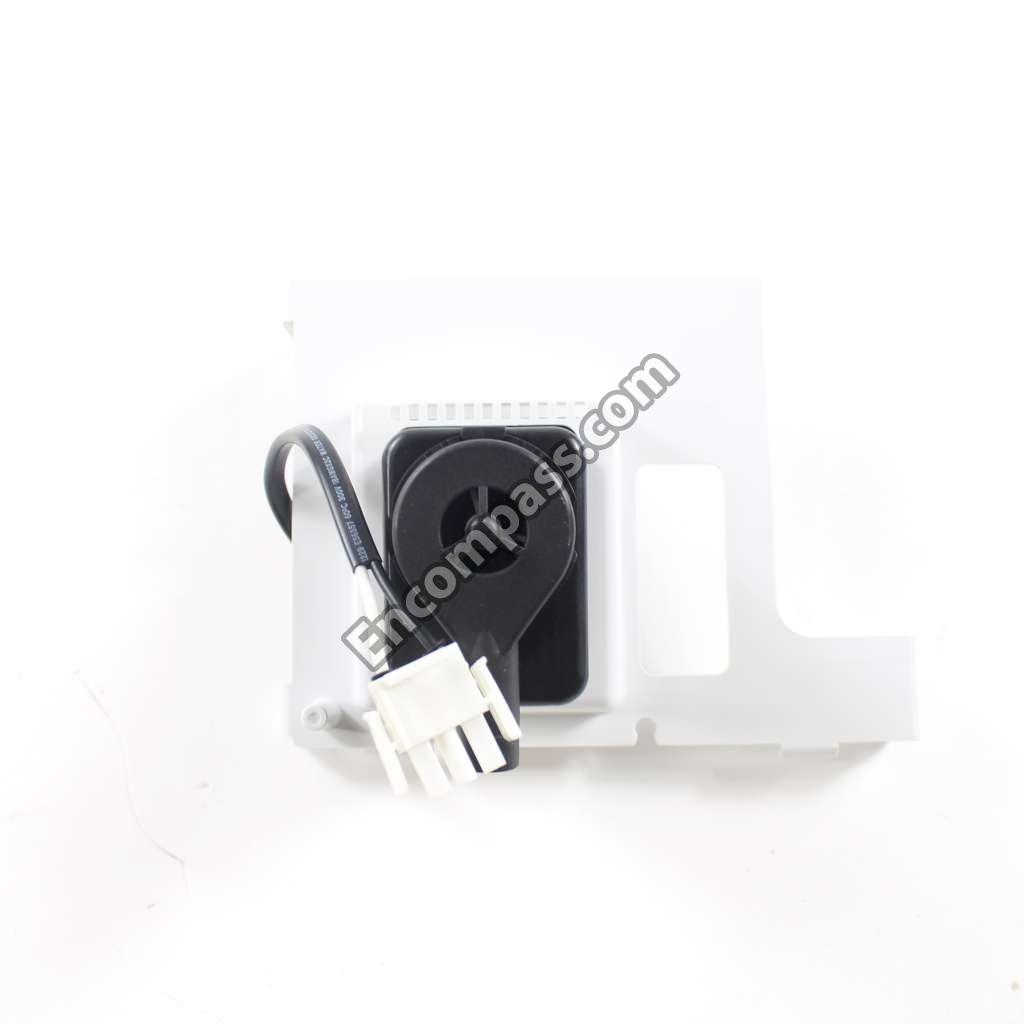

WR57X26823 WR57X26823 PUMP
WR57X10074 WR57X10074 PUMP WATER COMPLETE
WR07X10045 WR07X10045 RELAY START

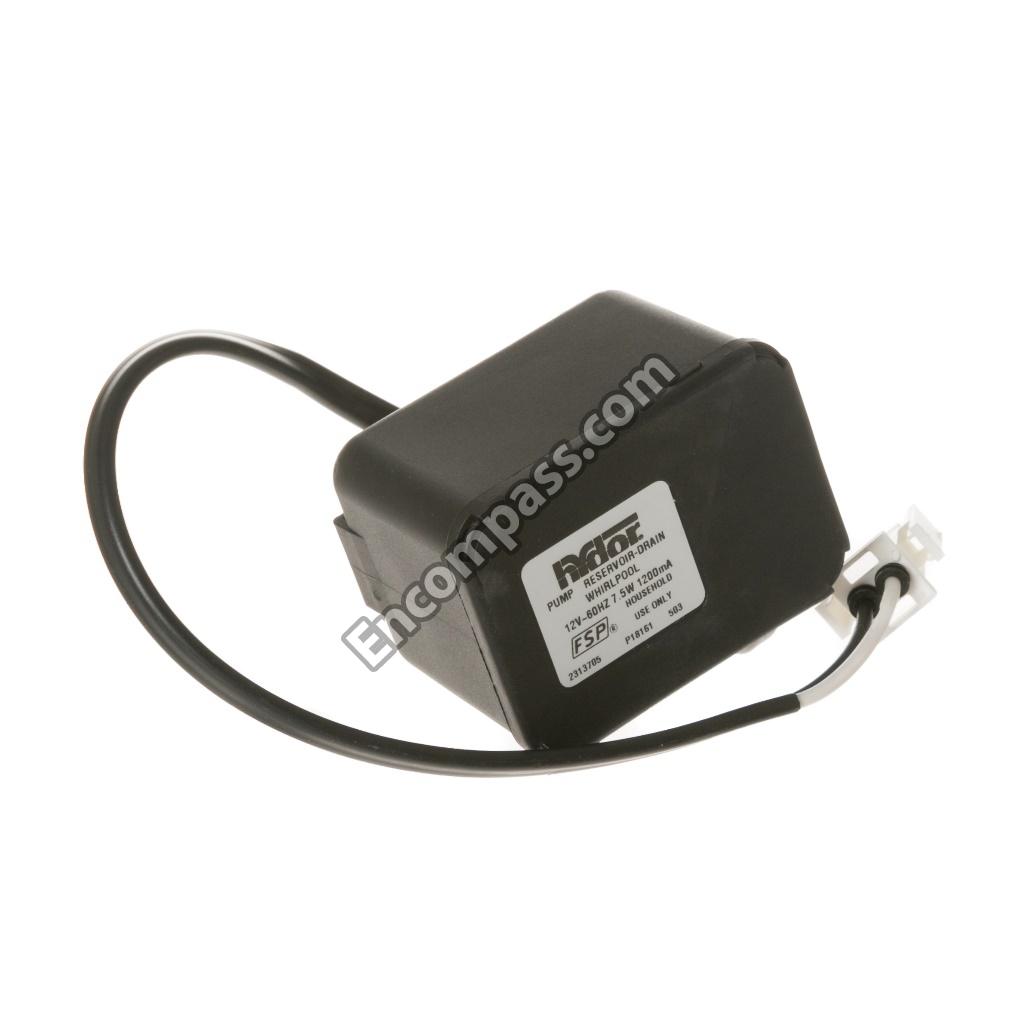

WR57X10073 WR57X10073 RESERVIOR DRAIN PUMP

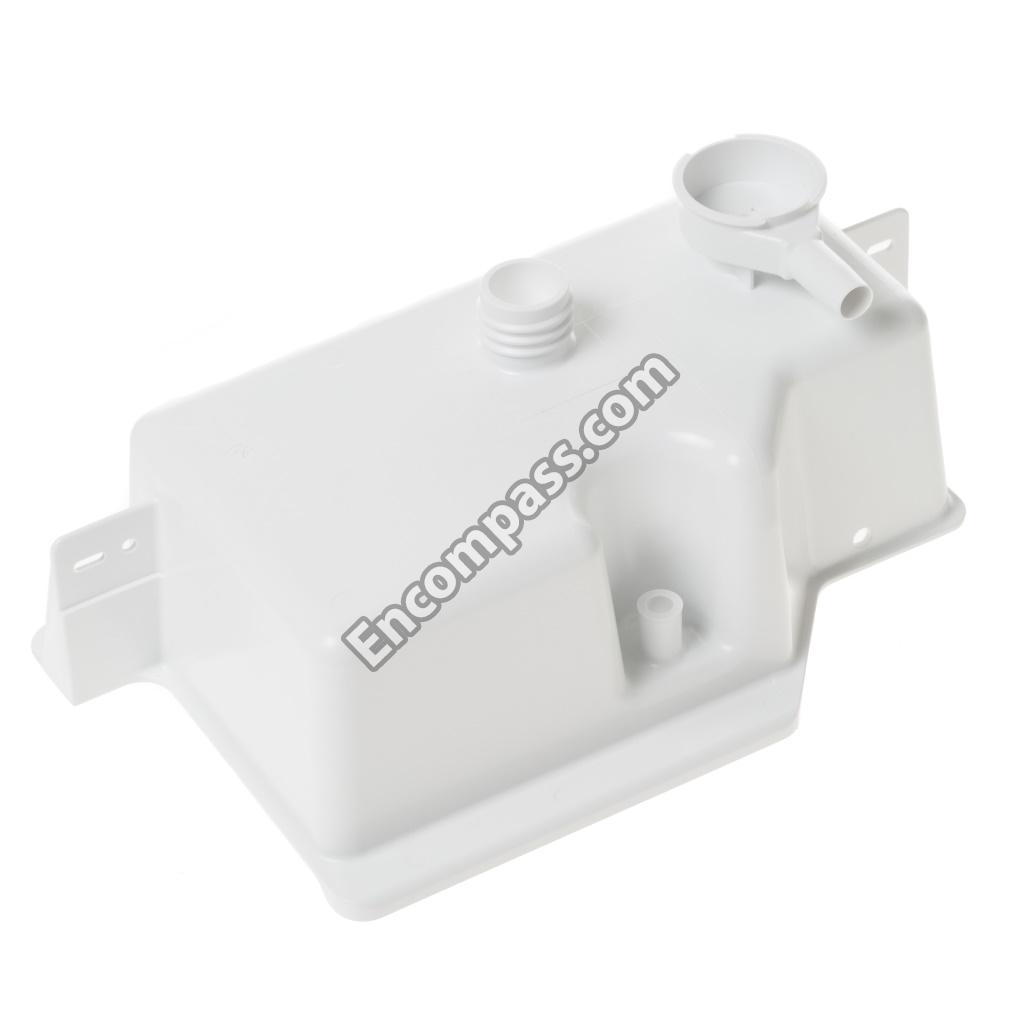

WR32X10656 WR32X10656 RESERVOIR WATER
WR32X10090 WR32X10090 RESERVOIR WATER SLIDE
WR29X209 WR29X209 SCOOP
WR29X0209 WR29X0209 SCOOP PLASTIC
WR01X10819 WR01X10819 SCREW
WR01X10810 WR01X10810 SCREW
WR01X10811 WR01X10811 SCREW
WR01X10816 WR01X10816 SCREW
WR01X10817 WR01X10817 SCREW
WR01X10818 WR01X10818 SCREW
WR01X10137 WR01X10137 SCREW 10-32 X 11/16
WR01X10136 WR01X10136 SCREW 6-32 X 3/4
WR01X10813 WR01X10813 SCREW 8-16 X 5/8
WR01X26647 WR01X26647 SCREW 8-18 X 1 1/4
WR01X10134 WR01X10134 SCREW 8-18 X 5/8
WR01X10802 WR01X10802 SCREW GROUND
WR01X10820 WR01X10820 SCREW HANDLE
WR01X10766 WR01X10766 SCREW HANDLE BLACK
WR01X10765 WR01X10765 SCREW8-18X1
WR02X10380 WR02X10380 SHIELD ELECTRICAL
WR02X12737 WR02X12737 SHIM -4
WR13X10567 WR13X10567 SHIM HINGE
WR01X10130 WR01X10130 SPACER
WR01X10139 WR01X10139 SPACER
WR02X12739 WR02X12739 STRAP
WR23X10109 WR23X10109 SWITCH PLUNGER

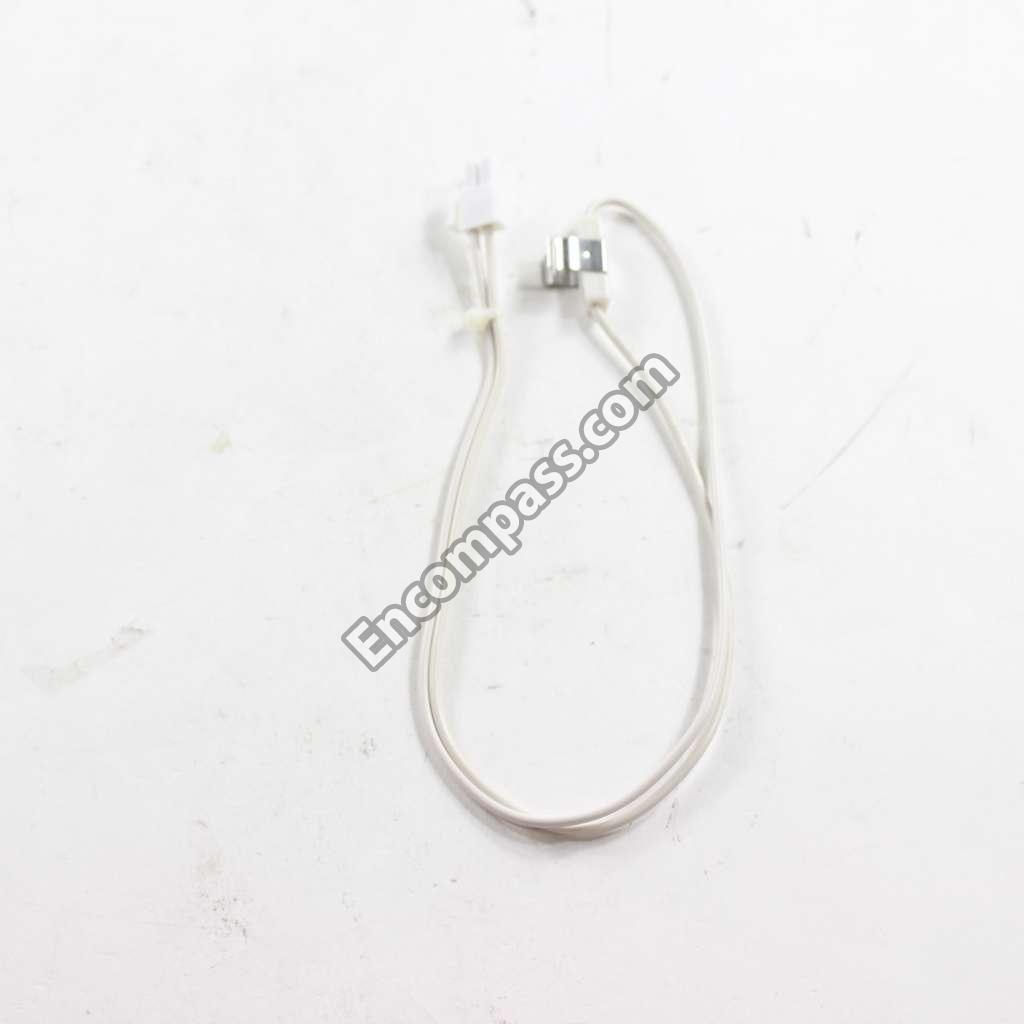

WR55X10545 WR55X10545 THERMISTOR BIN
WR55X10544 WR55X10544 THERMISTOR ICE CONTROL
WR1X2101 WR1X2101 THUMBSCREW
WR17X10458 WR17X10458 TOP BK
WR62X10064 WR62X10064 TRANSFORMER
WR17X12582 WR17X12582 TUBE
WR17X10456 WR17X10456 TUBE
WR17X12379 WR17X12379 TUBE DRAIN
WR01X30254 WR01X30254 TUBE PLASTIC
WR02X12738 WR02X12738 TUBE PROCESS
WR02X12719 WR02X12719 TUBE WATER FILL
WR02X12726 WR02X12726 TUBE-RESERVOIR

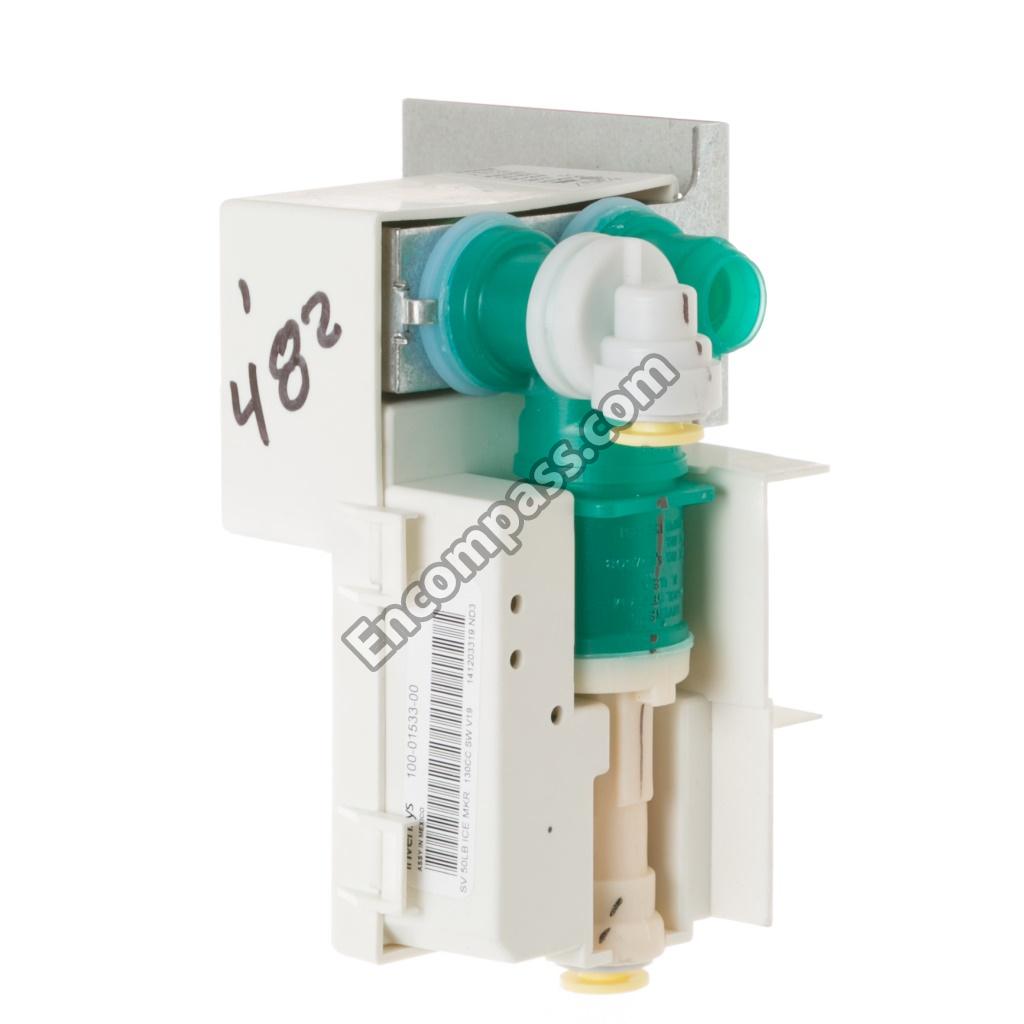

WR57X10072 WR57X10072 VALVE WATER COMPLETE

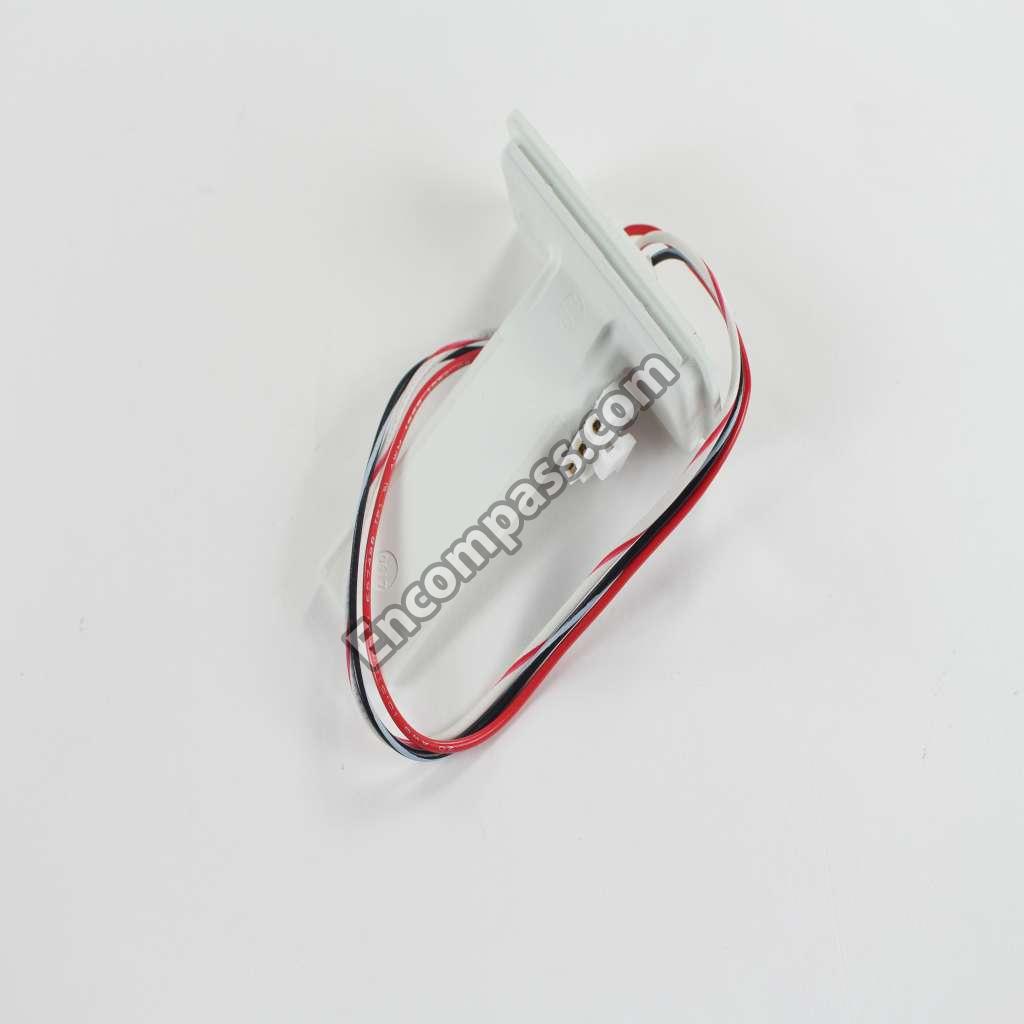

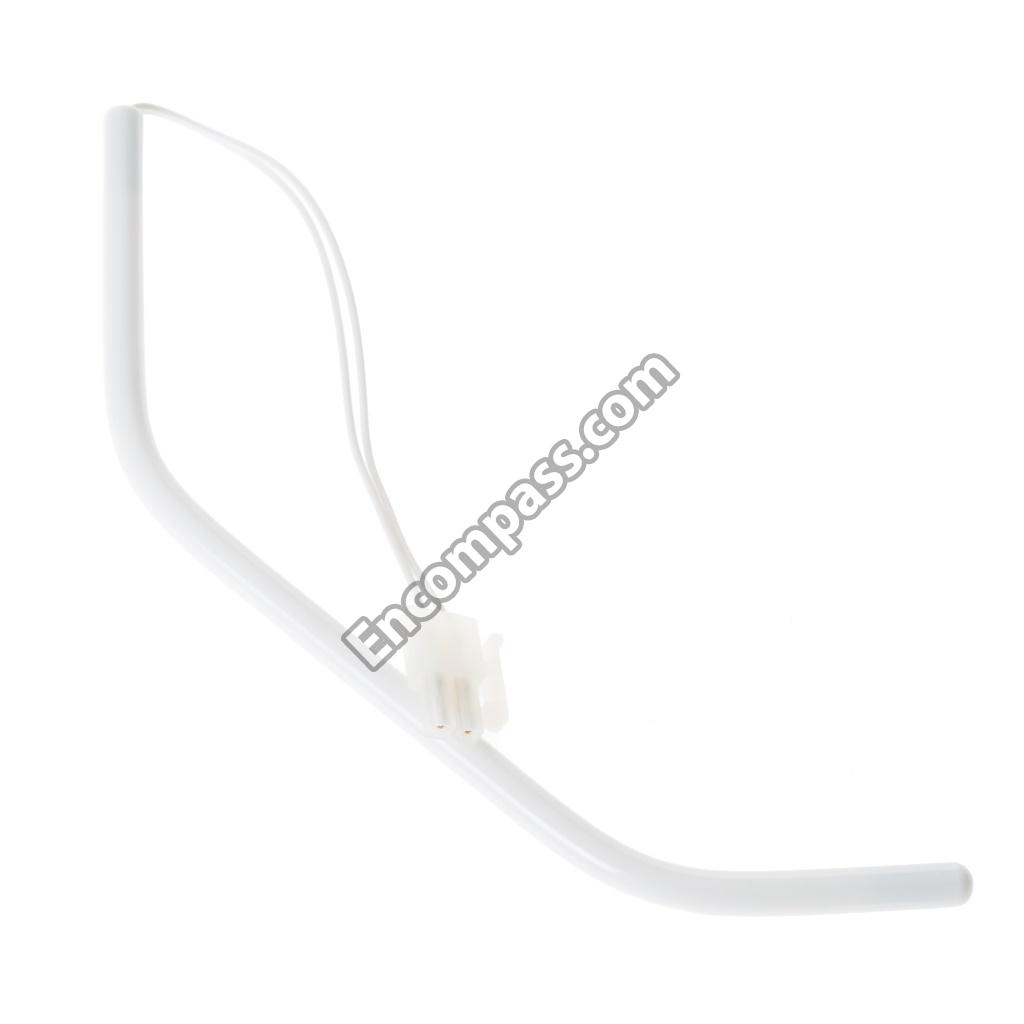

WR02X13785 WR02X13785 WATER FILL SENSOR
WR57X10083 WR57X10083 WIRE ASS- OVERLAY JUMPER
WR57X10080 WR57X10080 WIRE ASSEMBLY SMART VALV

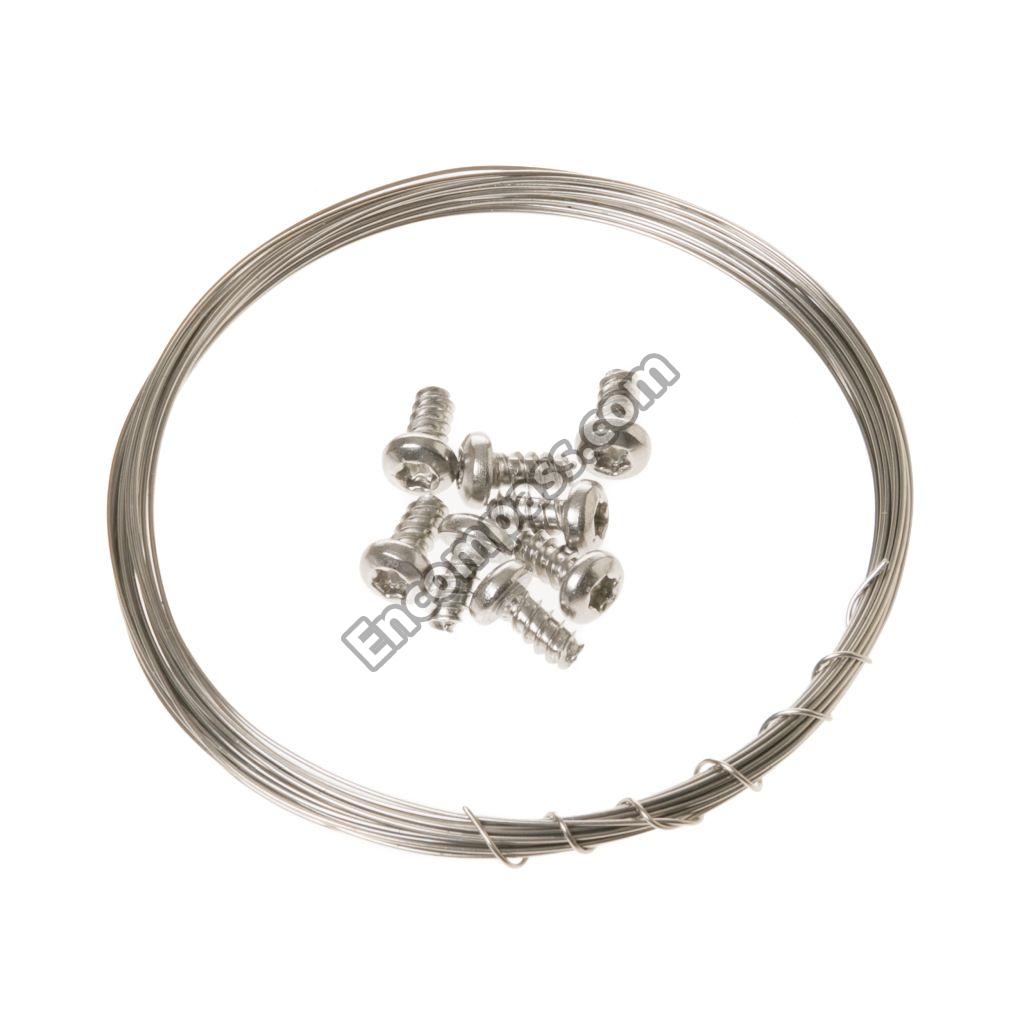

WR29X10075 WR29X10075 WIRE GRID CUTTER
WR23X10574 WR23X10574 WIRING HARNESS COMPLETE
WR23X10609 WR23X10609 WIRING HARNESS CONDENSE
WR23X10575 WR23X10575 WIRING HARNESS MAIN TO P
