Manufacturer

Model Number

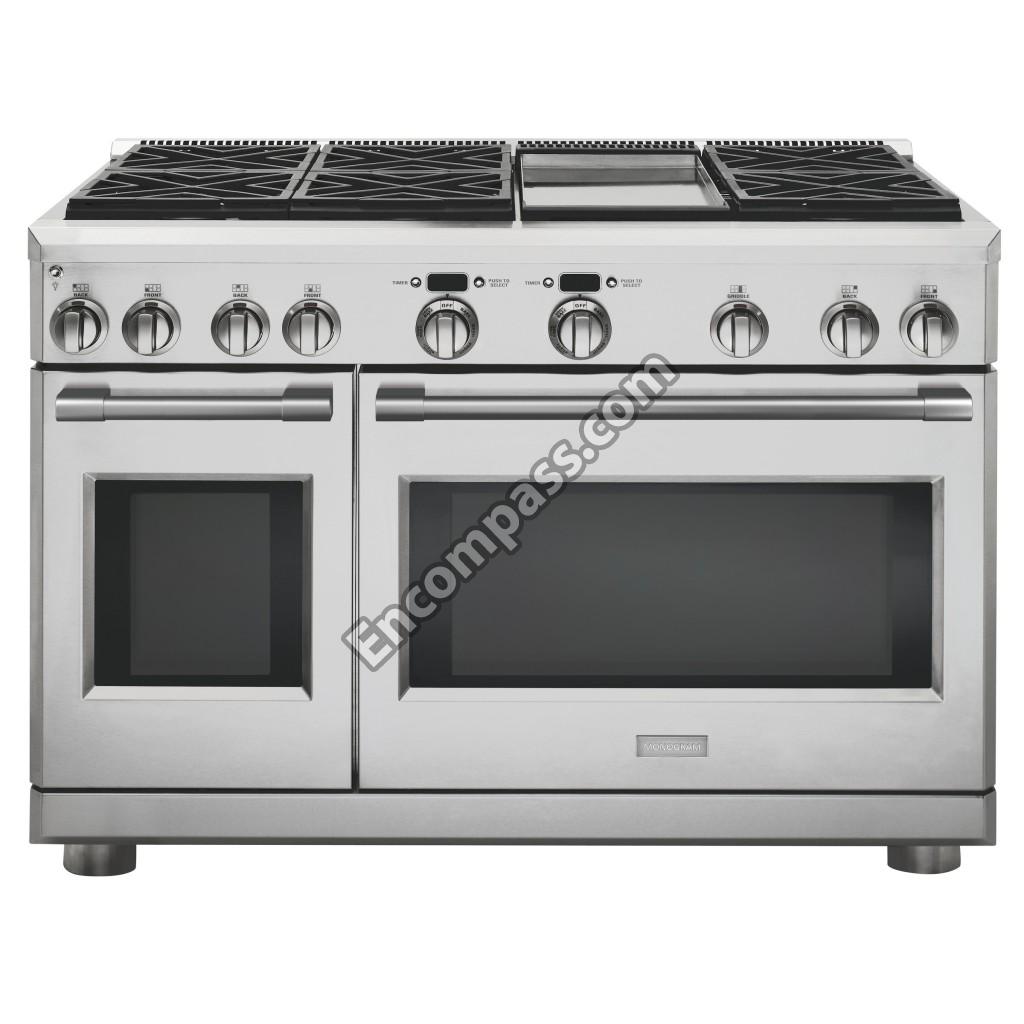

ZDP486NDN1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number	Description
WB07K10447	GE ACCESS PANEL
WB02K10228	GE ADAPTER FLARE FITTING
WB02X35125	GE BADGE MONOGRAM
WB02K10217	GE BEZEL BUSHING
WB07K10299	GE BEZEL KNOB
WB27X32415	GE BLOCK TERMINAL ASSEMBLY
WB26K10010	GE BLOWER TANGENTIAL 45MM
WB26K10009	GE BLOWER TANGENTIAL 45MM
WB01K0005	GE BOTTOM OVEN SCREW
WB02T10194	GE BRACKET CAPACITOR
WB02K10213	GE BRACKET CONTROL
WB02K10208	GE BRACKET GRIDDLE
WB34X31807	GE BRACKET HANDLE LEFT
WB34X31805	GE BRACKET HANDLE RIGHT
WB02K10207	GE BRACKET KNOCKOUT
WB02K10273	GE BRACKET LATCH
WB02K10296	GE BRACKET POWER SUPPLY
WB16X26480	GE BURNER HEAD ASSEMBLY (18K)
WB02K10203	GE BUSHING WIRE
WB29X43469	GE CAP BURNER
WB27T10662	GE CAPACITOR MOTOR
WB02X7066	GE CLIP WIRE
WB02K0038	GE CLIP WIRE
WB15X35070	GE COMPANION HANDLE AND END CAP
WB27K10457	GE CONTROL DISPLAY MODULE
WB36K10982	GE CONTROL PANEL AND RAIL ASSEMBLY
WB07K10431	GE COVER
WB02K10200	GE COVER FAN 12-INCH
WB25T10063	GE CRYSTAL LAMP
WB44T10056	GE ELEMENT BAKE
WB44T10058	GE ELEMENT CONVECT
WB49K10019	GE ELEMENT CONVECTION ASSEMBLY
WB44K10025	GE ELEMENT HIDDEN BAKE
WB24K10048	GE ENCODER ASSEMBLY
WR01X11007	GE FASTNER
WB02K10364	GE FOOT GRATE
WB31K10253	GE FRAME GRATE ASSEMBLY
WB35K10180	GE FT INSUL DOOR BTM 12""
WB35K10178	GE FT INSUL DOOR BTM 27-INCH
WB35K10174	GE FT INSUL DOOR SIDE
WB35K10177	GE FT INSUL DOOR TOP 12""
WB35K10175	GE FT INSUL DOOR TOP 27-INCH
WB01T10079	GE GASKET CONV FAN
WB57K10134	GE GLASS DISPLAY
WB57K10138	GE GLASS DOOR
WB57K10137	GE GLASS DOOR
WB57K10136	GE GLASS DOOR 12-INCH
WB57K10135	GE GLASS DOOR 27-INCH
WB31K10252	GE GRATE
WB49K10020	GE GRID PAN BROIL
WB49K10040	GE GRIDDLE BODY WELD
WB01K0010	GE GROMMET HANDLE
WB55K10059	GE GUARD INSULATION
WB55K10058	GE GUARD INSULATION
WB02K10397	GE GUIDE OVEN RACK LH
WB02K10395	GE GUIDE OVEN RACK LH
WB02K10396	GE GUIDE OVEN RACK RH
WB02K10394	GE GUIDE OVEN RACK RH
WB18K10085	GE HARNESS
WB18X31498	GE HARNESS BURNER BOX
WB18X21842	GE HARNESS HIDDEN BAKE
WB18K10047	GE HARNESS HV
WB24K10064	GE HARNESS SERIAL DUAL
WB02K10260	GE HEAT DEFLECTOR
WB02K10261	GE HEAT DEFLECTOR 12
WB28K10553	GE HIGH ALT ORIFICE KIT
WB10K10014	GE HINGE DOOR LEFT(12)
WB10K10016	GE HINGE DOOR LEFT(48)
WB10K10013	GE HINGE DOOR RT(12)
WB10K10015	GE HINGE DOOR RT(48)
WB02T10289	GE HUB BLADE ASSEMBLY
WB13K10030	GE IGNITER GLOWBAR
WB28T10114	GE INJET BURNER 18K
WB49K10039	GE INSULATION
WB35K10128	GE INSULATION
WB35K10191	GE INSULATION TOP
WB01T10086	GE KEPS NUT 6-32
WB63X39957	GE KIT LEG
WB25T10064	GE LAMP HALOGEN 20W
WB08K10011	GE LAMP HALOGEN ASSEMBLY
WB25K10012	GE LED ASSEMBLY
WB25K10014	GE LED BOARD
WB25K10013	GE LED POWER SUPPLY
WB02K10216	GE LENS BEZEL
WB55K10060	GE LINER OVEN DOOR ASSEMBLY 12
WB55K10061	GE LINER OVEN DOOR ASSEMBLY 27
WB28K10538	GE LP CONVERSION KIT
WB02T10303	GE LUBRICANT CLEANER
WB15X35069	GE MAIN HANDLE AND END CAP
WB13K10031	GE MODULE SPARK
WB02T10017	GE NUT
WB28T10155	GE ORIFICE SPUD (NG MAIN)
WB28T10159	GE ORIFICE SPUD (NG SIMMER)
WB28T10117	GE ORIFICE SPUD LP MAIN
WB28T10118	GE ORIFICE SPUD SIMMER LP
WB02X31822	GE PAD END CAP
WB48K10021	GE PAN BROIL
WB49K10018	GE PAN BROILER
WB49K10021	GE PAN UNIT
WB49K10016	GE PAN UNIT
WB07X30025	GE PANEL ACCESS BACK
WB63K10266	GE PANEL SIDE
WB63K10265	GE PANEL SIDE
WB28K10502	GE PIPE MANIFOLD ASSEMBLY
WB28K10526	GE PIPE MANIFOLD ASSEMBLY LF
WB28K10506	GE PIPE SUPPLY ASSEMBLY
WB02T10310	GE PLATE CONVECTION
WB32K10042	GE PLATE GRIDDLE WELD ASSEMBLY
31-10693	GE PM CONVERSION STEPS
31-10694	GE PM INSTALL ANTI-TIP BRKT
31-11126	GE PM INSTALL INSTRUCTIONS
31-17282	GE PM MANUAL MINI & WD ASM
49-85247	GE PM OWNERS MANUAL
WB18K10051	GE POWER CORD 240 V
WB20K10032	GE PROBE RECEPTACLE
WB20K10030	GE PROBE THERMISTOR
WB49K10017	GE RACK BROILER PAN
WB48K10020	GE RACK CONVECTION ROAST
WB48K10036	GE RACK OVEN SLIDE ASSEMBLY
WB48K10035	GE RACK OVEN SLIDE ASSEMBLY
WB02K10237	GE RANGE ANTI-TIP BRACKET
WB02K10224	GE RANGE ANTI-TIP BRACKET
WB16T10047	GE RANGE BURNER BASE
WB31K10223	GE RANGE BUTCHER BLOCK GRIDDLE COVER
WB02K10211	GE RANGE CONTROL PANEL BRACKET
WB26T10037	GE RANGE CONVECTION MOTOR
WB02T10293	GE RANGE CONVEX METER MOUNTING BRACKET
WB02K10221	GE RANGE DOOR GASKET
WB02K10220	GE RANGE DOOR GASKET
WB02K10195	GE RANGE DOOR GASKETT
WB04K10028	GE RANGE DOOR PAD
WB13T10065	GE RANGE ELECTRODE
WB02K10230	GE RANGE FAN BRACKET
WB02K10229	GE RANGE FAN BRACKET
WB02K10199	GE RANGE FAN COVER 27-INCH
WB02K10194	GE RANGE FRAME GASKET
WB02K10218	GE RANGE GLASS BRACKET
WB02T10297	GE RANGE GLASS RETAINER CLIP
WB02K10222	GE RANGE GLASS WINDOW CLIP
WB28X33794	GE RANGE GRIDDLE BURNER
WB07K10295	GE RANGE GRIDDLE PLATE
WB15K10088	GE RANGE HANDLE COVER
WB1X1293	GE RANGE IGNITER MOUNTING SCREW
WB02K10192	GE RANGE INJECTION BRACKET
WB03K10258	GE RANGE KNOB - STAINLESS STEEL
WB02K10214	GE RANGE LED BRACKET
WB02T10298	GE RANGE LIGHT REFLECTOR
WB03K10255	GE RANGE OVEN BEZEL
WB03K10259	GE RANGE OVEN KNOB - STAINLESS STEEL
WB02K10206	GE RANGE OVEN LATCH
WB02K10227	GE RANGE OVEN NIPPLE
WB02T10034	GE RANGE PANEL SIDE SUPORT
WB19K10061	GE RANGE RIGHT RELAY BOARD
WB02K10209	GE RANGE SUPPORT BRACKET
WB03K10359	GE RANGE THERMOSTAT KNOB - STAINLESS STEEL
WB02K10225	GE RANGE TOE KICK CLIP
WB10X30495	GE RECEIVER HINGE
WB21K10129	GE REGULATOR
WB19K10060	GE RELAY BOARD ASSEMBLY LF
WB02K10392	GE ROD EXTENSION
WB35K10185	GE RR INSUL DOOR BTM 12""
WB35K10186	GE RR INSUL DOOR BTM 27""
WB35K10181	GE RR INSUL DOOR SIDE
WB35K10182	GE RR INSUL DOOR TOP 12""
WB35K10183	GE RR INSUL DOOR TOP 27
WR01X10590	GE SCR 10-16 AB PNT20 1/2 S
WB01K10109	GE SCR 8 HD 1/4-20
WB01T10115	GE SCR 8-18 AB HW 1/2 S
WB01K10042	GE SCR 8-18 AB IHW 3/8 SN
WB01K10101	GE SCR 8-32 CA TRP 7/8 S NI
WB1K5062	GE SCREW
WB1X1261	GE SCREW
WB01K0042	GE SCREW (BLK)
WB01X5364	GE SCREW (CR)
WB01K10089	GE SCREW 10-32 TR T 7/8 S
WB01K10100	GE SCREW 10-32 TRP 1/2
WB01K10067	GE SCREW 8 HD 1/4-20
WB01K10086	GE SCREW 8-18 AB TRPO 3/8 SS
WB1K5	GE SCREW 8-18 X 1/2 -INCH
WB01K10002	GE SCREW 8-32
WB01K10029	GE SCREW 8-32 1/8
WB01T10104	GE SCREW 8-32 MCH PNT15
WB01X1261	GE SCREW GROUND
WB1X5364	GE SCREW MTG
WB01K0050	GE SCREW MTG IGNITER
WB01T10092	GE SCREW SIMMER MAIN HD
WZ05X0124	GE SCREW SWITCH 5/8 S
WZ5X124D	GE SCREW-PKG 12
WB21X22134	GE SENSOR ASSEMBLY
WB44K10024	GE SHIELD BROIL ASSEMBLY
WB44K10023	GE SHIELD BROIL ASSEMBLY
WB49K10015	GE SHIELD THERMOSTAT BULB
WB34K10110	GE SPACER WINDOW
WB34K10109	GE SPACER WINDOW
WB01K0002	GE SPEEDNUT
WB1K2	GE SPEEDNUT
WB09T10011	GE SPRING IGNITER
WB28K10531	GE SPUD ORIFICE GRIDDLE
WB28K10529	GE SPUD ORIFICE GRIDDLE
WB56X35067	GE STAINLESS STEEL OVEN DOOR PANE
WB56X37488	GE STAINLESS STEEL OVEN DOOR PANEL
WB56X37965	GE STAINLESS STEEL OVEN DOOR PANEL
WB02K10226	GE STREET ELBOW
WB35K10028	GE SUPPORT CATALYST
WB34X31808	GE SUPPORT OUTER GLASS LEFT
WB34X31806	GE SUPPORT OUTER GLASS RIGHT
WB21K10127	GE SWITCH HIGH LIMIT
WB24T10157	GE SWITCH SAIL ASSEMBLY
WB21K10130	GE SWITCH SAIL ASSEMBLY
WB24K10047	GE SWITCH THERMOSTAT
WB24X26719	GE SWITCH-LED ASSEMBLY
WB28K10525	GE TEE SWAGED ASSEMBLY
WB18K10049	GE TERMINAL BLOCK ASSEMBLY
WB21K10124	GE THERMOSTAT
WB07K10449	GE TOE KICK BOTTOM
WB07K10448	GE TOE KICK TOP
WB27K10298	GE TRANSFORMER
WB07K10446	GE TRIM VENT ASSEMBLY
WB49K10038	GE TROUGH GREASE ASSEMBLY
WB28K10524	GE TUBE AND NUT ASSEMBLY
WB28K10523	GE TUBE AND NUT ASSEMBLY
WB28K10522	GE TUBE AND NUT ASSEMBLY
WB28K10521	GE TUBE AND NUT ASSEMBLY
WB28K10520	GE TUBE AND NUT ASSEMBLY
WB28K10519	GE TUBE AND NUT ASSEMBLY
WB28K10518	GE TUBE AND NUT ASSEMBLY
WB28K10517	GE TUBE AND NUT ASSEMBLY
WB28K10498	GE TUBE AND NUT ASSEMBLY
WB28K10497	GE TUBE AND NUT ASSEMBLY
WB28K10494	GE TUBE AND NUT ASSEMBLY
WB28K10493	GE TUBE AND NUT ASSEMBLY
WB28K10665	GE TUBE COOKTOP SUPPLY ASSEMBLY
WB28K10500	GE TUBE GRIDDLE AND NUT ASSEMBLY
WB21K10162	GE VALVE DUAL
WB19K10032	GE VALVE SAFETY
WB19K10038	GE VALVE SHUT OFF
WB38K10020	GE VENT EXTENSION
WB07K10418	GE VENT GRIDDLE
WB02T10323	GE WASHER IGNITER
