Model Image
Manufacturer

GE

Model Number

ZDT800SPF5SS

Description

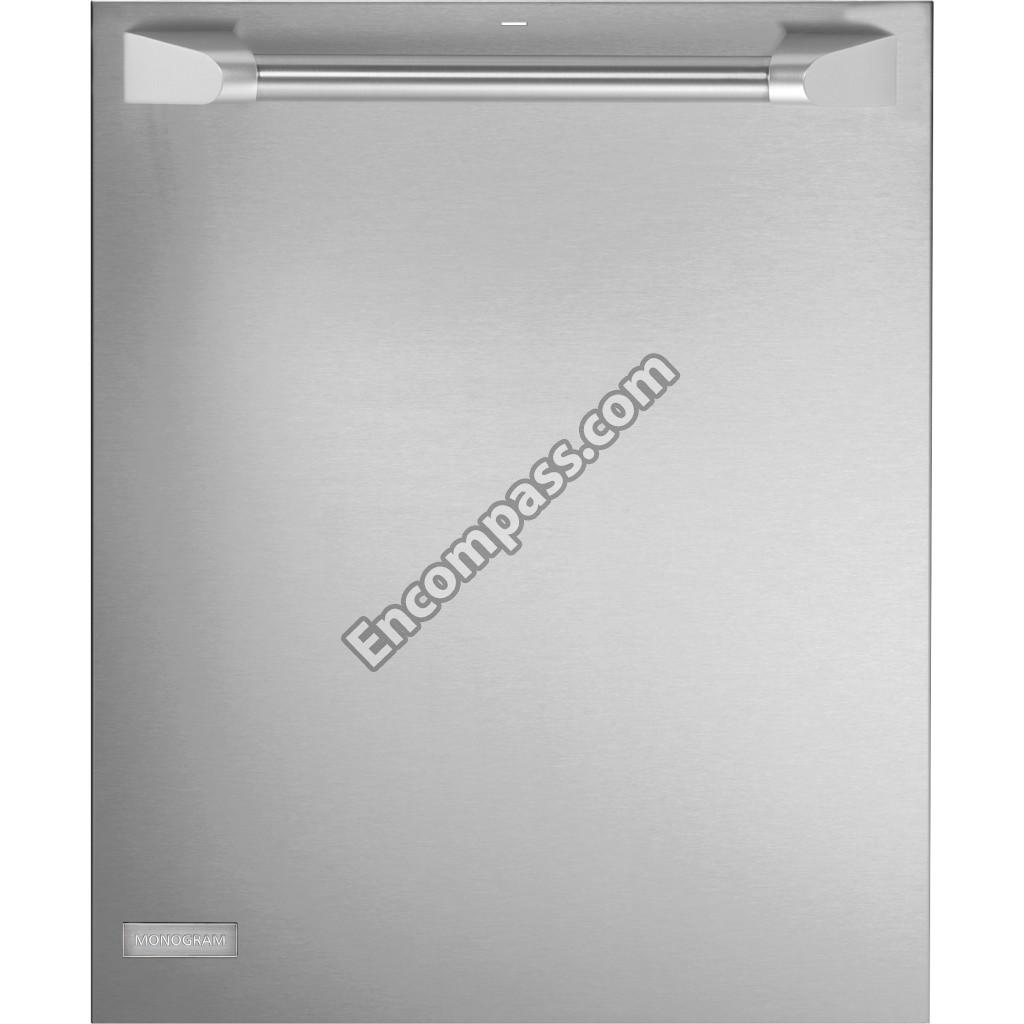

Monogram Fully Integrated Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD18X21915 WD18X21915 GE ADAPTER CONDUIT ASM
WD12X10419 WD12X10419 GE ADAPTOR FILTER
WD14X20129 WD14X20129 GE ARM HINGE ASM
WD14X20128 WD14X20128 GE ARM HINGE ASM
WD22X20336 WD22X20336 GE ARM SPRAY LOWER ASM
WD22X20375 WD22X20375 GE ARM SPRAY MIDDLE ASM
WD01X22836 WD01X22836 GE ATTACH STRIP
WD01X34879 WD01X34879 GE ATTACH STRIP
WD01X20220 WD01X20220 GE ATTACHMENT STRIP TOP
WD13X22837 WD13X22837 GE ATTACHMENT STRIP TOP
WD02X21661 WD02X21661 GE BADGE MONOGRAM
WD02X32581 WD02X32581 GE BAG HARDWARE ASM KIT
WD30X21155 WD30X21155 GE BAG INSULATION ASSEMBLY
WD28X25327 WD28X25327 GE BASKET ASM MIDDLE
WD28X20418 WD28X20418 GE BASKET ASM SIDE
WD22X25300 WD22X25300 GE BLASTER BOTTLE ASSEMBLY
WD01X22930 WD01X22930 GE BLOCK FOAM DOOR
WD01X22929 WD01X22929 GE BLOCK FOAM DOOR
WD01X10585 WD01X10585 GE BLOCK FOAM DOOR
WD30X10045 WD30X10045 GE BRACE DOOR ASM
WD12X20360 WD12X20360 GE BRACKET ASM UPPER RACK
WD12X20362 WD12X20362 GE BRACKET ASM UPPER RACK
WD18X20463 WD18X20463 GE BRACKET BOLT RETAINER
WD18X20462 WD18X20462 GE BRACKET BOLT RETAINER
WD12X20373 WD12X20373 GE BRACKET FIXED
WD12X20372 WD12X20372 GE BRACKET FIXED
WD01X20135 WD01X20135 GE BRACKET HANDLE
WD12X25060 WD12X25060 GE BRACKET JUNCTION BOX
WD27X20676 WD27X20676 GE BRACKET LEVELING ARM
WD01X22513 WD01X22513 GE BRACKET SUPPORT HINGE
WD01X22512 WD01X22512 GE BRACKET SUPPORT HINGE
WD09X20394 WD09X20394 GE BUTTON
WD01X20332 WD01X20332 GE CABLE ASM
WD49X25081 WD49X25081 GE CAP FILL FUNNEL
WD12X20387 WD12X20387 GE CARRIER ROLLER
WD01X35298 WD01X35298 GE CARRIER ROLLER
WD35X10382 WD35X10382 GE CLAMP
WD01X10104 WD01X10104 GE CLAMP
WD01X24246 WD01X24246 GE CLAMP 1 1 DIA
WD12X20371 WD12X20371 GE CLIP BOTTLE
WD01X21975 WD01X21975 GE CLIP CONTROL BOARD
WD01X22855 WD01X22855 GE CLIP HOSE SIDE BLASTER
WD12X20386 WD12X20386 GE CLIP LOWER RACK
WD12X20385 WD12X20385 GE CLIP RACK
WD24X22945 WD24X22945 GE COARSE FILTER SCREW
WD28X34743 WD28X34743 GE COMPLETE SERVICE RACK
WD12X22498 WD12X22498 GE CONDUIT MAIN ASSEMBLY
WD21X20370 WD21X20370 GE CONDUIT TIERED BLAST ASM
WD34X22947 WD34X22947 GE CONSOLE COVER ASSEMBLY MONOGR
WD12X34098 WD12X34098 GE CONSOLE TOP CONTROL
WD30X20229 WD30X20229 GE CONTROL BOX BOTTOM
WD27X10390 WD27X10390 GE CONTROL BOX TOP
WD24X20369 WD24X20369 GE COVER BOTTLE BLASTER
WD22X20368 WD22X20368 GE COVER HANDLE ASM
WD22X20384 WD22X20384 GE COVER HANDLE ASSEMBLY
WD09X22932 WD09X22932 GE COVER HANDLE ASSEMBLY-UPPER
WD22X20367 WD22X20367 GE COVER HANDLE REAR
WD12X10412 WD12X10412 GE COVER JUNCTION BOX
WD12X20382 WD12X20382 GE COVER ROLLER
WD12X20383 WD12X20383 GE COVER ROLLER
WD24X20587 WD24X20587 GE COVER VENT
WD35X10383 WD35X10383 GE CT SCREW ASSEMBLY
WD12X32799 WD12X32799 GE DETERGENT MODULE
WD01X21740 WD01X21740 GE DISHWASHER COUNTERTOP BRACKET
WD21X10519 WD21X10519 GE DISHWASHER FLOOD SWITCH ASSEMBLY
WD01X22786 WD01X22786 GE DISHWASHER HOSE CLAMP
WD12X23336 WD12X23336 GE DISHWASHER TRANSITION PIECE
WD01X23558 WD01X23558 GE DISHWASHER TUB FRONT SPACER

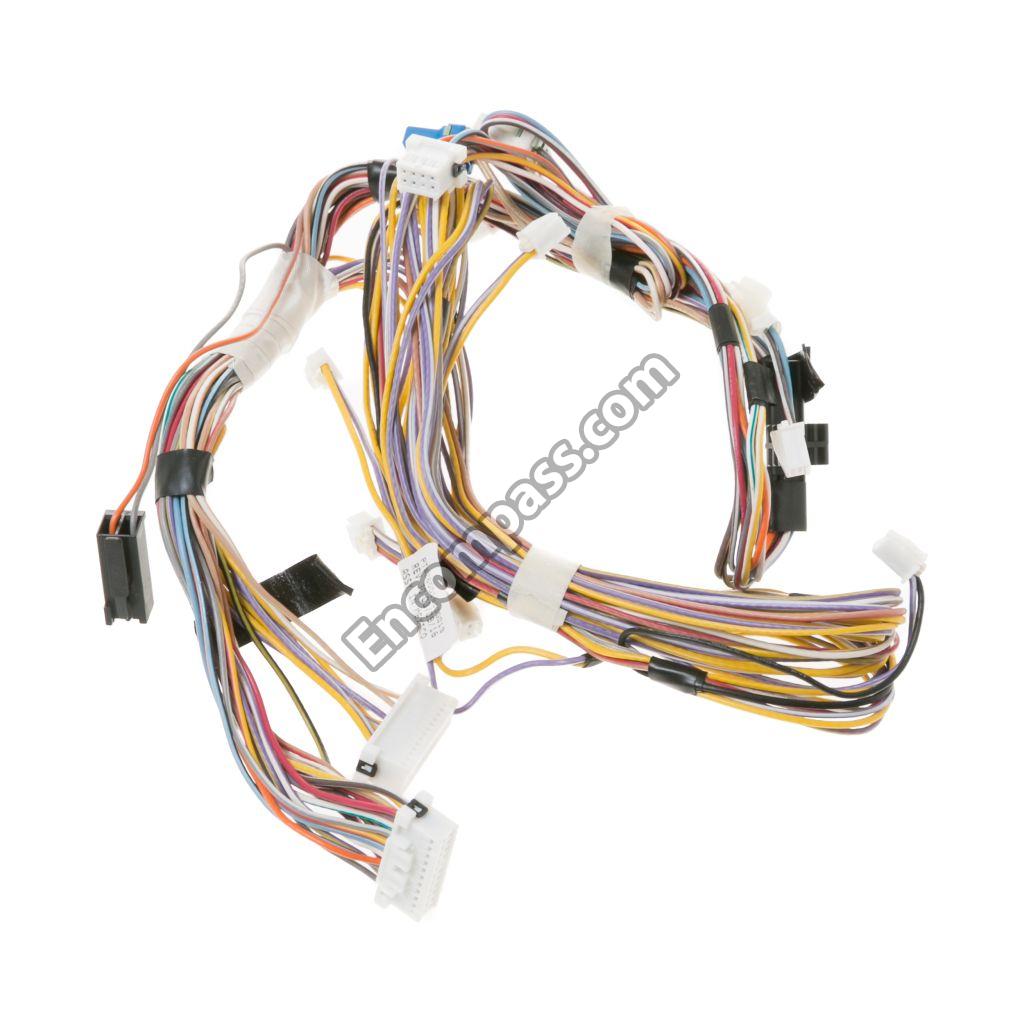

WD21X20588 WD21X20588 GE DISHWASHER WIRING HARNESS - AC
WD21X22849 WD21X22849 GE DISHWASHER WIRING HARNESS - DC
WD35X20600 WD35X20600 GE DIVERTER ACTIVE ASSEMBLY
WD12X35640 WD12X35640 GE DOCKING PORT SS
WD31X29639 WD31X29639 GE DOOR INNER SS
WD08X10092 WD08X10092 GE DOOR VENT SEAL
WD24X29378 WD24X29378 GE DRAIN HOSE ISOLATOR ASSEMBLY
WD24X10062 WD24X10062 GE DRAIN TUBE ASM
WD28X20365 WD28X20365 GE FDT ASSEMBLY UPPER COATED
WD28X20194 WD28X20194 GE FDT ASSEMBLY UPPER COATED
WD28X20406 WD28X20406 GE FDT CLIP FLAT RACK
WD28X20407 WD28X20407 GE FDT CLIP FLAT RACK
WD28X20366 WD28X20366 GE FDT CLIP TIER RK LEFT
WD28X20363 WD28X20363 GE FDT CLIP TIER RK RT
WD28X20381 WD28X20381 GE FDT COATED LOWER RACK
WD28X20380 WD28X20380 GE FDT COATED LOWER RACK
WD12X25419 WD12X25419 GE FILL ELBOW
WD22X10093 WD22X10093 GE FILTER COARSE SS
WD49X24057 WD49X24057 GE FILTER MANUAL ASSEMBLY
WD01X20593 WD01X20593 GE FRICTION WASHER
WD08X20330 WD08X20330 GE GASKET BEACH SS
WD08X22758 WD08X22758 GE GASKET SUMP MANIFOLD
WD08X22095 WD08X22095 GE GASKET TUB SS
WD08X23477 WD08X23477 GE GASKET TUB SS
WD08X22502 WD08X22502 GE GASKET UPPER SPRAY ARM
WD08X10044 WD08X10044 GE GASKET WATER INLET
WD01X10101 WD01X10101 GE GROMMET
WD01X22890 WD01X22890 GE GROMMET ISOLATOR
WD01X22891 WD01X22891 GE GROMMET PUMP HANGER
WD01X22934 WD01X22934 GE GROUND CLIP ONSERT
WD13X20402 WD13X20402 GE HANDLE ASM
WD01X25862 WD01X25862 GE HANDLE BRACKET
WD01X24918 WD01X24918 GE HANDLE BRACKET
WD01X20595 WD01X20595 GE HANGER AND GROMMET ASSEMBLY
WD24X20338 WD24X20338 GE HARNESS ASM DC.
WD21X20149 WD21X20149 GE HARNESS ASM DOOR
WD21X22847 WD21X22847 GE HARNESS ASSEMBLY JUMPER
WD24X20262 WD24X20262 GE HOSE BOTTLE BLASTER
WD24X20305 WD24X20305 GE HOSE ELBOW DRAIN
WD21X20339 WD21X20339 GE HOSE FILL
WD24X10064 WD24X10064 GE HOSE FILL
WD12X20397 WD12X20397 GE HOUSING BOTTOM
WD12X22503 WD12X22503 GE HUB UPPER SPRAY ARM
WD28X20379 WD28X20379 GE INDEXER
WD30X20361 WD30X20361 GE INNER RAIL UPPER RACK ASM
165D9739P016 165D9739P016 GE INSERT MINI MANUAL
WD27X21334 WD27X21334 GE INSULATION TOE KICK
WD30X35300 WD30X35300 GE INSULATION TUB
WD35X21194 WD35X21194 GE INVERTER ASSEMBLY DISH PUMP
WD27X23006 WD27X23006 GE KIT DOOR ASM OUTER
WD02X32580 WD02X32580 GE KIT DOOR BALANCE
WD21X30758 WD21X30758 GE KIT SERVICE UI LCD ASTN
WD21X31911 WD21X31911 GE KIT SVC MACHINE CONTROL
WD01X10575 WD01X10575 GE LATCH CAM
WD01X10632 WD01X10632 GE LATCH CAM
WD21X10490 WD21X10490 GE LATCH TUB SIDE STANDARD
WD09X20398 WD09X20398 GE LENS AND ADHESIVE ASM
WD02X31882 WD02X31882 GE LEVELING
WD02X22539 WD02X22539 GE LEVELING NUT
WD02X22538 WD02X22538 GE LEVELING SCREW
WD01X21475 WD01X21475 GE LH HINGE-FRICTION PAD ASSEMBLY
WD28X20153 WD28X20153 GE LID BASKET MIDDLE
WD28X20156 WD28X20156 GE LID BASKET SIDE
WD06X22353 WD06X22353 GE LIGHT ASSEMBLY TUB SIDE
WB02K10298 WB02K10298 GE MONOGRAM BADGE
WD21X20496 WD21X20496 GE NUT TUB LIGHT TOP
WD18X20461 WD18X20461 GE PAN LEAK
WD12X10462 WD12X10462 GE PLATE DETERGENT
WD12X10421 WD12X10421 GE PLATE FLOOR MANUAL
31-31549 31-31549 GE PM INSTALL INSTRUCTIONS
31-30672 31-30672 GE PM MINI-MANUAL
49-55095 49-55095 GE PM OWNERS MANUAL
WD16X20592 WD16X20592 GE PULLEY HINGE
WD26X25104 WD26X25104 GE PUMP VARIABLE DRAIN ASM
WD28X30221 WD28X30221 GE RACK LOWER ASM COATED
WD28X25802 WD28X25802 GE RACK UPPER ASM COATED
WD01X21435 WD01X21435 GE RH HINGE-FRICTION PAD ASSEMBLY
WD12X26146 WD12X26146 GE ROLLER LOWER RACK
WD02X10211 WD02X10211 GE SCR 1/420 BT CB 563 ZN
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WD02X20140 WD02X20140 GE SCR 10-16 PL PNT 2.25 S
WD01X22514 WD01X22514 GE SCR 10-32 GX IHXW 9/16 S
WD02X10220 WD02X10220 GE SCR 1032 GX HXW 3/8
WD02X10221 WD02X10221 GE SCR 1032 TT HXW 14/25 S
WD02X20684 WD02X20684 GE SCR 7-19 PL IHXW 1/2 S
WD02X20176 WD02X20176 GE SCR 8-16 B FLT .438 SS
WR01X10387 WR01X10387 GE SCR 8-18 AB OVP 7/8 SS.
WR01X10380 WR01X10380 GE SCR 8-18 AB TSQ 5/8 SS
WD02X10160 WD02X10160 GE SCR 8-18 B HXW .480 S
WD02X22901 WD02X22901 GE SCR 8-32 B IHXW 5/4
WD02X22736 WD02X22736 GE SCR10 - 16 AB HXW 3/4 SS
WH02X10123 WH02X10123 GE SCREW 1/4-20 TPT 1H 1/2 SN
WD02X10093 WD02X10093 GE SCREW 10-18 X 5/8
WD01X21837 WD01X21837 GE SCREW 10-32
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WD02X22628 WD02X22628 GE SCREW T15 8-16 PLASTITE
WZ5X158D WZ5X158D GE SCREW-PKG 12
WD08X10098 WD08X10098 GE SEAL CONDUIT
WD21X20552 WD21X20552 GE SENSOR LEAK PAN
WD21X10494 WD21X10494 GE SENSOR TURBIDITY ASM
WD21X22598 WD21X22598 GE SENSOR TURBIDITY ASSEMBLY
WD12X20408 WD12X20408 GE SHELF ASM STEM SAFE
WD28X22941 WD28X22941 GE SHELF CUP
WD01X20315 WD01X20315 GE SHIELD CONTROL BOX
WD01X20493 WD01X20493 GE SHIELD DIELECTRIC
WD01X10584 WD01X10584 GE SHIELD DRAIN PUMP
WD01X20212 WD01X20212 GE SHIELD PUMP MAIN
WD22X21034 WD22X21034 GE SIDE BLASTER ASSEMBLY
WD21X20299 WD21X20299 GE SILICONE LIGHT PIPE
WD01X22135 WD01X22135 GE SPEAKER
WD03X20446 WD03X20446 GE SPRING DOOR
WD03X20316 WD03X20316 GE SPRING DOOR
WD13X20245 WD13X20245 GE STRIKER LATCH
WD18X10055 WD18X10055 GE SUMP MANIFOLD
WD28X20377 WD28X20377 GE TINE BLOCK COATED
WD27X20395 WD27X20395 GE TOE KICK
WD35X20856 WD35X20856 GE TRANSITION PIECE ASM
WD01X31858 WD01X31858 GE TRIM TUB
WH1X2036 WH1X2036 GE UNIV CLAMP
WD22X22501 WD22X22501 GE UPPER SPRAY ARM ASSEMBLY
WD15X22948 WD15X22948 GE VALVE WATER ASSEMBLY
WD35X20599 WD35X20599 GE VARIABLE SPEED PUMP KIT
WD12X20218 WD12X20218 GE VENT CONDUIT ASM
WD24X20390 WD24X20390 GE VENT FAN ASSEMBLY
WD02X23297 WD02X23297 GE WASHER AND SCREW ASSEMBLY
WD27X20211 WD27X20211 GE WHEEL REAR LEVELING
