Manufacturer
GE
Model Number
ZDT975SPJ2SS

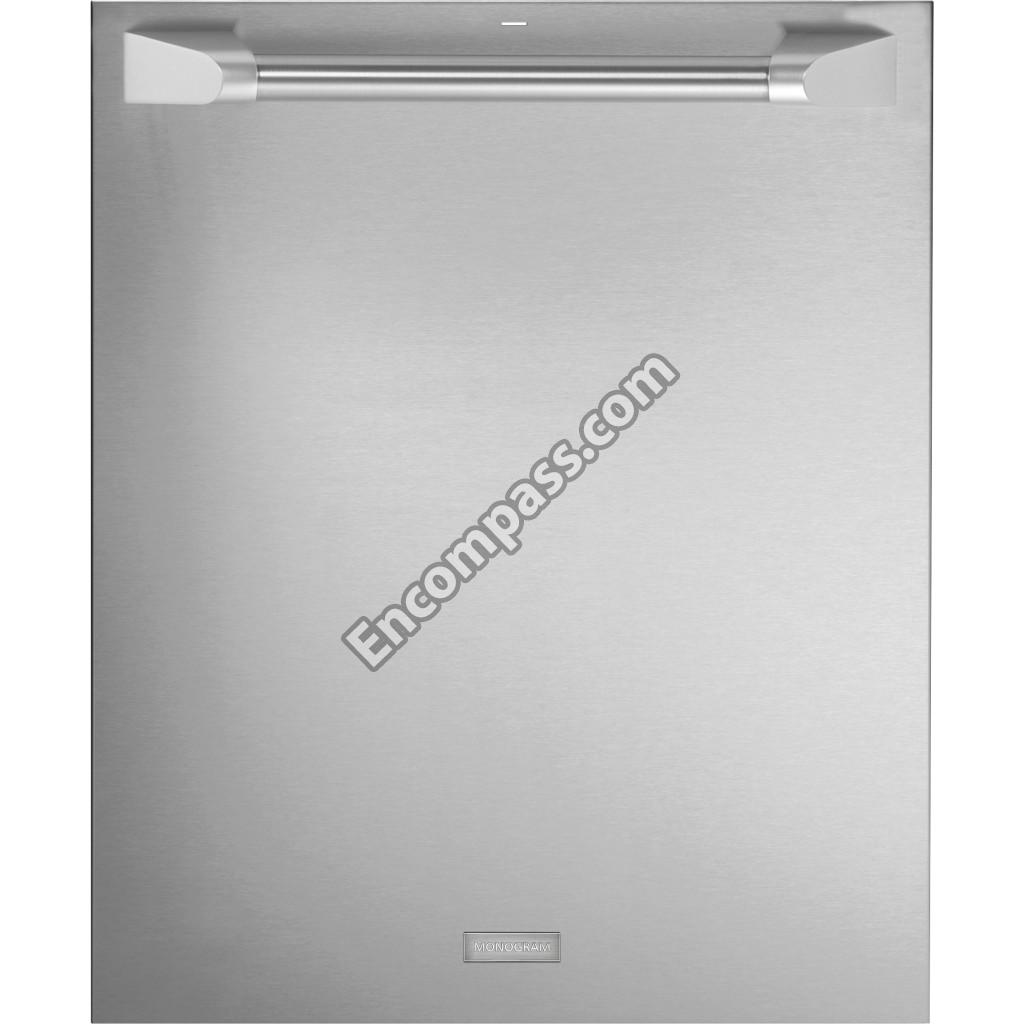

Description
Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3/8-INCH HEX HEAD SCREW 10-32 |
|
|
ADAPTER CONDUIT |
|
|
ADAPTOR FILTER |
|
|
ARM HINGE ASSEMBLY LH |
|
|
ARM HINGE ASSEMBLY RH |
|
|
ARM SPRAY LOWER ASSEMBLY |
|
|
ARM SPRAY MIDDLE ASSEMBLY |
|
|
BADGE MONOGRAM |
|
|
BAG INSULATION ASSEMBLY |
|
|
BASKET ASSEMBLY MIDDLE |
|
|
BASKET ASSEMBLY SIDE |
|
|
BELLOW SILVERWARE |
|
|
BLASTER BOTTLE ASSEMBLY |
|
|
BLASTER SILVERWARE ASSEMBLY |
|
|
BLOCK FOAM DOOR |
|
|
BLOCK FOAM DOOR |
|
|
BRACKET ASSEMBLY UPPER RACK |
|
|
BRACKET ASSEMBLY UPPER RACK |
|
|
BRACKET BOLT RETAINER |
|
|
BRACKET BOLT RETAINER |
|
|
BRACKET FIXED |
|
|
BRACKET FIXED |
|
|
BRACKET JUNCTION BOX |
|
|
BRACKET LEVELING ARM |
|
|
BUTTON |
|
|
CABLE PULLEY ASSEMBLY |
|
|
CAP FILL FUNNEL |
|
|
CARRIER ROLLER |
|
|
CARRIER ROLLER |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLIP BOTTLE |
|
|
CLIP CONTROL BOARD |
|
|
CLIP FRAME WIRE INNER |
|
|
CLIP FRAME WIRE OUTER |
|
|
CLIP HOSE SIDE BLASTER |
|
|
CLIP LOWER RACK |
|
|
COARSE FILTER SCREW |
|
|
COMPLETE SERVICE RACK |
|
|
CONDUIT MAIN |
|
|
CONDUIT MID BLASTER ASSEMBLY |
|
|
CONDUIT SILVERWARE |
|
|
CONFIGURED MACHINE CONTROL |
|
|
CONSOLE COVER ASSEMBLY MONOGR |
|
|
CONSOLE TOP CONTROL |
|
|
CONTROL BOX BOTTOM |
|
|
COVER BOTTLE BLASTER |
|
|
COVER HANDLE ASSEMBLY |
|
|
COVER HANDLE ASSEMBLY-UPPER |
|
|
COVER HANDLE REAR |
|
|
COVER JUNCTION BOX |
|
|
COVER ROLLER |
|
|
COVER ROLLER |
|
|
COVER VENT |
|
|
DETERGENT DISP SENSOR MG |
|
|
DISHWASHER ATTACH STRIP - LH |
|
|
DISHWASHER ATTACH STRIP - RH |
|
|
DISHWASHER BRACKET CABLE - LEFT |
|
|
DISHWASHER BRACKET CABLE - RIGHT |
|
|
DISHWASHER CONTROL BOX TOP |
|
|
DISHWASHER COUNTERTOP BRACKET |
|
|
DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG |
|
|
DISHWASHER DOOR TRIM - LEFT |
|
|
DISHWASHER DRAIN HOSE |
|
|
DISHWASHER FLOOD FLOAT |
|
|
DISHWASHER FLOOD STEM |
|
|
DISHWASHER FLOOD SWITCH |
|
|
DISHWASHER FLOOD SWITCH HOUSING |
|
|
DISHWASHER HOSE CLAMP |
|
|
DISHWASHER JUMPER HARNESS |
|
|
DISHWASHER LATCH AND SWITCH ASSEMBLY |
|
|
DISHWASHER LATCH CAM |
|
|
DISHWASHER LEAK PAN |
|
|
DISHWASHER O RING |
|
|
DISHWASHER PUMP GROMMET |
|
|
DISHWASHER SENSOR |
|
|
DISHWASHER SUMP MANIFOLD |
|
|
DISHWASHER TOE KICK INSULATION |
|
|
DISHWASHER TOP STRIP ATTACHMENT |
|
|
DISHWASHER TUB FRONT SPACER |
|
|
DISHWASHER VENT DOOR SEAL |
|
|
DIVERTER PASSIVE ASSEMBLY |
|
|
DOCKING PORT SS |
|
|
DOOR INNER SS |
|
|
DOOR TRIM RH |
|
|
FDT ASSEMBLY UPPER COATED |
|
|
FDT ASSEMBLY UPPER COATED |
|
|
FDT CLIP FLAT RACK |
|
|
FDT CLIP FLAT RACK |
|
|
FDT COATED LOWER RACK |
|
|
FDT COATED LOWER RACK |
|
|
FILL ELBOW |
|
|
FILTER COARSE SS |
|
|
FLOOD SWITCH LEVER |
|
|
FRICTION WASHER |
|
|
GASKET SUMP MANIFOLD |
|
|
GASKET TUB SS |
|
|
GASKET TUB SS |
|
|
GROMMET ISOLATOR |
|
|
GROMMET PUMP HANGER |
|
|
GROUND CLIP ONSERT |
|
|
HANDLE ASSEMBLY |
|
|
HANDLE BRACKET |
|
|
HANDLE BRACKET |
|
|
HANGER AND GROMMET ASSEMBLY |
|
|
HARNESS ASSEMBLY AC |
|
|
HARNESS ASSEMBLY DC |
|
|
HARNESS ASSEMBLY DOOR |
|
|
HIGH LOOP DRAIN HOSE |
|
|
HOSE BOTTLE BLASTER |
|
|
HOSE FILL |
|
|
HOSE FILL |
|
|
HOUSING BOTTOM |
|
|
HUB |
|
|
HUB SPRAY ARM |
|
|
IMPELLER |
|
|
INDEXER |
|
|
INNER DOOR INSULATION |
|
|
INNER RAIL UPR RACK ASSEMBLY |
|
|
INSERT MINI MANUAL |
|
|
INSULATION COLLAR |
|
|
INSULATION TUB |
|
|
INVERTER PCBA |
|
|
ISOLATOR DRAIN HOSE |
|
|
LATCH CAM |
|
|
LENS AND ADHESIVE ASSEMBLY |
|
|
LEVELING NUT |
|
|
LEVELING SCREW |
|
|
LEVELING SCREW |
|
|
LIGHT ASSEMBLY TUB SIDE |
|
|
MOUNT AND GASKET ASSEMBLY |
|
|
NUT TUB LIGHT TOP |
|
|
OFFSET LEG SHIM LH |
|
|
OFFSET LEG SHIM RH |
|
|
OUTER DOOR MONG SRVC ASSEMBLY |
|
|
PLATE DETERGENT |
|
|
PLATE FLOOR MANUAL |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MINI-MANUAL |
|
|
PM OWNERS MANUAL |
|
|
PULLEY HINGE |
|
|
PULLEY SCREW |
|
|
RACK LOWER ASM COATED |
|
|
RACK UPPER ASM COATED |
|
|
RACK UPPER ASM COATED |
|
|
RAIL ASSEMBLY THIRD RACK LH |
|
|
RAIL ASSEMBLY THIRD RACK RH |
|
|
ROLLER LOWER RACK |
|
|
SCR 1/4-20 TT IHXW .625 |
|
|
SCR 10-16 AB HXW .532 |
|
|
SCR 10-16 PL PNT 2.25 S |
|
|
SCR 10-18 X 5/8 |
|
|
SCR 10-32 GX IHXW 9/16 S |
|
|
SCR 6-20 GXB IHXW 3/8 NI. |
|
|
SCR 7-19 PL IHXW 1/2 S |
|
|
SCR 8-16 B FLT .438 SS |
|
|
SCR 8-18 AB TSQ 5/8 SS |
|
|
SCR 8-32 B IHXW 5/4 |
|
|
SCR B-16 HXW 1/2 SS |
|
|
SCR10 - 16 AB HXW 3/4 SS |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 8-18 B HXW 480 S |
|
|
SCREW T15 8-16 PLASTITE |
|
|
SCREW-PKG 12 |
|
|
SENSOR LEAK PAN |
|
|
SERVICE UI LCD FFSTN KIT |
|
|
SHELF ASSEMBLY STEM SAFE |
|
|
SHIELD DIELECTRIC |
|
|
SHIELD PUMP MAIN |
|
|
SIDE BLASTER ASSEMBLY |
|
|
SILICONE LIGHT PIPE |
|
|
SILVERWARE TRAY ASSEMBLY |
|
|
SLEEVE TUB MOUNT |
|
|
SLIDE THIRD RACK |
|
|
SLIDE THIRD RACK |
|
|
SPEAKER |
|
|
SPRING DOOR |
|
|
SPRING DOOR |
|
|
STRIKER LATCH |
|
|
THIRD RACK WIRE COATED |
|
|
TOE KICK |
|
|
TRANSITION PIECE ASSEMBLY |
|
|
TRAY UTENSIL |
|
|
TUB TRIM KIT |
|
|
USER CLEANABLE FINE FILTER - MONOGRAM |
|
|
VALVE WATER ASSEMBLY |
|
|
VARIABLE DRAIN PUMP ASSEMBLY |
|
|
VARIABLE WASH PUMP ASSEMBLY |
|
|
VENT CONDUIT ASSEMBLY |
|
|
VENT FAN ASSEMBLY |
|
|
WASHER AND SCREW ASSEMBLY |
|
|
WHEEL REAR LEVELING |
|
|
WIFI MODULE SERVICE KIT |
