Model Image
Manufacturer

GE

Model Number

ZDW24AABB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR04X0217 WR04X0217 CAMERA LENS COVER
WR2X8983 WR2X8983 CAP
WR02X8983 WR02X8983 CAP EVAPORATOR PORTS
WR62X0082 WR62X0082 CAPACITOR RUN
WR62X82 WR62X82 CAPACITR RUN
WR1X1957 WR1X1957 CARRIAG BOLT
WR01X1957 WR01X1957 CARRIAGE BOLT
WR86X0097 WR86X0097 CHARGE VALVE ASM
WR2X8981 WR2X8981 CLAMP THERMO
WR02X8981 WR02X8981 CLAMP THERMOBULB

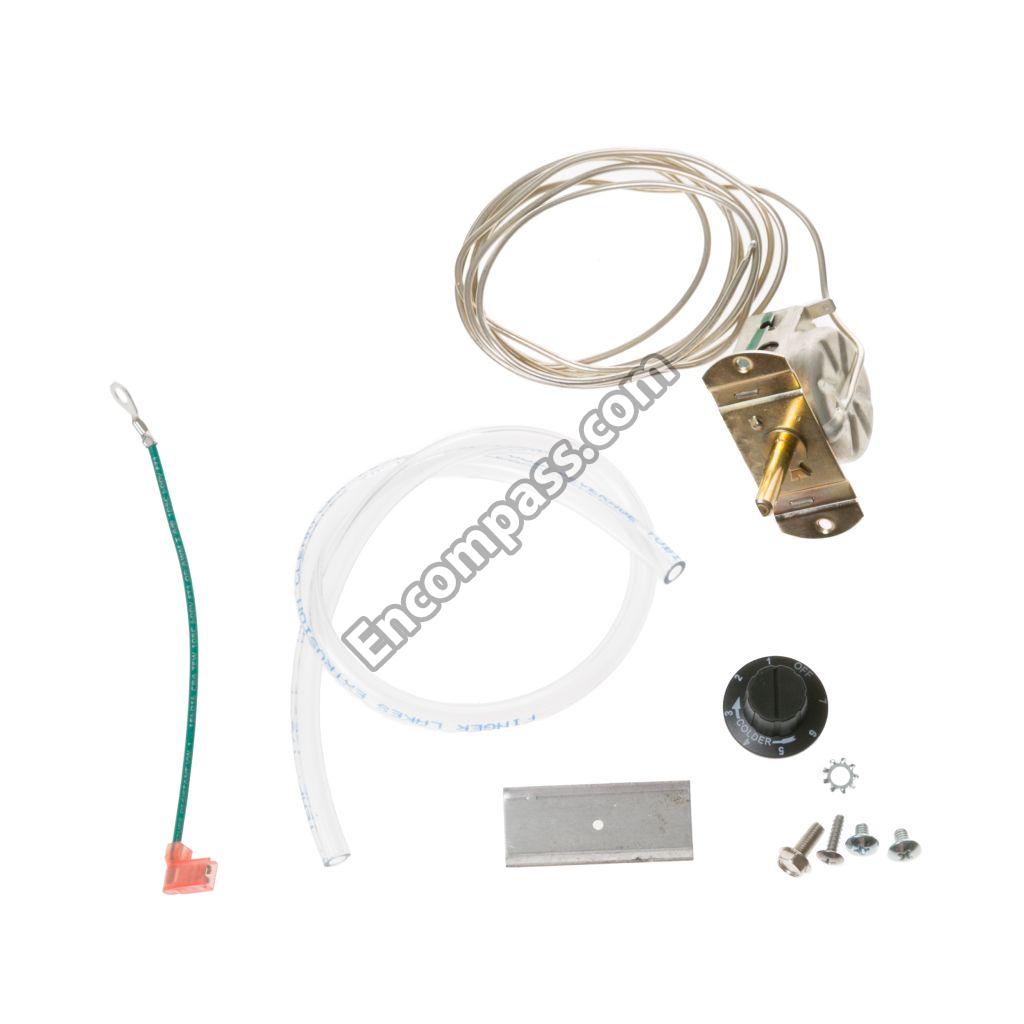

WR9X585 WR9X585 CNTRL TEMP
WR84X0186 WR84X0186 CONDENSER
WR84X186 WR84X186 CONDENSER
WR01X1958 WR01X1958 CORD CLIP
WR1X1958 WR1X1958 CORD CLIP
WR78X10186 WR78X10186 DOOR ASSEMBLY COMPLETE
WR17X3503 WR17X3503 DRIP PAN ASSEMBLY
WR51X10006 WR51X10006 DRIP TRAY
WR85X317 WR85X317 EVAPORATOR
WR85X0317 WR85X0317 EVAPORATOR ASM.
WR60X0217 WR60X0217 FAN BLADE
WR60X217 WR60X217 FAN BLADE
WR60X0218 WR60X0218 FAN MOTOR ASM
WR60X218 WR60X218 FAN MTR ASM
WR17X3502 WR17X3502 FAN SHROUD
WR86X25269 WR86X25269 FILTER AND DRYER ASSEMBLY

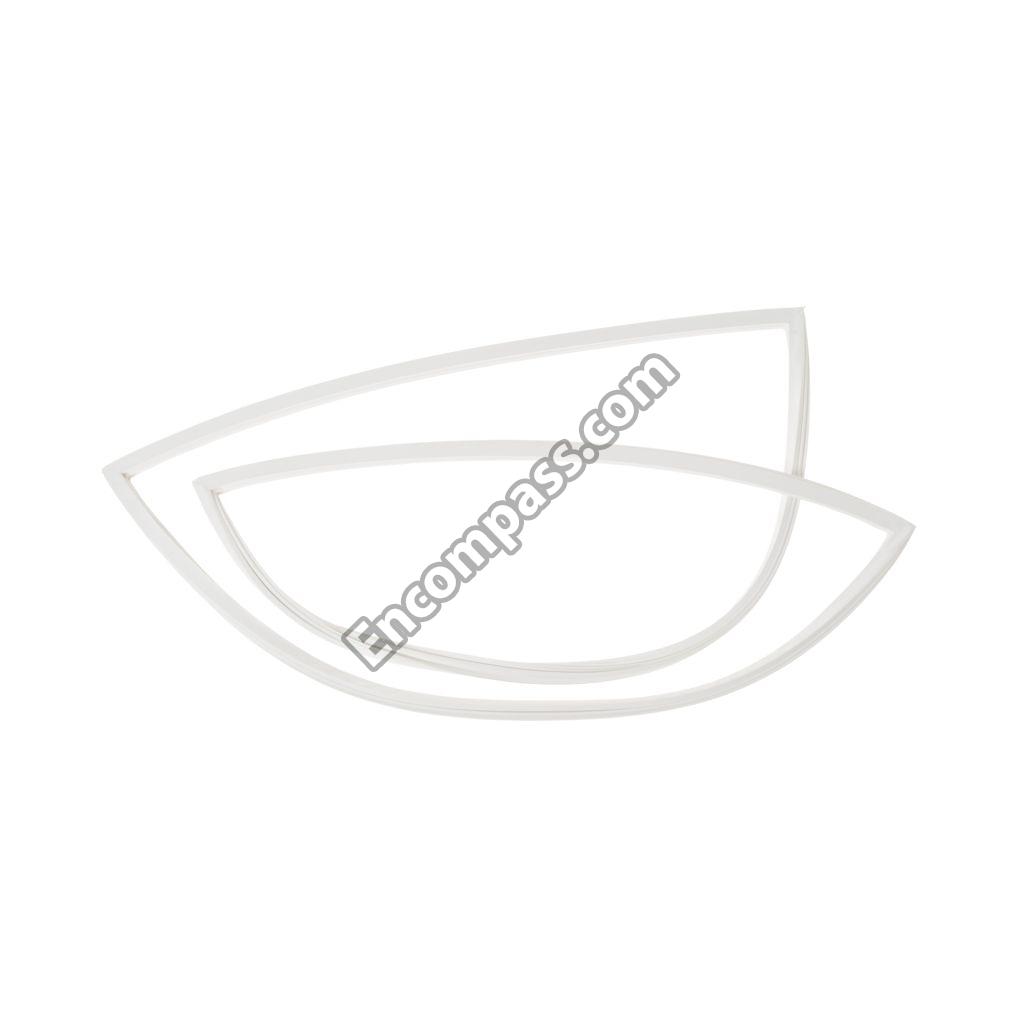

WR24X0555 WR24X0555 GASKET DOOR
WR24X555 WR24X555 GASKET DOOR
WR01X10005 WR01X10005 GLIDES/LEG LEVELERS KIT
WR74X10007 WR74X10007 GRILLE
WR74X10015 WR74X10015 GRILLE BK
WR01X1956 WR01X1956 GROMMET
WR1X1956 WR1X1956 GROMMET
WR12X10258 WR12X10258 HANDLE DOOR KIT COMPLETE
WR87X0505 WR87X0505 HI - SIDE ASM
WR87X505 WR87X505 HIGH SIDE COMPRESSOR 110V
WR13X10212 WR13X10212 HINGE KIT
WR02X10056 WR02X10056 INSTALL HANDLE COMPONENT
49-60148 49-60148 INSTALL INSTR
WR02X9135 WR02X9135 J-TRAP
WR2X9135 WR2X9135 J-TRAP
WR2X8977 WR2X8977 KNOB THERMOS
WR02X8977 WR02X8977 KNOB THERMOSTAT
WR02X8992 WR02X8992 LAMP HOLDER
WR2X8992 WR2X8992 LAMP HOLDER
WR4X217 WR4X217 LENS
WR23X405 WR23X405 LIGHT BULB
WR23X0405 WR23X0405 LIGHT BULB 15 WATT
WR01X1961 WR01X1961 LOCKNUT
WR1X1961 WR1X1961 LOCKNUT
31-51215 31-51215 MINI-MANUAL
WR04X24243 WR04X24243 NAMEPLATE MONOGRAM
49-60039 49-60039 OWNERS GUIDE
WR02X10021 WR02X10021 P - CLAMPS WINE RACK
WR86X96 WR86X96 P/S DRYER KIT R134A
WR1X1973 WR1X1973 PIN HINGE
WR1X1953 WR1X1953 PIN HINGE
WR01X1973 WR01X1973 PIN HINGE BOTTOM
WR01X1953 WR01X1953 PIN HINGE TOP
WR01X10003 WR01X10003 PLUG BUTTON - DOOR
WR01X10042 WR01X10042 PLUG CAB HINGE HOLE BLACK
WR01X10040 WR01X10040 PLUG HOLE CAB HINGE W
WR23X10070 WR23X10070 PLUNGER LIGHT SWITCH
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR07X0264 WR07X0264 PTC STARTER
WR7X264 WR7X264 RELAY PTC
WR01X1951 WR01X1951 SCREW
WR01X1944 WR01X1944 SCREW
WR01X1940 WR01X1940 SCREW
WR01X1959 WR01X1959 SCREW
WR01X1949 WR01X1949 SCREW
WR1X1944 WR1X1944 SCREW
WR1X1949 WR1X1949 SCREW
WR1X1940 WR1X1940 SCREW
WR1X1951 WR1X1951 SCREW

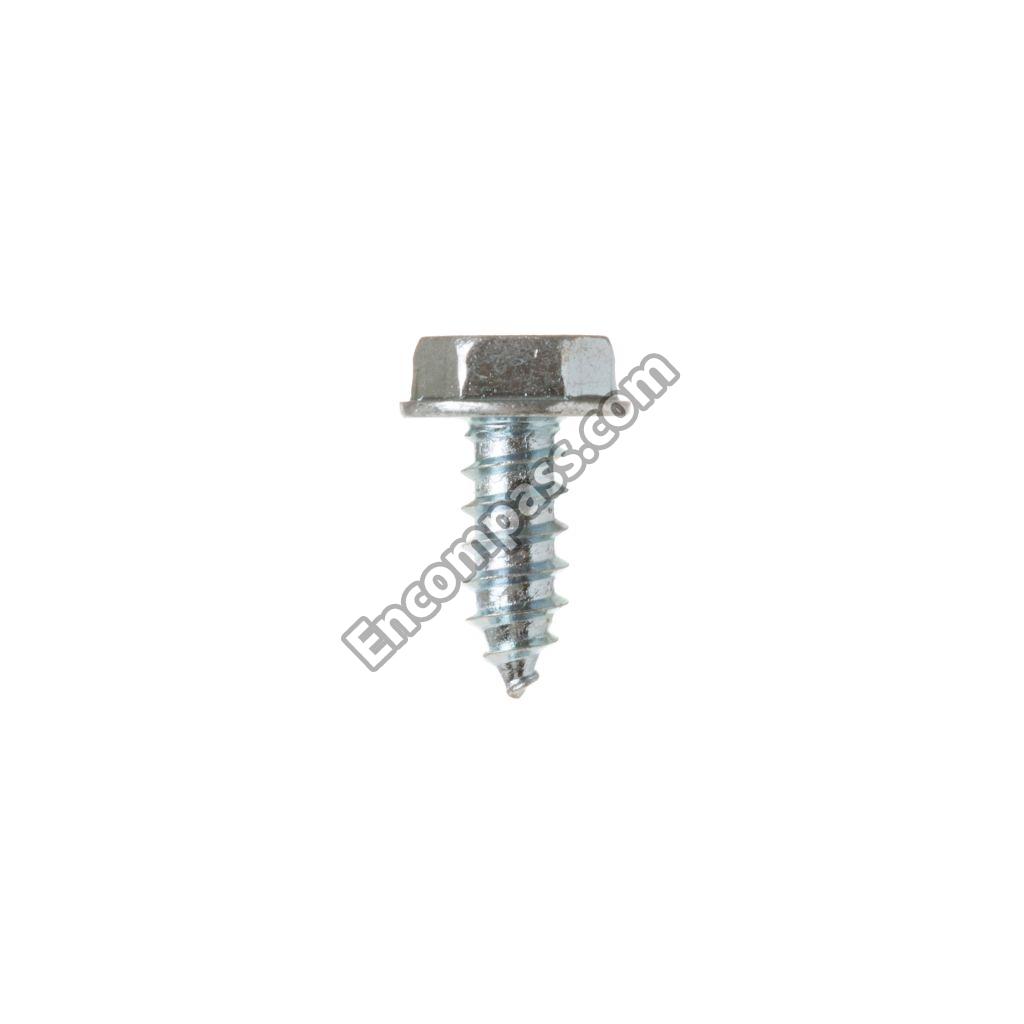

WR1X1959 WR1X1959 SCREW
WR01X10057 WR01X10057 SCREW #10-32X3/4 CR TR H
WR01X10004 WR01X10004 SCREW GRILLE BLACK
WR01X10041 WR01X10041 SCREW GRILLE WHITE
WR01X10026 WR01X10026 SCREW SET 10-32
WR17X3504 WR17X3504 SHROUD FRONT
WR01X1954 WR01X1954 SILENCER FAN MOTOR
WR2X9137 WR2X9137 SLEEVE COMPR
WR02X9137 WR02X9137 SLEEVE COMPRESSOR
WR2X8980 WR2X8980 SPACER
WR2X8978 WR2X8978 SPACER EVAP
WR02X8980 WR02X8980 SPACER EVAP. SIDES
WR02X8978 WR02X8978 SPACER EVAPORATOR
WR01X1963 WR01X1963 SPEED NUT
WR1X1963 WR1X1963 SPEED NUT
WR12X27598 WR12X27598 STAND-OFF SS
WR02X10139 WR02X10139 STRIKER PLATE & CVR B
WR23X10008 WR23X10008 SWITCH LIGHT - PLUNGER
WR23X10232 WR23X10232 SWITCH ROCKER LIGHT BLACK
WR23X10231 WR23X10231 SWITCH ROCKER LIGHT W
WR09X0585 WR09X0585 THERMOSTAT
WR38X2028 WR38X2028 TRIM EVAPORATOR RT SIDE
WR01X1962 WR01X1962 WASHER
WR1X1962 WR1X1962 WASHER
WR71X10010 WR71X10010 WINE RACK - BOTTOM
WR71X10008 WR71X10008 WINE RACK MIDDLE -A
WR71X10009 WR71X10009 WINE RACK MIDDLE -B
WR71X10007 WR71X10007 WINE RACK TOP
WJ56X61 WJ56X61 ZONELINE ACCESS VALVE
