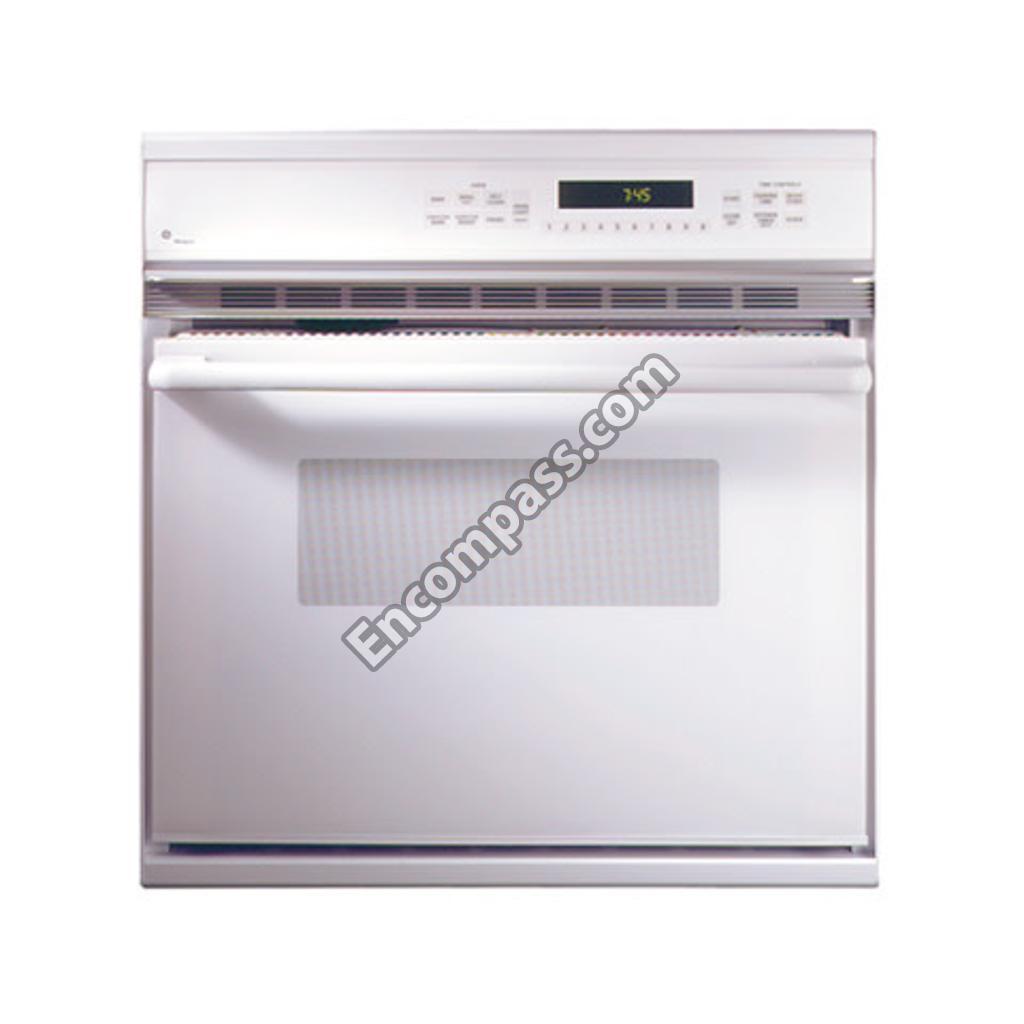

Model Image
Manufacturer

GE

Model Number

ZEK737WA2WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB34K5080 WB34K5080 345080
49-8443 49-8443 44-K006
WB63K5167 WB63K5167 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB2X8351 WB2X8351 BLADE FAN
WB63T10041 WB63T10041 BOTTOM FALSE ASSEMBLY
WB02T10049 WB02T10049 BRACKET SDE TRIM ADJ
WB02T10048 WB02T10048 BRACKET SIDE TRIM ADJ
WB44K5009 WB44K5009 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB63K5080 WB63K5080 CABINET BOTTOM
WB63T10043 WB63T10043 CABINET SIDE
WB2X8320 WB2X8320 CLIP WINDOW
WB7K5077 WB7K5077 CNT PNL T TR
WB07K5077 WB07K5077 CNT PNL TOP TRIM-WHITE
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5364 WB18K5364 CONDUIT WIRE ASSEMBLY
WB34K5082 WB34K5082 CONDUIT WIRE COVER
WB6K5037 WB6K5037 COOKIE TRAY
WB06K5038 WB06K5038 COOKIE TRAY-LARGE
WB06K5037 WB06K5037 COOKIE TRAY-SMALL
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB2X8309 WB2X8309 COVER PROBE
WB63K5094 WB63K5094 COVER TOP
WB34T10004 WB34T10004 COVER VNT BO
WB34K5069 WB34K5069 COVER WIRE ELEMENT
WB63K5082 WB63K5082 CRYSTAL PANEL-WHITE
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB44T10028 WB44T10028 ELEMENT BAKE
WB44T10027 WB44T10027 ELEMENT CONVEX
WB63K5083 WB63K5083 EXTENSION SIDE LT
WB2K5257 WB2K5257 FAN SUPPORT
WB02K5257 WB02K5257 FAN SUPPORT-UPPER
WB26K5045 WB26K5045 FANASSEMBLY-UPPER
WB63T10036 WB63T10036 FRONT FRAME
WB57T10079 WB57T10079 GLASS OVEN DR INNER
WB57T10103 WB57T10103 GLASS OVEN DR OUT (WHITE)
WB02K5147 WB02K5147 GLASS SPACER
WB02K5225 WB02K5225 GROMMET STRIP (.020)
WB2K5225 WB2K5225 GROMMET STRP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15K5093 WB15K5093 HANDLE DOOR
WB18T10047 WB18T10047 HARNESS WIRE MAIN
345080 345080 HEAT REFLECT
WB10X27495 WB10X27495 HINGE KIT
WB8K5013 WB8K5013 HOUS ASM REC
WB08K5013 WB08K5013 HOUSING ASM RECEPTACLE
WB02T10289 WB02T10289 HUB BLADE ASM
WB7K5511 WB7K5511 I-BROW TRIM
WB07K5511 WB07K5511 I-BROWN TRIM-WHT, UPPER
31-10123 31-10123 INSTALLATION INSTRUCTION
WB35K5089 WB35K5089 INSULATION BACK/BTM UPPER
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB35K5068 WB35K5068 INSULATION WRPR OTR
WB35K5048 WB35K5048 INSULATION-WRAPPER-INNER
WB35K5112 WB35K5112 INSULATOR MODULE
WB08K5054 WB08K5054 JACK RECEPTACLE
WB8K5054 WB8K5054 JACK RECPTCL
WB24K5061 WB24K5061 JAMB SWITCH
WB7K5080 WB7K5080 L FT FRM TRM
WB36X192 WB36X192 LAMP COV ASM
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5085 WB24K5085 LIMIT SWITCH
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB18K5617 WB18K5617 LOCK MOTOR WIRE HARNESS
WB01K5046 WB01K5046 LOCKWASHER
WB07K5080 WB07K5080 LOWER FRT FRAME TRIM-WHT
31-13640 31-13640 MANUAL MINI & WD ASM
WB1K5198 WB1K5198 MOTOR FAN
WB02T10017 WB02T10017 NUT
WB1X5572 WB1X5572 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB02T10016 WB02T10016 OV DR INSLN RETAINER
WB8K5029 WB8K5029 OV LAMP HLDR
WB2X7693 WB2X7693 OV LIGHT CUP
WB26K5050 WB26K5050 OVEN CAVITY SUPPORT
WB27T10222 WB27T10222 OVEN CONTROL ERC3H
WB55K5061 WB55K5061 OVEN DOOR FRAME-WHITE
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB32T10006 WB32T10006 OVEN DR GASKET
WB55T10058 WB55T10058 OVEN DR LINING RETAINER
WB36X0389 WB36X0389 OVEN LAMP CAMERA LENS
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB36T10287 WB36T10287 PANEL CONTROL ASSEMBLY W/KEYPA
WB63T10042 WB63T10042 PANEL INR OVEN ASSEMBLY
WB1K5071 WB1K5071 PLASTC RIVET
WB01K5071 WB01K5071 PLASTIC RIVET
WB20T10024 WB20T10024 PROBE
WB48K5009 WB48K5009 RACK OV (CONVEX FLAT)
WB48K5010 WB48K5010 RACK OV (CONVEX OFFSET)
WB63K5079 WB63K5079 RAIL BASE
WB08K5029 WB08K5029 RECEPTACLE
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB48X5108 WB48X5108 ROAST RACK
WB26K5042 WB26K5042 SCREEN (SS CONVEX)
WB01X1141 WB01X1141 SCREW
WB01X1127 WB01X1127 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1297 WB01X1297 SCREW
WB01K5138 WB01K5138 SCREW
WB01K5210 WB01K5210 SCREW
WB01K5029 WB01K5029 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1164 WB1X1164 SCREW
WB1X1261 WB1X1261 SCREW
WB1X1293 WB1X1293 SCREW
WB1X681 WB1X681 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1K5210 WB1K5210 SCREW
WB1X1178 WB1X1178 SCREW
WB1M1 WB1M1 SCREW
WB01T10009 WB01T10009 SCREW 10-16 SHLDR TYPE A
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WB01T10011 WB01T10011 SCREW 8-18 AB FLT 375 W
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WB01X1149 WB01X1149 SCREW-BRIGHT NICKEL
WZ4X44D WZ4X44D SCREW-PKG 12
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB01K5163 WB01K5163 SCREW-WHT
WB1K5163 WB1K5163 SCREW-WHT
WB21X5301 WB21X5301 SENSOR ASM
WB6K5026 WB6K5026 SMOKE EL SCR
WB06K5026 WB06K5026 SMOKE ELIM SCREEN
WB01K5065 WB01K5065 SNAP BUSHING
WB1K5065 WB1K5065 SNAP BUSHING
WB2K5147 WB2K5147 SPACER
WB02T10015 WB02T10015 SPACER WINDOW
WB1K5141 WB1K5141 SPEED NUT FL
WB01K5141 WB01K5141 SPEED NUT-FLAT
WB2X9719 WB2X9719 SUPP-BROIL
WB2K5146 WB2K5146 TP TRIM BRKT
WB02K5146 WB02K5146 TRIM BRACKET
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB24K5033 WB24K5033 UNKNOWN
WB38K5051 WB38K5051 VENT BOX ASM
WB34K5078 WB34K5078 VENT BOX COVER
WB07K5079 WB07K5079 VENT TRIM
WB7K5079 WB7K5079 VENT TRIM
WB02K5203 WB02K5203 VENT TRIM BRACKET
WB2K5203 WB2K5203 VENT TRM BKT
WB7K5082 WB7K5082 VERT SD TRIM
WB7K5081 WB7K5081 VERT SD TRIM
WB07K5081 WB07K5081 VERT SIDE TRIM-LT-WHITE
WB07K5082 WB07K5082 VERT SIDE TRIM-RT-WHITE
WB01K5146 WB01K5146 WASHER
WB01X1254 WB01X1254 WASHER
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5146 WB1K5146 WASHER
WB1X5573 WB1X5573 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB01T10010 WB01T10010 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB02X8320 WB02X8320 WINDOW CLIP
WB56T10004 WB56T10004 WINDOW PACK KIT-LARGE
WB34T10006 WB34T10006 WIRE COVER
WB34K5067 WB34K5067 WIRE COVER BOTTOM
WB63T10040 WB63T10040 WRAPPER OVEN CAV ASSEMBLY
WZ4X416 WZ4X416 WZ04X0408
049-80059 049-80059 ZEK737+ UC WALL OVENS
