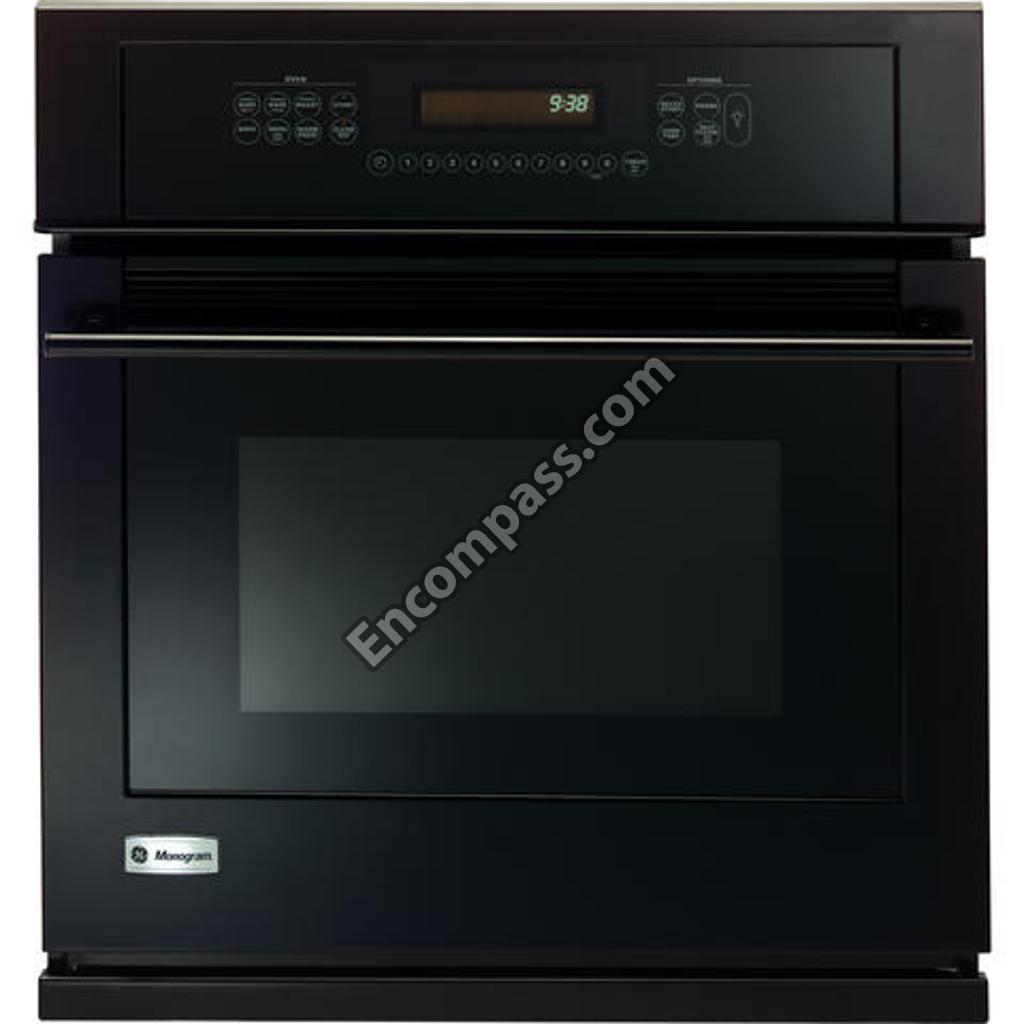

Model Image
Manufacturer

GE

Model Number

ZEK938BM1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB49X29679 WB49X29679 50W RANGE HALOGEN BULB
WB02X10833 WB02X10833 BADGE MONOGRAM SMALL
WB26T10060 WB26T10060 BLOWER TANGENTIAL ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10398 WB02T10398 BRACKET CONTROL MTG
WB02T10399 WB02T10399 BRACKET OFFSET
WB48T10089 WB48T10089 BROILER PAN (XL)
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10221 WB18T10221 CONDUIT WIRE ASSEMBLY
WB27T10918 WB27T10918 CONTROL OVEN (ERC3HP)
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02T10363 WB02T10363 COVER ELECTRICAL TOP
WB26T10058 WB26T10058 COVER FAN CONV
WB26T10051 WB26T10051 COVER FAN CONV
WB02T10364 WB02T10364 COVER WIRE LWR
WB02T10365 WB02T10365 COVER WIRE SIDE
WB34T10057 WB34T10057 COVER WIRE TOP
WB02T10357 WB02T10357 COVER WIRE UPR RR
WB57T10310 WB57T10310 DOOR OTR ASSEMBLY 27 (BLACK)
WB02T10360 WB02T10360 DUCT BOTTOM
WB44T10109 WB44T10109 ELEMENT BAKE ASSEMBLY (2100W)
WB44T10099 WB44T10099 ELEMENT BROIL ASSEMBLY
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASSEMBLY
WB63T10123 WB63T10123 FRAME FRONT
WB32T10012 WB32T10012 GASKET OVN DR
WB57T10195 WB57T10195 GLASS OVEN DR INR
WB48T10090 WB48T10090 GRID BROILER PAN (XL)
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10090 WB15T10090 HANDLE ASSEMBLY BLACK
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH.
WB18T10397 WB18T10397 HARNESS WIRE PROBE
WB10T10109 WB10T10109 HINGE DOOR LEFT
WB10T10108 WB10T10108 HINGE DOOR RT
WB02T10362 WB02T10362 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10647 31-10647 INSTRUCTION INSTALL
31-10645 31-10645 INSTRUCTION INSTALL
WB35T10176 WB35T10176 INSULATION BACK
WB35T10175 WB35T10175 INSULATION TOP AND SIDES
WB35T10174 WB35T10174 INSULATION TOP BCK AND BTM
WB25T10096 WB25T10096 LAMP HALOGEN ASSEMBLY
WB14T10059 WB14T10059 LATCH OVEN ASSEMBLY
WB25T10027 WB25T10027 LENS OVEN LAMP
WB24K5085 WB24K5085 LIMIT SWITCH-ERC
WB55T10168 WB55T10168 LINER OVN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
31-14541 31-14541 MANUAL MINI & WD ASM
49-80435 49-80435 MANUAL USE & CARE
WB20T10024 WB20T10024 MEAT PROBE
WB02T10152 WB02T10152 MICROWAVE CAPACITOR MOTOR BRACKET
WB26T10043 WB26T10043 MOTOR PSC CONV
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB49T10016 WB49T10016 PAN REFLECTOR
WB49T10017 WB49T10017 PAN REFLECTOR SIDE
WB36T11037 WB36T11037 PANEL CONTROL AND TAPE ASSEMBLY
31-10662 31-10662 PM INSTALL INSTRUCTIONS
WB2X8309 WB2X8309 PR0BE COVER
WB02X8309 WB02X8309 PROBE COVER
WB48T10060 WB48T10060 RACK OVEN (GY)
WB48T10046 WB48T10046 RACK OVN OFFSET
WB02T10155 WB02T10155 RANGE OVEN DOOR CLIP
WB10T10076 WB10T10076 RECEIVER HINGE
WB34T10120 WB34T10120 REFLECTOR HEAT
WB63T10124 WB63T10124 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB56T10133 WB56T10133 RETAINER INSLN OVN DR
WB63T10125 WB63T10125 RETAINER INSLN SDE
WB02T10356 WB02T10356 RETAINER INSLN TOP
WB01T10101 WB01T10101 SCR 1/4-28 HXW 7/8 ZN
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI.
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01M0001 WB01M0001 SCREW
WB01K5119 WB01K5119 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5119 WB1K5119 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB26T10046 WB26T10046 SUPPORT OVEN
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10144 WB24T10144 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB07T10541 WB07T10541 TRIM BTM CAB 27 (BLACK)
WB07T10365 WB07T10365 TRIM BTM CAB ASM
WB07T10578 WB07T10578 TRIM BTM CAB ASSEMBLY (BLACK)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10539 WB07T10539 TRIM VENT
WB07T10543 WB07T10543 TRIM VERT SDE ASSEMBLY 27 LEFT
WB07T10542 WB07T10542 TRIM VERT SDE ASSEMBLY 27 RT
WB28T10213 WB28T10213 TUBE VNT ASSEMBLY
WB28T10212 WB28T10212 VENT INLET DUCT
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB63T10127 WB63T10127 WRAPPER OVN CAV ASM
