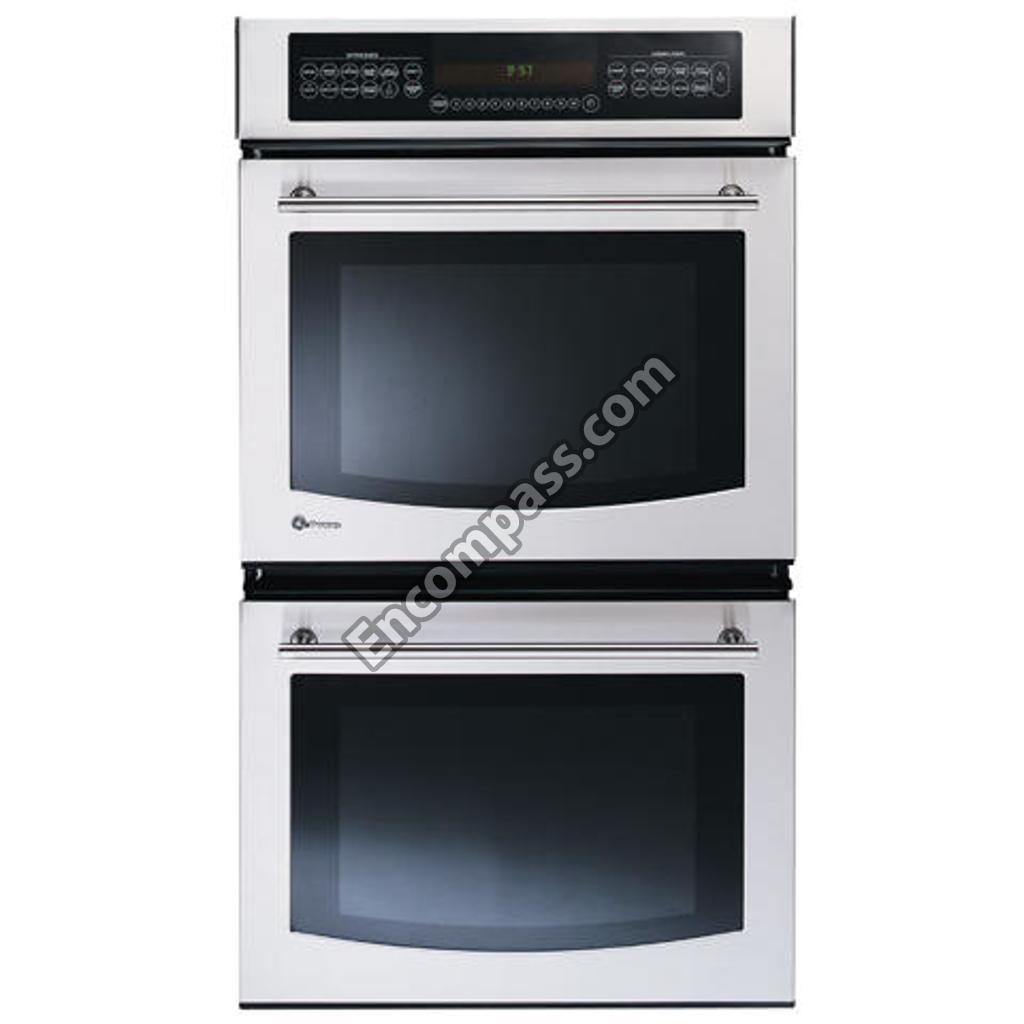

Model Image
Manufacturer

GE

Model Number

ZEK957SD1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
WB34T10045 WB34T10045 BACK PLATE-RT
WR04X24243 WR04X24243 BADGE MONOGRAM SMALL NO
WB02K10048 WB02K10048 BASE RAIL
WB2X8351 WB2X8351 BLADE FAN
WB63T10080 WB63T10080 BOTTOM FALSE ASSEMBLY
WB07T10188 WB07T10188 BOTTOM TRIM-BLACK
WB44T10051 WB44T10051 BROIL ELEMENT
WB31T10046 WB31T10046 BURNER GRATE SGL GRAY
WB02T10129 WB02T10129 BUSHING OVN
WB02T10138 WB02T10138 BUSHING OVN DR HDL
WB63T10076 WB63T10076 CABINET BOTTOM
WB38T10017 WB38T10017 COLLAR VENT ASSEMBLY
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10225 WB18T10225 CONDUIT WIRE ASSEMBLY
WB27T10347 WB27T10347 CONTROL OVEN (ERC3DD)
WB36T10419 WB36T10419 CONTROL PANE
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB2X8309 WB2X8309 COVER PROBE
WB35T10060 WB35T10060 COVER- ELECTRICAL TOP
WB44T10052 WB44T10052 ELEMENT BAKE HIDDEN
WB44T10027 WB44T10027 ELEMENT CONVX
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB64T10028 WB64T10028 FAN ASSEMBLY-LOWER
WB02T10112 WB02T10112 FAN HOUSING
WB34T10043 WB34T10043 FAN SCREEN
WB55T10099 WB55T10099 FRAME OVEN DR ASSEMBLY (BLACK)
WB63T10072 WB63T10072 FRONT FRAME
WB57T10195 WB57T10195 GLASS OVEN DR INR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB25T10025 WB25T10025 HALOGEN LAMP ASSEMBLY LWR
WD09X10060 WD09X10060 HANDLE ASSEMBLY
WB10T10020 WB10T10020 HINGE DOOR LEFT
WB10T10019 WB10T10019 HINGE DOOR RT
WB10T10015 WB10T10015 HINGE RECEIVER
WB08T10019 WB08T10019 HOUSING RECEPTACLE
WB08T10006 WB08T10006 HOUSING RECEPTACLE
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB02T10114 WB02T10114 INS RETAINER TOP-UPPER
31-10473 31-10473 INSTALLATION INSTRUCTION
31-10483 31-10483 INSTRUCTION SHEET
WB35T10068 WB35T10068 INSULATION
WB35T10063 WB35T10063 INSULATION BACK AND BTTM
WB10T10016 WB10T10016 INSULATION HINGE
WB63T10073 WB63T10073 INSULATION RETAINER BACK
WB63T10074 WB63T10074 INSULATION RETAINER SIDE
WB30T10082 WB30T10082 LATCH OVEN ASSEMBLY UPPER
WB14T10021 WB14T10021 LATCH OVEN LWR
WB24T10059 WB24T10059 LIMIT SWITCH
WB24K5098 WB24K5098 LIMIT SWITCH-BODY
WB24T10064 WB24T10064 LIMIT SWITCH-LOWER
WB24T10067 WB24T10067 LIMIT SWITCH-LOWER
WB24K5029 WB24K5029 LIMIT SWITCH-LOWER(BACK)
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB01K5046 WB01K5046 LOCKWASHER
31-13889 31-13889 MANUAL MINI & WD ASM
49-80085-1 49-80085-1 MANUAL USE & CARE
WB1K5198 WB1K5198 MOTOR FAN
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB32T10010 WB32T10010 OV DR GASKET-UPPER
WB55T10088 WB55T10088 OV DR LINER ASSEMBLY-UPPER
WB25T10013 WB25T10013 OV LAMP LENS
WB48K10006 WB48K10006 OV RACK (CONVEX OFFSET)
WB63T10077 WB63T10077 OVEN BODY
WB26K5050 WB26K5050 OVEN CAVITY SUPPORT
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB35T10064 WB35T10064 OVEN INSULATION
WB48T10026 WB48T10026 OVEN RACK
WB55T10103 WB55T10103 PANEL OVEN DR ASSEMBLY
WB02T10128 WB02T10128 PLATE REINFORCEMENT
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB02T10117 WB02T10117 RANGE BOTTOM TRIM CLIP
WB03T10156 WB03T10156 RANGE OVEN DOOR BUMPER
WB08T10018 WB08T10018 RECEPTACLE JACK
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB63T10081 WB63T10081 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB02T10126 WB02T10126 RETAINER INSLN OVEN DR
WB48X5108 WB48X5108 ROAST RACK
WB01T10059 WB01T10059 SCR 1/4 TPI FL HX 9/10
WB01X1127 WB01X1127 SCREW
WB01K5029 WB01K5029 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5162 WB01K5162 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10063 WB01T10063 SCREW 1/4-TPI FL HX 9/10
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WZ4X245D WZ4X245D SCREW-PKG 12
WB21T10005 WB21T10005 SENSOR ASM
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB34T10038 WB34T10038 SENSOR WIRE COVER
WB36T10389 WB36T10389 SIDE EXTENSION
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB34K5216 WB34K5216 TOP WIRE COVER
WB07T10225 WB07T10225 TRIM I-BROW (BLACK)
WB07T10226 WB07T10226 TRIM MIDDLE ASSEMBLY
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10055 WB28T10055 VENT BOX ASSEMBLY
WB28T10057 WB28T10057 VENT BOX ASSEMBLY-CENTER
WB34T10041 WB34T10041 VENT COVER
WB35T10066 WB35T10066 VENT INSULATION
WB07T10186 WB07T10186 VENT TRIM
WB28T10056 WB28T10056 VENT TUBE
WB07T10207 WB07T10207 VERT SIDE TRIM-LT-BLACK
WB07T10206 WB07T10206 VERT SIDE TRIM-RT-BLACK
WB01T10060 WB01T10060 WASHER
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB01T10010 WB01T10010 WASHER
WB1X681 WB1X681 WB01X0681
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB34T10044 WB34T10044 WIRE COVER
WB34T10042 WB34T10042 WIRE COVER BOTTOM
WB34T10040 WB34T10040 WIRE COVER LOWER RR
WB34T10047 WB34T10047 WIRE COVER MIDDLE
WB34T10039 WB34T10039 WIRE COVER UPPER-RR
WZ4X416 WZ4X416 WZ04X0408
