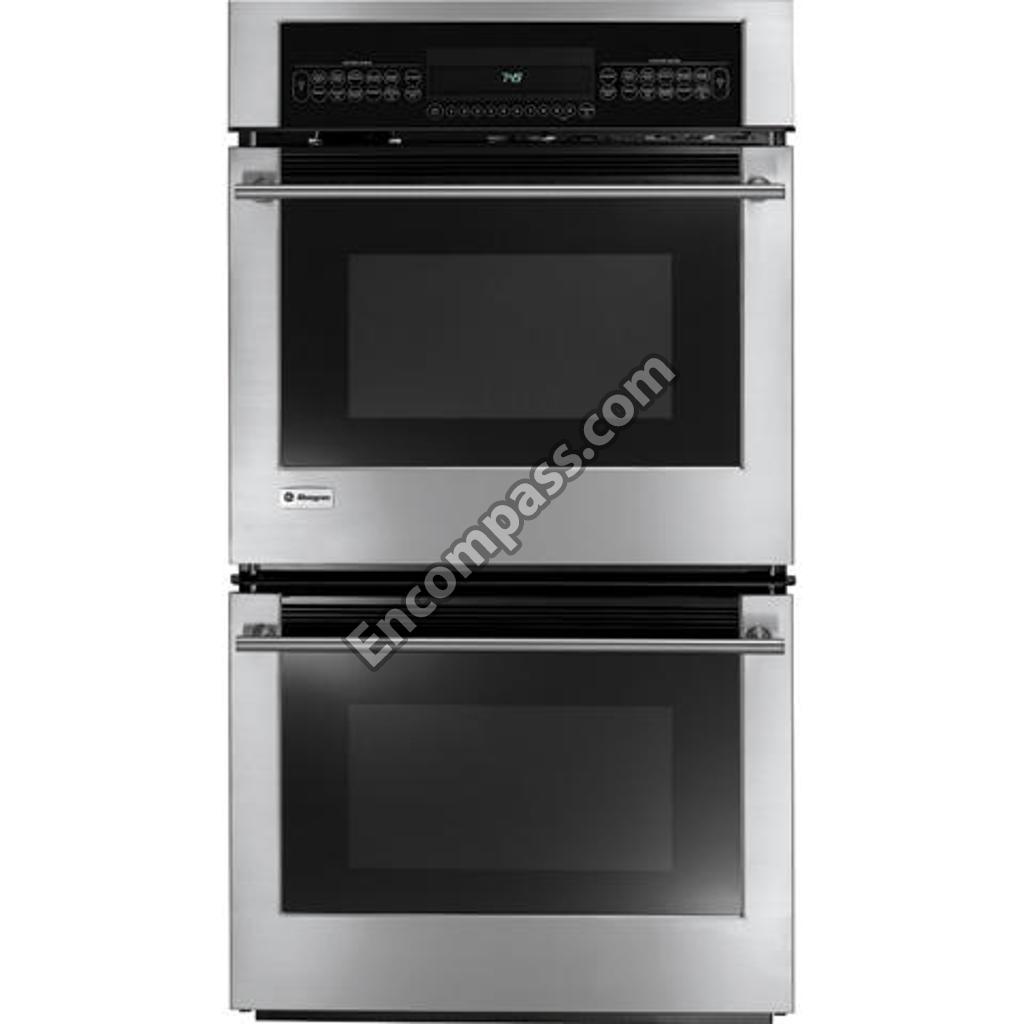

Model Image
Manufacturer

GE

Model Number

ZEK958SF6SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
WB34T10070 WB34T10070 BACK PLATE LEFT
WB34T10048 WB34T10048 BACK PLATE RT

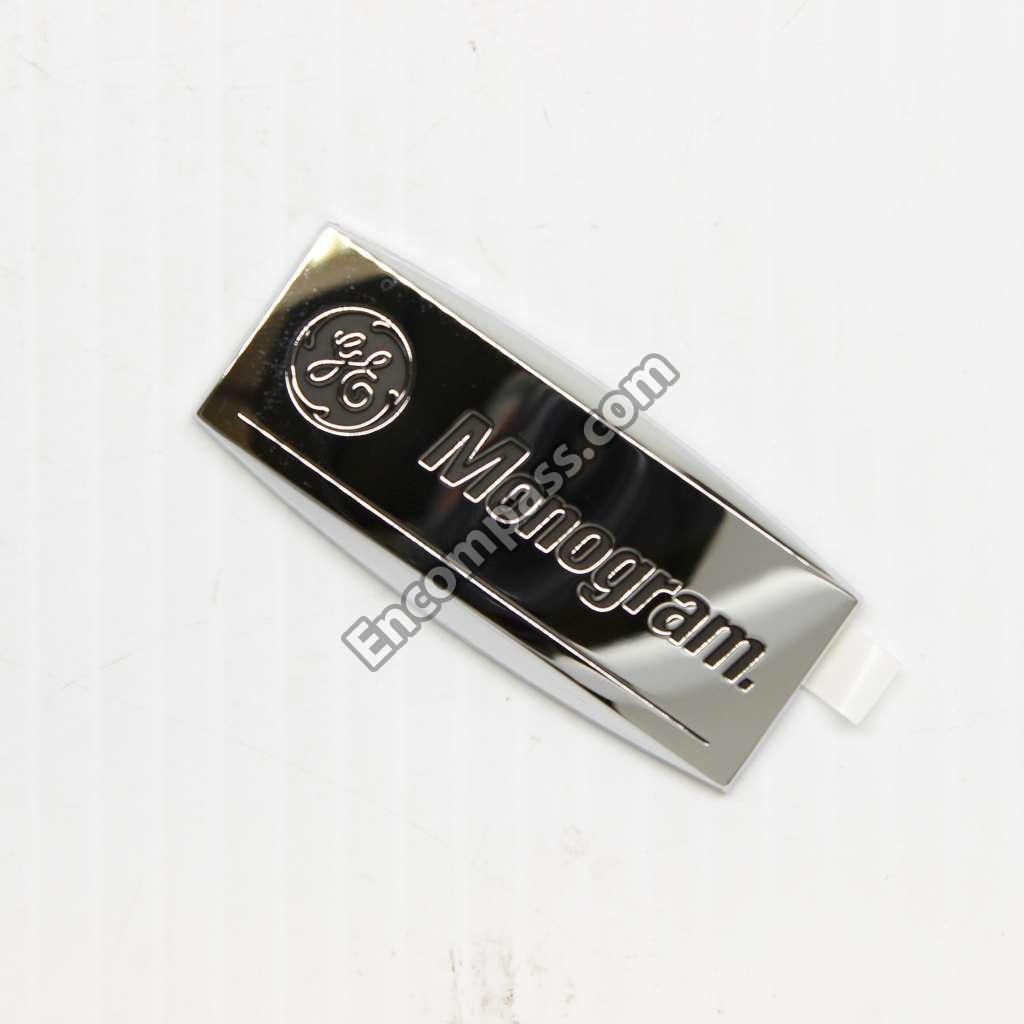

WB02X10833 WB02X10833 BADGE MONOGRAM SMALL
WB02K10048 WB02K10048 BASE RAIL

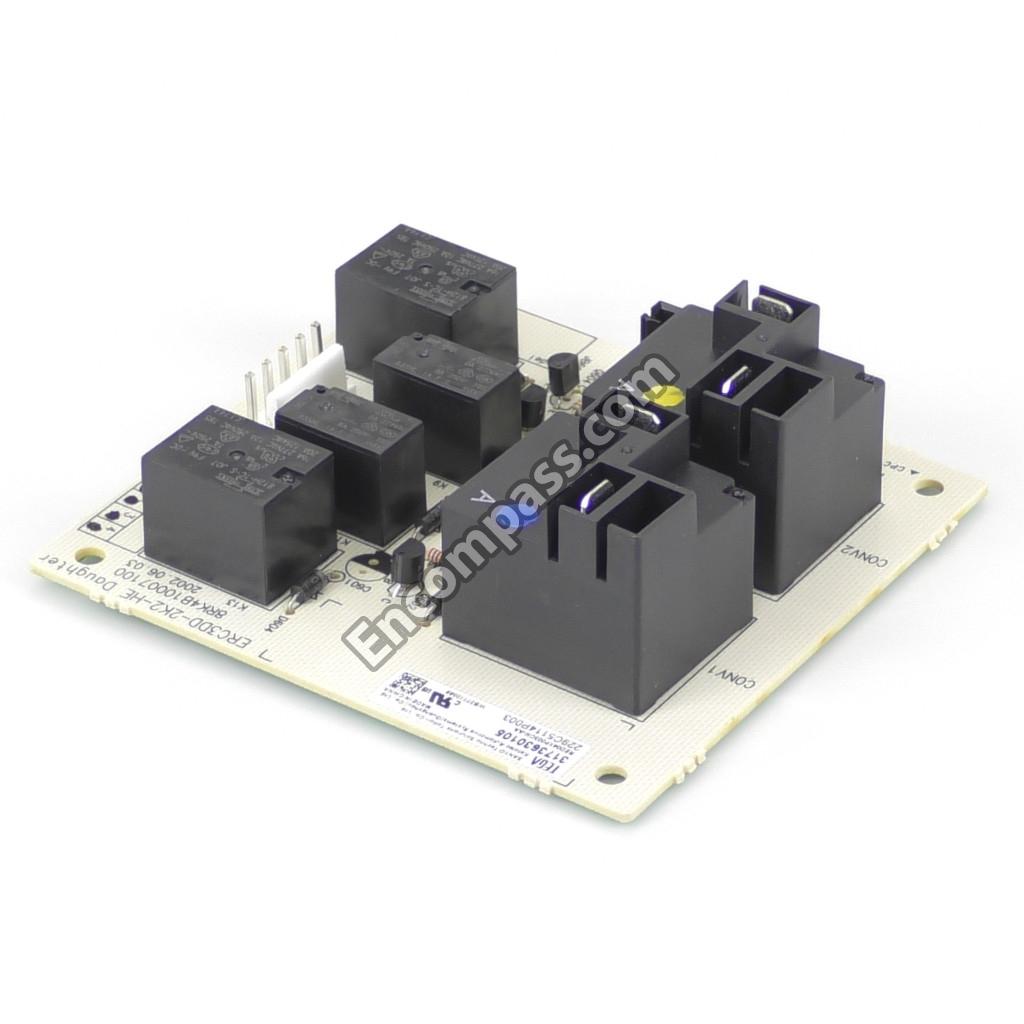

WB27T10568 WB27T10568 BOARD PC (ERC)
WB63T10080 WB63T10080 BOTTOM FALSE ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB44T10051 WB44T10051 BROIL ELEMENT
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10225 WB18T10225 CONDUIT WIRE ASSEMBLY
WB27T10654 WB27T10654 CONTROL OVN (ERC3DD)
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10063 WB34T10063 COVER WIRE MDL
WB34T10061 WB34T10061 COVER WIRE SENSOR
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10062 WB34T10062 COVER WIRE UPR RR
WB35T10060 WB35T10060 COVER- ELECTRICAL TOP
WB34T10064 WB34T10064 DEFLECTOR AIR
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10285 WB57T10285 DOOR OTR ASSEMBLY 27 (STAINLESS STEEL)
WB28T10080 WB28T10080 DUCT VENT INLET-UPPER
WB28T10082 WB28T10082 DUCT VNT INLET
WB44T10052 WB44T10052 ELEMENT BAKE HIDDEN

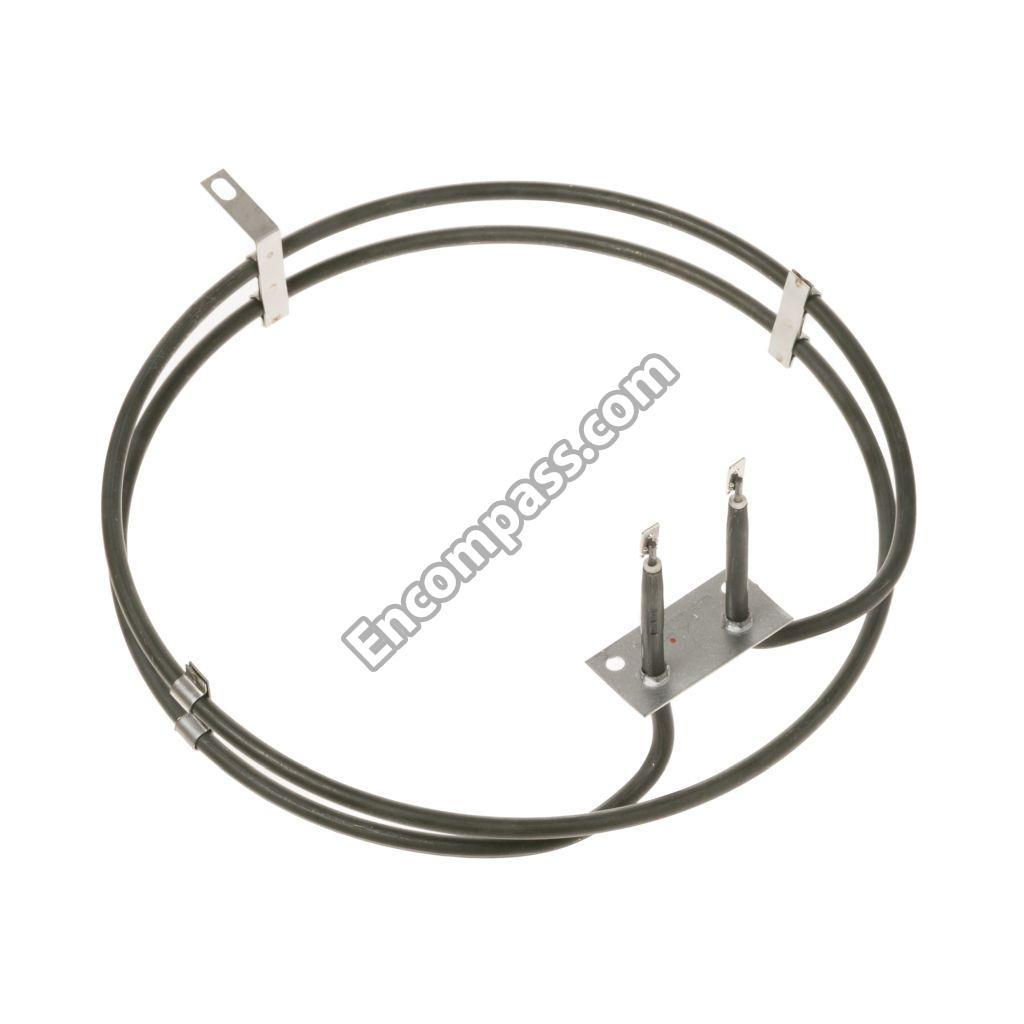

WB44T10054 WB44T10054 ELEMENT CONVX
WB26T10018 WB26T10018 FAN ASSEMBLY - CONTROL
WB64T10028 WB64T10028 FAN ASSEMBLY-LOWER
WB63T10072 WB63T10072 FRONT FRAME
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB25T10025 WB25T10025 HALOGEN LAMP ASSEMBLY LWR
WB15T10091 WB15T10091 HANDLE ASSEMBLY
WB10T10087 WB10T10087 HINGE DOOR LEFT
WB10T10086 WB10T10086 HINGE DOOR RT
WB02T10158 WB02T10158 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10551 31-10551 INSTRUCTION INSTALL
31-10523 31-10523 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10076 WB35T10076 INSULATION BACK AND BTM
WB10T10073 WB10T10073 INSULATION WRAPPER
WB35T10075 WB35T10075 INSULATION WRAPPER
WB14T10020 WB14T10020 LATCH OVEN
WB14T10021 WB14T10021 LATCH OVEN LWR
WB24T10067 WB24T10067 LIMIT SWITCH-LOWER
WB55T10151 WB55T10151 LINER OVN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
31-14022 31-14022 MANUAL MINI & WD ASM
49-80336 49-80336 MANUAL USE & CARE
WB02T10152 WB02T10152 MICROWAVE CAPACITOR MOTOR BRACKET
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB32T10010 WB32T10010 OV DR GASKET-UPPER
WB57T10185 WB57T10185 OV DR GLASS INNER
WB25T10013 WB25T10013 OV LAMP LENS
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB36T10873 WB36T10873 PANEL CONTROL ASSEMBLY 27 (STAINLESS STEEL)
WB02T10167 WB02T10167 PLUG FOAM
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB48T10035 WB48T10035 RACK OVN (SC)
WB48T10034 WB48T10034 RACK OVN OFFSET
WB26T10033 WB26T10033 RANGE CONVECTION MOTOR
WB03T10156 WB03T10156 RANGE OVEN DOOR BUMPER

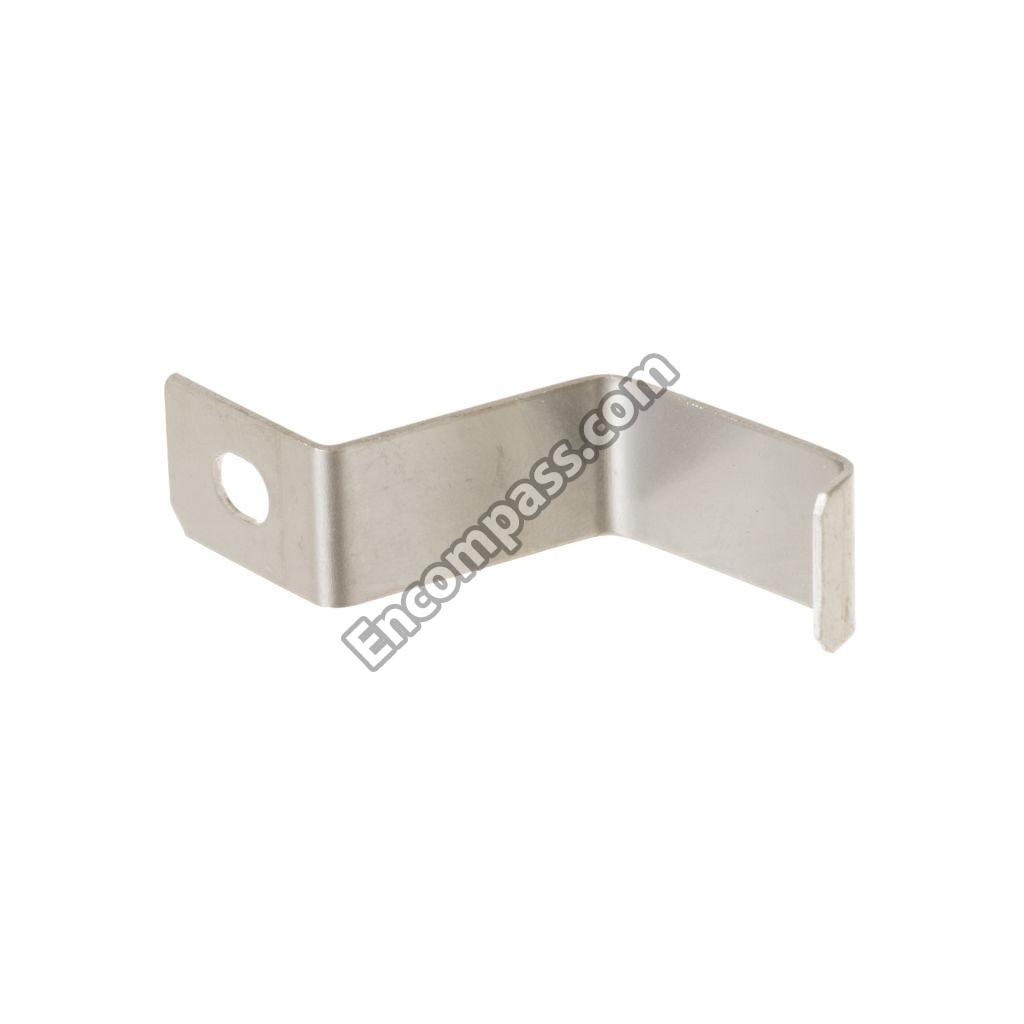

WB02T10155 WB02T10155 RANGE OVEN DOOR CLIP
WB24T10060 WB24T10060 RANGE THERMAL FUSE
WB10T10076 WB10T10076 RECEIVER HINGE
WB08T10018 WB08T10018 RECEPTACLE JACK
WB08T10042 WB08T10042 RECEPTACLE JACK
WB34T10120 WB34T10120 REFLECTOR HEAT
WB63T10087 WB63T10087 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB56T10133 WB56T10133 RETAINER INSLN OVN DR
WB63T10091 WB63T10091 RETAINER INSLN SDE
WB02T10159 WB02T10159 RETAINER INSLN TOP

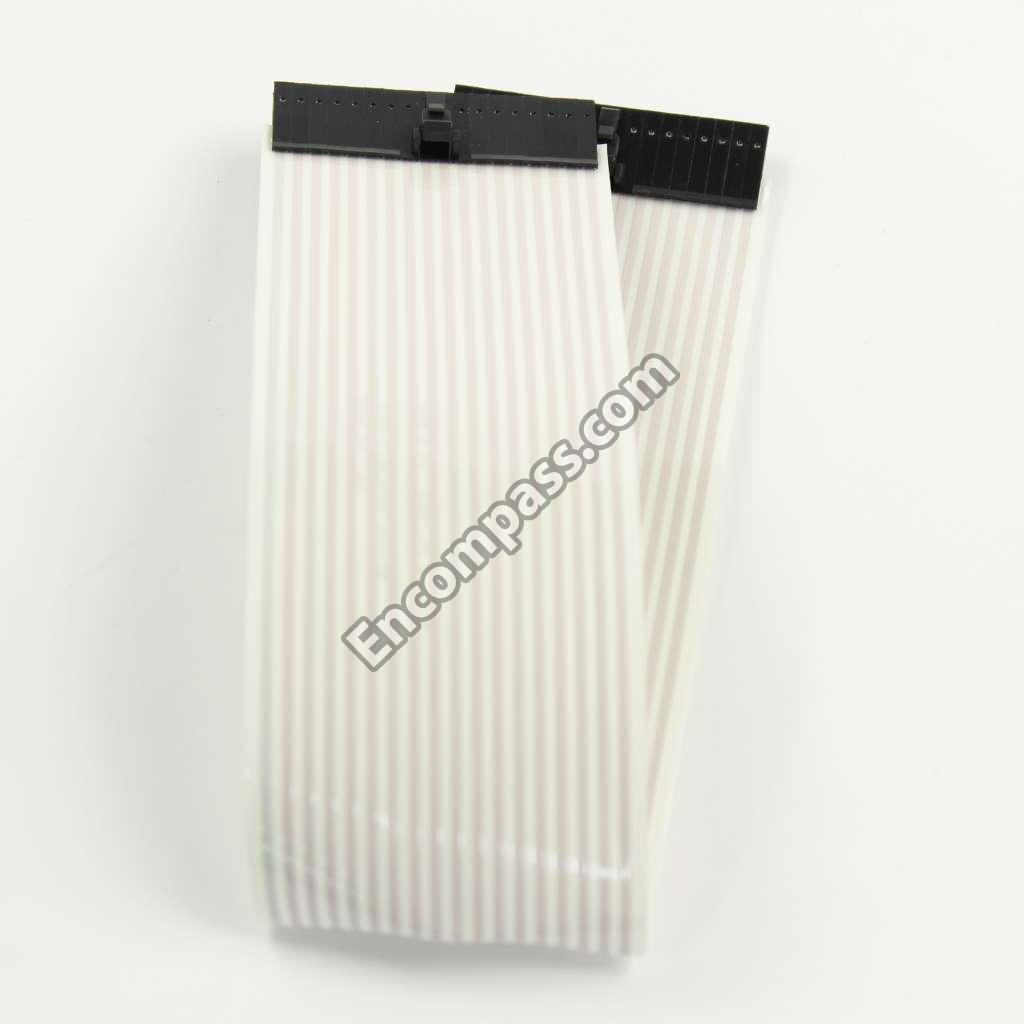

WB18T10371 WB18T10371 RIBBON CONNECTOR GLS TCH.
WB48X5108 WB48X5108 ROAST RACK
WB01T10101 WB01T10101 SCR 1/4-28 HXW 7/8 ZN
WB34T10091 WB34T10091 SCREEN FAN
WB01K5119 WB01K5119 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1141 WB01X1141 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5029 WB01K5029 SCREW
WB1K5119 WB1K5119 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1317 WB1X1317 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1141 WB1X1141 SCREW-8-32
WB01X1317 WB01X1317 SCREW-BLACK
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB36T10389 WB36T10389 SIDE EXTENSION
WB02T10160 WB02T10160 ST AND OFF CIRCUIT BOARD
WB26T10017 WB26T10017 SUPPORT OVN

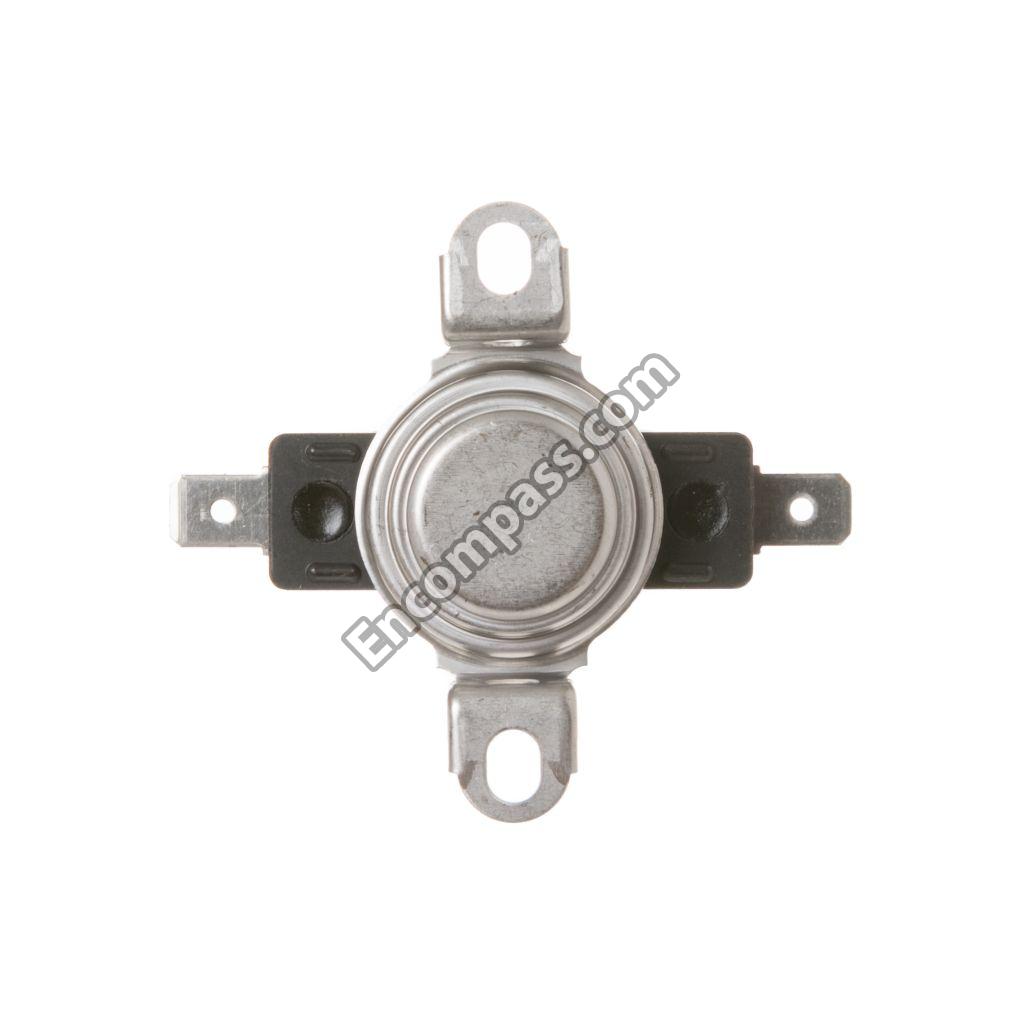

WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10082 WB24T10082 SWITCH HIGH LMT UPPER OV
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10077 WB24T10077 SWITCH LIMIT
WB24T10076 WB24T10076 SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB07T10376 WB07T10376 TRIM BTM CAB 27 (BLK)
WB07T10455 WB07T10455 TRIM BTM CAB ASSEMBLY (STAINLESS STEEL)
WB07T10345 WB07T10345 TRIM I-BROW BLACK
WB07T10343 WB07T10343 TRIM MIDDLE ASSEMBLY BLACK
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10307 WB07T10307 TRIM VENT
WB07T10315 WB07T10315 TRIM VERT SDE ASSEMBLY LEFT BLK
WB07T10314 WB07T10314 TRIM VERT SDE ASSEMBLY RT BLK
WB38X33650 WB38X33650 TUBE VENT
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB1X681 WB1X681 WB01X0681
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB63T10089 WB63T10089 WRAPPER OVN CAV ASM
WZ4X416 WZ4X416 WZ04X0408
