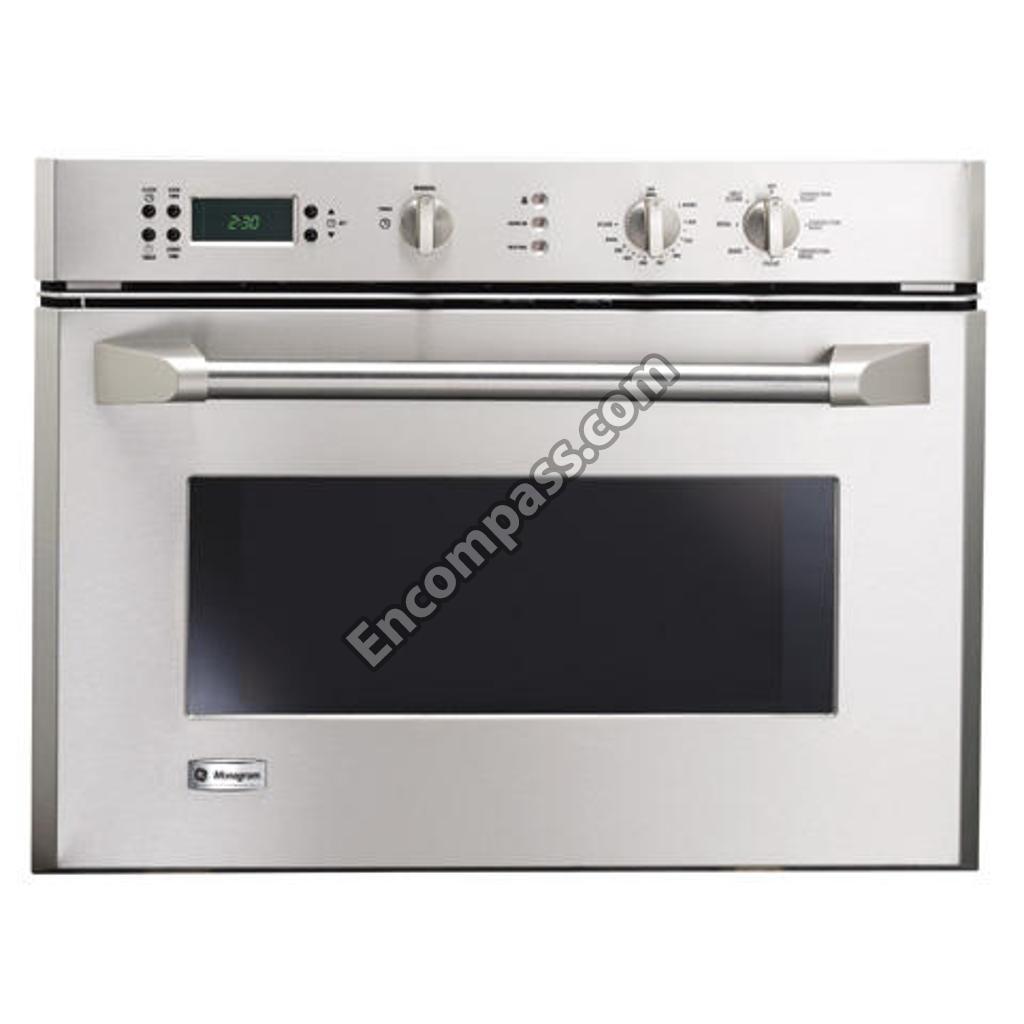

Model Image
Manufacturer

GE

Model Number

ZET1038PF5SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB01X10239 WB01X10239 12V MICROWAVE HALOGEN BULB - 20W
WB01X10243 WB01X10243 ANGLE BOX CONNECTOR
WB05X10004 WB05X10004 BACK INSULATION
WB44X10011 WB44X10011 BAKE ELEMENT.
WB07X10263 WB07X10263 BLACK COMPONENTS SUPPORT
WB07X10057 WB07X10057 BLACK CROSS BAR
WB02X10389 WB02X10389 BLACK LEFT SUPPORT
WB02X10391 WB02X10391 BLACK RIGHT SUPPORT
WB01X10244 WB01X10244 BLK SCREW
WB56X10651 WB56X10651 BOTTOM COVER
WB02X10395 WB02X10395 BOX COOLING CHANNEL
WB02X10388 WB02X10388 BRACKET
WB02X11253 WB02X11253 BRACKET DOOR MICROSWITCH
WB02X10405 WB02X10405 BRACKET ELEMENT
WB02X11251 WB02X11251 BRACKET SPACER FOR HINGE
WB48X5108 WB48X5108 BROILER GRID
WB49X10170 WB49X10170 BROILER PAN
WB49X10016 WB49X10016 BURNER BOX
WB02X10394 WB02X10394 CATALYST BELL
WB20X10031 WB20X10031 CATALYTIC HEATER
WB63X10054 WB63X10054 CAVITY OVEN
WB01X10023 WB01X10023 CLAMP
WB18X10230 WB18X10230 CONDUIT FLEXIBLE
WB01X10242 WB01X10242 CONNECTOR PROTECTOR
WB24X10135 WB24X10135 CONTROL OVEN UPPER.
WB07X10721 WB07X10721 CONTROL PANEL S.S
WB02X10393 WB02X10393 CONVECTION FAN SUPPORT
WB38X10008 WB38X10008 COOLING CHANNEL
WB26X27697 WB26X27697 COOLING FAN
WB56X10648 WB56X10648 COVER UP
WB55X10800 WB55X10800 DOOR FRAME
WB14X10045 WB14X10045 DOOR LATCH MOTOR

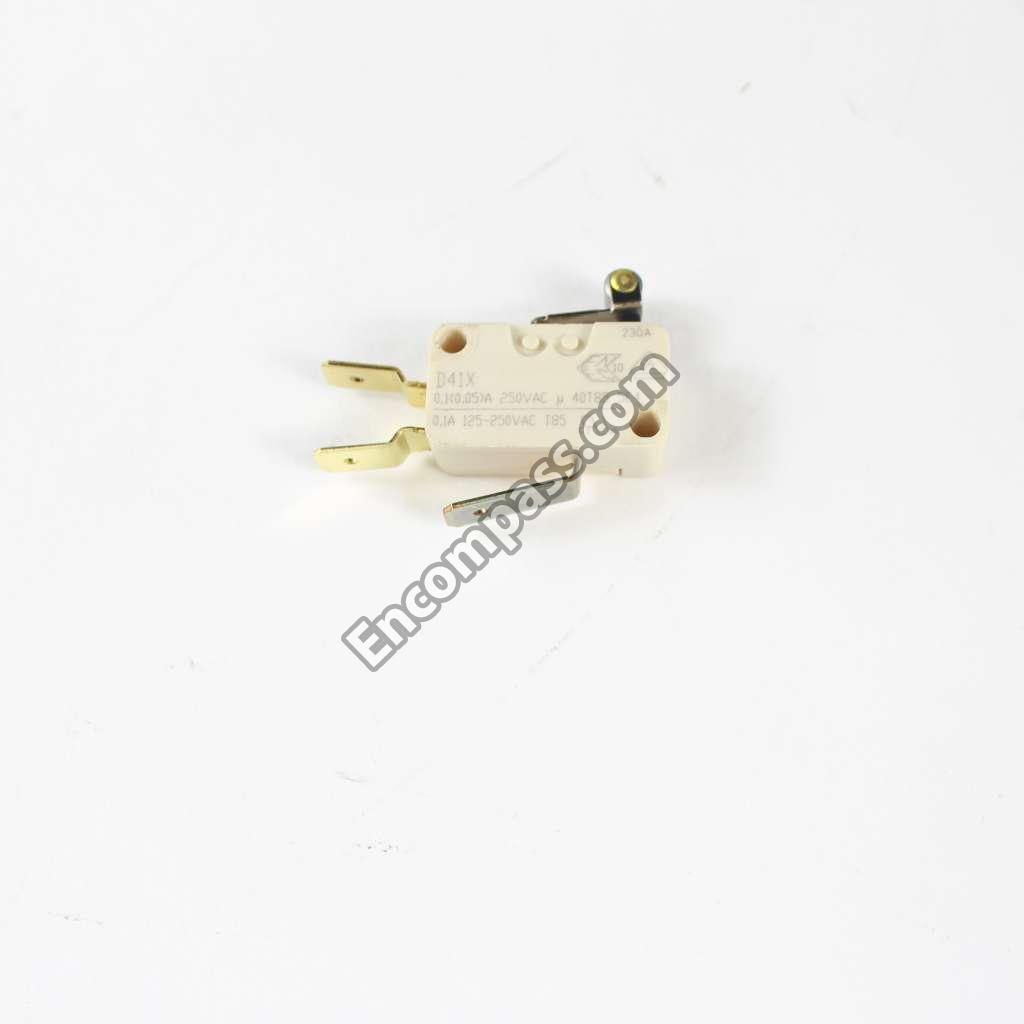

WB24X10182 WB24X10182 DOOR LATCH SWITCH
WB24X10150 WB24X10150 DOOR MICRO SWITCH
WB56X10647 WB56X10647 FAN CARTER
WB26X10243 WB26X10243 FAN MOTOR RADIAL
WB02X10950 WB02X10950 FILTER/TIMER
WB02X11252 WB02X11252 FLANGE/DOOR MICRO SWITCH
WB02X10960 WB02X10960 FRAME BRACKET
WB56X10652 WB56X10652 FRONT FRAME
WB07X10937 WB07X10937 GASKET FRONT OVEN
WB02X10957 WB02X10957 GE LOGO
WB07X10059 WB07X10059 HANDLE CARRY-UP
WB56X10455 WB56X10455 HANDLE END CAP
WB01X10307 WB01X10307 HANDLE SCREW
WB01X10257 WB01X10257 HARDWARE KIT
WB49X10018 WB49X10018 HEATING REFLECTOR
WB10X10067 WB10X10067 HINGE
WB10X10065 WB10X10065 HINGE BOX (LH AND RH)
WB10X10066 WB10X10066 HINGE SUPPORT
49-80188 49-80188 INSTALLATION MANUAL
WB05X10003 WB05X10003 INSULATION LINING
WB02X10424 WB02X10424 INSULATION PANELS
WB55X10019 WB55X10019 INTERNAL DOOR GLASS SEAL
WB02X10964 WB02X10964 INTERNAL DOOR TRIM
WB36X10010 WB36X10010 INTERNAL GLASS
WB08X10034 WB08X10034 LAMP HOLDER
WB56X10649 WB56X10649 LH COVER
WB02X10409 WB02X10409 LIGHT FRAME
WB02X10423 WB02X10423 LOCKING DOOR PIN
WB01X10218 WB01X10218 M3 NUT
WB01X10236 WB01X10236 M4 12MM SCR
WB01X10235 WB01X10235 M4 7MM SCR
WB01X10219 WB01X10219 M4 NUT
WB01X10234 WB01X10234 M4 SCR
WB01X10221 WB01X10221 M8 NUT
WB24X10119 WB24X10119 MAIN SWITCH
WB24X10009 WB24X10009 MANUAL CONTROL SWITCH
WB01X10308 WB01X10308 METRIC-THREAD FLATHEAD
31-20788 31-20788 MINI MANUAL
WB01X10048 WB01X10048 NUT
WB48X10037 WB48X10037 OVEN BASE RACK
WB48X10036 WB48X10036 OVEN RACK
WB07X10051 WB07X10051 PARTITION CAVITY
WB02X10627 WB02X10627 PILOT LAMP 240V
WB02X10959 WB02X10959 PILOT LAMPS SUPPORT
WB01X10240 WB01X10240 PIPE
WB01X10225 WB01X10225 PLAIN WASHER
WB02X10416 WB02X10416 RANGE DRIVE BRACKET

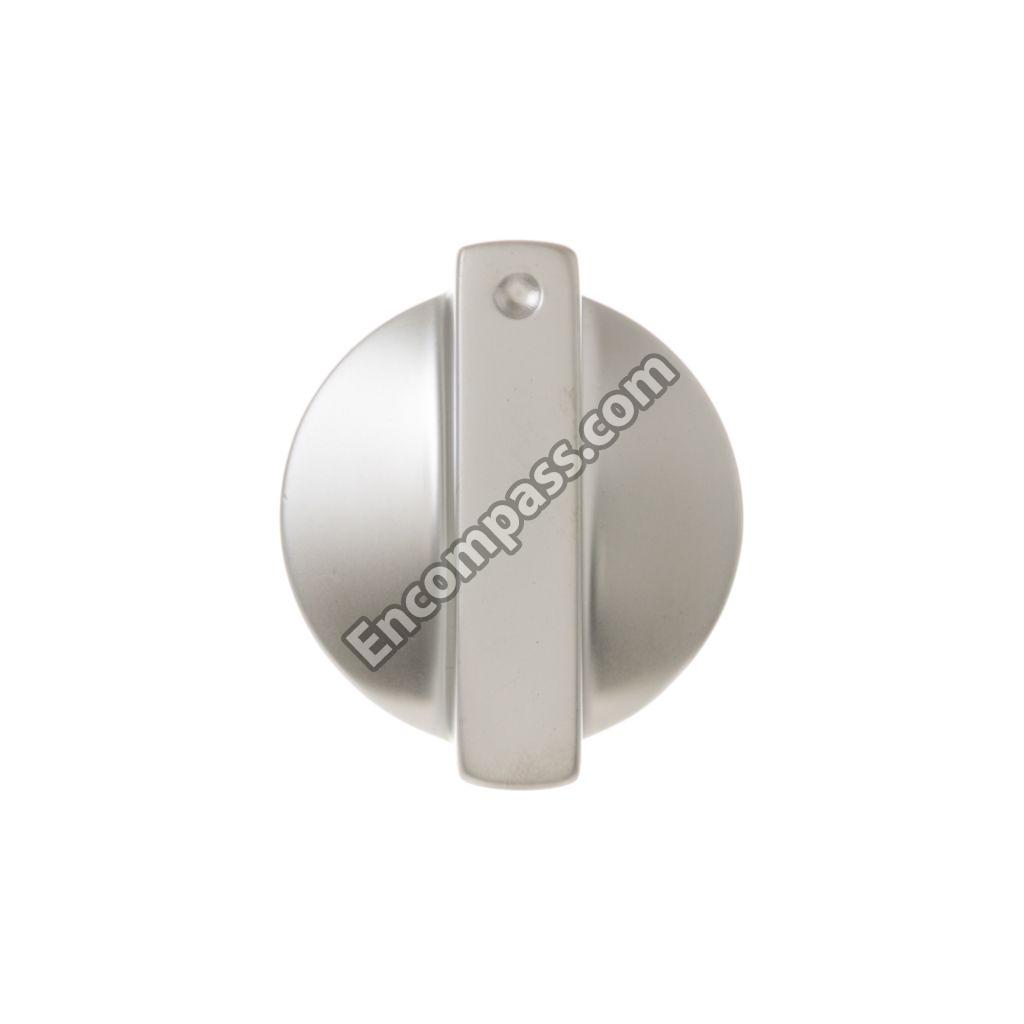

WB03X10195 WB03X10195 RANGE KNOB - STAINLESS STEEL
WB02X10417 WB02X10417 RANGE LOCKING DEVICE
WB02X10493 WB02X10493 RANGE SEAL
WB01X10026 WB01X10026 RANGE THERMO SPRING
WB07X10049 WB07X10049 REAR B AND
WB07X10050 WB07X10050 REAR COVER
WB02X10963 WB02X10963 REFLECTOR DOOR TRIM
WB02X10415 WB02X10415 RELAY BOARD
WB20X10002 WB20X10002 RESISTOR
WB56X10650 WB56X10650 RH COVER
WB44X10012 WB44X10012 RING ELEMENT.
WB02X10965 WB02X10965 RUBBER
WB02X11254 WB02X11254 RUBBER FOR DOOR
WB15X10131 WB15X10131 S.S H AND LE
WB01X10231 WB01X10231 SCR 3.9-9.5 SLF TAP
WB01X10232 WB01X10232 SCR 4.2-19 SLF TAP
WB01X10021 WB01X10021 SCREW
WB01X10228 WB01X10228 SCREW M3
WB02X10410 WB02X10410 SEAL LAMP HOLDER
WB02X10404 WB02X10404 SEAL RING ELEMENT
WB05X10001 WB05X10001 SIDE INSULATION
WB01X10237 WB01X10237 SLF TAP SCR 4.2 - 9.5 M
WB02X10952 WB02X10952 SLF TAP SCR SLIP
WB01X10226 WB01X10226 SLF TAP SCREW
WB01X10227 WB01X10227 SLF TAP SCREW
WB01X10230 WB01X10230 SLF TAP SCREW 2 9-6 5
WB02X10418 WB02X10418 SPACER
WB02X10411 WB02X10411 SPACER CIRCUIT
WB02X11248 WB02X11248 SPACER FOR PARTITION
WB01X10027 WB01X10027 SPACER TERMINAL BLOCK
WB01X10025 WB01X10025 SPRING
WB01X10241 WB01X10241 SPRING BRACKET
WB09X10020 WB09X10020 SPRING PUSH BUTTON
WB02X10971 WB02X10971 SPRING THERMOSTAT
WB36X10269 WB36X10269 SS EXT PANEL (LOGO)
WB02X11247 WB02X11247 SUPPORT RELAY BOARD
WB02X10414 WB02X10414 SUPPORT RESISTOR
WB17X10003 WB17X10003 TERMINAL BLOCK
WB21X10020 WB21X10020 THERMOSTAT EXCHANGE
WB21X10017 WB21X10017 THERMOSTAT FIXED
WB21X10018 WB21X10018 THERMOSTAT SAFETY
WB21X10019 WB21X10019 THERMOSTAT SAFETY
WB19X10001 WB19X10001 TIMER ELECTRONIC
WB03X10279 WB03X10279 TIMER PUSH BUTTON
WB02X10958 WB02X10958 TIMER SUPPORT
WB02X10403 WB02X10403 TOP ELEMENT SEAL
WB05X10002 WB05X10002 TOP INSULATION
WB44X10048 WB44X10048 TOP REFLEC+BROIL ELEMENT
WB07X10053 WB07X10053 TOP TRIM
WB20X10037 WB20X10037 TRANSFORMER 115/12 V/40W
WB02X11249 WB02X11249 TRIM PARTITION
WB07X10052 WB07X10052 TRIM/ FOR BAKE ELEMENT
WB07X10939 WB07X10939 TRIM/COOLING FAN
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
49-80176 49-80176 USE & CARE MANUAL
WB01X10046 WB01X10046 WASHER
WB01X10222 WB01X10222 WASHER LOCK
WB02X10412 WB02X10412 WH PILOT LAMP
