Model Image
Manufacturer

GE

Model Number

ZET2SL1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB02X10833 WB02X10833 BADGE MONOGRAM SMALL
WB27T10824 WB27T10824 BOARD AS DISPALY DWO
WB27T11037 WB27T11037 BOARD ASSEMBLY POWER SUPPLY

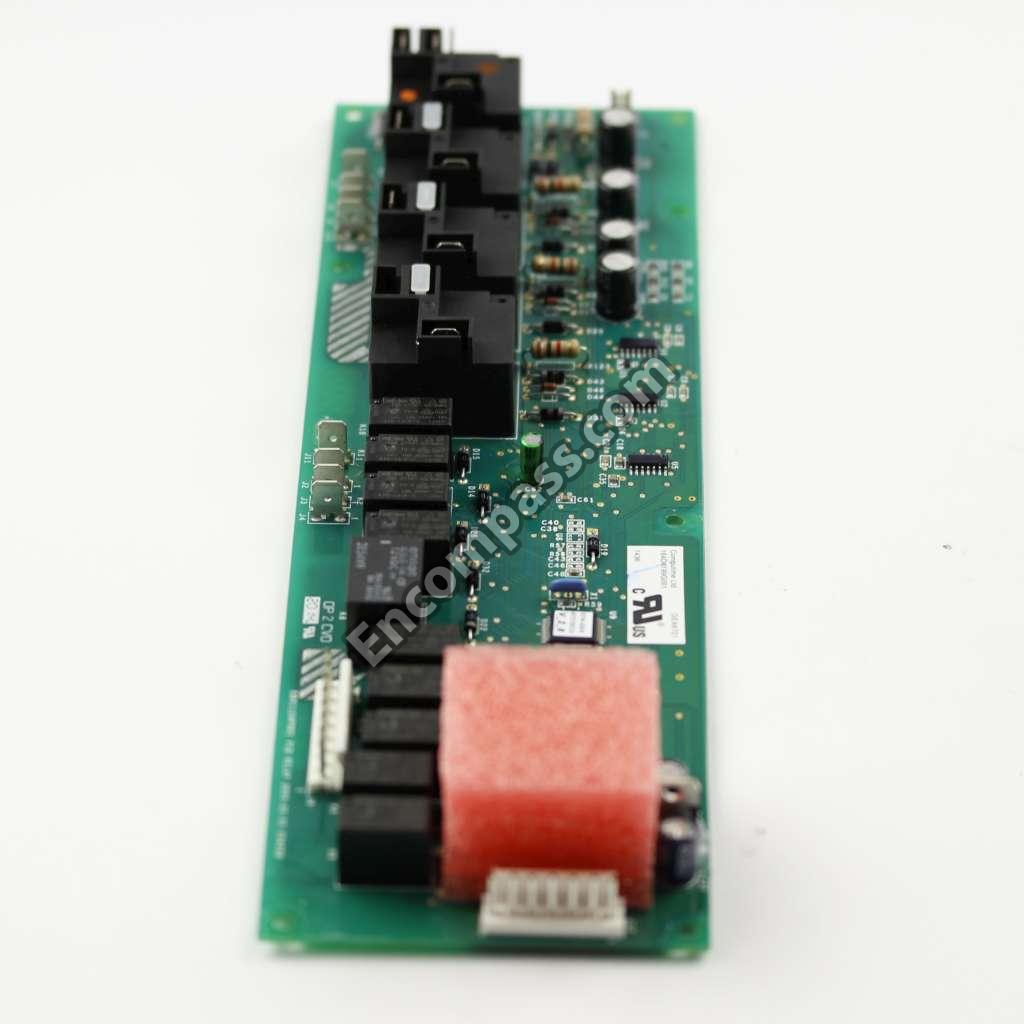

WB27T10821 WB27T10821 BOARD ASSEMBLY RELAY
WB02T10291 WB02T10291 BODY VENT TOP
WB01T10107 WB01T10107 BOLT RETAINER
WB07T10538 WB07T10538 BRACE CAVITY ASSEMBLY
WB02T10296 WB02T10296 BRACKET BOARD SUPT
WB02T10302 WB02T10302 BRACKET BOARD SUPT
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB48T10089 WB48T10089 BROILER PAN (XL)
WB02T10305 WB02T10305 BUSHING
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB02T10294 WB02T10294 CHANNEL DOOR AIR
WB02X9573 WB02X9573 CLIP
WB2X9573 WB2X9573 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10379 WB18T10379 CONDUIT WIRE ASSEMBLY
WB26T10052 WB26T10052 COVER FAN CONV
WB34T10119 WB34T10119 COVER FAN HOUSING
WB34T10117 WB34T10117 COVER WIRE LWR
WB34T10118 WB34T10118 COVER WIRE MIDDLE
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10055 WB34T10055 COVER WIRE UPR RR
WB25T10063 WB25T10063 CRYSTAL LAMP
WB01T10022 WB01T10022 DOOR BUMPER
WB56T10216 WB56T10216 DOOR OUTER ASSEMBLY 30
WB01T10078 WB01T10078 E-CLIP
WB44T10056 WB44T10056 ELEMENT BAKE
WB44T10057 WB44T10057 ELEMENT BROIL
WB44T10058 WB44T10058 ELEMENT CONVECT
WB24T10128 WB24T10128 ENCODER ASSEMBLY MODE
WB07T10510 WB07T10510 EXTENSION FRONT
WB37T10006 WB37T10006 EXTENSION SIDE LEFT
WB37T10005 WB37T10005 EXTENSION SIDE RT
WB26T10035 WB26T10035 FAN ASSEMBLY
WB26K5072 WB26K5072 FAN-LOWER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB48T10090 WB48T10090 GRID BROILER PAN (XL)
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10096 WB15T10096 HANDLE ASSEMBLY 30 (STAINLESS STEEL)
WB18T10377 WB18T10377 HARNESS MEAT PROBE
WB18T10380 WB18T10380 HARNESS WIRE MAIN
WB01T10081 WB01T10081 HEX NUT
WB10T10085 WB10T10085 HINGE DOOR LEFT
WB10T10084 WB10T10084 HINGE DOOR RT
WB26T10014 WB26T10014 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10633 31-10633 INSTRUCTION INSTALL
31-10551 31-10551 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10127 WB35T10127 INSULATION BACK AND BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10128 WB35T10128 INSULATION SIDE AND TOP
WB35T10131 WB35T10131 INSULATION VENT TOP
WB35T10132 WB35T10132 INSULATION VENT TOP
WB27T10823 WB27T10823 KEYPAD

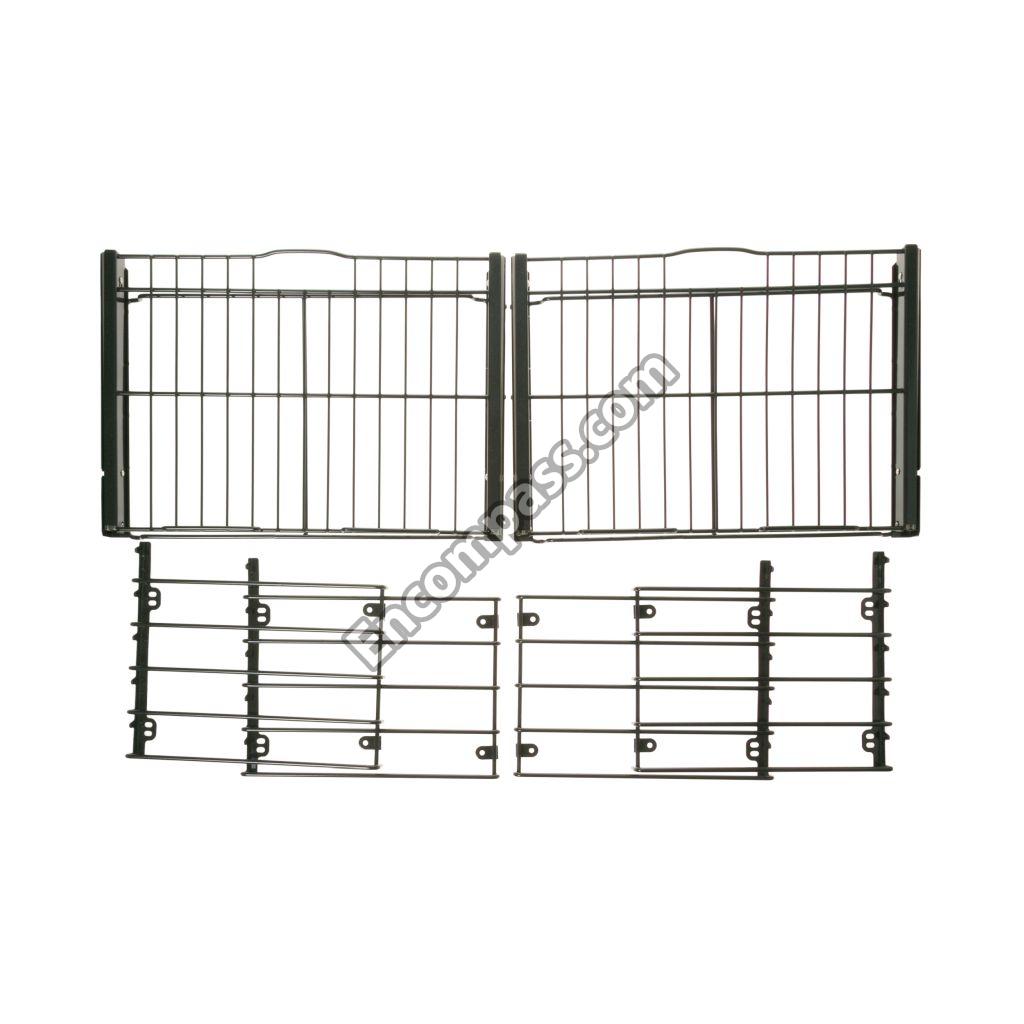

WB48T10109 WB48T10109 KIT EXTENSION RACK
WB25T10064 WB25T10064 LAMP HALOGEN 20W
WB25T10061 WB25T10061 LAMP HALOGEN ASSEMBLY (LT)
WB25T10062 WB25T10062 LAMP HALOGEN ASSEMBLY (RT)
WB14T10037 WB14T10037 LATCH OVN ASSEMBLY W/DR
WB55T10148 WB55T10148 LINER OVEN DR ASSEMBLY
WB02T10303 WB02T10303 LUBRICANT CLEANER
31-14387 31-14387 MANUAL MINI & WD ASM
49-80325 49-80325 MANUAL USE & CARE
WB03T10247 WB03T10247 MONOGRAM RANGE KNOB - STAINLESS STEEL
WB26T10038 WB26T10038 MOTOR CONV PLATE ASSEMBLY
WB26T10030 WB26T10030 MOTOR VENT
WB01T10099 WB01T10099 NUT
WB02T10017 WB02T10017 NUT
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB49T10012 WB49T10012 PAN REFLECTOR
WB36T10928 WB36T10928 PANEL CONTROL ASSEMBLY 30 MGM
WB35T10136 WB35T10136 PAPER INSULATION

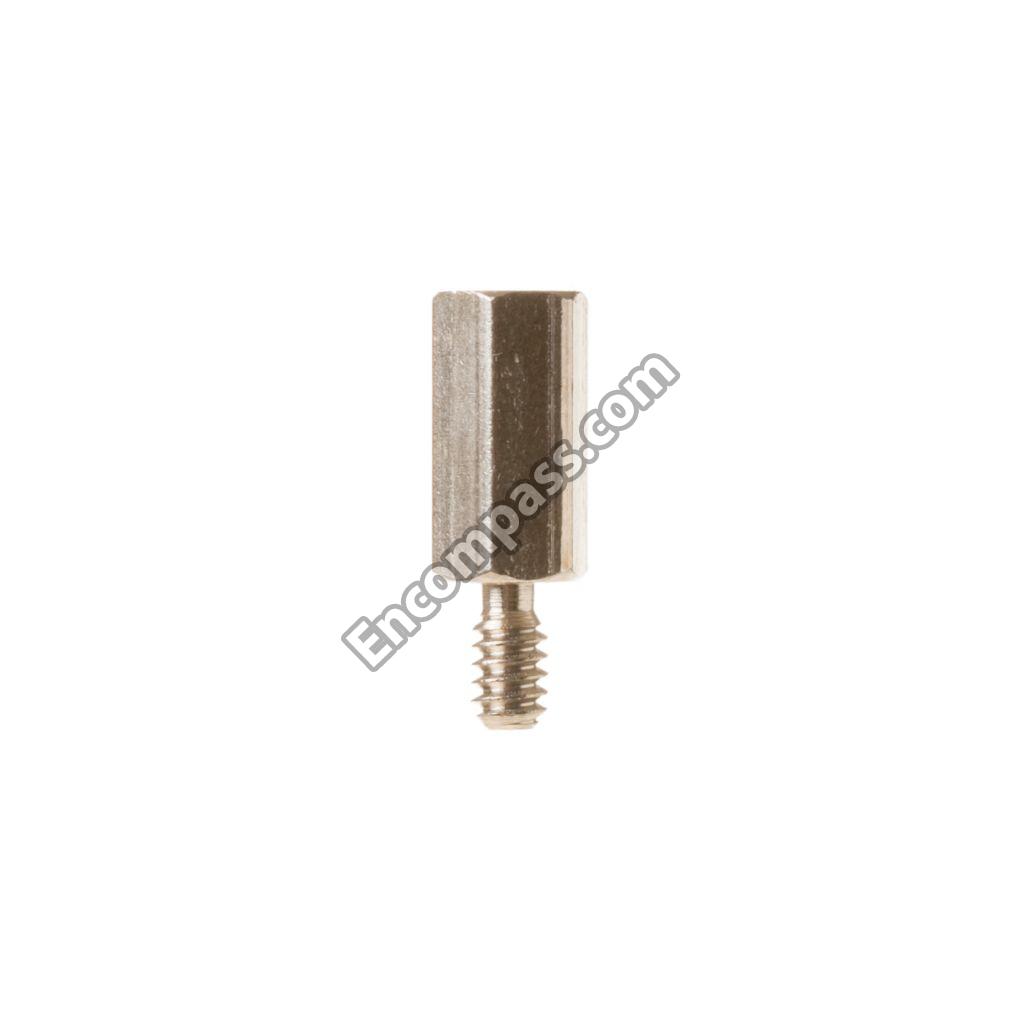

WB02T10207 WB02T10207 PCB ST AND OFF
WB02T10309 WB02T10309 PLATE INSULATION MOUNT
WB02T10167 WB02T10167 PLUG FOAM
WB20T10023 WB20T10023 PROBE THERMISTOR
WB48T10041 WB48T10041 RACK GUIDE PK ASSEMBLY
WB02T10214 WB02T10214 RANGE BOTTOM VENT BODY
WB03T10249 WB03T10249 RANGE BUTTON ASSEMBLY
WB02T10297 WB02T10297 RANGE GLASS RETAINER CLIP
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB02T10295 WB02T10295 RANGE SPACER REINFORCEMENT
WB24T10129 WB24T10129 RANGE TEMPERATURE ENCODER
WB24T10130 WB24T10130 RANGE THERMOSTAT
WB03T10248 WB03T10248 RANGE TIMER KNOB - STAINLESS STEEL LOOK
WB02T10213 WB02T10213 RANGE VENT FAN BLADE
WB10T10083 WB10T10083 RECEIVER HINGE
WB56T10211 WB56T10211 RETAINER INSLN BACK
WB02T10285 WB02T10285 RETAINER INSLN BTM
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10290 WB02T10290 RETAINER INSLN TOP
WB01T10101 WB01T10101 SCR 1/4-28 HXW 7/8 ZN
WB01T10072 WB01T10072 SCR 8-32 1HW .312 NI
WB34T10091 WB34T10091 SCREEN FAN
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5162 WB01K5162 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5028 WB01K5028 SCREW
WB1K5116 WB1K5116 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB49T10013 WB49T10013 SIDE PAN REFLECTOR
WB02T10301 WB02T10301 SUPPORT FAN
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10082 WB24T10082 SWITCH HIGH LMT UPPER OV
WB24T10131 WB24T10131 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB07T10502 WB07T10502 TRIM BTM CAB (STAINLESS STEEL)
WB07T10509 WB07T10509 TRIM MIDDLE
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10515 WB07T10515 TRIM VENT INR (BLACK)
WB07T10508 WB07T10508 TRIM VERT SDE ASSEMBLY LEFT
WB07T10507 WB07T10507 TRIM VERT SDE ASSEMBLY RT
WB38X33650 WB38X33650 TUBE VENT
WB1K5117 WB1K5117 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WZ4X416 WZ4X416 WZ04X0408
