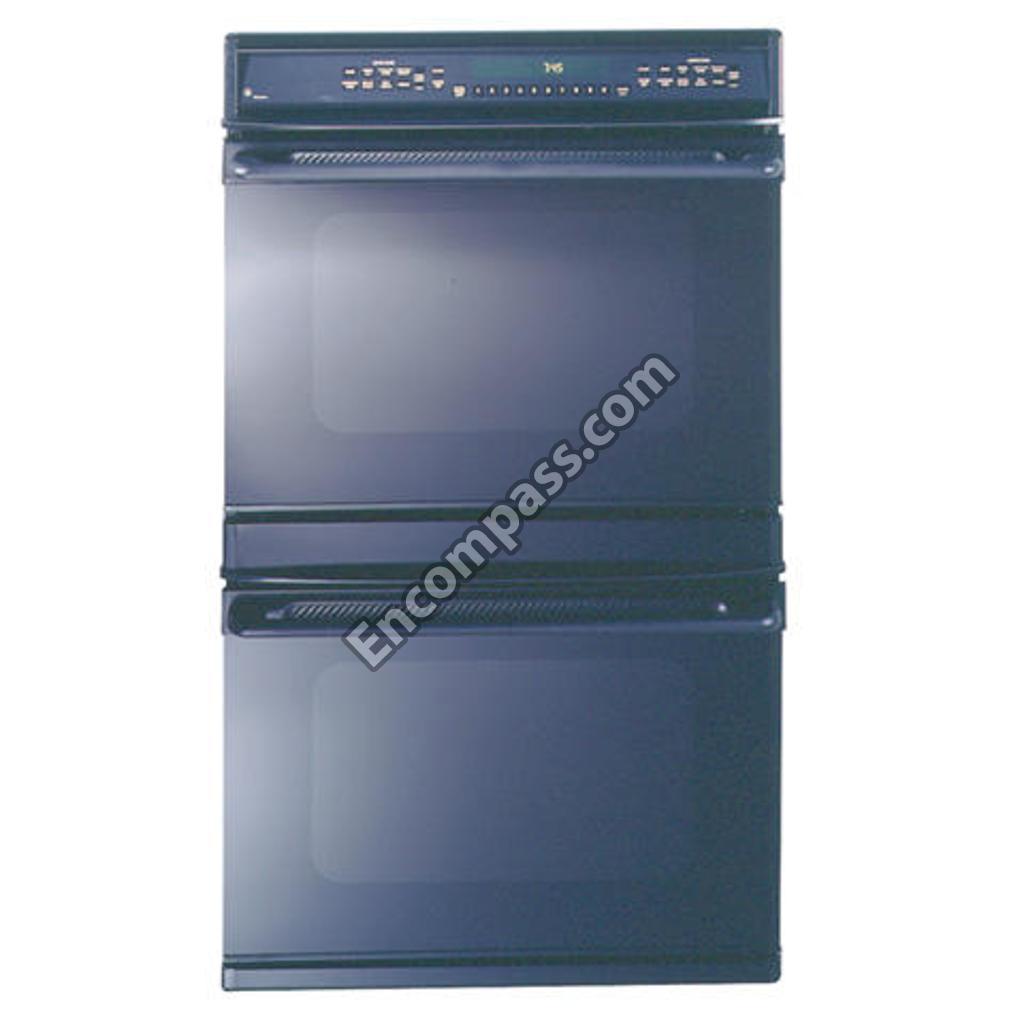

Model Image
Manufacturer

GE

Model Number

ZET757BW1BB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
49-8443 49-8443 44-K006
WB02K5307 WB02K5307 BACK INSULATION RETAINER
WB44K5018 WB44K5018 BAKE ELEMENT
WB02K5356 WB02K5356 BASE RAIL
WB02K10048 WB02K10048 BASE RAIL
WB2K5307 WB2K5307 BK INSUL RET
WB2X8351 WB2X8351 BLADE FAN
WB7K5467 WB7K5467 BOTTOM TRIM
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07K5467 WB07K5467 BOTTOM TRIM-BLACK
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44K5030 WB44K5030 BROIL ELEMENT-4400W
WB48M0003 WB48M0003 BROILER PAN
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02K5305 WB02K5305 BTTM INSULATION RETAINER
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5540 WB18K5540 CONDUIT WIRE HARNESS
WB36K5658 WB36K5658 CONTROL PANEL W/KYPD-BLK
WB26K5069 WB26K5069 CONVECTION FAN MOTOR
WB6K5037 WB6K5037 COOKIE TRAY
WB06K5038 WB06K5038 COOKIE TRAY-LARGE
WB06K5037 WB06K5037 COOKIE TRAY-SMALL
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB34K5217 WB34K5217 COVER FAN HOUSING
WB2X8309 WB2X8309 COVER PROBE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB34K5200 WB34K5200 DOOR LOCK PLATE
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07K5300 WB07K5300 DOOR TRIM SHIELD
WB07K5401 WB07K5401 DOOR VENT TRIM-BLACK
WB7K5300 WB7K5300 DR TRIM SHLD
WB7K5401 WB7K5401 DR VENT TRIM
WB44T10053 WB44T10053 ELEMENT CONVX
WB36K5519 WB36K5519 END CAP-LT-BLACK
WB36K5520 WB36K5520 END CAP-RT-BLACK-CONTROL
WB26X114 WB26X114 FAN ASM
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB26X0114 WB26X0114 FAN ASM-TOP CABINET
WB02X8351 WB02X8351 FAN BLADE
WB26K5055 WB26K5055 FAN COVER
WB6K5041 WB6K5041 FAN HOUS SCR
WB26K5063 WB26K5063 FAN HOUSING
WB06K5041 WB06K5041 FAN HOUSING SCREEN
WB02K5355 WB02K5355 FAN SUPPORT
WB2K5355 WB2K5355 FAN SUPPORT
WB01K5115 WB01K5115 FELT PAD
WB1K5115 WB1K5115 FELT PAD
WB07K5470 WB07K5470 FILLER END CAP-LT-BLACK
WB07K5469 WB07K5469 FILLER END CAP-RT-BLACK
WB7K5371 WB7K5371 FILLER TRIM
WB07K5371 WB07K5371 FILLER TRIM-BLK
WB55T10071 WB55T10071 FRAME OVEN DR ASSEMBLY (BLACK)
WB63K5172 WB63K5172 FRONT FRAME
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB18K5573 WB18K5573 HARNESS WIRE MAIN LWR
WB14T10006 WB14T10006 HINGE ASM LT
WB14T10005 WB14T10005 HINGE ASM RT
WB8K5013 WB8K5013 HOUS ASM REC
WB08K5013 WB08K5013 HOUSING ASM RECEPTACLE
WB7K5471 WB7K5471 I-BROW TRIM
WB07K5471 WB07K5471 I-BROW TRIM-BLACK
31-10125 31-10125 INSTALLATION INSTRUCTION
WB2K5322 WB2K5322 INSUL RETNR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB8K5012 WB8K5012 JACK RECEPT
WB08K5047 WB08K5047 JACK RECEPTACLE
WB08K5012 WB08K5012 JACK RECEPTACLE
WB8K5047 WB8K5047 JACK RECEPTL
WB25K5025 WB25K5025 LENS OVEN LAMP
WB24K5037 WB24K5037 LIMIT SWITCH
WB24K5126 WB24K5126 LIMIT SWITCH
WB24K5127 WB24K5127 LIMIT SWITCH
WB15K5075 WB15K5075 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB18K5491 WB18K5491 LOCK MOTOR WIRE HARNESS
WB01K5046 WB01K5046 LOCKWASHER
WB01X1399 WB01X1399 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB7K5470 WB7K5470 LT END CAP B
WB18K5648 WB18K5648 MAIN WIRE HARNESS
31-13343 31-13343 MINI MANUAL W/WIRE DIAG.
WB02X8454 WB02X8454 NUT
WB1X5572 WB1X5572 NUT
WB2X8454 WB2X8454 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB2K5304 WB2K5304 OV CAV SUPT
WB63K5177 WB63K5177 OVEN BODY-CONVEX
WB07K5288 WB07K5288 OVEN BOTTOM TRIM-BLK
WB02K5304 WB02K5304 OVEN CAVITY SUPPORT
WB27T10277 WB27T10277 OVEN CONTROL ERC3DD
WB32K5039 WB32K5039 OVEN DOOR GASKET
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB15K5105 WB15K5105 OVEN DOOR HANDLE-BLACK
WB55K5035 WB55K5035 OVEN DOOR LINING
WB57K5212 WB57K5212 OVEN DOOR OUTER GLASS-BLACK
WB08K5042 WB08K5042 OVEN LAMP HOLDER
WB8K5042 WB8K5042 OVLAMP HLDR
WB36T10031 WB36T10031 PANEL W/KYPD+CAPS-BLA
WB20T10024 WB20T10024 PROBE
WB48K5022 WB48K5022 RACK OVEN
WB2K5387 WB2K5387 RETAINER
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB48X5108 WB48X5108 ROAST RACK
WB7K5469 WB7K5469 RT END CAP-B
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WZ04X0044 WZ04X0044 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1178 WB01X1178 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5119 WB01K5119 SCREW
WB01K5029 WB01K5029 SCREW
WB1X536 WB1X536 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5119 WB1K5119 SCREW
WB1M1 WB1M1 SCREW
WB1X1317 WB1X1317 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5116 WB1K5116 SCREW
WB1X1293 WB1X1293 SCREW
WH2X930 WH2X930 SCREW
WB1X1261 WB1X1261 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB01X1317 WB01X1317 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB1K5157 WB1K5157 SCREW-BLK
WB01X1158 WB01X1158 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB23X5340 WB23X5340 SENSOR-OVEN
WB34K5244 WB34K5244 SHIELD HEAT
WB34T10114 WB34T10114 SHIELD OVN DR VNT
WB34K5252 WB34K5252 SHIELD W/INSUL ASSEMBLY
WB37K5038 WB37K5038 SIDE EXTENSION-LT
WB37K5037 WB37K5037 SIDE EXTENSION-RT
WB6K5026 WB6K5026 SMOKE EL SCR
WB06K5026 WB06K5026 SMOKE ELIM SCREEN
WB2X9719 WB2X9719 SUPP-BROIL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB02K5387 WB02K5387 TOP INSULATION RETAINER
WB34K5216 WB34K5216 TOP WIRE COVER
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10165 WB07T10165 TRIM VENT INR (BLACK)
WB26K5054 WB26K5054 UPR FAN CVR
WB38K5051 WB38K5051 VENT BOX ASM
WB7K5287 WB7K5287 VENT END CAP
WB7K5286 WB7K5286 VENT END CAP
WB07K5287 WB07K5287 VENT END CAP-LT-BLK
WB07K5286 WB07K5286 VENT END CAP-RT-BLK
WB07K5308 WB07K5308 VENT TRIM-INR-BLK
WB7K5368 WB7K5368 VERT SD TRIM
WB07K5368 WB07K5368 VERTICAL SIDE TRIM-BLK
WB01K5198 WB01K5198 WASHER
WB01X1254 WB01X1254 WASHER
WB01X5573 WB01X5573 WASHER
WB01X1140 WB01X1140 WASHER
WB01K5174 WB01K5174 WASHER
WB1X1399 WB1X1399 WASHER
WB1K5174 WB1K5174 WASHER
WB1X1140 WB1X1140 WASHER
WB1K5198 WB1K5198 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
WB34K5224 WB34K5224 WIRE COVER-MIDDLE REA
49-8742 49-8742 ZET 757 BW WW USE & CARE
