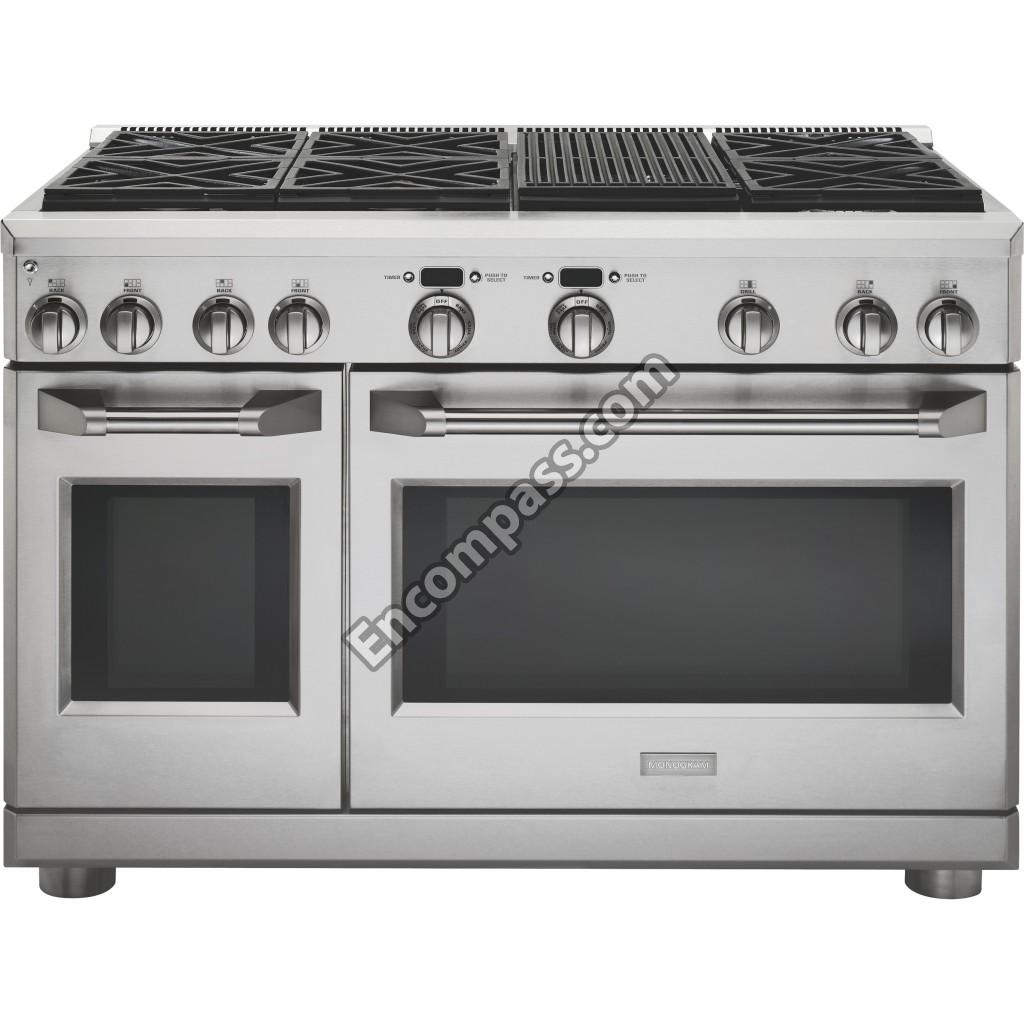

Model Image
Manufacturer

GE

Model Number

ZGP486LRR2SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB07K10447 WB07K10447 GE ACCESS PANEL
WB02K10228 WB02K10228 GE ADAPTER FLARE FITTING
WB36K10919 WB36K10919 GE BAFFLE GRILL
WB15K10089 WB15K10089 GE BAR HANDLE 12-INCH
WB15K10090 WB15K10090 GE BAR HANDLE 27-INCH
WB02T10299 WB02T10299 GE BASE CERAMIC G6.35 450C
WB02K10217 WB02K10217 GE BEZEL BUSHING
WB07K10299 WB07K10299 GE BEZEL KNOB
WB26K10013 WB26K10013 GE BLOWER TANGENTIAL 45MM
WB26K10012 WB26K10012 GE BLOWER TANGENTIAL 45MM
WB01K0005 WB01K0005 GE BOTTOM OVEN SCREW
WB02K10258 WB02K10258 GE BRACKET ASSEMBLY ANTI-TIP
WB02T10194 WB02T10194 GE BRACKET CAPACITOR
WB02K10213 WB02K10213 GE BRACKET CONTROL
WB02K10300 WB02K10300 GE BRACKET GLOWBAR
WB02K10299 WB02K10299 GE BRACKET GLOWBAR
WB02K10273 WB02K10273 GE BRACKET LATCH
WB02K10296 WB02K10296 GE BRACKET POWER SUPPLY
WB28K10644 WB28K10644 GE BURNER BAKE ASSEMBLY
WB28K10654 WB28K10654 GE BURNER BROIL
WB28K10653 WB28K10653 GE BURNER BROIL
WB28X33791 WB28X33791 GE BURNER GRIDDLE
WB16X26480 WB16X26480 GE BURNER HEAD ASSEMBLY (18K)
WB28K10505 WB28K10505 GE BURNER IR
WB02K10203 WB02K10203 GE BUSHING WIRE
WB29X43469 WB29X43469 GE CAP BURNER
WR02X12344 WR02X12344 GE CAP END
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB02T10111 WB02T10111 GE CLEANER-SS
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K0038 WB02K0038 GE CLIP WIRE
WB02K10307 WB02K10307 GE CLIP WIRE
WB02K10267 WB02K10267 GE CLIP WIRE
WB27K10304 WB27K10304 GE CONTROL DISPLAY MODULE
WB36K10980 WB36K10980 GE CONTROL PANEL AND RAIL ASSEMBLY
WB07K10432 WB07K10432 GE COVER
WB02T10300 WB02T10300 GE COVER BASE
WB02K10200 WB02K10200 GE COVER FAN 12-INCH
WB25T10063 WB25T10063 GE CRYSTAL LAMP
WB34K14 WB34K14 GE CVR IGNITOR
WB02K10305 WB02K10305 GE ELBOW BAKE ORIFICE
WB02K10304 WB02K10304 GE ELBOW BAKE ORIFICE
WB02K10306 WB02K10306 GE ELBOW ORIFICE BROIL
WB24K10081 WB24K10081 GE ENCODER ASSEMBLY
WB02K10364 WB02K10364 GE FOOT GRATE
WB02K10365 WB02K10365 GE FOOT GRATE GRILL
WB31K10253 WB31K10253 GE FRAME GRATE ASSEMBLY
WB07K10419 WB07K10419 GE FRAME GRILL GRATE ASSEMBLY
WB31K10226 WB31K10226 GE FRAME MESH ASM
WB35K10131 WB35K10131 GE FT INSUL DOOR BTM 27-INCH
WB35K10129 WB35K10129 GE FT INSUL DOOR SIDE
WB35K10135 WB35K10135 GE FT INSUL DOOR TOP 12-INCH
WB35K10130 WB35K10130 GE FT INSUL DOOR TOP 27-INCH
WB28K10639 WB28K10639 GE GAS RANGE NG CONVERSION KIT
WB57K10134 WB57K10134 GE GLASS DISPLAY
WB57K10151 WB57K10151 GE GLASS DOOR
WB57K10138 WB57K10138 GE GLASS DOOR
WB57K10137 WB57K10137 GE GLASS DOOR
WB57K10136 WB57K10136 GE GLASS DOOR 12-INCH
WB57K10135 WB57K10135 GE GLASS DOOR 27-INCH
WB31K10252 WB31K10252 GE GRATE
WB32K10040 WB32K10040 GE GRATE GRILL
WB49K10020 WB49K10020 GE GRID PAN BROIL
WB49K10041 WB49K10041 GE GRILL BODY WELD
WB1K10 WB1K10 GE GROM HNDLE
WB01K0010 WB01K0010 GE GROMMET HANDLE
WB55K10059 WB55K10059 GE GUARD INSULATION
WB55K10058 WB55K10058 GE GUARD INSULATION
WB02K10197 WB02K10197 GE GUIDE OVEN RACK
WB24K10089 WB24K10089 GE HARNESS BURNER BOX
WB18K10047 WB18K10047 GE HARNESS HV
WB24K10064 WB24K10064 GE HARNESS SERIAL DUAL
WB02K10260 WB02K10260 GE HEAT DEFLECTOR
WB02K10261 WB02K10261 GE HEAT DEFLECTOR 12-INCH
WB10K10014 WB10K10014 GE HINGE DOOR LEFT(12)
WB10K10016 WB10K10016 GE HINGE DOOR LEFT(48)
WB10K10013 WB10K10013 GE HINGE DOOR RT(12)
WB10K10015 WB10K10015 GE HINGE DOOR RT(48)
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
WB34K0014 WB34K0014 GE IGNITER COVER
WB13X25261 WB13X25261 GE IGNITER GLOWBAR
WB13K10030 WB13K10030 GE IGNITER GLOWBAR
WB28T10114 WB28T10114 GE INJET BURNER 18K
WB35K10128 WB35K10128 GE INSULATION
WB35K10191 WB35K10191 GE INSULATION TOP
WB03K10257 WB03K10257 GE KNOB ASSEMBLY GRILL
WB25T10064 WB25T10064 GE LAMP HALOGEN 20W
WB08K10016 WB08K10016 GE LAMP HALOGEN ASSEMBLY
WB25K10012 WB25K10012 GE LED ASSEMBLY
WB25K10014 WB25K10014 GE LED BOARD
WB25K10013 WB25K10013 GE LED POWER SUPPLY
WB02K10216 WB02K10216 GE LENS BEZEL
WB55K10060 WB55K10060 GE LINER OVEN DOOR ASSEMBLY 12
WB55K10061 WB55K10061 GE LINER OVEN DOOR ASSEMBLY 27
WB02T10303 WB02T10303 GE LUBRICANT CLEANER
WB13K10031 WB13K10031 GE MODULE SPARK 6+0
WB02K10295 WB02K10295 GE MONOGRAM BADGE
WB02K10301 WB02K10301 GE NIPPLE
WB02T10017 WB02T10017 GE NUT
WB28T10155 WB28T10155 GE ORIFICE SPUD (NG MAIN)
WB28T10159 WB28T10159 GE ORIFICE SPUD (NG SIMMER)
WB28K10663 WB28K10663 GE ORIFICE SPUD BROIL
WB28K10659 WB28K10659 GE ORIFICE SPUD BROIL
WB28K10657 WB28K10657 GE ORIFICE SPUD BROIL
WB28K10656 WB28K10656 GE ORIFICE SPUD BROIL
WB28T10117 WB28T10117 GE ORIFICE SPUD LP MAIN
WB28T10118 WB28T10118 GE ORIFICE SPUD SIMMER LP
WB35K10198 WB35K10198 GE OVEN BOTTOM
WB35K10196 WB35K10196 GE OVEN BOTTOM
WB48K10024 WB48K10024 GE OVEN RACK
WB53K10038 WB53K10038 GE OVEN TOP
WB53K10037 WB53K10037 GE OVEN TOP
WB48K10021 WB48K10021 GE PAN BROIL
WB49K10018 WB49K10018 GE PAN BROILER
WB49K10021 WB49K10021 GE PAN UNIT
WB49K10016 WB49K10016 GE PAN UNIT
WB07K10303 WB07K10303 GE PANEL ACCESS BACK
WB56K10075 WB56K10075 GE PANEL DOOR ASSEMBLY 12-INCH
WB56K10076 WB56K10076 GE PANEL DOOR ASSEMBLY 27-INCH
WB63K10266 WB63K10266 GE PANEL SIDE
WB63K10265 WB63K10265 GE PANEL SIDE
WB28K10526 WB28K10526 GE PIPE MANIFOLD ASSEMBLY LF
WB28K10527 WB28K10527 GE PIPE MANIFOLD ASSEMBLY RT
WB28K10658 WB28K10658 GE PIPE SUPPLY ASSEMBLY
WB02T10310 WB02T10310 GE PLATE CONVECTION
31-10695 31-10695 GE PM ATTENTION INSTALLER
31-10694 31-10694 GE PM INSTALL ANTI-TIP BRKT
31-10766 31-10766 GE PM INSTALL INSTRUCTIONS
31-10755 31-10755 GE PM INSTALL INSTRUCTIONS
31-10698 31-10698 GE PM INSTALL INSTRUCTIONS
31-14931 31-14931 GE PM MINI MANUAL 48
49-85180 49-85180 GE PM OWNERS MANUAL
WB20K10032 WB20K10032 GE PROBE RECEPTACLE
WB20K10030 WB20K10030 GE PROBE THERMISTOR
WB49K10017 WB49K10017 GE RACK BROILER PAN
WB48K10020 WB48K10020 GE RACK CONVECTION ROAST
WB48X33814 WB48X33814 GE RACK OVEN SLIDE ASSEMBLY
WB48X33813 WB48X33813 GE RACK OVEN SLIDE ASSEMBLY
WB02K10237 WB02K10237 GE RANGE ANTI-TIP BRACKET
WB02K10224 WB02K10224 GE RANGE ANTI-TIP BRACKET
WB16T10047 WB16T10047 GE RANGE BURNER BASE
WB02K10211 WB02K10211 GE RANGE CONTROL PANEL BRACKET
WB26T10037 WB26T10037 GE RANGE CONVECTION MOTOR
WB02T10293 WB02T10293 GE RANGE CONVEX METER MOUNTING BRACKET
WB02K10221 WB02K10221 GE RANGE DOOR GASKET
WB02K10220 WB02K10220 GE RANGE DOOR GASKET
WB02K10195 WB02K10195 GE RANGE DOOR GASKETT
WB04K10028 WB04K10028 GE RANGE DOOR PAD
WB13T10065 WB13T10065 GE RANGE ELECTRODE
WB02K10219 WB02K10219 GE RANGE END CAP EXTENSION
WB02K10199 WB02K10199 GE RANGE FAN COVER 27-INCH
WB04K10032 WB04K10032 GE RANGE FRAME GASKET
WB04K10031 WB04K10031 GE RANGE FRAME GASKET
WB02K10194 WB02K10194 GE RANGE FRAME GASKET
WB02K10218 WB02K10218 GE RANGE GLASS BRACKET
WB02T10297 WB02T10297 GE RANGE GLASS RETAINER CLIP
WB02K10222 WB02K10222 GE RANGE GLASS WINDOW CLIP
WB15K10088 WB15K10088 GE RANGE HANDLE COVER
WB01K10020 WB01K10020 GE RANGE HANDLE SPACER
WB13X25264 WB13X25264 GE RANGE IGNITER GLOWBAR
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB02K10192 WB02K10192 GE RANGE INJECTION BRACKET
WB03K10359 WB03K10359 GE RANGE KNOB - STAINLESS STEEL
WB02K10214 WB02K10214 GE RANGE LED BRACKET
WB02K10193 WB02K10193 GE RANGE LEG
WB02T10298 WB02T10298 GE RANGE LIGHT REFLECTOR
WB03K10307 WB03K10307 GE RANGE OVEN BEZEL
WB03K10259 WB03K10259 GE RANGE OVEN KNOB - STAINLESS STEEL
WB02K10206 WB02K10206 GE RANGE OVEN LATCH
WB02K10227 WB02K10227 GE RANGE OVEN NIPPLE
WB02K10196 WB02K10196 GE RANGE OVEN RACK GUIDE
WB02T10034 WB02T10034 GE RANGE PANEL SIDE SUPORT
WB18K10070 WB18K10070 GE RANGE POWER CORD
WB02K10225 WB02K10225 GE RANGE TOE KICK CLIP
WB10X30495 WB10X30495 GE RECEIVER HINGE
WB27K10367 WB27K10367 GE REED SWITCH PCB
WB34K10131 WB34K10131 GE REFLECTOR ASSEMBLY
WB21K10135 WB21K10135 GE REGULATOR
WB21K10156 WB21K10156 GE REGULATOR OVEN
WB19K10065 WB19K10065 GE RELAY BOARD ASSEMBLY
WB19K10064 WB19K10064 GE RELAY BOARD ASSEMBLY
WB2X2030 WB2X2030 GE RETAINER
WB02K10259 WB02K10259 GE ROD EXTENSION
WB35K10137 WB35K10137 GE RR INSUL DOOR BTM 12-INCH
WB35K10136 WB35K10136 GE RR INSUL DOOR BTM 12-INCH
WB35K10134 WB35K10134 GE RR INSUL DOOR BTM 27-INCH
WB35K10132 WB35K10132 GE RR INSUL DOOR SIDE
WB35K10138 WB35K10138 GE RR INSUL DOOR TOP 12-INCH
WB35K10133 WB35K10133 GE RR INSUL DOOR TOP 27-INCH
WB21K10152 WB21K10152 GE SAFETY VALVE ASSEMBLY
WR01X10590 WR01X10590 GE SCR 10-16 AB PNT20 1/2 S
WB01T10115 WB01T10115 GE SCR 8-18 AB HW 1/2 S
WB01K10042 WB01K10042 GE SCR 8-18 AB IHW 3/8 SN
WB01K0084 WB01K0084 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1K84 WB1K84 GE SCREW & WASH
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01K10088 WB01K10088 GE SCREW 1/4-20 TT HXWS 3/4 S
WB01T10009 WB01T10009 GE SCREW 10-16 SHLDR TYPE A
WB01K10089 WB01K10089 GE SCREW 10-32 TR T 7/8 S
WB01K10100 WB01K10100 GE SCREW 10-32 TRP 1/2
WB01K10067 WB01K10067 GE SCREW 8 HD 1/4-20
WB01T10016 WB01T10016 GE SCREW 8-18 AB HXW 5/8 S
WB01K10086 WB01K10086 GE SCREW 8-18 AB TRPO 3/8 SS
WB1K5 WB1K5 GE SCREW 8-18 X 1/2 -INCH
WB01K10002 WB01K10002 GE SCREW 8-32
WB01K10029 WB01K10029 GE SCREW 8-32 1/8
WB01T10104 WB01T10104 GE SCREW 8-32 MCH PNT15
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB01T10092 WB01T10092 GE SCREW SIMMER MAIN HD
WB21T10019 WB21T10019 GE SENSOR ASSEMBLY
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WR02X11754 WR02X11754 GE SET SCREW
WB34K10110 WB34K10110 GE SPACER WINDOW
WB34K10109 WB34K10109 GE SPACER WINDOW
WB01K0002 WB01K0002 GE SPEEDNUT
WB1K2 WB1K2 GE SPEEDNUT
WB09T10011 WB09T10011 GE SPRING IGNITER
WB28K10832 WB28K10832 GE SPUD BAKE ORIFICE
WB28K10660 WB28K10660 GE SPUD BAKE ORIFICE
WB28K10655 WB28K10655 GE SPUD ORIFICE
WB28K10531 WB28K10531 GE SPUD ORIFICE GRIDDLE
WB28K10532 WB28K10532 GE SPUD ORIFICE GRILL
WB07K10380 WB07K10380 GE SUPPORT OUTER GLASS LF
WB07K10379 WB07K10379 GE SUPPORT OUTER GLASS RT
WB21K10139 WB21K10139 GE SWITCH LED
WB21K10134 WB21K10134 GE SWITCH VALVE ASSEMBLY
WB28K10661 WB28K10661 GE TEE CONNECTOR
WB28K10525 WB28K10525 GE TEE SWAGED ASSEMBLY
WB07K10449 WB07K10449 GE TOE KICK BOTTOM
WB07K10448 WB07K10448 GE TOE KICK TOP
WB27K10298 WB27K10298 GE TRANSFORMER
WB07K10455 WB07K10455 GE TRIM VENT ASSEMBLY
WB49K10038 WB49K10038 GE TROUGH GREASE ASSEMBLY
WB28K10524 WB28K10524 GE TUBE AND NUT ASSEMBLY
WB28K10523 WB28K10523 GE TUBE AND NUT ASSEMBLY
WB28K10522 WB28K10522 GE TUBE AND NUT ASSEMBLY
WB28K10521 WB28K10521 GE TUBE AND NUT ASSEMBLY
WB28K10520 WB28K10520 GE TUBE AND NUT ASSEMBLY
WB28K10519 WB28K10519 GE TUBE AND NUT ASSEMBLY
WB28K10518 WB28K10518 GE TUBE AND NUT ASSEMBLY
WB28K10517 WB28K10517 GE TUBE AND NUT ASSEMBLY
WB28K10498 WB28K10498 GE TUBE AND NUT ASSEMBLY
WB28K10497 WB28K10497 GE TUBE AND NUT ASSEMBLY
WB28K10494 WB28K10494 GE TUBE AND NUT ASSEMBLY
WB28K10493 WB28K10493 GE TUBE AND NUT ASSEMBLY
WB28K10647 WB28K10647 GE TUBE BAKE SUPPLY
WB28K10649 WB28K10649 GE TUBE BAKE SUPPLY ASSEMBLY
WB28K10646 WB28K10646 GE TUBE BROIL SUPPLY ASSEMBLY
WB28K10645 WB28K10645 GE TUBE BROIL SUPPLY ASSEMBLY
WB28K10648 WB28K10648 GE TUBE COOKTOP SUPPLY ASSEMBLY
WB28K10528 WB28K10528 GE TUBE GRILL AND NUT ASSEMBLY
WB28K10650 WB28K10650 GE TUBE LOCKOUT VALVE ASSEMBLY
WB28K10672 WB28K10672 GE TUBE VALVE SUPPLY ASSEMBLY
WB28K10651 WB28K10651 GE TUBE VALVE SUPPLY ASSEMBLY
WB21K10151 WB21K10151 GE VALVE DUAL
WB21K10154 WB21K10154 GE VALVE LOCKOUT MOTORIZED
WB19K10037 WB19K10037 GE VALVE SAFETY
WB19K10038 WB19K10038 GE VALVE SHUT OFF
WB02T10323 WB02T10323 GE WASHER IGNITER
WB02K10265 WB02K10265 GE WRENCH
Main Menu x
