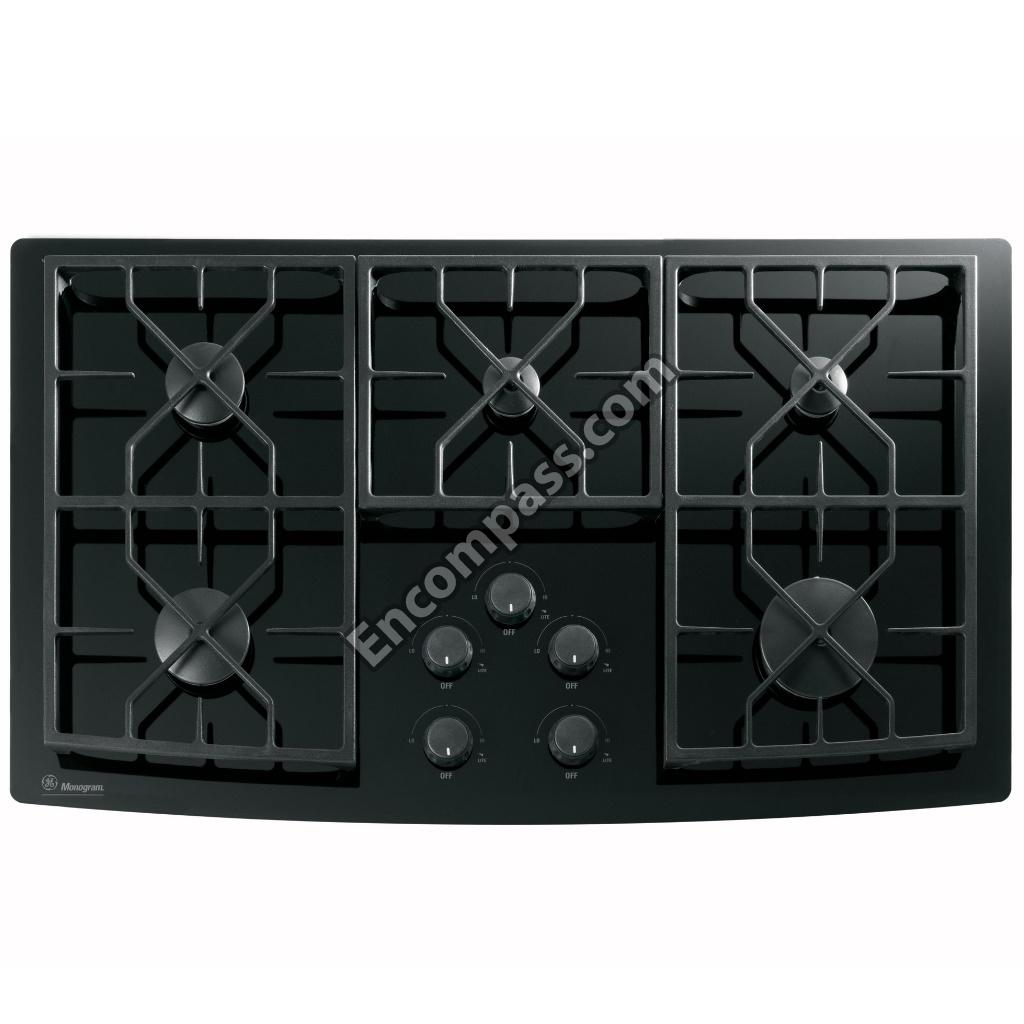

Model Image
Manufacturer

GE

Model Number

ZGU36KSK3SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB16T10033 WB16T10033 BASE BURNER ASSEMBLY 12K
WB16T10030 WB16T10030 BASE BURNER MED
WB16T10032 WB16T10032 BASE BURNER RT FRT
WB64T10048 WB64T10048 BOTTOM BURN BOX
WB2K5328 WB2K5328 BRKT HOLD DN
WB16T10031 WB16T10031 BURNER BASE SMALL
WB02T10098 WB02T10098 BURNER BRACKET SUPPORT
WB04T10014 WB04T10014 BURNER GASKET D
WB04T10012 WB04T10012 BURNER GASKET LEFT RR
WB16T10011 WB16T10011 BURNER GASKET RTR CENT
WB02T10095 WB02T10095 BURNER GROMMET-LGE
WB02T10096 WB02T10096 BURNER GROMMET-SM
WB28K10141 WB28K10141 BURNER HOLDER BKT SMALL
WB28T10092 WB28T10092 BURNER INJET ASSEMBLY
WB28T10031 WB28T10031 BURNER INJET LEFT FRT
WB02T10100 WB02T10100 BURNER SUPPORT BRACKET
WB13T10061 WB13T10061 CAP BURNER B (BLACK)
WB13T10062 WB13T10062 CAP BURNER C (BLACK)
WB13T10063 WB13T10063 CAP BURNER D (BLACK)
WB13T10060 WB13T10060 CAP BURNER H (BLACK)
WB6X93 WB6X93 CLAMP
WB04T10015 WB04T10015 CONTROL SEAL
WB28T10229 WB28T10229 CONVERSION (BUTANE) KIT
WB08T10015 WB08T10015 COOKTOP POWER CORD
WB04T10011 WB04T10011 GAS RANGE BURNER GASKET
WB64X0093 WB64X0093 GLASS CLEANER
WB31T10097 WB31T10097 GRATE ASSEMBLY
WB31T10098 WB31T10098 GRATE ASSEMBLY
WB31T10099 WB31T10099 GRATE ASSEMBLY
WB18X25698 WB18X25698 HARNESS WIRE BURNER
WB16T10035 WB16T10035 HEAD BURNER B
WB16T10036 WB16T10036 HEAD BURNER C
WB16T10037 WB16T10037 HEAD BURNER D
WB16T10034 WB16T10034 HEAD BURNER H
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB13T10073 WB13T10073 IGNITER
31-10713 31-10713 INSTRUCTION INSTALL
WB35T10069 WB35T10069 INSULATION

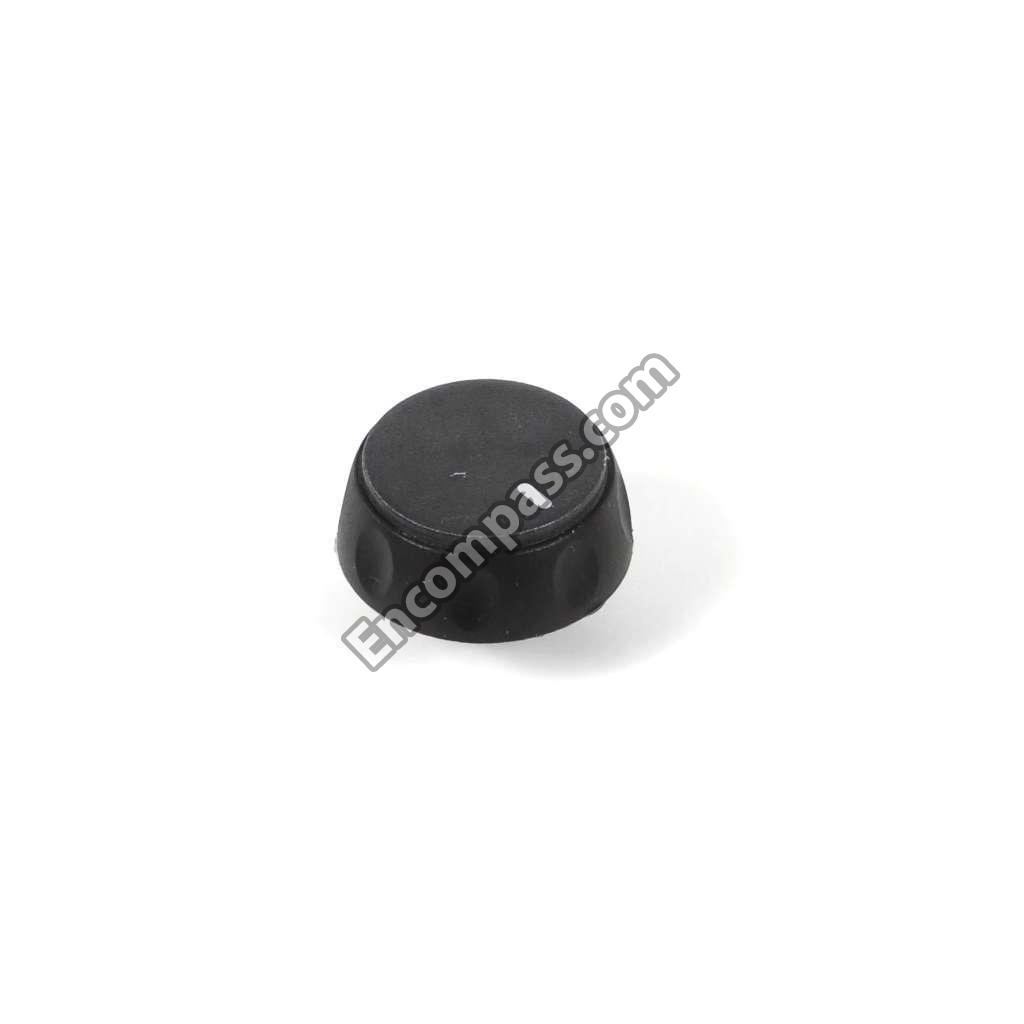

WB03T10291 WB03T10291 KNOB SCALLOPED (BLACK)
WB62T10362 WB62T10362 MAINTOP GAS ASSEMBLY (STAINLESS STEEL)
49-80359 49-80359 MANUAL USE & CARE

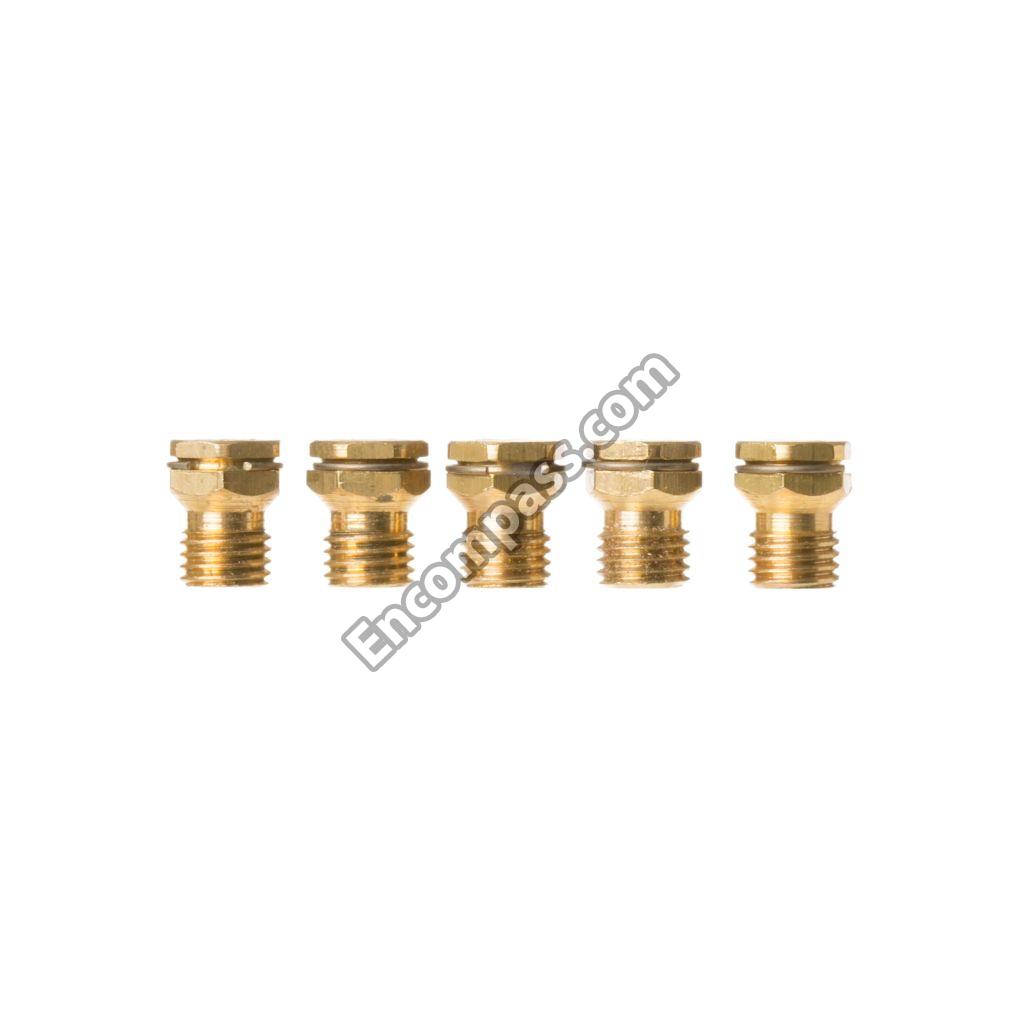

WB28T10014 WB28T10014 NG ORIFICE SPUD
WB28K10143 WB28K10143 ORIFICE HOLDER BKT LARGE
WB28K10288 WB28K10288 ORIFICE SPUD
WB28T10028 WB28T10028 ORIFICE SPUD ASSEMBLY
WB28T10017 WB28T10017 ORIFICE SPUD ASSEMBLY-LP
WB28T10015 WB28T10015 ORIFICE SPUD ASSEMBLY-NAT
WB28K10086 WB28K10086 ORIFICE SPUD LP 1 06MM
WB28T10151 WB28T10151 ORIFICE SPUD LP LR
WB28T10027 WB28T10027 ORIFICE SPUD RT FR-NG
WB28T10033 WB28T10033 ORIFICE SPUD RT FRT -LP
WB28T10072 WB28T10072 PIPE MANIFOLD
31-10834 31-10834 PM INSTALL INSTRUCTIONS
31-15011 31-15011 PM MINI MANUAL
WB02T10461 WB02T10461 RANGE GRATE FOOT
WB02T10102 WB02T10102 RANGE MAINTOP SUPPORT
WB02T10104 WB02T10104 RANGE MAINTOP SUPPORT - SMALL
WB13X32509 WB13X32509 RANGE SPARK IGNITER GENERATOR MODULE
WB18T10338 WB18T10338 RANGE SPARK IGNITION SWITCH AND HARNESS
WB02T10099 WB02T10099 RANGE SUPPORT BRACKET
WB19T10078 WB19T10078 REGULATOR CONVERT PRESS
WB02T10304 WB02T10304 RING CLIP
WB01M0014 WB01M0014 SCREW
WB01K5028 WB01K5028 SCREW
WB1M14 WB1M14 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10049 WB01T10049 SCREW 6-32 MCH
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB04T10023 WB04T10023 SEAL MANIFOLD
WB34T10103 WB34T10103 SHIELD BURN BOX BTM
WB09T10010 WB09T10010 SPRING
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB28T10068 WB28T10068 TUBE BURNER CTR
WB28T10060 WB28T10060 TUBE BURNER LEFT FRT
WB28T10061 WB28T10061 TUBE BURNER LEFT RR
WB28T10058 WB28T10058 TUBE BURNER RT FRT
WB28T10059 WB28T10059 TUBE BURNER RT RR
WB06X0093 WB06X0093 VALVE CLAMP
WB19T10097 WB19T10097 VALVE GAS 270
WB19T10096 WB19T10096 VALVE GAS 270 CENTER
WB21X22045 WB21X22045 VALVE GAS LEFT FRT
WB21X22022 WB21X22022 VALVE GAS LEFT RR
WB19T10029 WB19T10029 VALVE GAS RT FRT
