Model Image
Manufacturer

GE

Model Number

ZGU385NSM3SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB28T10165 WB28T10165 "PIPE MANIFOLD ASM 36"""
WB16T10044 WB16T10044 BASE BURNER
WB16T10047 WB16T10047 BASE BURNER 18K-SIMMER
WB02T10312 WB02T10312 BRACKET BURNER SUPPORT
WB02T10314 WB02T10314 BRACKET BURNER SUPT LT
WB02T10313 WB02T10313 BRACKET BURNER SUPT RT
WB02T10325 WB02T10325 BRACKET LIGHT
WB2K5328 WB2K5328 BRKT HOLD DN
WB16X26480 WB16X26480 BURNER HEAD ASM (18K)
WB29T10131 WB29T10131 CAP BURNER
WB29X43469 WB29X43469 CAP BURNER
WB18X24410 WB18X24410 CORD RANGE
WB02T10316 WB02T10316 COVER ACCESS
WB02T10326 WB02T10326 COVER LIGHT
WB02T10317 WB02T10317 COVER SPARK MODULE
WB04T10063 WB04T10063 GASKET BURNER BOX
WB31T10130 WB31T10130 GRATE ASM CENTER
WB31T10129 WB31T10129 GRATE ASM LT
WB31T10128 WB31T10128 GRATE ASM RT
WB02T10461 WB02T10461 GRATE FOOT
WB02T10315 WB02T10315 GROMMET STRAIN RELIEF

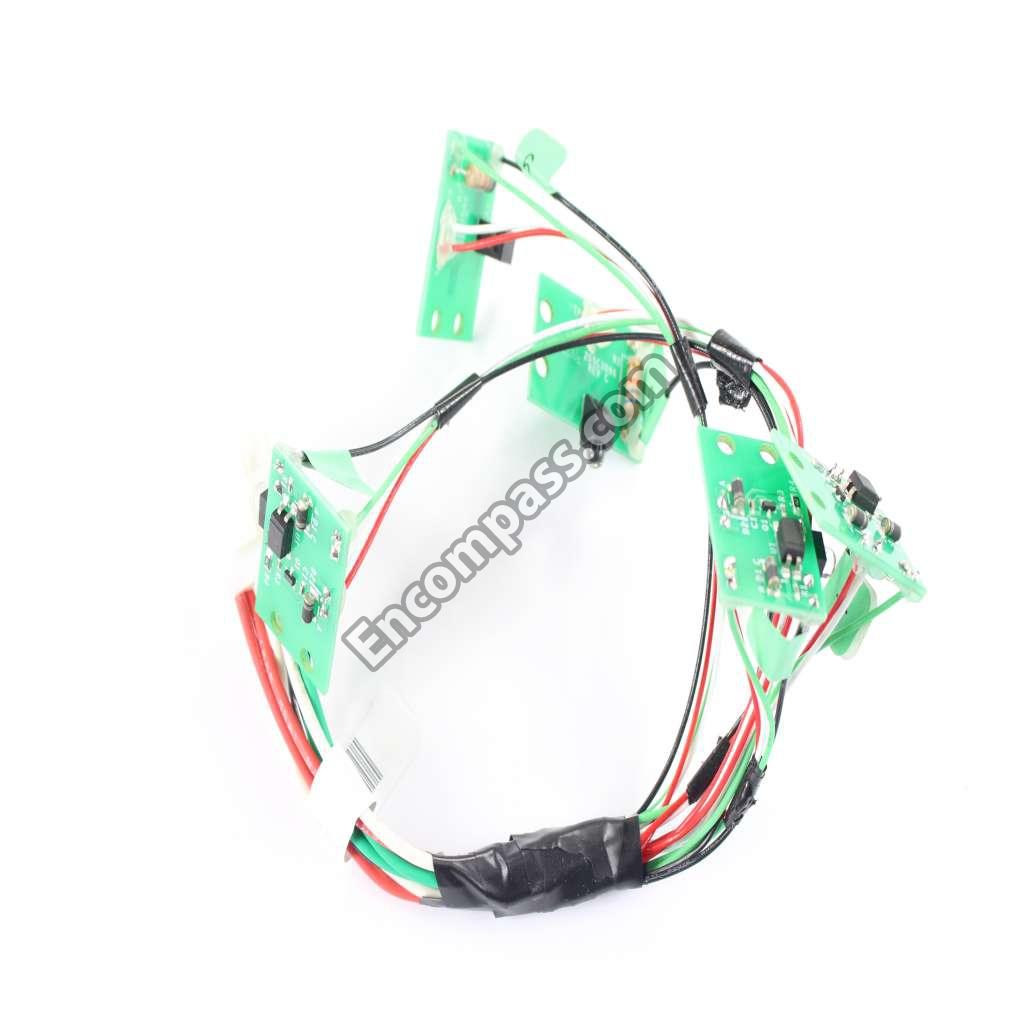

WB18T10411 WB18T10411 HARNESS W/LED ASM
WB18X23942 WB18X23942 HARNESS WIRE SWITCH
WB16T10042 WB16T10042 HEAD BURNER ASM 12K
WB28T10163 WB28T10163 HI ALT SIM ORIFICE NG
WB28T10185 WB28T10185 HIGH ALT COVERSION KIT
WB28T10162 WB28T10162 HIGH ALT ORIFICE LP MAIN
WB28T10147 WB28T10147 HIGH ALT ORIFICE LP MAIN
WB28T10148 WB28T10148 HIGH ALT ORIFICE LP SIM

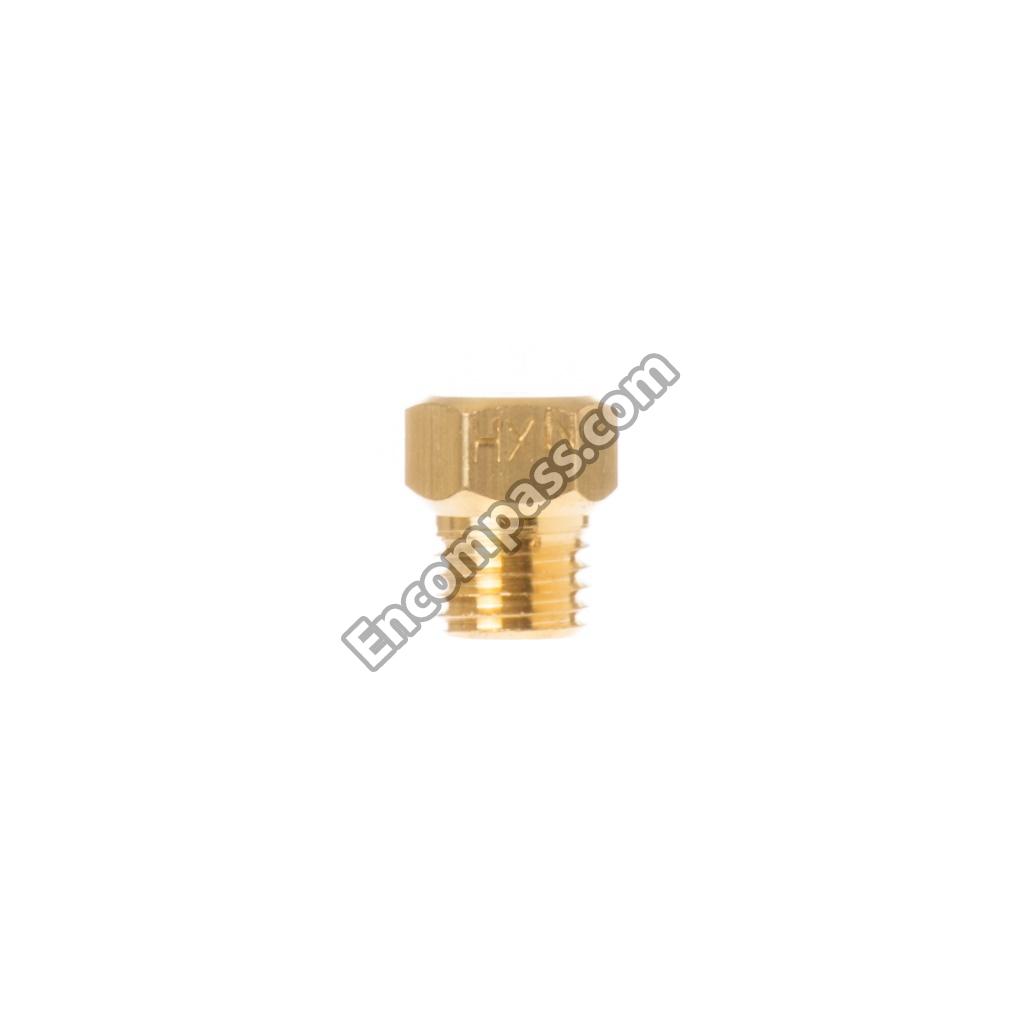

WB28T10161 WB28T10161 HIGH ALT ORIFICE NG
WB28T10160 WB28T10160 HIGH ALT ORIFICE NG
WB28T10157 WB28T10157 HIGH ALT ORIFICE NG MAIN
WB28T10164 WB28T10164 HIGH ALT SIM ORIFICE NG
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB13T10077 WB13T10077 IGNITER
WB28T10114 WB28T10114 INJET BURNER 18K
31-10650 31-10650 INSTRUCTION HIGH ALT
31-10715 31-10715 INSTRUCTION INSTALL
WB35T10154 WB35T10154 INSULATION FRONT
WB35T10139 WB35T10139 INSULATION FRT & REAR
WB35T10140 WB35T10140 INSULATION SIDE
WB35T10142 WB35T10142 INSULATION SPARK MODULE
WB35T10146 WB35T10146 INSULATION TOP
WB28T10237 WB28T10237 KIT CONVERSION (BUTANE)

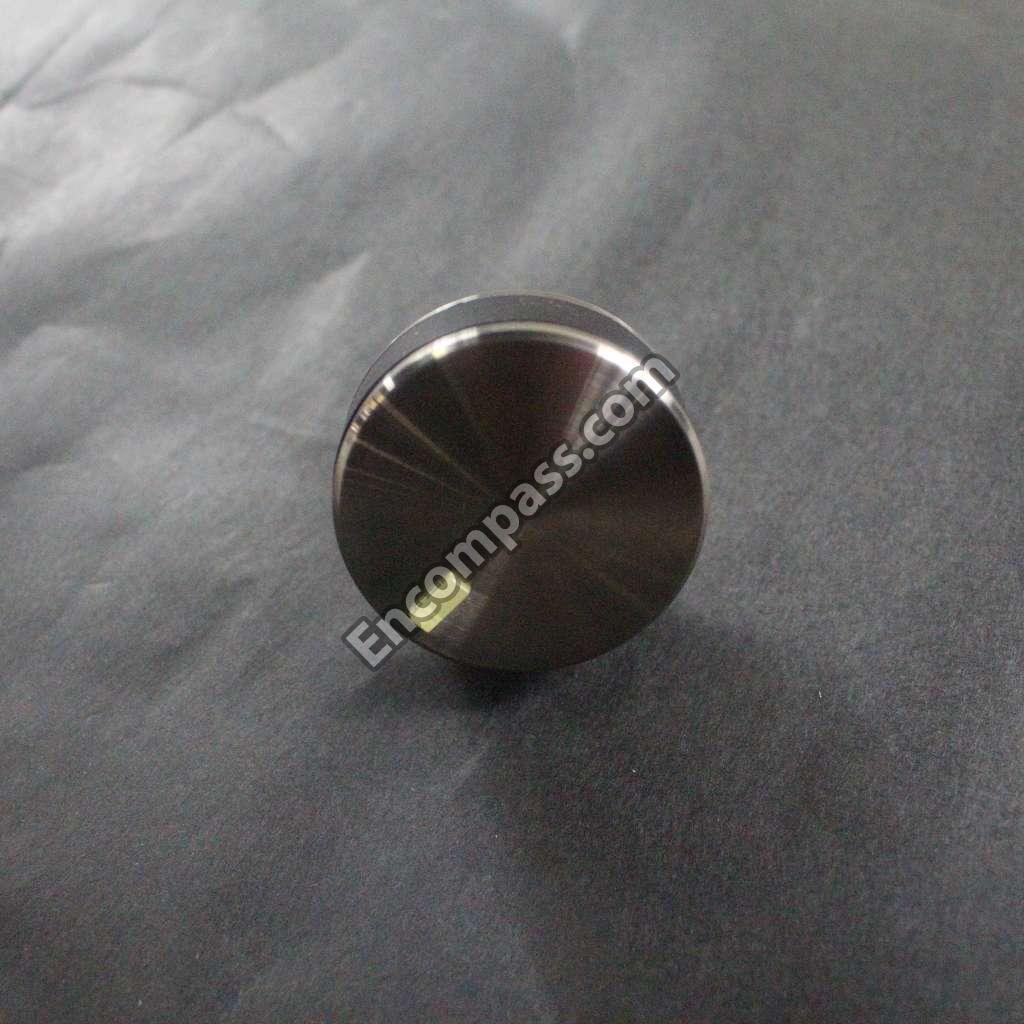

WB03X24360 WB03X24360 KNOB
229C5530P001 229C5530P001 LABEL WIRE DIAG
WB18T10431 WB18T10431 LEAD WIRE
WB18T10429 WB18T10429 LEAD WIRE
WB18T10430 WB18T10430 LEAD WIRE
WB18T10432 WB18T10432 LEAD WIRE 14 INCH
WB18T10433 WB18T10433 LEAD WIRE 26 INCH
WB62X25792 WB62X25792 MAINTOP GRAPHICS ASM 36
31-14441 31-14441 MANUAL MINI & WD ASM
WB13T10076 WB13T10076 MODULE SPARK

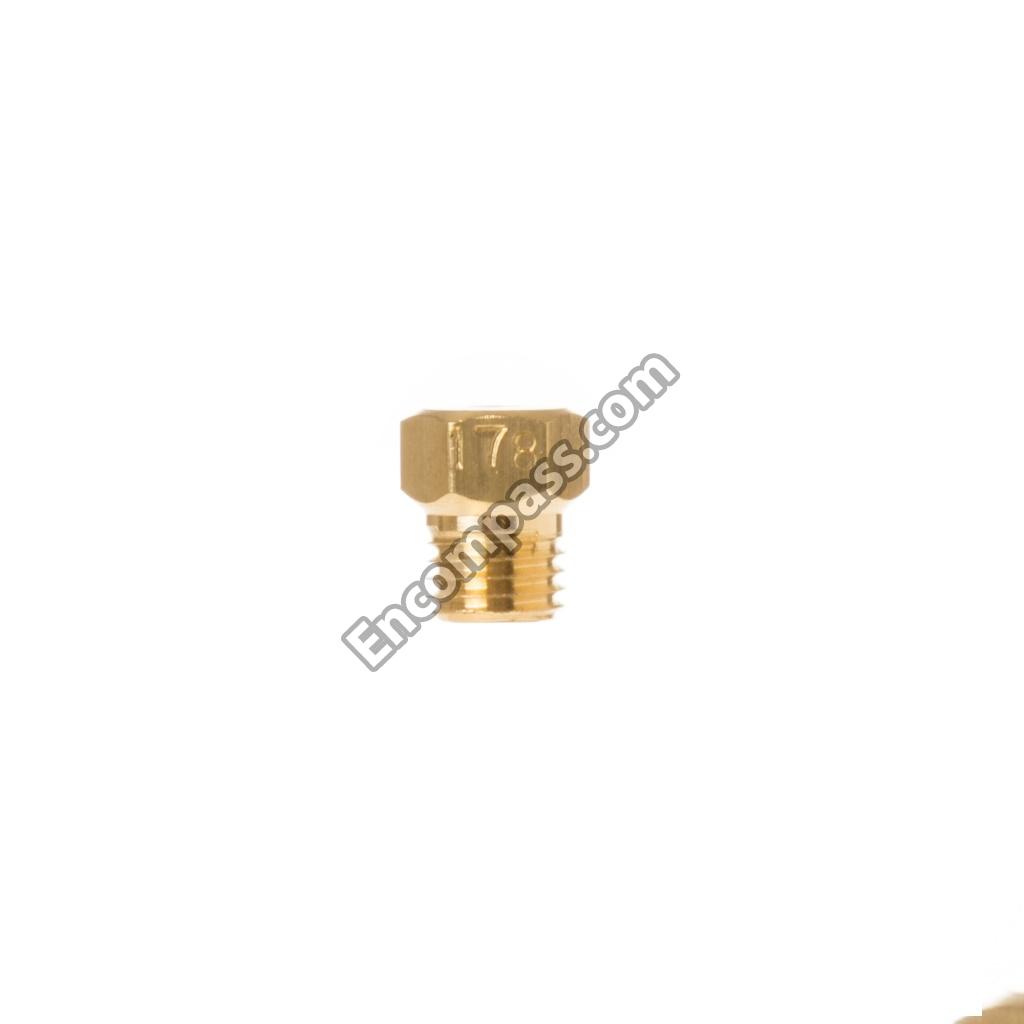

WB28T10156 WB28T10156 ORIFICE SPUD (NG MAIN)
WB28T10155 WB28T10155 ORIFICE SPUD (NG MAIN)
WB28T10159 WB28T10159 ORIFICE SPUD (NG SIMMER)
WB28T10158 WB28T10158 ORIFICE SPUD LP MAIN
WB28T10118 WB28T10118 ORIFICE SPUD LP MAIN
WB28T10117 WB28T10117 ORIFICE SPUD LP MAIN
31-10863 31-10863 PM INSTALL INSTRUCTIONS
49-80658 49-80658 PM OWNERS MANUAL
WB19T10076 WB19T10076 REGULATOR CONVERT PRESS
WB01T10116 WB01T10116 SCR 832 CA PNT15 1/2 S
WB01X1121 WB01X1121 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1127 WB01X1127 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW
WB1X681 WB1X681 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01T10092 WB01T10092 SCREW SIMMER MAIN HD
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X1121 WB1X1121 SCREW-VLVE
WB04T10064 WB04T10064 SEAL CONTROL
WB04T10065 WB04T10065 SEAL MANIFOLD
WB35T10141 WB35T10141 SHIELD BURN BOX BTM
WB09T10011 WB09T10011 SPRING IGNITER
WB02T10111 WB02T10111 STAINLESS STEEL BRIGHTENER
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE

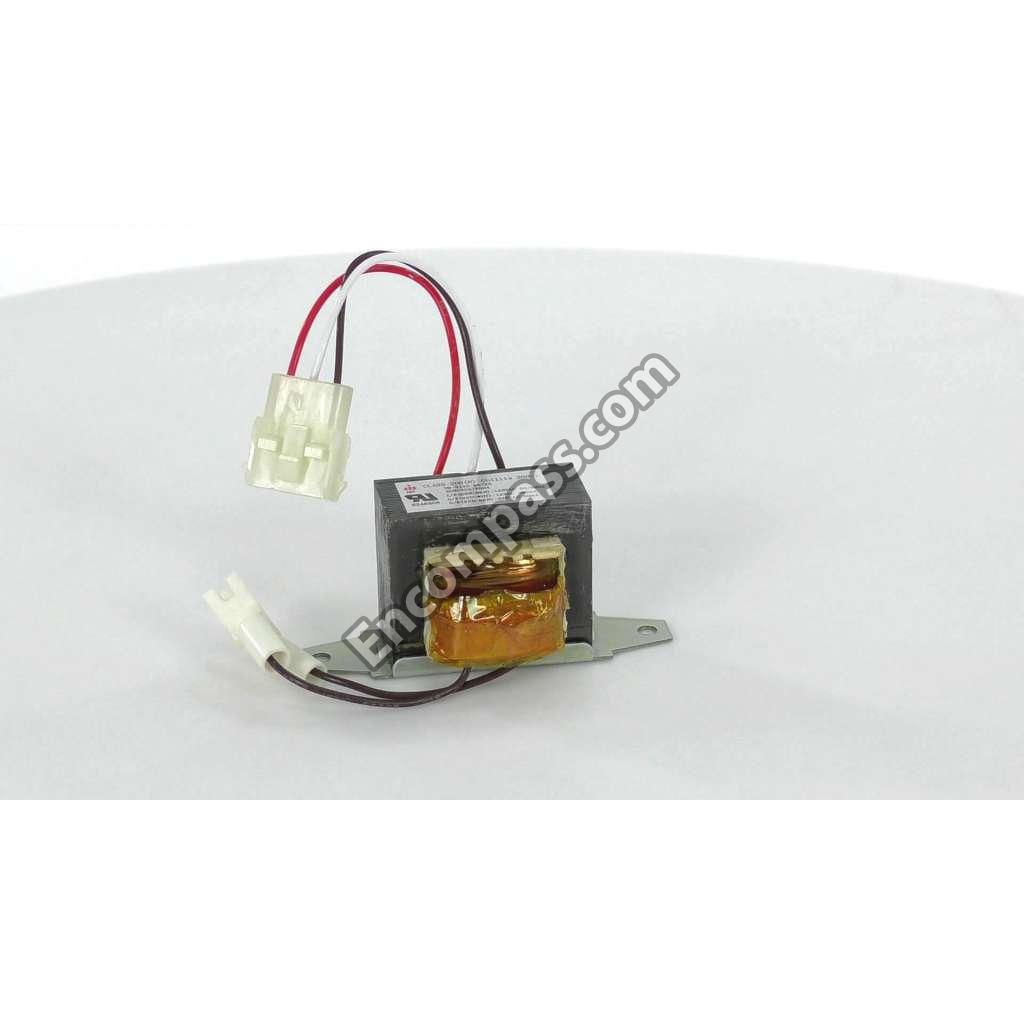

WB26X24409 WB26X24409 TRANSFORMER
WB28X23964 WB28X23964 TUBE & NUT ASM
WB28X23961 WB28X23961 TUBE & NUT ASM
WB28X23960 WB28X23960 TUBE & NUT ASM
WB28T10170 WB28T10170 TUBE & NUT ASM LF
WB28T10169 WB28T10169 TUBE & NUT ASM LR
WB28T10166 WB28T10166 TUBE & NUT ASM RF
WB28T10175 WB28T10175 TUBE & NUT ASM SIM LF
WB28T10174 WB28T10174 TUBE & NUT ASM SIM LR
WB28T10171 WB28T10171 TUBE & NUT ASM SIM RF
WB28T10172 WB28T10172 TUBE & NUT ASM SIM RR
WB19T10083 WB19T10083 VALVE GAS
WB02T10323 WB02T10323 WASHER IGNITER
WZ4X416 WZ4X416 WZ04X0408
