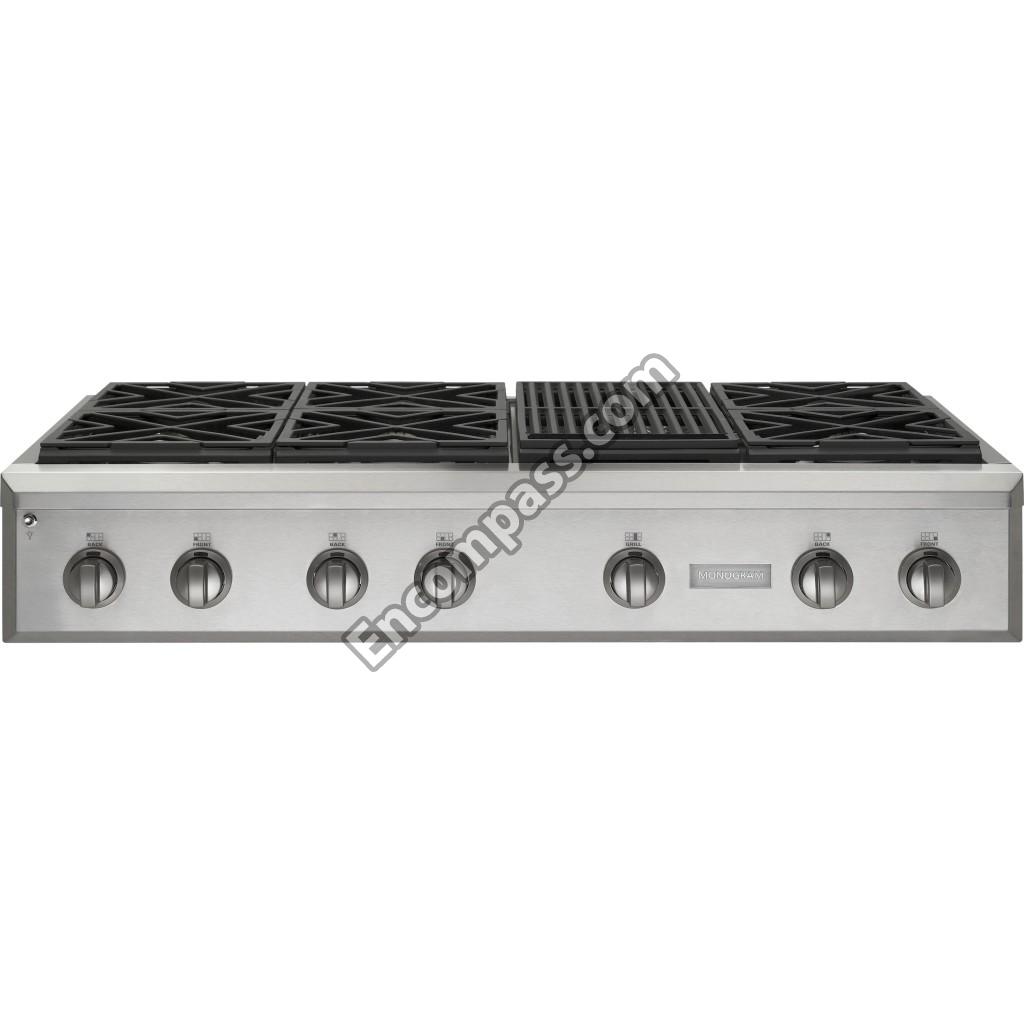

Model Image
Manufacturer

GE

Model Number

ZGU486NRP7SS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB36K10919 WB36K10919 BAFFLE GRILL
WB02K10217 WB02K10217 BEZEL BUSHING
WB07K10299 WB07K10299 BEZEL KNOB
WB02K10296 WB02K10296 BRACKET POWER SUPPLY
WB16X26480 WB16X26480 BURNER HEAD ASSEMBLY (18K)
WB28K10505 WB28K10505 BURNER IR
WB29X43469 WB29X43469 CAP BURNER
WB02T10111 WB02T10111 CLEANER-SS
WB02X7066 WB02X7066 CLIP WIRE
WB36X27621 WB36X27621 CONTROL PANEL AND RAIL ASSEMBLY
WB07K10432 WB07K10432 COVER
WB28K10730 WB28K10730 ELBOW SWAGED ASSEMBLY
WB02K10364 WB02K10364 FOOT GRATE
WB02K10365 WB02K10365 FOOT GRATE GRILL
WB31K10253 WB31K10253 FRAME GRATE ASSEMBLY
WB07K10419 WB07K10419 FRAME GRILL GRATE ASSEMBLY
WB31K10226 WB31K10226 FRAME MESH ASSEMBLY
WB31K10252 WB31K10252 GRATE
WB32K10040 WB32K10040 GRATE GRILL
WB49K10041 WB49K10041 GRILL BODY WELD
WB1K10 WB1K10 GROM HNDLE
WB01K0010 WB01K0010 GROMMET HANDLE
WB18K10085 WB18K10085 HARNESS
WB18X31493 WB18X31493 HARNESS BURNER BOX
WB18K10047 WB18K10047 HARNESS HV
WB13K10030 WB13K10030 IGNITER GLOWBAR
WB28T10114 WB28T10114 INJET BURNER 18K
WB35K10191 WB35K10191 INSULATION TOP
WB03K10257 WB03K10257 KNOB ASSEMBLY GRILL
WB25K10012 WB25K10012 LED ASSEMBLY
WB25K10014 WB25K10014 LED BOARD
WB25K10013 WB25K10013 LED POWER SUPPLY
WB02K10216 WB02K10216 LENS BEZEL
WB18K10048 WB18K10048 LINE CORD ASSEMBLY
WB28K10538 WB28K10538 LP CONVERSION KIT
WB13K10031 WB13K10031 MODULE SPARK 6+0
WB02X26123 WB02X26123 MONOGRAM BADGE
WB28T10155 WB28T10155 ORIFICE SPUD (NG MAIN)
WB28T10159 WB28T10159 ORIFICE SPUD (NG SIMMER)
WB28T10117 WB28T10117 ORIFICE SPUD LP MAIN
WB28T10118 WB28T10118 ORIFICE SPUD SIMMER LP
WB49K10021 WB49K10021 PAN UNIT
WB49K10016 WB49K10016 PAN UNIT
WB28K10533 WB28K10533 PIPE MANIFOLD ASSEMBLY
WB28K10534 WB28K10534 PIPE MANIFOLD ASSEMBLY LF
31-10697 31-10697 PM ATTENTION INSTALLER
31-10693 31-10693 PM CONVERSION STEPS
31-10691 31-10691 PM INSTRUCTIONS INSTALL
31-14752 31-14752 PM MINI MANUAL
45-85119 45-85119 PM OWNERS MANUAL
WB02X9838 WB02X9838 POWER CORD CLAMP
WB02K10271 WB02K10271 RANGE BRACKET
WB16T10047 WB16T10047 RANGE BURNER BASE
WB02K10211 WB02K10211 RANGE CONTROL PANEL BRACKET
WB13T10065 WB13T10065 RANGE ELECTRODE
WB15K10088 WB15K10088 RANGE HANDLE COVER
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10192 WB02K10192 RANGE INJECTION BRACKET
WB02K10214 WB02K10214 RANGE LED BRACKET
WB03K10359 WB03K10359 RANGE THERMOSTAT KNOB - STAINLESS STEEL
WB34K10131 WB34K10131 REFLECTOR ASSEMBLY
WB21K10137 WB21K10137 REGULATOR
WB01T10115 WB01T10115 SCR 8-18 AB HW 1/2 S
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WB01K0084 WB01K0084 SCREW
WB01K10091 WB01K10091 SCREW
WB1X1261 WB1X1261 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01K10067 WB01K10067 SCREW 8 HD 1/4-20
WB01K10086 WB01K10086 SCREW 8-18 AB TRPO 3/8 SS
WB01K10002 WB01K10002 SCREW 8-32
WB01K10029 WB01K10029 SCREW 8-32 1/8
WB01T10104 WB01T10104 SCREW 8-32 MCH PNT15
WB01X1261 WB01X1261 SCREW GROUND
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01T10092 WB01T10092 SCREW SIMMER MAIN HD
WB09T10011 WB09T10011 SPRING IGNITER
WB28K10529 WB28K10529 SPUD ORIFICE GRIDDLE
WB28K10530 WB28K10530 SPUD ORIFICE GRILL
WB21K10139 WB21K10139 SWITCH LED
WB21K10126 WB21K10126 SWITCH VALVE ASSEMBLY
WB02K10359 WB02K10359 TAPE MASTIC 4-INCH X 2-INCH
WB17X0208 WB17X0208 TERMINAL BLOCK
WB27K10298 WB27K10298 TRANSFORMER
WB07K10436 WB07K10436 TRIM BACK
WB07K10435 WB07K10435 TRIM SIDE TOP
WB07K10434 WB07K10434 TRIM SIDE TOP
WB49K10038 WB49K10038 TROUGH GREASE ASSEMBLY
WB28K10512 WB28K10512 TUBE AND NUT ASSEMBLY
WB28K10511 WB28K10511 TUBE AND NUT ASSEMBLY
WB28K10510 WB28K10510 TUBE AND NUT ASSEMBLY
WB28K10509 WB28K10509 TUBE AND NUT ASSEMBLY
WB28K10514 WB28K10514 TUBE GRILL AND NUT ASSEMBLY
WB21K10162 WB21K10162 VALVE DUAL
WB19K10033 WB19K10033 VALVE SAFETY
WB02T10323 WB02T10323 WASHER IGNITER
