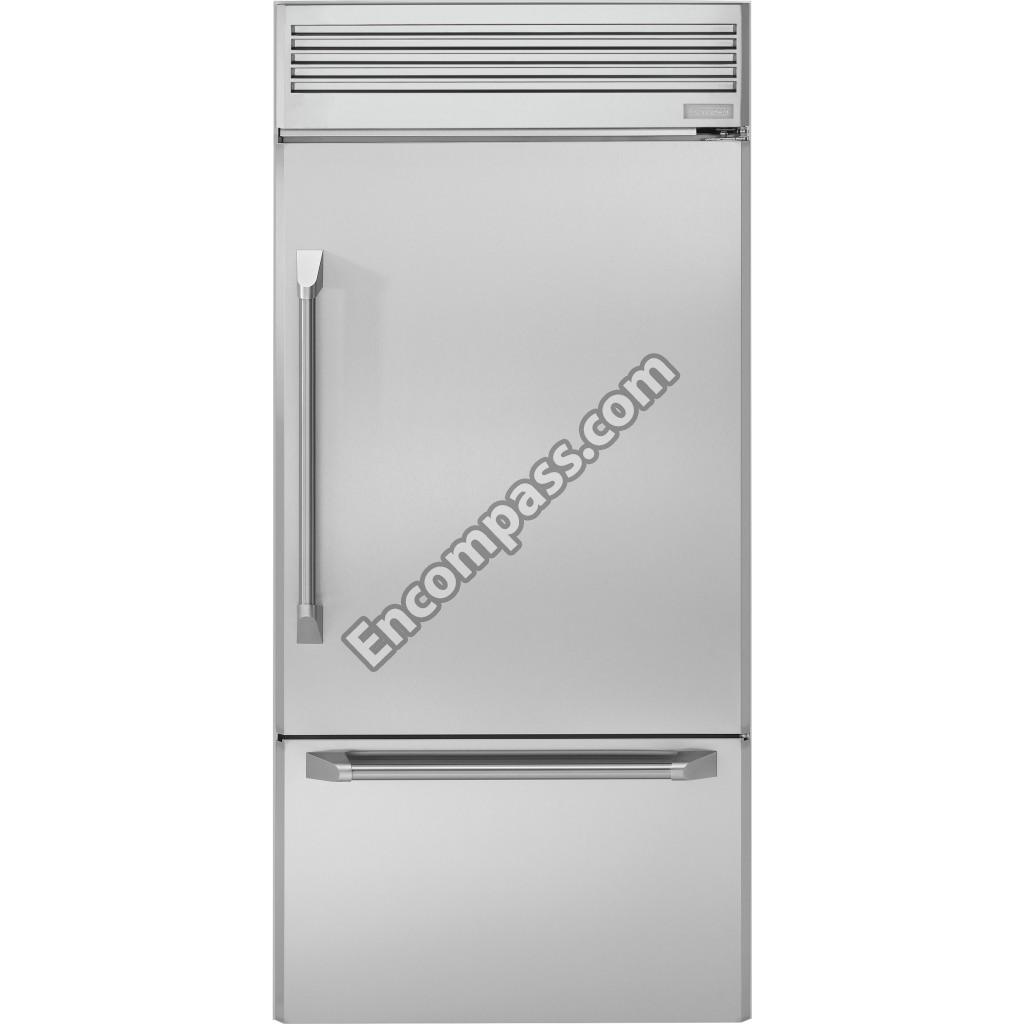

Model Image
Manufacturer

GE

Model Number

ZICP360NHDRH

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 GE #10X1\2 PH SMS
WR01X1826 WR01X1826 GE #8-18 TYPE AB X 3/8 PH P
WR17X3046 WR17X3046 GE 1/4 CLAMP NYLON
WR01X21024 WR01X21024 GE 1/4-20 TT BHT .87 SCREW
WR01X23106 WR01X23106 GE 10-24 X 1/2 TYPE SCREW
WR01X10051 WR01X10051 GE 10-24X1-INCH PHIL P-HD TAP
WR02X11210 WR02X11210 GE 25400
WR01X10484 WR01X10484 GE 8-32 X 5/8-INCH PH SS TCS
WR02X10948 WR02X10948 GE ACTUATOR ARM FF DOOR
WR49X21844 WR49X21844 GE ANTI-TIP HARDWARE ASSEMBLY
WR29X35945 WR29X35945 GE ARM FEELER IM CUT
WR02X13480 WR02X13480 GE ASSEMBLY CLOSURE
WR71X10142 WR71X10142 GE ASSEMBLY DAIRY COMP
WR02X43425 WR02X43425 GE AXLE WHEEL
WR17X13159 WR17X13159 GE BAFFLE COND AIR
WR02X10145 WR02X10145 GE BAFFLE EVAPORATOR LH
WR13X30112 WR13X30112 GE BASE CHANNEL LH
WR13X30113 WR13X30113 GE BASE CHANNEL RH
WR01X10256 WR01X10256 GE BASE SHAFT
WR02X10951 WR02X10951 GE BHNG ARM NYLON FF DR CL
WR71X10140 WR71X10140 GE BIN DOOR FF DEEP LH
WR71X10139 WR71X10139 GE BIN DOOR FF DEEP RH
WR71X10138 WR71X10138 GE BIN FF DOOR W/WINDOW
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X41627 WR60X41627 GE BLADE FAN MOTOR
WR78X20985 WR78X20985 GE BM FZ DRAWER GASKET
WR17X12978 WR17X12978 GE BM TRIM TOP CASE
WR55X11088 WR55X11088 GE BOARD LED LIGHT ASSEMBLY
WR57X10084 WR57X10084 GE BRACKET AND VALVE ASSEMBLY.
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR02X12572 WR02X12572 GE BRACKET COND SUPPORT BM
WR17X11009 WR17X11009 GE BRACKET DAMPER MTG
WR02X11622 WR02X11622 GE BRACKET EVAPORATOR FAN BTM
WR02X12566 WR02X12566 GE BRACKET FAN MTG
WR02X10653 WR02X10653 GE BRACKET ORIFICE FAN
WR02X42385 WR02X42385 GE BRACKET WALL MOUNTING
WR02X10540 WR02X10540 GE BUMPER
WR02X25053 WR02X25053 GE BUSHING DOOR
WR02X10953 WR02X10953 GE BUSHING HINGE BOTTOM
WR01X10048 WR01X10048 GE BUSHING SHOWCASE PIVOT
WR19X10005 WR19X10005 GE BUTTER DISH AND COVER
WR17X23352 WR17X23352 GE CATCH TROUGH EVAP
WR78X11909 WR78X11909 GE CLAD FOAM ASSEMBLY FF RH
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X10552 WR02X10552 GE CLIP EVAPORATOR THERMISTOR
WR87X29409 WR87X29409 GE COMPRESSOR INVERTER
WR84X10022 WR84X10022 GE COND AND BRACKET FORMED ASSEMBLYFF
WR17X12350 WR17X12350 GE COND BAFFLE
WR84X23357 WR84X23357 GE COND BOTTOM BM
WR74X23406 WR74X23406 GE COVER EVAPORATOR
WR02X13607 WR02X13607 GE COVER FILL TUBE
WR29X10082 WR29X10082 GE COVER ICEMAKER
WR87X24135 WR87X24135 GE CU1 COMPRESSOR SERVICE K
WR29X20863 WR29X20863 GE CUP FILL IM
WR60X27396 WR60X27396 GE DAMPER ASSEMBLY
WR72X10011 WR72X10011 GE DIVIDER ASSEMBLY VEGETABLE PANS
WR17X10349 WR17X10349 GE DRAIN BAFFLE
WR60X23405 WR60X23405 GE DRAIN FAN ASSEMBLY SD
WR17X11016 WR17X11016 GE DRAIN PAN
WR17X10675 WR17X10675 GE DRAIN TRAP AUX COND
WR72X10396 WR72X10396 GE DRAWER SLIDE ASSEMBLY
WR32X10074 WR32X10074 GE ENCAP SHELF ASSEMBLY
WR87X20947 WR87X20947 GE EVAPORATOR BM ASSEMBLY
WR17X29397 WR17X29397 GE EVAPORATOR FAN COVER
WR17X11098 WR17X11098 GE EVAPORATOR TROUGH
WR71X10325 WR71X10325 GE FF AIR DIFFUSER
WR02X10942 WR02X10942 GE FF THERMISTOR HOLDER
WR78X27048 WR78X27048 GE FREEZER DOOR ASSEMBLY
WR72X10085 WR72X10085 GE FREEZER SLIDE SHIM
WR72X10124 WR72X10124 GE FZ SLIDE/SUPPORT ASSEMBLY LH
WR78X23492 WR78X23492 GE FZ SS WRAP PRO BM/FD
WR14X43127 WR14X43127 GE GASKET DOOR
WR74X27049 WR74X27049 GE GRILL ASM PRO RH BM
WR74X24668 WR74X24668 GE GRILL ASSEMBLY PRO RH SD/BM
WR02X22869 WR02X22869 GE GROMMET
WR02X12008 WR02X12008 GE GROMMET EVAPORATOR FAN
WR02X10520 WR02X10520 GE GROMMET FAN MOTOR
WR02X13037 WR02X13037 GE GROMMET WATER FILL
WR02X13216 WR02X13216 GE HAIRPIN COTTER
WR02X26879 WR02X26879 GE HANDLE CAP END
WR12X10842 WR12X10842 GE HANDLE SS
WR55X23951 WR55X23951 GE HARNESS LED BM FD
WR51X10125 WR51X10125 GE HEATER DEFROST
WR13X25052 WR13X25052 GE HINGE ASSEMBLY DOOR TOP RH
WR13X10209 WR13X10209 GE HINGE BTM RH FF CASE ASSEMBLY
WR13X23350 WR13X23350 GE HINGE CASE FF UPPER
WR13X10657 WR13X10657 GE HINGE DOOR BTM
WR13X10410 WR13X10410 GE HINGE GRILL
WR13X10411 WR13X10411 GE HINGE GRILL
WR55X29482 WR55X29482 GE HMI FRENCH DOOR
WR32X10075 WR32X10075 GE ICE BUCKET
WR30X10093 WR30X10093 GE ICEMAKER
WR29X10054 WR29X10054 GE IM GUARDRAIL
WR74X23504 WR74X23504 GE KIT TOE KICK SERVICE EUR
WR32X29399 WR32X29399 GE LARGE FREEZER BASKET
WR02X23939 WR02X23939 GE LENS LED COVER
WR02X10479 WR02X10479 GE LEVELING LEG
WR32X10119 WR32X10119 GE LID SHOW CASE FF
WR02X29169 WR02X29169 GE MAIN BOARD ST AND OFF
WR55X42925 WR55X42925 GE MAIN CONTROL BOARD
WR02X29407 WR02X29407 GE MAIN CONTROL BOARD COVER
WB02X26123 WB02X26123 GE MONOGRAM BADGE
WR17X22069 WR17X22069 GE MWF MANIFOLD AND TUBES ASSEMBLY
WR02X44925 WR02X44925 GE MWF WATER TUBE ASSEMBLY
WR01X10257 WR01X10257 GE PIN BTM LOWER HINGE
31-49142 31-49142 GE PM INSTALL INSTRUCTIONS
31-51886 31-51886 GE PM MINI MANUAL
49-60721 49-60721 GE PM OWNERS MANUAL
WR55X29405 WR55X29405 GE POWER CORD
WR78X32720 WR78X32720 GE PS BM FF DOOR ASM
WR78X23752 WR78X23752 GE PS BM FZ DOOR ASSEMBLY
WR60X10185 WR60X10185 GE REFER DC EVAPORATOR FAN MOTOR
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR17X35527 WR17X35527 GE REFRIGERATOR CONDENSER
WR60X10209 WR60X10209 GE REFRIGERATOR CONDENSER FAN MOTOR
WR86X25269 WR86X25269 GE REFRIGERATOR DRYER BIFURCATED HX9
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR17X22070 WR17X22070 GE REFRIGERATOR WATER FILTER BYPASS CAP
WR17X11562 WR17X11562 GE RH HINGE SIDE TRIM
WR02X12149 WR02X12149 GE RING COMPRESSION
WR74X10326 WR74X10326 GE ROD
WR01X21110 WR01X21110 GE SCR 1/4-20X.5 HEX CAP SS
WR01X10652 WR01X10652 GE SCR 8-18 AB IHW 5/8 S
WR1X1826 WR1X1826 GE SCREW
WR01X10050 WR01X10050 GE SCREW #8 18 X 3/4
WR01X2138 WR01X2138 GE SCREW 12-24 .7 WH
WR01X10317 WR01X10317 GE SCREW 8-32 CA HXW 1/2
WR01X10065 WR01X10065 GE SCREW 818 BA POR 5/8 SS
WR01X10188 WR01X10188 GE SCREW TRIM (SELF DRILLING)
WR01X10049 WR01X10049 GE SCREW TRUSS HD 1/4-20 X
WR01X2129 WR01X2129 GE SCREW, #8-15 X 1/2 CR PA
WR22X10007 WR22X10007 GE SEAL DAIRY ASSEMBLY
WR14X10040 WR14X10040 GE SEAL FRONT SHOWCASE LID
WR14X10009 WR14X10009 GE SEAL FRONT SNACK PAN
WR14X10012 WR14X10012 GE SEAL FRT VEGETABLE PAN GLASS
WR14X10011 WR14X10011 GE SEAL RR SNACK PAN
WR02X11769 WR02X11769 GE SET SCREW
WR02X11209 WR02X11209 GE SHEAR PIN
WR29X10107 WR29X10107 GE SHIELD ICE
WR17X23973 WR17X23973 GE SHIELD LIGHT SNAP IN
WR72X10082 WR72X10082 GE SLIDE BASKET UPPER FZ
WR72X10081 WR72X10081 GE SLIDE LINER UPPER FZ
WR32X29396 WR32X29396 GE SMALL FREEZER BASKET
WR32X10078 WR32X10078 GE SNACK PAN ASSEMBLY
WR32X10072 WR32X10072 GE SNACK PAN COVER
WR02X10149 WR02X10149 GE SNACK PAN WIRE SUPPORT
WR01X10255 WR01X10255 GE SPRING CLOSURE
WR02X23950 WR02X23950 GE ST AND OFF LED BOARD
WR29X10083 WR29X10083 GE STRIPPER IM
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR01X10258 WR01X10258 GE STUD SPRING FF DOOR
WR72X10080 WR72X10080 GE SUPPORT BASKET UPPER FZ
WR72X10013 WR72X10013 GE SUPPORT SLIDE LH
WR72X10012 WR72X10012 GE SUPPORT SLIDE RH
WR23X23883 WR23X23883 GE SWITCH LIGHT
WR23X21444 WR23X21444 GE SWITCH LIGHT FZ
WR17X11557 WR17X11557 GE SWITCH PLATE RH
WR29X0157 WR29X0157 GE THERMOSTAT
WR50X10106 WR50X10106 GE THERMOSTAT DEF
WR50X10105 WR50X10105 GE TOD EVAP
WR17X20774 WR17X20774 GE TRACK SHELF CENTER
WR17X20773 WR17X20773 GE TRACK SHELF FF
WR02X11256 WR02X11256 GE TRIM CORNER KEY
WR17X11015 WR17X11015 GE TRIM LIGHTING FF
WR17X26689 WR17X26689 GE TUBE DRAIN
WR32X10077 WR32X10077 GE VEGETABLE PAN ASSEMBLY
WR32X10073 WR32X10073 GE VEGETABLE PAN COVER
WR02X12248 WR02X12248 GE VEGETABLE PAN WIRE SUPPORT
WR01X10906 WR01X10906 GE WASHER 3/8
WR01X10046 WR01X10046 GE WASHER SHOWCASE PIVOT
MWFP MWFP GE WATER FILTER
WR02X29401 WR02X29401 GE WATER FILTER BRACKET
WR17X1948 WR17X1948 GE WATER LINEVALVE ICEMAKER
WR2X8377 WR2X8377 GE WHEEL ASSEMBLY
WR01X10045 WR01X10045 GE WIRE RET EVAPORATOR HEATER
