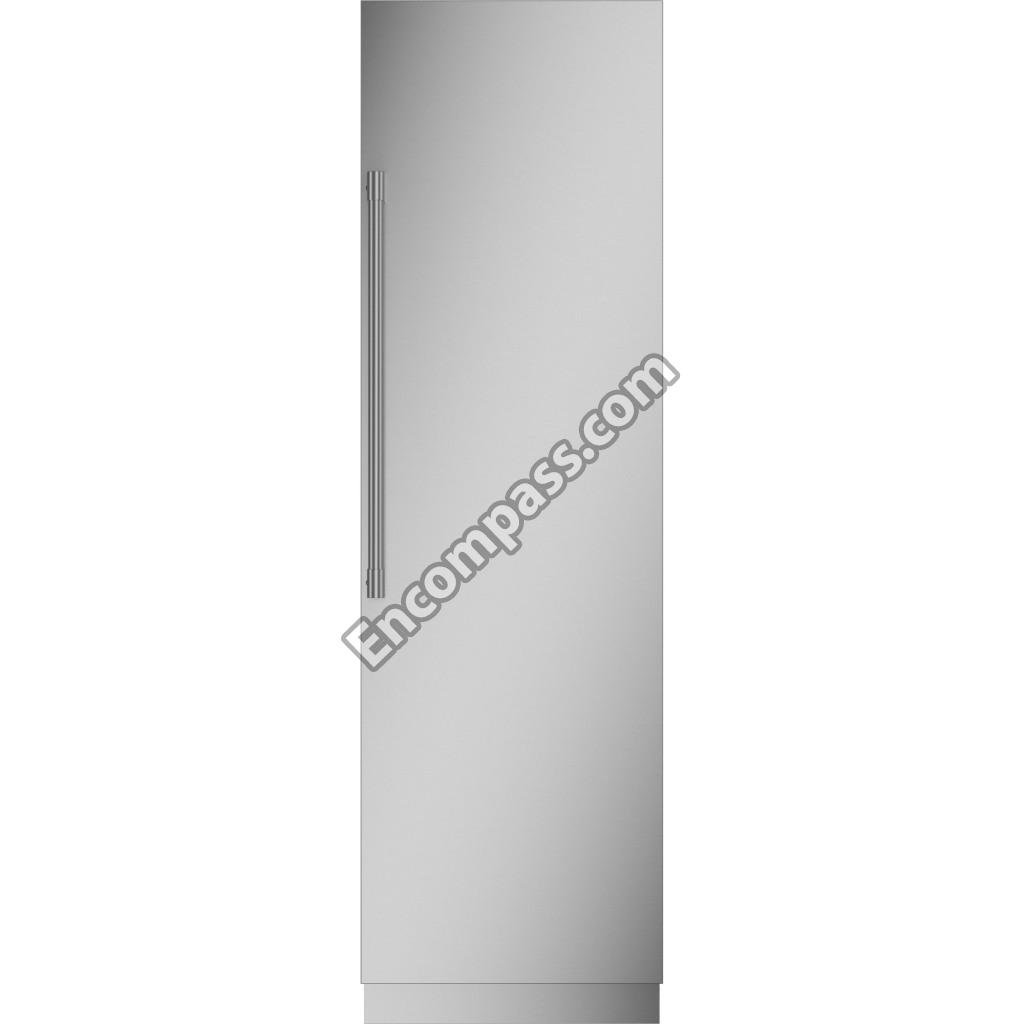

Model Image
Manufacturer

GE

Model Number

ZIR241NBRAII

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR02X33286 WR02X33286 GE "1/4"" 90 DEGREE UNION"
WR97X10035 WR97X10035 GE "CPLG. 5/16""- .079"""
WR09X32837 WR09X32837 GE "DEFROST HEATER 24"" / 30"""
WR32X29166 WR32X29166 GE "DELI PAN 24"""
WR32X28956 WR32X28956 GE "DELI PAN COVER 24"""
WR71X40425 WR71X40425 GE "DOOR BIN 24"""
WR14X28969 WR14X28969 GE "DOOR GASKET 24"""
WR87X32858 WR87X32858 GE "EVAPORATOR 24 / 30"""
WR17X29351 WR17X29351 GE "EVAPORATOR FAN COVER PREMIUM 24/30"""
WR32X29165 WR32X29165 GE "HUMIDITY CONTROL COVER 24"""
WR32X28964 WR32X28964 GE "HUMIDITY CONTROL PAN 24"""
WR13X32860 WR13X32860 GE "LOWER ACCESS COVER 24"""
WR71X40434 WR71X40434 GE "NON LED SHELF 24"" FF"
WR02X29140 WR02X29140 GE "PANEL BRACKET 24"""
WR55X40431 WR55X40431 GE "PERSONALITY HARNESS REFER 24"""
WR17X32827 WR17X32827 GE "REFRIGERATOR AIR TOWER 24"""
WR78X32851 WR78X32851 GE "REFRIGERATOR DOOR 24"""
WR17X32768 WR17X32768 GE "REFRIGERATOR EVAPORATOR COVER 24 / 30"""
WR72X32853 WR72X32853 GE "TEMPERATURE CONTROL COVER W/ BOARD 24"""
WR71X29168 WR71X29168 GE "TEMPERATURE CONTROL PAN 24"""
WR74X32857 WR74X32857 GE "TOE KICK 24"""
WR02X32770 WR02X32770 GE "UPPER ACCESS COVER 24"""
WR02X29043 WR02X29043 GE "USER INTERFACE TOP COVER 24"""
WR97X33345 WR97X33345 GE 10.5MM X 8MM LOKRING
WR97X10030 WR97X10030 GE 5MM X 5MM LOKRING
WR97X10032 WR97X10032 GE 6MM X 2MM LOKRING
WR97X10033 WR97X10033 GE 6MM X 4MM LOKRING
WR97X10034 WR97X10034 GE 6MM X 5MM LOKRING
WR97X25268 WR97X25268 GE 7MM X 5MM LOKRING
WR97X10076 WR97X10076 GE 8.5MM X 6MM LOKRING
WR97X10021 WR97X10021 GE 8MM X 8MM LOKRING
WR02X33246 WR02X33246 GE AIR VENT
WR02X32775 WR02X32775 GE ANTI TIP BRACKET
WR13X32824 WR13X32824 GE ARTICULATING HINGE LEFT
WR13X32809 WR13X32809 GE ARTICULATING HINGE RIGHT
WR02X29021 WR02X29021 GE BOLT T30 M6
WR17X12269 WR17X12269 GE BRACKET EVAP FAN FRT
WR55X47425 WR55X47425 GE BRACKET LEVELER SCREW
WR02X10540 WR02X10540 GE BUMPER
WR17X33825 WR17X33825 GE BYPASS FILTER PLUG
WR55X29609 WR55X29609 GE CABINET LED
WR72X29063 WR72X29063 GE CANTILEVER SHELF TRACK
WR02X29077 WR02X29077 GE CAP & SUCTION TUBE LOCATOR BLOCK
WR02X10322 WR02X10322 GE CAP DUST
WR87X33706 WR87X33706 GE COMPRESSOR
WR02X32859 WR02X32859 GE COMPRESSOR GROMMET
WR55X29011 WR55X29011 GE COMPRESSOR JUMPER HARNESS
WR02X32757 WR02X32757 GE COMPRESSOR MOUNTING BOLT
WR87X41606 WR87X41606 GE CONDENSER
WR02X32844 WR02X32844 GE CONDENSER BAFFLE
WR60X31633 WR60X31633 GE CONDENSER FAN
WR02X32835 WR02X32835 GE CONDENSER FAN HOUSING
WR02X32752 WR02X32752 GE CONDENSER STRAP
WR02X32807 WR02X32807 GE CONDENSER SUPPORT
WR02X13738 WR02X13738 GE COUPLER STRAIGHT 1/4
WR02X36247 WR02X36247 GE CUSTOM PANEL BRACKET AND TEMPLATE KIT 24
WR02X13428 WR02X13428 GE DAMPENER COMPRESSOR
WR01X39552 WR01X39552 GE DEFROST DRAIN VACUUM BREAK VALVE
WR55X32761 WR55X32761 GE DEFROST JUMPER HARNESS
WR02X29068 WR02X29068 GE DELI PAN COVER SUPPORT
WR72X29026 WR72X29026 GE DELI PAN LEFT SLIDE
WR72X29025 WR72X29025 GE DELI PAN RIGHT SLIDE
WR02X47168 WR02X47168 GE DOOR BRACKET COVER BOTOM FF 24""
WR02X29029 WR02X29029 GE DOOR HINGE SHIM
WR01X32764 WR01X32764 GE DOOR PANEL TEMPLATE 24""
WR55X32793 WR55X32793 GE DOOR SWITCH JUMPER HARNESS
WR02X28999 WR02X28999 GE DOOR TO HINGE BRACKET
WR02X39553 WR02X39553 GE DRAIN TUBE
WR02X40428 WR02X40428 GE DUMMY PLUG
WR60X30922 WR60X30922 GE EVAPORATOR FAN BLADE
WR02X29022 WR02X29022 GE EVAPORATOR FAN BRACKET
WR02X32779 WR02X32779 GE FRONT ACCESS COVER CLIP
WR02X12839 WR02X12839 GE GRILLE SENSOR
WR02X10678 WR02X10678 GE GROMMET
WR02X12008 WR02X12008 GE GROMMET EVAP FAN
WR02X11331 WR02X11331 GE GROMMET EVAP FAN
WR02X32783 WR02X32783 GE HANDLE SIDE DOOR TRIM COVER
WR02X30724 WR02X30724 GE HINGE LIMIT PIN
WR02X29337 WR02X29337 GE HINGE SIDE DOOR TRIM
WB02X20265 WB02X20265 GE HOUSING TRANSCEIVER
WR02X29066 WR02X29066 GE HUMIDITY CONTROL COVER SUPPORT
WR55X32754 WR55X32754 GE HUMIDITY SENSOR JUMPER HARNESS
WR02X29085 WR02X29085 GE LEFT HINGE TO DOOR SUPPORT
WR02X32831 WR02X32831 GE LEVELER BRACKET
WR02X39523 WR02X39523 GE LEVELING LEG
WR02X32747 WR02X32747 GE LEVELING SCREW
WR02X32794 WR02X32794 GE LIGHT SWITCH HOUSING
WR55X32821 WR55X32821 GE MAIN AC HARNESS
WR02X29169 WR02X29169 GE MAIN BOARD STAND OFF
WR02X32855 WR02X32855 GE MAIN CONTROL BOARD COVER
WR55X41725 WR55X41725 GE MAIN DC HARNESS
WR49X10070 WR49X10070 GE MASTER LIGHT SW. KIT
WR60X10284 WR60X10284 GE MOTOR DC EVAP FAN ASM
WR60X10185 WR60X10185 GE MOTOR EVAP DC
WR02X29060 WR02X29060 GE NUT 5/16-18 THD
WR55X32767 WR55X32767 GE OL PTCR COMBO
WR55X24585 WR55X24585 GE PCB ASM HUMIDITY BOARD
31-1000191 31-1000191 GE PM MINI MANUAL AND WIRING
WR23X30808 WR23X30808 GE POWER CORD
WR87X30875 WR87X30875 GE R600 DRIER W/ RED CAP
WR98X35 WR98X35 GE R600A CHARGE CAN 35 GRAMS
WR87X41605 WR87X41605 GE REFRIGERATOR DISCHARGE JUMPER
WR02X32852 WR02X32852 GE REFRIGERATOR INSTALLATION HARDWARE
WR55X42925 WR55X42925 GE REFRIGERATOR MAIN CONTROL BOARD
WR84X32784 WR84X32784 GE REFRIGERATOR PROCESS TUBE
WR84X32753 WR84X32753 GE REFRIGERATOR SUCTION TUBE
WR17X32790 WR17X32790 GE REFRIGERATOR USER INTERFACE GLASS AND CO
WR02X32759 WR02X32759 GE RETAINER CLIP
WR02X29086 WR02X29086 GE RIGHT HINGE TO DOOR SUPPORT
WR02X12149 WR02X12149 GE RING COMPRESSION
WR55X32815 WR55X32815 GE RJ45 HARNESS
WR01X10620 WR01X10620 GE SCR 10-32
WD02X10115 WD02X10115 GE SCR 6-19 PL FLP 3/4 S
WR01X10649 WR01X10649 GE SCR 8-10 PL PNP 1/2 S
WR01X10685 WR01X10685 GE SCR 8-18 AB IHW
WR01X10652 WR01X10652 GE SCR 8-18 AB IHW 5/8 S
WR01X10635 WR01X10635 GE SCR 8-32 CA IHXW .625 S
WR1X5645 WR1X5645 GE SCREW
WR01X10050 WR01X10050 GE SCREW #8 18 X 3/4
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X22380 WB01X22380 GE SCREW (WH)
WR02X29061 WR02X29061 GE SCREW 10-24 TT FLT 1.60 S
WR01X31121 WR01X31121 GE SCREW 8-19 HI/LO PNP SS
WR55X11139 WR55X11139 GE SPEAKER
WR23X10734 WR23X10734 GE SWITCH LIGHT FF
WR23X10636 WR23X10636 GE TEMPERATUR SENSORERATURE
WR02X29067 WR02X29067 GE TEMPERATURE CONTROL COVER SUPPORT
WR60X29133 WR60X29133 GE TEMPERATURE CONTROL FAN
WR02X29049 WR02X29049 GE TEMPERATURE CONTROL FAN CONNECTOR COVER
WR72X29024 WR72X29024 GE TEMPERATURE CONTROL PAN LEFT SLIDE
WR72X29023 WR72X29023 GE TEMPERATURE CONTROL PAN RIGHT SLIDE
WR02X29047 WR02X29047 GE USER INTERFACE LEFT BRACKET
WR02X29046 WR02X29046 GE USER INTERFACE RIGHT BRACKET
WR02X32825 WR02X32825 GE WATER LINE
WR02X32826 WR02X32826 GE WATER VALVE BRACKET
WR57X33326 WR57X33326 GE WATER VALVE WITH GUARD
WR02X32850 WR02X32850 GE WHEEL AXLE
WR02X10480 WR02X10480 GE WHEEL MOBILITY
WR55X47027 WR55X47027 GE WIFI BOARD
WR02X32839 WR02X32839 GE XWF FILTER MANIFOLD
WR01X32861 WR01X32861 GE XWF FILTER REMOVAL TOOL
XWFE XWFE GE XWF RETAIL FILTER
