Manufacturer
GE
Model Number
ZIR301NPNCII
Description

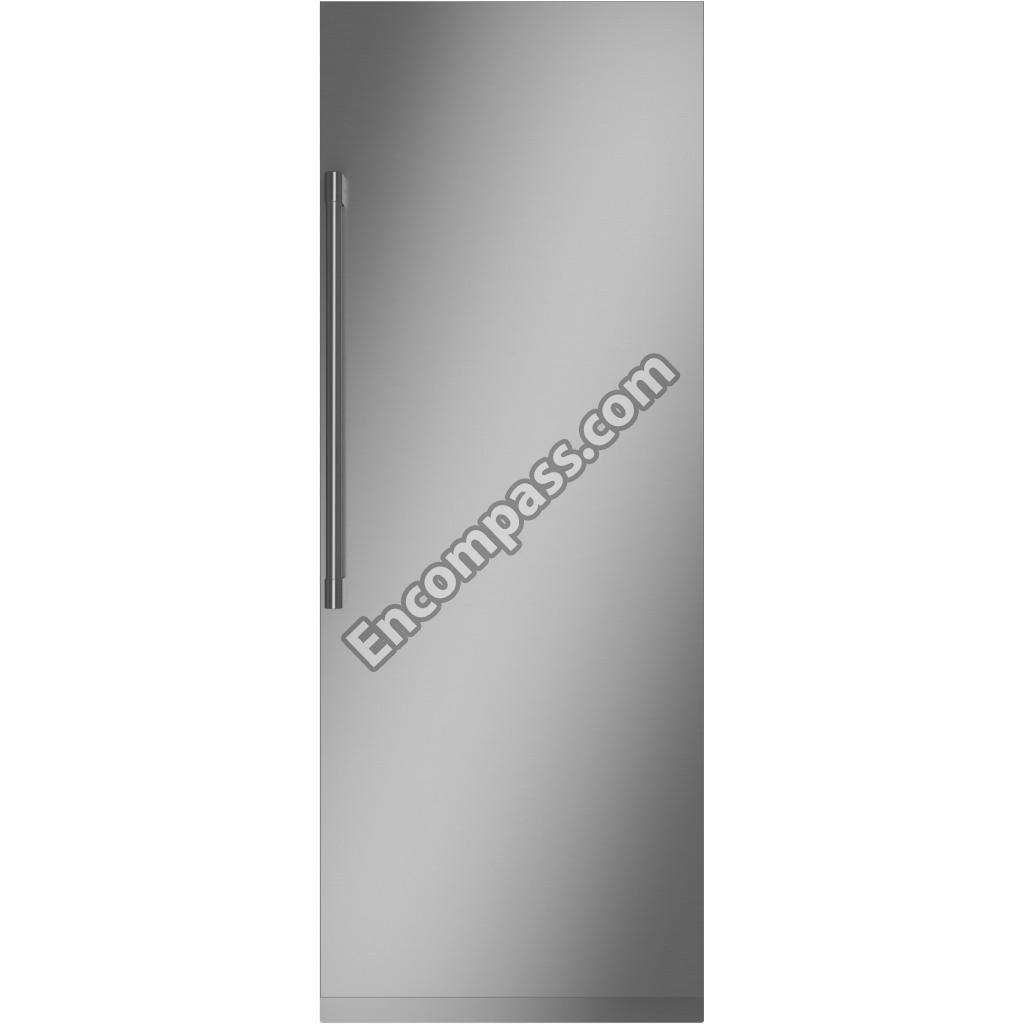

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
"1/4"" 90 DEGREE UNION" |
|
|
"BIN LINER 30""" |
|
|
"CPLG. 5/16""- .079""" |
|
|
"DEFROST HEATER 24"" / 30""" |
|
|
"DELI PAN 30""" |
|
|
"DELI PAN COVER 30""" |
|
|
"DELI PAN LINER 30""" |
|
|
"DOOR BIN 30""" |
|
|
"DOOR GASKET 30""" |
|
|
"EVAPORATOR 24 / 30""" |
|
|
"EVAPORATOR FAN COVER PREMIUM 24/30""" |
|
|
"HUMIDITY CONTROL COVER 30""" |
|
|
"HUMIDITY CONTROL PAN 30""" |
|
|
"HUMIDTY CONTROL PAN LINER 30""" |
|
|
"LED GLASS SHELF 30""" |
|
|
"LOWER ACCESS COVER 30""" |
|
|
"PANEL BRACKET 30""" |
|
|
"PERSONALITY HARNESS REFER 30""" |
|
|
"REFRIGERATOR AIR TOWER 30""" |
|
|
"REFRIGERATOR DOOR 30""" |
|
|
"REFRIGERATOR EVAPORATOR COVER 24 / 30""" |
|
|
"TEMPERATURE CONTROL COVER W/ BOARD 30""" |
|
|
"TEMPERATURE CONTROL PAN 30""" |
|
|
"TEMPERATURE CONTROL PAN LINER 30""" |
|
|
"TOE KICK 30""" |
|
|
"UPPER ACCESS COVER 30""" |
|
|
"USER INTERFACE TOP COVER 30""" |
|
|
10.5MM X 8MM LOKRING |
|
|
5MM X 5MM LOKRING |
|
|
6MM X 2MM LOKRING |
|
|
6MM X 4MM LOKRING |
|
|
6MM X 5MM LOKRING |
|
|
7MM X 5MM LOKRING |
|
|
8.5MM X 6MM LOKRING |
|
|
8MM X 8MM LOKRING |
|
|
AIR FILTER COVER |
|
|
AIR VENT |
|
|
ANTI TIP BRACKET |
|
|
ARTICULATING HINGE LEFT |
|
|
ARTICULATING HINGE RIGHT |
|
|
AUTOFILL COVER HOUSING |
|
|
AUTOFILL HOUSING AND CONTROL |
|
|
AUTOFILL PITCHER |
|
|
BOLT T30 M6 |
|
|
BRACKET EVAP FAN FRT |
|
|
BRACKET LEVELER SCREW |
|
|
BUMPER |
|
|
BUS BAR JUMPER HARNESS |
|
|
BYPASS FILTER PLUG |
|
|
CABINET LED |
|
|
CANTILEVER SHELF TRACK |
|
|
CAP & SUCTION TUBE LOCATOR BLOCK |
|
|
CAP DUST |
|
|
COMPRESSOR |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR JUMPER HARNESS |
|
|
COMPRESSOR MOUNTING BOLT |
|
|
CONDENSER |
|
|
CONDENSER BAFFLE |
|
|
CONDENSER FAN |
|
|
CONDENSER FAN HOUSING |
|
|
CONDENSER STRAP |
|
|
CONDENSER SUPPORT |
|
|
COUPLER STRAIGHT 1/4 |
|
|
COVER FILTER FAN |
|
|
CUSTOM PANEL BRACKET AND TEMPLATE KIT 30 |
|
|
DAMPENER COMPRESSOR |
|
|
DEFROST JUMPER HARNESS |
|
|
DELI PAN COVER SUPPORT |
|
|
DELI PAN LEFT SLIDE |
|
|
DELI PAN RIGHT SLIDE |
|
|
DOOR BRACKET COVER BOTOM FF 30-INCH |
|
|
DOOR HINGE SHIM |
|
|
DOOR PANEL TEMPLATE 30"" |
|
|
DOOR SWITCH JUMPER HARNESS |
|
|
DOOR TO HINGE BRACKET |
|
|
DRAIN TUBE |
|
|
EVAPORATOR FAN BLADE |
|
|
EVAPORATOR FAN BRACKET |
|
|
EXTENDED POWER CORD |
|
|
FRONT ACCESS COVER CLIP |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET EVAP FAN |
|
|
GROMMET EVAP FAN |
|
|
HANDLE SIDE DOOR TRIM COVER |
|
|
HINGE LIMIT PIN |
|
|
HINGE SIDE DOOR TRIM |
|
|
HOUSING FILTER |
|
|
HOUSING TRANSCEIVER |
|
|
HUMIDITY BOARD |
|
|
HUMIDITY CONTROL COVER SUPPORT |
|
|
HUMIDITY SENSOR JUMPER HARNESS |
|
|
LEFT HINGE TO DOOR SUPPORT |
|
|
LEVELER BRACKET |
|
|
LEVELING LEG |
|
|
LEVELING SCREW |
|
|
LIGHT SWITCH HOUSING |
|
|
LIGHTING BUS BAR |
|
|
MAIN AC HARNESS |
|
|
MAIN BOARD STAND OFF |
|
|
MAIN CONTROL BOARD COVER |
|
|
MAIN DC HARNESS |
|
|
MAINBOARD ASSEMBLY |
|
|
MASTER LIGHT SWITCH |
|
|
MOTOR DC EVAP FAN ASM |
|
|
MOTOR EVAP DC |
|
|
NUT 5/16-18 THD |
|
|
ODOR FILTER CARTRIDGE |
|
|
ODOR FILTER FAN AND HOUSING |
|
|
OL PTCR COMBO |
|
|
PM MINI MANUAL AND WIRING |
|
|
R600 DRIER W/ RED CAP |
|
|
R600A CHARGE CAN 35 GRAMS |
|
|
REFRIGERATOR DISCHARGE JUMPER |
|
|
REFRIGERATOR DRAIN VACUUM BREAK VALVE |
|
|
REFRIGERATOR INSTALLATION HARDWARE |
|
|
REFRIGERATOR PROCESS TUBE |
|
|
REFRIGERATOR SUCTION TUBE |
|
|
REFRIGERATOR USER INTERFACE GLASS AND CO |
|
|
RETAINER CLIP |
|
|
RIGHT HINGE TO DOOR SUPPORT |
|
|
RING COMPRESSION |
|
|
RJ45 HARNESS |
|
|
SCR 10-32 |
|
|
SCR 6-19 PL FLP 3/4 S |
|
|
SCR 8-10 PL PNP 1/2 S |
|
|
SCR 8-18 AB IHW |
|
|
SCR 8-18 AB IHW 5/8 S |
|
|
SCR 8-32 CA IHXW .625 S |
|
|
SCREW |
|
|
SCREW #8 18 X 3/4 |
|
|
SCREW (CR) |
|
|
SCREW (WH) |
|
|
SCREW 10-24 TT FLT 1.60 S |
|
|
SCREW 8-19 HI/LO PNP SS |
|
|
SPEAKER |
|
|
SWITCH LIGHT FF |
|
|
TEMPERATUR SENSORERATURE |
|
|
TEMPERATURE CONTROL COVER SUPPORT |
|
|
TEMPERATURE CONTROL FAN |
|
|
TEMPERATURE CONTROL FAN CONNECTOR COVER |
|
|
TEMPERATURE CONTROL PAN LEFT SLIDE |
|
|
TEMPERATURE CONTROL PAN RIGHT SLIDE |
|
|
USER INTERFACE LEFT BRACKET |
|
|
USER INTERFACE RIGHT BRACKET |
|
|
WATER LINE |
|
|
WATER VALVE BRACKET |
|
|
WATER VALVE WITH GUARD |
|
|
WHEEL AXLE |
|
|
WHEEL MOBILITY |
|
|
WIFI BOARD |
|
|
XWF FILTER MANIFOLD |
|
|
XWF FILTER REMOVAL TOOL |
|
|
XWFE RETAIL FILTER |
