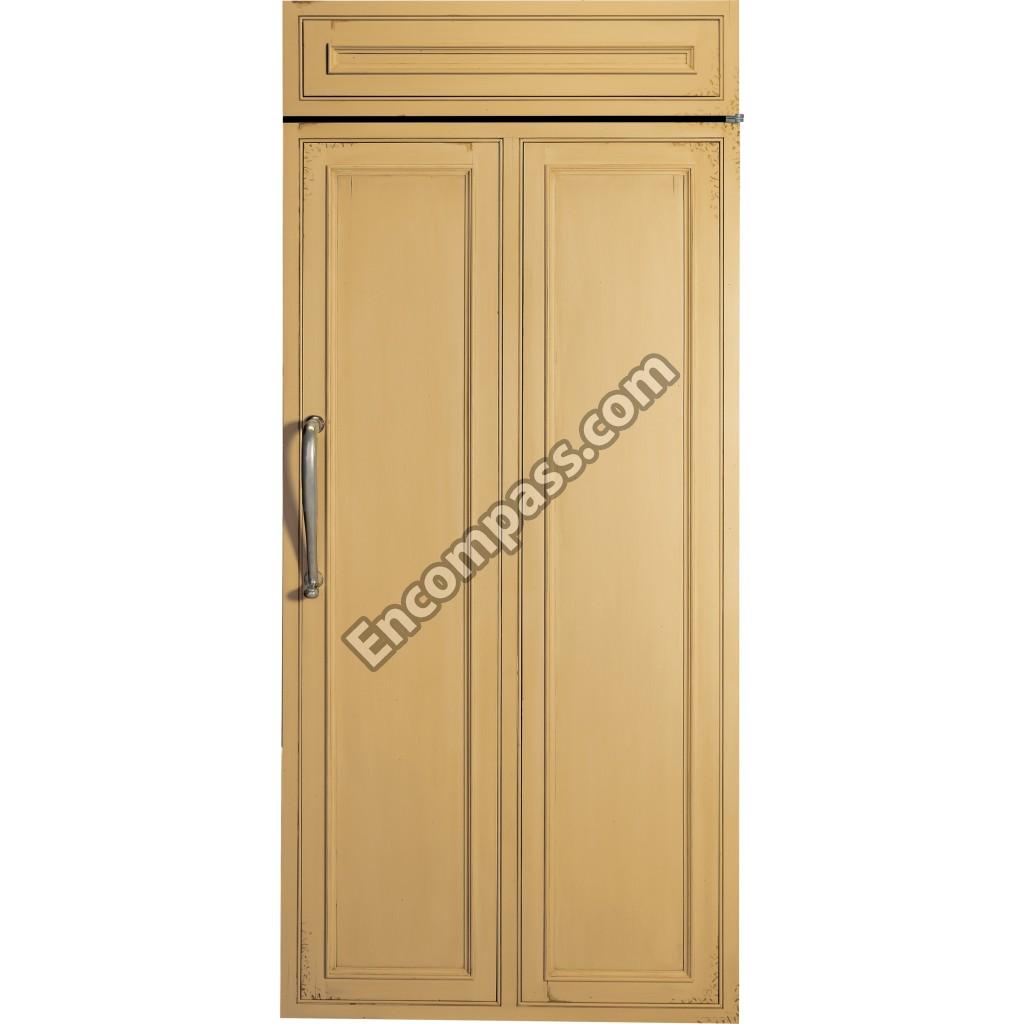

Model Image
Manufacturer

GE

Model Number

ZIR360NHBRH

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 GE #10X1\2 PH SMS
WR01X10053 WR01X10053 GE #8-18 TYPE AB X 3/8 BLACK
WR01X1826 WR01X1826 GE #8-18 TYPE AB X 3/8 PH P
WR01X10051 WR01X10051 GE 10-24X1 PHIL P-HD TAP
WR02X11200 WR02X11200 GE 4-40 X 1/4 PH SMS
WR01X10065 WR01X10065 GE 8-32 X 3/8 PHIL PH TY C
WR01X10484 WR01X10484 GE 8-32 X 5/8 PH SS TCS
WR02X10948 WR02X10948 GE ACTUATOR ARM FF DOOR
WR49X21844 WR49X21844 GE ANTI-TIP HARDWARE ASSEMBLY
WR71X10142 WR71X10142 GE ASSEMBLY DAIRY COMP
WR02X43425 WR02X43425 GE AXLE WHEEL
WR17X12688 WR17X12688 GE BAFFLE COND
WR17X13159 WR17X13159 GE BAFFLE COND AIR
WR13X30112 WR13X30112 GE BASE CHANNEL ASM LH
WR13X30113 WR13X30113 GE BASE CHANNEL ASM RH
WR71X10140 WR71X10140 GE BIN DOOR FF DEEP LH
WR71X10139 WR71X10139 GE BIN DOOR FF DEEP RH
WR71X10138 WR71X10138 GE BIN FF DOOR W/WINDOW
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X30922 WR60X30922 GE BLADE EVAP FAN ASM
WR55X23354 WR55X23354 GE BOARD ASSEMBLY MAIN CONTROL
WR01X10752 WR01X10752 GE BOLT SHOULDER
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR02X10764 WR02X10764 GE BRACKET EVAP FAN BTM
WR02X12566 WR02X12566 GE BRACKET FAN MTG
WR01X10881 WR01X10881 GE BRACKET LIGHT BREAKER
WR02X10653 WR02X10653 GE BRACKET ORIFICE FAN
WR02X13024 WR02X13024 GE BRACKET TOP FAN
WR02X13011 WR02X13011 GE BRACKET TOP FAN LH
WR02X42385 WR02X42385 GE BRACKET WALL MOUNTING
WR17X12690 WR17X12690 GE BTM LIGHT ASM LH
WR17X12689 WR17X12689 GE BTM LIGHT ASM RH
WR02X32331 WR02X32331 GE BULB HALOGEN LIGHT
WR02X10540 WR02X10540 GE BUMPER
WR01X10879 WR01X10879 GE BUSHING ARM
WR02X10953 WR02X10953 GE BUSHING HINGE BOTTOM
WR02X10954 WR02X10954 GE BUSHING HINGE TOP
WR01X10048 WR01X10048 GE BUSHING SHOWCASE PIVOT
WR01X10047 WR01X10047 GE BUTTON GLIDE
WR1X5278 WR1X5278 GE CABLE CLAMP
WR02X10322 WR02X10322 GE CAP DUST
WR08X23828 WR08X23828 GE CASE TRIM FI LH
WR08X23829 WR08X23829 GE CASE TRIM FI RH
WR17X12711 WR17X12711 GE CATCH EVAP TROUGH
WR17X12677 WR17X12677 GE CEILING LIGHT SHIELD SD
WR01X5278 WR01X5278 GE CLAMP CABLE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR01X10884 WR01X10884 GE CLIP DEFROST HEATER
WR02X10552 WR02X10552 GE CLIP EVAP THERMISTOR
WR02X13316 WR02X13316 GE CLOSURE MECH RH
WR87X10199 WR87X10199 GE COMPRESSOR KIT INVERTER
WR84X10022 WR84X10022 GE CONDENSER & BRACKET ASM
WR84X10093 WR84X10093 GE CONDENSER BOTTOM SD
WR17X35527 WR17X35527 GE CONDENSER FAN SHROUD
WR02X13021 WR02X13021 GE COVER MOTHERBOARD
WR74X10343 WR74X10343 GE CUSTOM GRILL ASM
WR51X10113 WR51X10113 GE DEFROST HEATER
WR72X10320 WR72X10320 GE DIVIDER CENTER ASM
WR78X20986 WR78X20986 GE DOOR GASKET SD
WR60X23769 WR60X23769 GE DRAIN FAN BRACKET ASSEMBLY
WR17X11016 WR17X11016 GE DRAIN PAN
WR74X10355 WR74X10355 GE DRAIN PAN KIT ASSEMBLY
WR86X25269 WR86X25269 GE DRYER BIFURCATED HX9
WR38X10190 WR38X10190 GE EDGE TRIM
WR32X10074 WR32X10074 GE ENCAP SHELF ASSEMBLY
WR85X10017 WR85X10017 GE EVAP COIL
WR17X12692 WR17X12692 GE EVAP FAN COVER FOAM ASM
WR74X23806 WR74X23806 GE EVAPORATOR COVER ASSEMBLY
WR02X23832 WR02X23832 GE EYEBROW RH FI
WR60X10283 WR60X10283 GE FAN & ORIFICE EVAP ASM
WR60X10225 WR60X10225 GE FAN FRESH FOOD
WR17X12682 WR17X12682 GE FAN ORIFICE COND
WR14X10299 WR14X10299 GE FOAM COND BAFFLE
WR02X13042 WR02X13042 GE FRONT WHEEL ASM
WR23X10269 WR23X10269 GE FUSE 2 AMP
WR02X10678 WR02X10678 GE GROMMET
WR02X11331 WR02X11331 GE GROMMET EVAP FAN
WR02X12008 WR02X12008 GE GROMMET EVAP FAN
WR02X10520 WR02X10520 GE GROMMET FAN MOTOR
WR02X13216 WR02X13216 GE HAIRPIN COTTER
WR12X10948 WR12X10948 GE HANDLE
WR12X10952 WR12X10952 GE HANDLE TRIM ASSEMBLY RH
WR09X10180 WR09X10180 GE HARNESS HEATERS TOD
WR13X25052 WR13X25052 GE HINGE ASM DOOR TOP
WR13X23350 WR13X23350 GE HINGE CASE FF UPPER
WR13X10657 WR13X10657 GE HINGE DOOR BTM
WR55X23803 WR55X23803 GE HMI ASSEMBLY FF
WR17X12676 WR17X12676 GE HOUSING CONTROL
WR87X29409 WR87X29409 GE INVERTOR
WR02X13314 WR02X13314 GE KEEP OUT LT SW RH
WR74X24008 WR74X24008 GE KIT TOE KICK SERVICE
WR02X10479 WR02X10479 GE LEVELING LEG
WR02X13035 WR02X13035 GE LOUVER SD
WR13X10688 WR13X10688 GE LOWER CASE HINGE RH & LH
WR13X10239 WR13X10239 GE LOWER FF ADJ HINGE PIN
WR49X10070 WR49X10070 GE MASTER LIGHT SWITCH
WR60X10284 WR60X10284 GE MOTOR DC EVAP FAN ASM
WR02X13025 WR02X13025 GE NUT-U
WR32X10725 WR32X10725 GE PAN ASM
WR02X13038 WR02X13038 GE PAN PROTECTOR REAR COVER
WR02X13026 WR02X13026 GE PCB STAND OFF
WR02X10154 WR02X10154 GE PLUG BUTTON #413 I/M
31-49078 31-49078 GE PM INSTALL INSTRUCTIONS
31-51884 31-51884 GE PM MINI MANUAL
49-60722-2 49-60722-2 GE PM OWNERS MANUAL
WR23X10300 WR23X10300 GE POWER CORD
WR02X24343 WR02X24343 GE PS HANDLE TRIM COVER
WR02X11198 WR02X11198 GE QC HALOGEN LAMP ASM
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR60X10209 WR60X10209 GE REFRIGERATOR CONDENSER FAN MOTOR
WR02X11221 WR02X11221 GE RETAINER SYSTEM PAN
WR02X12149 WR02X12149 GE RING COMPRESSION
WR74X10326 WR74X10326 GE ROD
WR01X10620 WR01X10620 GE SCR 10-32
WR01X10317 WR01X10317 GE SCR 8-32 CA HXW 1/2
WR1X1826 WR1X1826 GE SCREW
WD2X295 WD2X295 GE SCREW
WR01X10050 WR01X10050 GE SCREW #8 18 X 3/4
WR01X10449 WR01X10449 GE SCREW 6X1/2 PAN PHIL H/L
WR01X10188 WR01X10188 GE SCREW TRIM (SELF DRIL
WR78X12372 WR78X12372 GE SD SERVICE DOOR KIT
WR14X10040 WR14X10040 GE SEAL FRONT SHOWCASE LID
WR14X10009 WR14X10009 GE SEAL FRONT SNACK PAN
WR14X10012 WR14X10012 GE SEAL FRT VEG PAN GLASS
WR14X10011 WR14X10011 GE SEAL RR SNACK PAN
WR02X11209 WR02X11209 GE SHEAR PIN
WR17X12681 WR17X12681 GE SHELF TRACK CENTER
WR17X12680 WR17X12680 GE SHELF TRACK SIDE
WR32X10119 WR32X10119 GE SHOWCASE LID VEG PAN
WR72X10365 WR72X10365 GE SLIDE OUTER
WR72X10366 WR72X10366 GE SLIDE OUTER
WR72X10367 WR72X10367 GE SLIDE SUPPORT LOWER SD
WR32X10078 WR32X10078 GE SNACK PAN ASSEMBLY
WR32X10726 WR32X10726 GE SNACK PAN SHELF ASM
WR02X13032 WR02X13032 GE SPACER
WR01X10255 WR01X10255 GE SPRING CLOSURE
WR02X11233 WR02X11233 GE SPRING WHEEL #LE022C4
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR01X10258 WR01X10258 GE STUD SPRING FF DOOR
WR72X10324 WR72X10324 GE SUPPORT PAN ASM
WR72X10321 WR72X10321 GE SUPPORT SIDE ASM RH
WR72X10322 WR72X10322 GE SUPPORT SLIDE ASM LH
WR72X10325 WR72X10325 GE SUPPORT SNACK PAN ASM
WR72X10200 WR72X10200 GE SUPPORT VEG BASKET ASM
WR23X23883 WR23X23883 GE SWITCH LIGHT
WR17X12813 WR17X12813 GE SWITCH PLATE RH
WR17X12774 WR17X12774 GE SYSTEM PAN ASSEMBLY
WR74X24405 WR74X24405 GE TOE KICK
WR74X23825 WR74X23825 GE TOE KICK LH
WR74X10309 WR74X10309 GE TOP LIGHT ASM LH
WR74X10308 WR74X10308 GE TOP LIGHT ASM RH
WR62X10073 WR62X10073 GE TRANSFORMER LIGHT 160VA
WR17X12708 WR17X12708 GE TRIM BOTTOM RH
WR08X10106 WR08X10106 GE TRIM CASE SIDE LH
WR08X10107 WR08X10107 GE TRIM CASE SIDE RH
WR38X10440 WR38X10440 GE TRIM HANDLE
WR17X12709 WR17X12709 GE TRIM TOP RH
WR01X23817 WR01X23817 GE TUBE DISCHARGE
WR02X13222 WR02X13222 GE TUBE JUMP CAP DRYER
WR02X13220 WR02X13220 GE TUBE JUMP SUCT COMP ASM
WR02X13221 WR02X13221 GE TUBE JUMP SUCT EVAP ASM
WR02X13215 WR02X13215 GE TUBE PROCESS DRYER
WR02X37905 WR02X37905 GE TWIST SUPPORT
WR32X10121 WR32X10121 GE VEG PAN BASKET ASM
WR32X10727 WR32X10727 GE VEG PAN COVER ASM
WR01X10906 WR01X10906 GE WASHER 3/8
WR01X10046 WR01X10046 GE WASHER SHOWCASE PIVOT
WR02X10480 WR02X10480 GE WHEEL MOBILITY
WR01X10256 WR01X10256 GE WR01X10256
