Manufacturer
GE
Model Number
ZIRS360NHARH
Description

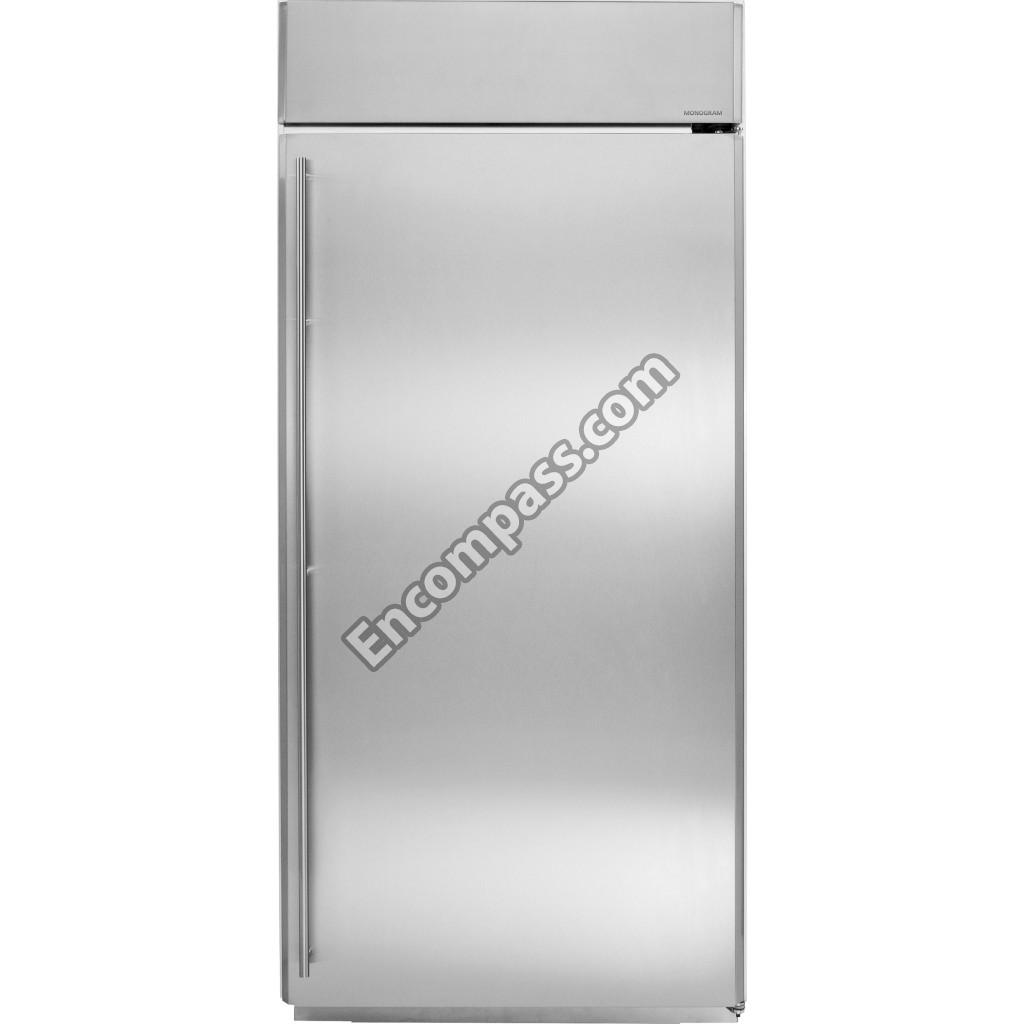

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
#10X1\2 PH SMS |
|
|
#8-18 TYPE AB X 3/8 BLACK |
|
|
#8-18 TYPE AB X 3/8 PH P |
|
|
10-24X1 PHIL P-HD TAP |
|
|
4-40 X 1/4 PH SMS |
|
|
8-32 X 3/8 PHIL PH TY C |
|
|
8-32 X 5/8 PH SS TCS |
|
|
ACTUATOR ARM FF DOOR |
|
|
ANTI-TIP HARDWARE ASSEMBLY |
|
|
ASSEMBLY DAIRY COMP |
|
|
AXLE WHEEL |
|
|
BAFFLE COND |
|
|
BAFFLE COND AIR |
|
|
BASE CHANNEL ASM LH |
|
|
BASE CHANNEL ASM RH |
|
|
BIN DOOR FF DEEP LH |
|
|
BIN DOOR FF DEEP RH |
|
|
BIN FF DOOR W/WINDOW |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BLADE EVAP FAN ASM |
|
|
BOARD ASSEMBLY MAIN CONTROL |
|
|
BOLT SHOULDER |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET EVAP FAN BTM |
|
|
BRACKET FAN MTG |
|
|
BRACKET LIGHT BREAKER |
|
|
BRACKET ORIFICE FAN |
|
|
BRACKET TOP FAN |
|
|
BRACKET TOP FAN LH |
|
|
BRACKET WALL MOUNTING |
|
|
BTM LIGHT ASM LH |
|
|
BTM LIGHT ASM RH |
|
|
BULB HALOGEN LIGHT |
|
|
BUMPER |
|
|
BUSHING ARM |
|
|
BUSHING HINGE BOTTOM |
|
|
BUSHING HINGE TOP |
|
|
BUSHING SHOWCASE PIVOT |
|
|
BUTTON GLIDE |
|
|
CABLE CLAMP |
|
|
CAP DUST |
|
|
CATCH EVAP TROUGH |
|
|
CEILING LIGHT SHIELD SD |
|
|
CLAMP CABLE |
|
|
CLIP COMPRESSOR MOUNT |
|
|
CLIP DEFROST HEATER |
|
|
CLIP EVAP THERMISTOR |
|
|
CLOSURE MECH RH |
|
|
COMPRESSOR KIT INVERTER |
|
|
CONDENSER & BRACKET ASM |
|
|
CONDENSER BOTTOM SD |
|
|
CONDENSER FAN SHROUD |
|
|
COVER MOTHERBOARD |
|
|
DEFROST HEATER |
|
|
DIVIDER CENTER ASM |
|
|
DOOR FOAMED ASM |
|
|
DOOR GASKET SD |
|
|
DRAIN FAN BRACKET ASSEMBLY |
|
|
DRAIN PAN |
|
|
DRYER BIFURCATED HX9 |
|
|
EDGE TRIM |
|
|
ENCAP SHELF ASSEMBLY |
|
|
EVAP COIL |
|
|
EVAP FAN COVER FOAM ASM |
|
|
EVAPORATOR COVER ASSEMBLY |
|
|
FAN & ORIFICE EVAP ASM |
|
|
FAN FRESH FOOD |
|
|
FAN ORIFICE COND |
|
|
FOAM COND BAFFLE |
|
|
FRONT WHEEL ASM |
|
|
FUSE 2 AMP |
|
|
GRILL ASM EURO RH |
|
|
GRILL ASSEMBLY EURO RH SD/BM |
|
|
GROMMET |
|
|
GROMMET EVAP FAN |
|
|
GROMMET EVAP FAN |
|
|
GROMMET FAN MOTOR |
|
|
HAIRPIN COTTER |
|
|
HARNESS HEATERS TOD |
|
|
HINGE ASM DOOR TOP |
|
|
HINGE CASE FF UPPER |
|
|
HINGE DOOR BTM |
|
|
HMI ASSEMBLY FF |
|
|
HOUSING CONTROL |
|
|
INVERTOR |
|
|
KEEP OUT LT SW RH |
|
|
LEVELING LEG |
|
|
LOUVER SD |
|
|
LOWER CASE HINGE RH & LH |
|
|
LOWER FF ADJ HINGE PIN |
|
|
MASTER LIGHT SWITCH |
|
|
MONOGRAM BADGE |
|
|
MOTOR DC EVAP FAN ASM |
|
|
NUT-U |
|
|
PAN ASM |
|
|
PAN DRAIN ASSEMBLY |
|
|
PAN PROTECTOR REAR COVER |
|
|
PCB STAND OFF |
|
|
PLUG BUTTON #413 I/M |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MINI MANUAL |
|
|
PM OWNERS MANUAL |
|
|
POWER CORD |
|
|
QC HALOGEN LAMP ASM |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER FAN MOTOR |
|
|
RETAINER SYSTEM PAN |
|
|
RING COMPRESSION |
|
|
ROCKER SWITCH 200-WATT |
|
|
ROD |
|
|
SCR 10-32 |
|
|
SCR 8-32 CA HXW 1/2 |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW #10-32X3/4 CR TR H |
|
|
SCREW #8 18 X 3/4 |
|
|
SCREW 6X1/2 PAN PHIL H/L |
|
|
SCREW SET 10-32 |
|
|
SCREW TRIM (SELF DRIL |
|
|
SEAL FRONT SHOWCASE LID |
|
|
SEAL FRONT SNACK PAN |
|
|
SEAL FRT VEG PAN GLASS |
|
|
SEAL RR SNACK PAN |
|
|
SHEAR PIN |
|
|
SHELF TRACK CENTER |
|
|
SHELF TRACK SIDE |
|
|
SHOWCASE LID VEG PAN |
|
|
SLIDE OUTER |
|
|
SLIDE OUTER |
|
|
SLIDE SUPPORT LOWER SD |
|
|
SNACK PAN ASSEMBLY |
|
|
SNACK PAN SHELF ASM |
|
|
SPACER |
|
|
SPRING CLOSURE |
|
|
SPRING WHEEL #LE022C4 |
|
|
STAND-OFF SS |
|
|
STUD MTGCOMP |
|
|
STUD SPRING FF DOOR |
|
|
SUPPORT PAN ASM |
|
|
SUPPORT SIDE ASM RH |
|
|
SUPPORT SLIDE ASM LH |
|
|
SUPPORT SNACK PAN ASM |
|
|
SUPPORT VEG BASKET ASM |
|
|
SWITCH LIGHT |
|
|
SWITCH PLATE RH |
|
|
SYSTEM PAN ASSEMBLY |
|
|
TOE KICK RH |
|
|
TOP LIGHT ASM LH |
|
|
TOP LIGHT ASM RH |
|
|
TRANSFORMER LIGHT 160VA |
|
|
TRIM CASE SIDE LH |
|
|
TRIM CASE SIDE RH |
|
|
TUBE DISCHARGE |
|
|
TUBE JUMP CAP DRYER |
|
|
TUBE JUMP SUCT COMP ASM |
|
|
TUBE JUMP SUCT EVAP ASM |
|
|
TUBE PROCESS DRYER |
|
|
TUBULAR SS HANDLE ASM |
|
|
TWIST SUPPORT |
|
|
USE GEH WR02X10137 |
|
|
VEG PAN BASKET ASM |
|
|
VEG PAN COVER ASM |
|
|
WASHER 3/8 |
|
|
WASHER SHOWCASE PIVOT |
|
|
WHEEL MOBILITY |
|
|
WIRE GUARD (EYEBROW) RH |
|
|
WR01X10256 |
|
|
WRAP ASSEMBLY SD EURO SD RH |
