Manufacturer
GE
Model Number
ZISP480DXASS
Description

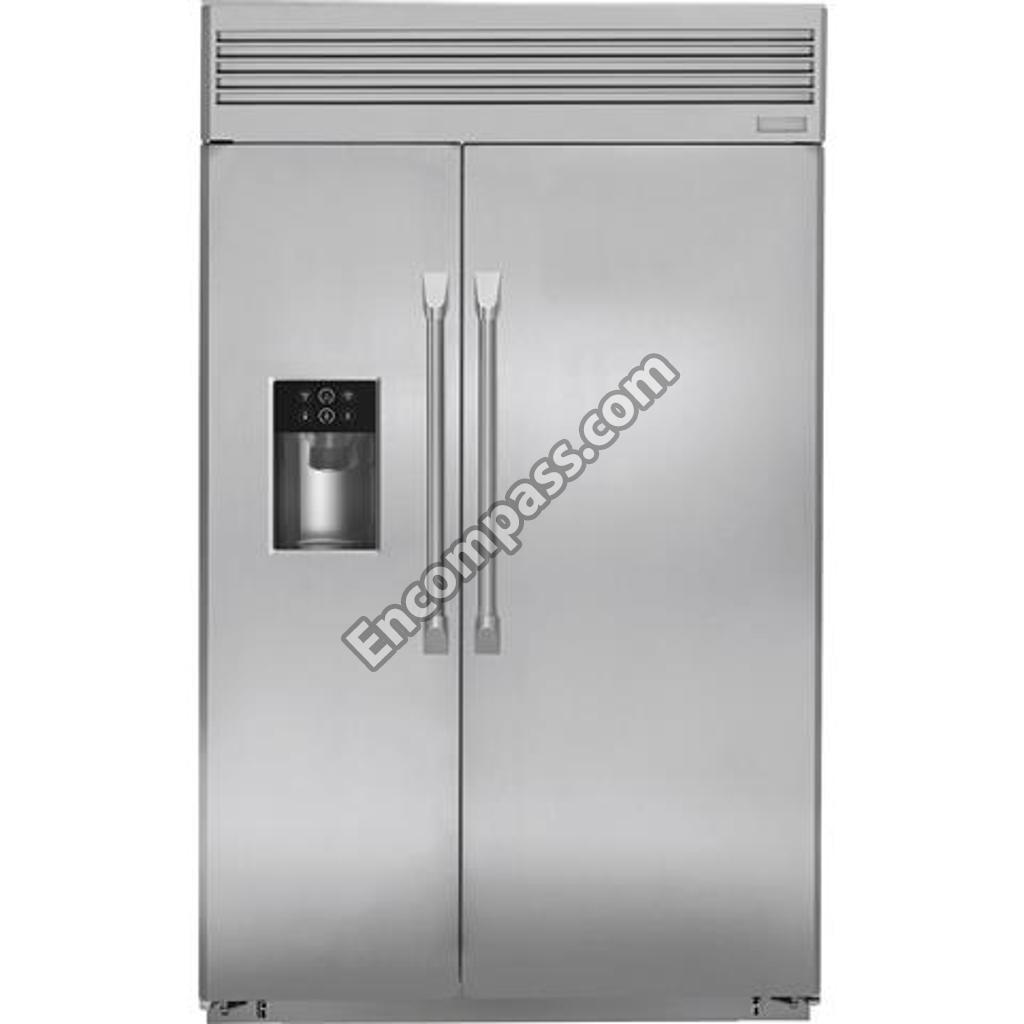

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
#10X1\2 PH SMS |
|
|
#6-32 X 3/16 MACH SCR. |
|
|
#8-18 TYPE AB X 3/8 PH P |
|
|
1/4-20 HEX NUT |
|
|
4-40 X 1/4 PH SMS |
|
|
48 FZ DISP DOOR ASM BLK |
|
|
8-32 X 3/8 PHIL PH TY C |
|
|
ACCUMULATOR |
|
|
ACTUATOR ARM |
|
|
ACTUATOR ARM |
|
|
AIR HANDLER ASM QC |
|
|
AIR TOWER FF 42/48 |
|
|
AUGER HELIX DISPLAY |
|
|
AUGER MOTOR COVER |
|
|
BAFFLE LH |
|
|
BAFFLE RETURN FF |
|
|
BASE CHANNEL LH |
|
|
BHNG ARM NYLON FF DR CL |
|
|
BIN ASM GALLON |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BLADE FAN MOTOR |
|
|
BLADE FAN MOTOR |
|
|
BLADE IN DISP |
|
|
BLADE REST DISP |
|
|
BLADE STATIONARY DISPLAY |
|
|
BLADE STATIONARY DISPLAY |
|
|
BLADE STATIONARY DISPLAY |
|
|
BLADES MOVING DISPLAY |
|
|
BLADES MOVING DISPLAY |
|
|
BLADES MOVING DISPLAY |
|
|
BOARD ASSEMBLY MAIN CONTROL |
|
|
BOARD LED LIGHT ASM |
|
|
BOARD LED LIGHT ASM |
|
|
BOARD LED LIGHT ASM |
|
|
BOLT 1/4-20X1.5 |
|
|
BOLT SHOULDER |
|
|
BRACKET AND VALVE ASM |
|
|
BRACKET ANTI-TIP |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET EVAP FAN BTM |
|
|
BRACKET ORIFICE FAN |
|
|
BRACKET QC DUCT |
|
|
BRACKET WATER VALVE |
|
|
BRACKET WATER VALVE |
|
|
BUCKET & AUGER ASM DISP |
|
|
BUCKET DISP |
|
|
BUCKET ICE DISP |
|
|
BUCKET SEAL |
|
|
BUCKET SEAL DISP |
|
|
BUCKET SLIDE |
|
|
BULB HOUSING ASM 48FF |
|
|
BULB HOUSING ASM 48FZ |
|
|
BUMPER |
|
|
BUSHING HINGE BOTTOM |
|
|
BUSHING HINGE SPRING |
|
|
BUSHING HINGE TOP |
|
|
CAP END |
|
|
CAP FILTER BYPASS |
|
|
CAP SUCTION TUBE ASM |
|
|
CASE TRIM FZ SIDE |
|
|
CASE TRIM TOP |
|
|
CEILING LIGHT BRACKET |
|
|
CEILING LIGHT SHIELD |
|
|
CHANNEL BASE ASSEMBLY (LH) |
|
|
CHANNEL BASE ASSEMBLY (RH) |
|
|
CLAD FOAM ASM FF |
|
|
CLAD FOAM ASM FZ |
|
|
CLIP CAP END |
|
|
CLIP CAP END |
|
|
COLLAR KIT- BLACK |
|
|
COLLAR SOLENOID DISP. |
|
|
COMPRESSOR VCC3 REPL. KI |
|
|
COND ASSEMBLY FORMED |
|
|
CONDENSER FAN SHROUD |
|
|
CONNECTOR WATER LINE |
|
|
COVER BOARD MAIN SXS |
|
|
COVER FZ LIGHT COLUMN |
|
|
COVER ICEMAKER |
|
|
COVER MOTOR SOLENOID |
|
|
COVER WATER LINES |
|
|
COVER WATER TANK |
|
|
CRANK DOOR RECESS |
|
|
CUP FILL IM |
|
|
DAIRY BIN 48 |
|
|
DAIRY BIN ASM |
|
|
DAMPER ASSEMBLY DESUPPLY |
|
|
DAMPER FOAM ASM 48 |
|
|
DEFLECTOR ICE DISP |
|
|
DEFROST HEATER |
|
|
DIFFUSOR CASE 42/48 |
|
|
DISPLAY ASSEMBLY- BOARD / GLASS |
|
|
DOOR COMPLETE FF SERVICE |
|
|
DOOR ICE BIN |
|
|
DRAIN PAN AND HEATER |
|
|
DRIER FILTER |
|
|
DRIVE AUGER DISPENSER |
|
|
DRIVE CUP |
|
|
DRYER |
|
|
DUCT COVER FZ |
|
|
EDGE TRIM |
|
|
ELECTRONIC IM DOMESTIC |
|
|
ENCAPSULATED SHELF ASM |
|
|
EVAP FAN ORFICE COVER |
|
|
EVAPORATOR SXS |
|
|
EYEBROW SWITCH COVER |
|
|
FAN CHILL |
|
|
FF HINGE SXS LOWER CASE |
|
|
FILL TUBE COVER - DISP |
|
|
FILL TUBE KIT BM |
|
|
FLAT WASHER 3/8X 7/8 |
|
|
FOAM AIRTOWER ASM |
|
|
FOAM BLOCK EVAP |
|
|
FOAM STRIP FRONT |
|
|
FRONT FZ BASKET |
|
|
FRONT WHEEL ASSEMBLY |
|
|
FUNNEL ICE DISPLAY |
|
|
FUSE |
|
|
FZ BASKET ASM |
|
|
FZ BOTTOM HINGE BUSHING |
|
|
FZ HINGE SXS CASE UPPER |
|
|
FZ HINGE SXS LOWER CASE |
|
|
FZ SLIDE ASM LH |
|
|
FZ SLIDE ASM RH |
|
|
GASKET DOOR |
|
|
GASKET DOOR |
|
|
GRILL & BACKPLATE ASM LH |
|
|
GRILLE RECESS BK |
|
|
GRILLE SENSOR |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET EVAPORATOR FAN |
|
|
GROMMET FAN MOTOR |
|
|
HALOGEN BULB LIGHT COLUM |
|
|
HANDLE SS |
|
|
HANDLE TRIM SCREW |
|
|
HARDWARE PACK |
|
|
HARNESS AUGER |
|
|
HARNESS GROUND |
|
|
HEATER THAW 36/42/48 |
|
|
HELIX FRONT DISPLAY (1 PC) |
|
|
HINGE ASM DOOR TOP |
|
|
HINGE DOOR BTM |
|
|
HINGE FF UPPER |
|
|
HINGE GRILL |
|
|
HINGE GRILL |
|
|
HINGE SCREW DOOR BTM |
|
|
HMI ASM |
|
|
HMI TAB HOLDER 48/42 |
|
|
HOLD DOWN BRACKET |
|
|
HOOD HINGE MOUNT |
|
|
HOUSING CRUSHER DISP |
|
|
HOUSING SHIELD DISP |
|
|
ICE BIN DOOR TRACK |
|
|
ICE BIN FRT |
|
|
INSTALLATION INSTRUCTION |
|
|
INVERTER ASSEMBLY COMP MOUNT |
|
|
J NUT-PKG 12 |
|
|
KIT DAMPER MONOGRAM |
|
|
LAMP SOCKET |
|
|
LATCH LIGHT SHIELD |
|
|
LEVELING LEG |
|
|
LIGHT COLUMN ASM 48FZ |
|
|
LIGHT DISPENSER |
|
|
LINK AUCATOR FF |
|
|
LINK AUCTUATOR FZ |
|
|
LOWER FF ADJ HINGE PIN |
|
|
MAIN BOARD STAND OFFS |
|
|
MASTER LIGHT SW. KIT |
|
|
MEMBRANE SXS DISP |
|
|
MOTOR CRUSHER DISP |
|
|
MOTOR EVAP DC |
|
|
MULLION BOTTOM QC |
|
|
NO ITEM DESCRIPTION |
|
|
NUT AUGER FRT DISP |
|
|
NUT J |
|
|
PAN DRAIN ASM |
|
|
PAN REAR SEAL 48 |
|
|
PAN SIDE SUPPORT LH |
|
|
PAN SIDE SUPPORT RH |
|
|
PAN VAPORIZER |
|
|
PANREAR SEAL |
|
|
PIN DEFLECTOR DISP |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PIVOT |
|
|
PLATE FRONT DISP |
|
|
PLATE SWITCH SXS |
|
|
PM MINI MANUAL |
|
|
POWER CORD |
|
|
POWER SUPPLY PCB |
|
|
QC PAN MODIFIED |
|
|
QC SEAL DAMPER |
|
|
QUICK SHELF ASM |
|
|
REFLECTOR LIGHT |
|
|
REFRIGERATOR CONDENSER |
|
|
REFRIGERATOR CONDENSER FAN MOTOR |
|
|
REFRIGERATOR DISPENSER DOOR FLAP - BLACK |
|
|
REFRIGERATOR LIGHT SWITCH |
|
|
REFRIGERATOR TEMPERATURE SENSOR |
|
|
REG BIN ASM |
|
|
REG BIN FF ASSEMBLY |
|
|
RETAINER ACTUATOR WIRE |
|
|
RETAINER RECESS DOOR |
|
|
RETAINER RING E |
|
|
RETRNG-PKG12 |
|
|
RING COMPRESSION |
|
|
ROCKER SWITCH 200-WATT |
|
|
ROLL PIN |
|
|
SADDLE SOLEN |
|
|
SADDLE SOLENOID |
|
|
SCR 1/4-20 HX 3/8 S |
|
|
SCR 10-24 F PNP 1.25 S |
|
|
SCR 8-15 A PA 3/8 SS |
|
|
SCR 8-18 AB IHW 5/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 6-10 PL FLP 1/2 S |
|
|
SCREW 6X1/2 PAN PHIL H/L |
|
|
SCREW TRIM (SELF DRILLING) |
|
|
SCREW-PKG 12 |
|
|
SEAL PAN FRONT |
|
|
SET SCREW |
|
|
SHEAR PIN |
|
|
SHELF ASM PAN TOP |
|
|
SHIELD LIGHT COLUMN 48 |
|
|
SLIDE ASSEMBLY 10 |
|
|
SLIDE OUTER |
|
|
SLIDE OUTER |
|
|
SNACK PAN ASM |
|
|
SNACK PAN SHELF ASM |
|
|
SNACK PAN WIRE SUPPORT |
|
|
SOCKET LAMP |
|
|
SOLENOID & ARM ASM |
|
|
SOLENOID ASM |
|
|
SPACER |
|
|
SPACER |
|
|
SPACER |
|
|
SPACER CRUSHER MIDDLE |
|
|
SPACER CRUSHER STATIONAR |
|
|
SPACER FF DOOR CLOSURE |
|
|
SPACER FZ SHELF 48 |
|
|
SPRING |
|
|
SPRING CLOSURE |
|
|
SPRING ICE DEFLECTOR |
|
|
SPRING RECESS DOOR |
|
|
SPRING SOLENOID LINKAGE |
|
|
SPRING TORSION FIT |
|
|
SPRING WHEEL #LE022C4 |
|
|
STEEL COLLAR.. |
|
|
STUD COMPRESSOR MTG |
|
|
SUPPORT TWIST 9119-01-99 |
|
|
SW LIGHT FZ |
|
|
SWITCH |
|
|
SWITCH LIGHT FZ |
|
|
SYSTEM PAN |
|
|
SYSTEM PAN BRACKET |
|
|
TEMP CONTROL HOUSING |
|
|
THERMOSTAT LIGHT |
|
|
TOE KICK -SS 48 |
|
|
TOP END CAP-48 |
|
|
TOP SXS FZ DOOR HINGE AS |
|
|
TRACK FF SHELF |
|
|
TRACK FZ SHELF |
|
|
TRANSFORMER |
|
|
TRANSFORMER FF 140VA |
|
|
TRANSFORMER FZ LIGHTS |
|
|
TRAY TRANSFORMER |
|
|
TRIM CASE RH SIDE |
|
|
TRIM CEILING BRACKET LH |
|
|
TRIM CEILING BRACKET RH |
|
|
TRIM CORNER KEY |
|
|
TUB DISP WATER LINE KIT |
|
|
TUBE |
|
|
TUBE DRAIN FLEXIBLE |
|
|
UNN 5/16-1/4 |
|
|
VEG PAN ASM |
|
|
VEG PAN FRONT ASM |
|
|
VEG PAN WIRE SUPPORT |
|
|
VEG WIRE FRAME MODIFIED |
|
|
VENT TUBE |
|
|
WASHER |
|
|
WASHER RETAINER CHILL |
|
|
WASHR-PKG 12 |
|
|
WATER FILTER |
|
|
WATER FILTER & HEAD ASM |
|
|
WATER FILTER & HEAD ASM |
|
|
WATER FILTER BRACKET |
|
|
WATER FILTER BRACKET |
|
|
WATER TANK ASM |
|
|
WATER VALVE ASSEMBLY |
|
|
WHEEL ASM. |
|
|
WHEEL MOBILITY |
|
|
WHEEL REAR ASM |
|
|
WINE RACK CLEAR LEXAN |
|
|
WIRE ACTUATOR DISP |
|
|
WIRE MESH QC HSG |
|
|
WIRE SHELF ASM FZ |
|
|
WR01X10256 |
