Manufacturer
GE
Model Number
ZISS360DNFSS
Description

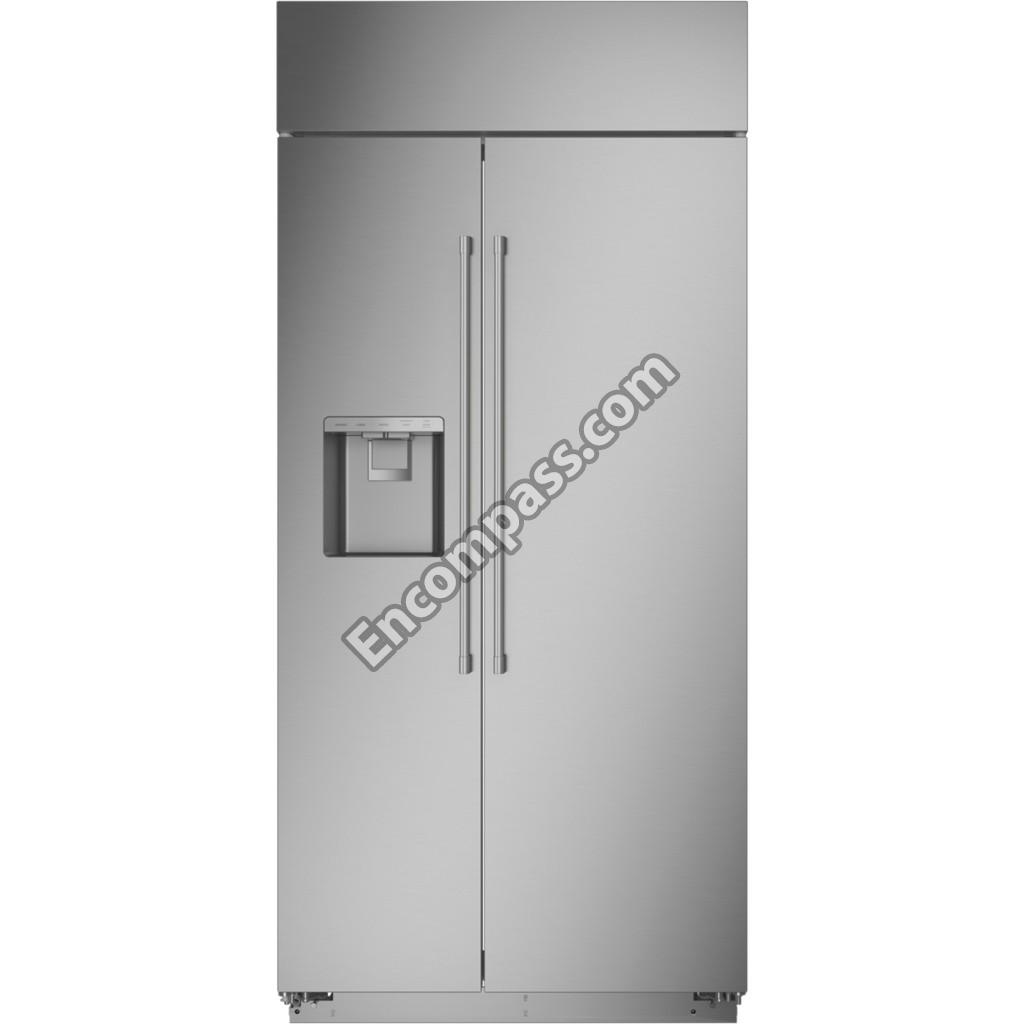

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
"36"" STAINLESS GRILL" |
|
|
"5/16"" COUPLER W/ CHECK VALVE" |
|
|
"8-32 X 5/8"" PH SS TCS" |
|
|
"AIR TOWER COVER 36""" |
|
|
"AUGER MOTOR 36/42""" |
|
|
"AUGER MOTOR, DISP" |
|
|
"DAIRY BIN 36""" |
|
|
"FREEZER BASKET 36/42""" |
|
|
"LIGHT GUIDE 36/42""" |
|
|
"LIGHT GUIDE ACRYLIC 36""" |
|
|
"MAIN AC HARNESS 36""" |
|
|
"QUICK CHILL MULLION 36""" |
|
|
"QUICK CHILL PAN 36""" |
|
|
"REFRIGERATOR DOOR 36""" |
|
|
"REFRIGERATOR LED SHELF 36""" |
|
|
"SCREW, 1/4-20 TT BHT .87" |
|
|
"SNACK PAN 36""" |
|
|
"STAINLESS REFRIGERATOR DOOR WRAP 36""" |
|
|
"TOE KICK 36""" |
|
|
"TOE KICK SKIRT 36""" |
|
|
"VEGETABLE PAN 36""" |
|
|
#10X1\2 PH SMS |
|
|
1/4-20 HEX NUT |
|
|
10.5MM X 8MM LOKRING |
|
|
10MM X 8MM LOKRING |
|
|
36-INCH & 42-INCH DRAIN PAN AND EVAPORATOR COVER |
|
|
4-40 X 1/4 PH SMS |
|
|
4MM X 2MM LOKRING |
|
|
6MM X 2MM LOKRING |
|
|
6MM X 4MM LOKRING |
|
|
6MM X 5MM LOKRING |
|
|
8.5MM X 6MM LOKRING |
|
|
8MM X 8MM LOKRING AL |
|
|
ACTUATOR ARM |
|
|
ACTUATOR ARM |
|
|
AUGER HELIX DISPLAY |
|
|
BAFFLE COND AIR |
|
|
BASE CHANNEL LH |
|
|
BASE CHANNEL RH |
|
|
BASE SHAFT |
|
|
BHNG ARM NYLON FF DR CL |
|
|
BIN ASM GALLON 36 |
|
|
BIN DOOR ASM 36/42 |
|
|
BIN DOOR ASM 36/48 |
|
|
BLADE CONF FAN ASM |
|
|
BLADE REST DISP |
|
|
BLADE STATIONARY DISPLAY |
|
|
BLADE STATIONARY DISPLAY |
|
|
BLADES MOVING DISPLAY |
|
|
BLADES MOVING DISPLAY |
|
|
BLADES MOVING DISPLAY |
|
|
BOLT SHOULDER |
|
|
BRACKET AND VALVE ASM |
|
|
BRACKET ANTI-TIP |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET EVAP FAN BTM |
|
|
BRACKET ORIFICE FAN |
|
|
BRACKET WATER VALVE |
|
|
BRACKET WATER VALVE |
|
|
BUCKET ICE DISP |
|
|
BUCKET SEAL DISP |
|
|
BUCKET SLIDE |
|
|
BUMPER |
|
|
BUSHING HINGE BOTTOM |
|
|
BUSHING HINGE TOP |
|
|
CEILING LIGHT SHIELD |
|
|
COMPRESSOR |
|
|
CONDENSER AND BRACKET |
|
|
CONDENSER STRAP |
|
|
COVER AUGER MOTOR |
|
|
COVER QC |
|
|
COVER QC DAMPER |
|
|
COVER WATER LINES |
|
|
COVER WATER TANK |
|
|
DAMPER ASM |
|
|
DAMPER FOAM ASM 36 |
|
|
DEFLECTOR ICE DISP |
|
|
DEFROST HEATER |
|
|
DISCHARGE TUBE |
|
|
DISPENSER CONTROL BOARD |
|
|
DISPENSER RECESS |
|
|
DOOR ICE BIN |
|
|
DOOR LATCH LIGHT WH (PAIR) |
|
|
DRAIN PAN AND HEATER |
|
|
DRIP TRAY COVER |
|
|
DRIVE AUGER DISPENSER |
|
|
DRIVE CUP |
|
|
DUCT DOOR |
|
|
DUCT DOOR ARM AND SPRING |
|
|
DUCT DOOR DIODE HARNESS |
|
|
DUCT DOOR MOTOR |
|
|
DUCT GRILL |
|
|
EDGE TRIM |
|
|
EVAPORATOR |
|
|
EVAPORATOR HARNESS AC |
|
|
EVAPORATOR HARNESS DC |
|
|
FAN BLADE ASM |
|
|
FILL TUBE COVER |
|
|
FLAT WASHER 3/8X 7/8 |
|
|
FLOW METER |
|
|
FOAM BAFFLE |
|
|
FOAM BLOCK EVAP |
|
|
FOAM STRIP FRONT |
|
|
FREEZER DISPENSER DOOR 36/42"" |
|
|
FUNNEL COVER |
|
|
FZ BOTTOM HINGE BUSHING |
|
|
FZ HINGE SXS CASE UPPER |
|
|
FZ SLIDE ASM LH |
|
|
FZ SLIDE ASM RH |
|
|
GASKET DOOR |
|
|
GASKET DOOR |
|
|
GLIDER |
|
|
GRILLE SENSOR |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET EVAP FAN |
|
|
GROMMET FAN MOTOR |
|
|
HARNESS FF LOWER |
|
|
HEATER THAW |
|
|
HELIX FRONT DISPLAY (1 P |
|
|
HINGE ASM DOOR TOP RH |
|
|
HINGE CASE BOTTOM |
|
|
HINGE CASE BOTTOM FZ |
|
|
HINGE CASE FF UPPER |
|
|
HINGE DOOR BTM |
|
|
HINGE SCREW DOOR BTM |
|
|
HOUSING CONTROL |
|
|
HOUSING CRUSHER DISP |
|
|
ICE BIN DOOR TRACK |
|
|
ICE BIN FRT |
|
|
ICE BUCKET |
|
|
ICE FUNNEL |
|
|
ICE FUNNEL BRACKET |
|
|
ICE MAKER FILL TUBE AND HEATER |
|
|
ICEMAKER FAN |
|
|
ICEMAKER SPACER |
|
|
ICEMAKER WITH 2 PIECE FILL CUP |
|
|
INVERTER |
|
|
KEY PIVOT |
|
|
LED BOARD |
|
|
LED JUMPER HARNESS |
|
|
LED TRANSFORMER |
|
|
LIGHT SWITCH |
|
|
LIGHT SWITCH |
|
|
LINK ACTUATOR FZ |
|
|
LINK AUCATOR FF |
|
|
LOWER FF ADJ HINGE PIN |
|
|
MAIN BOARD COVER |
|
|
MAIN BOARD STAND OFF |
|
|
MAIN CONTROL BOARD |
|
|
MAIN HARNESS DC |
|
|
MINIMALIST DOOR HANDLE |
|
|
MONOGRAM CAPACITIVE TOUCH DISPLAY |
|
|
MONOGRAM DISPENSER PADDLE |
|
|
MOTOR DC COND FAN |
|
|
MOTOR EVAP DC |
|
|
MOUNT HOOD GRILL HINGE |
|
|
MWF BYPASS |
|
|
MWF MANIFOLD |
|
|
NUT AUGER FRT DISP |
|
|
PAN REAR SEAL 36 |
|
|
PAN SIDE SUPPORT LH |
|
|
PAN SIDE SUPPORT RH |
|
|
PIN DEFLECTOR DISP |
|
|
PIN SPIRAL |
|
|
PLATE FRONT DISP |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MINI MANUAL AND WIRING |
|
|
POWER CORD |
|
|
POWER SUPPLY POWER CONTROL BOARD |
|
|
QC HOUSING ASM KIT |
|
|
R600 DRIER W/ RED CAP |
|
|
R600A CHARGE CAN 60 GRAMS |
|
|
REFRIGERATOR DRAIN VACUUM BREAK VALVE |
|
|
RETAINER ACTUATOR WIRE |
|
|
RETAINER RING E |
|
|
RETURN BAFFLE |
|
|
RING COMPRESSION |
|
|
SCR 8-18 TPT 1/4 |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 6X1/2 PAN PHIL H/L |
|
|
SCREW TRIM (SELF DRILLIN |
|
|
SEAL PAN FRONT |
|
|
SHEAR PIN |
|
|
SHELF FF 36 |
|
|
SHIELD LIGHT COLUMN |
|
|
SHROUD CONDENSER |
|
|
SLIDE INNER |
|
|
SLIDE OUTER |
|
|
SLIDE OUTER |
|
|
SLIDE SUPPORT RH ASM |
|
|
SMALL ICEMAKER JUMPER HARNESS DISPENSER |
|
|
SNACK PAN WIRE SPT 36 |
|
|
SPACER CRUSHER MIDDLE |
|
|
SPACER CRUSHER STATIONAR |
|
|
SPACER FF DOOR CLOSURE |
|
|
SPRING CLOSURE |
|
|
SPRING DEFLECTOR |
|
|
SPRING ICE DEFLECTOR |
|
|
SPRING WHEEL #LE022C4 |
|
|
STAINLESS FREEZER DISPENSER DOOR WRAP 36 |
|
|
STATEMENT DOOR HANDLE |
|
|
STEEL COLLAR |
|
|
SUCTION TUBE |
|
|
SUPPORT SHELF LH |
|
|
SYSTEM PAN BRACKET |
|
|
TEMPERATUR SENSOR FF |
|
|
TEMPERATURE CONTROL BOARD AND HOUSING |
|
|
THERMOSTAT CUTOFF |
|
|
TOP SXS FZ DOOR HINGE AS |
|
|
TOWER LED |
|
|
TRACK FF SHELF |
|
|
TRACK FZ SHELF |
|
|
TRANSFORMER TRAY |
|
|
TRIM CASE SIDE FF CAFE P |
|
|
TRIM CASE SIDE FZ CAFE/P |
|
|
TRIM CASE TOP SXS 36 |
|
|
TRIM CEILING BRACKET LH |
|
|
TRIM CEILING BRACKET RH |
|
|
TRIM CORNER KEY |
|
|
TUBE DRAIN FLEXIBLE |
|
|
VEG PAN WIRE SUPPORT |
|
|
VEG WIRE FRAME MODIFIED |
|
|
WATER FILTER BRACKET |
|
|
WATER FILTER CANISTER |
|
|
WATER TANK ASM |
|
|
WHEEL ASM. |
|
|
WIFI AND HUMIDITY BOARD |
|
|
WIFI HOUSING |
|
|
WIFI JUMPER HARNESS |
|
|
WIRE ACTUATOR DISP |
|
|
WIRE SHELF FZ 36/42 |
