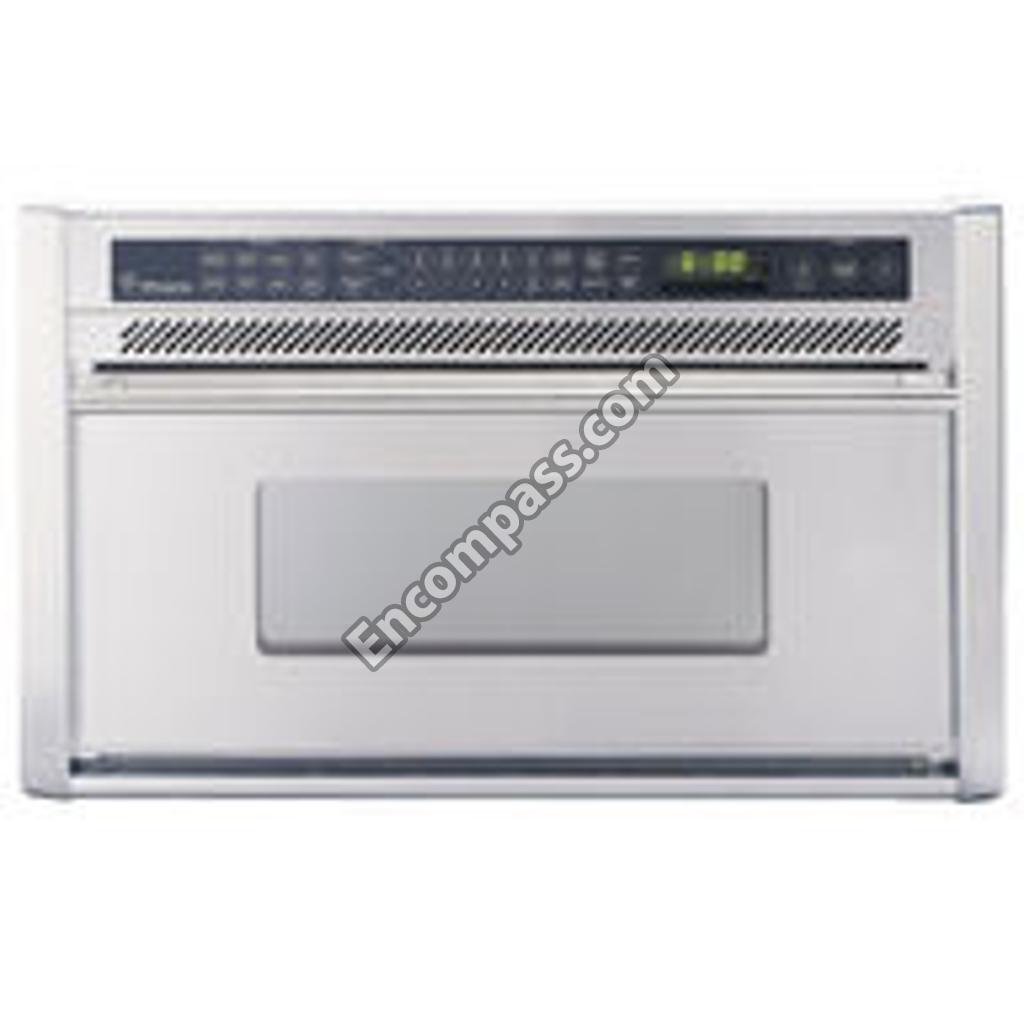

Model Image
Manufacturer

GE

Model Number

ZMC1095SB01

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB53X298 WB53X298 ADIABATIC TP
WB53X294 WB53X294 ADIABATIC-CV
WB53X10009 WB53X10009 ADIABATIC-DOOR
WB6X340 WB6X340 AIR GUIDE
WB27X1055 WB27X1055 ASSEMBLY PCB SUB
WB36X10122 WB36X10122 ASSEMBLY-INLAY SCREEN
WB6X341 WB6X341 BKT DAMP MTR
WB6X345 WB6X345 BKT-COVER
WB4X162 WB4X162 BKT-GRILLE
WB14X177 WB14X177 BKT-HANDLE
WB4X147 WB4X147 BKT-HINGE
WB6X344 WB6X344 BKT-HVT
WB4X145 WB4X145 BKT-LAMP
WB4X148 WB4X148 BKT-PANEL
WB4X151 WB4X151 BODY-LATCH
WB04X10012 WB04X10012 BRACKET-DOOR
WB06X10200 WB06X10200 BRACKET-HVC
WB06X10201 WB06X10201 BRACKET-PCB
WB04X10008 WB04X10008 BRACKET-SUPPORT
WB1X1486 WB1X1486 BUSHING
WB53X303 WB53X303 CABINET BACK
WB53X301 WB53X301 CABINET LEFT
WB53X304 WB53X304 CABINET LWR
WB53X302 WB53X302 CABINET RGHT
WB53X299 WB53X299 CABINET UP A
WB53X300 WB53X300 CABINET UP B
WB02X10694 WB02X10694 CAP - INSERT
WB27X10011 WB27X10011 CAPACITOR
WB53X296 WB53X296 CASE CONV A
WB53X295 WB53X295 CASE-CONV B
WB49X678 WB49X678 CER TRAY ASM
WB26X164 WB26X164 CONV MOTOR
WB6X347 WB6X347 COOLING FAN
WB53X306 WB53X306 COVER ACCESS
WB6X342 WB6X342 COVER DAMPER
WB6X339 WB6X339 COVER-MGT
WB4X144 WB4X144 CVR OV LAMP
WB1X1470 WB1X1470 DAMPER CAM
WB1X1472 WB1X1472 DAMPER LEVER
WB1X1471 WB1X1471 DAMPER PLATE
WB27X10597 WB27X10597 DIODE, ASM
WB4X154 WB4X154 DOOR-KEY
WB06X10202 WB06X10202 DUCT EXHAUST ASSEMBLY
WB26X162 WB26X162 FAN MOTOR
WB6X376 WB6X376 FAN-CONVECT
WB27X10454 WB27X10454 FUSE 250V 15A
WB24X799 WB24X799 GAS SENSOR
WB36X867 WB36X867 GLASS-LAMP
WB07X10250 WB07X10250 GRILLE
WB15X10061 WB15X10061 HANDLE - DOOR
WB44X10025 WB44X10025 HEATER-CONVECTION
WB4X146 WB4X146 HOLDER LAMP
WB02X10600 WB02X10600 HOLDER-ADIABATIC
WB06X10005 WB06X10005 HOLDER-FUSE
WB55X830 WB55X830 IN DR FRAME
WB07X10249 WB07X10249 INLAY-CONTROL
WB55X831 WB55X831 INSIDE DOOR ASSEMBLY W/GLASS +
WB36X10003 WB36X10003 LAMP - CAVITY
WB4X155 WB4X155 LATCH ASM LF
WB4X157 WB4X157 LATCH ASM RT
WB18X455 WB18X455 LEAD WIRE
WB4X149 WB4X149 LVR SLIDE A
WB4X150 WB4X150 LVR SLIDE B
WB27X10089 WB27X10089 MAGNETRON ASM
31-20088 31-20088 MINI MANUAL
NCN NCN NLA PART
WB1X1416 WB1X1416 NUT-LEFT
WB27X10575 WB27X10575 PCB ASSEMBLY
WB4X175 WB4X175 PCB SUPPORT
WB1X1473 WB1X1473 PIN PLT DAMP
WB2X9357 WB2X9357 PIN WIRE
WB2X9766 WB2X9766 PIN-DOOR KEY
WB18X545 WB18X545 POWER CORD
WB20X159 WB20X159 PROBE GRAY
WB8X302 WB8X302 RECEP-PROBE
WB01X10087 WB01X10087 SCREW-MOUNTING
WB24X806 WB24X806 SENSITIVE SWITCH
WB55X861 WB55X861 SLOT CVR DR
WB8X300 WB8X300 SOCKET-LAMP
WB4X174 WB4X174 SPACER-RACK
WB1X1475 WB1X1475 SPRING KEY
WB6X349 WB6X349 STIR BLD ASM
WB26X154 WB26X154 STIRRER MTR
WB02X10693 WB02X10693 SUPPORTER BUSHING
WB04X10013 WB04X10013 SUPPORTER-INLAY
WB24X428 WB24X428 SWITCH
WB27X10472 WB27X10472 SWITCH MEMBRANE
WB24X10042 WB24X10042 SWITCH-MICRO
WB26X163 WB26X163 SYNCH MOTOR
WB27X877 WB27X877 THERMISTOR
WB24X807 WB24X807 THERMOST SW
WB24X10041 WB24X10041 THERMOSTAT
WB27X1109 WB27X1109 TRANS-L V
WB27X600 WB27X600 TRANSFRMR-HV
WB07X10248 WB07X10248 TRIMMER-LOWER
WB07X10246 WB07X10246 TRIMMER-SIDE-L
WB07X10247 WB07X10247 TRIMMER-SIDE-R
WB1X1483 WB1X1483 WASH CON FAN
WB18X546 WB18X546 WIR HARN I
WB18X538 WB18X538 WIRE HARN A
WB18X544 WB18X544 WIRE HARN B
WB18X539 WB18X539 WIRE HARN C
WB18X547 WB18X547 WIRE HARN D
WB18X541 WB18X541 WIRE HARN E
WB18X542 WB18X542 WIRE HARN F
WB18X543 WB18X543 WIRE HARN G
WB18X540 WB18X540 WIRE HARN H
WB18X552 WB18X552 WIRE LEAD
WB48X225 WB48X225 WIRE RACK
WB2X9330 WB2X9330 WIRE SADDLE
