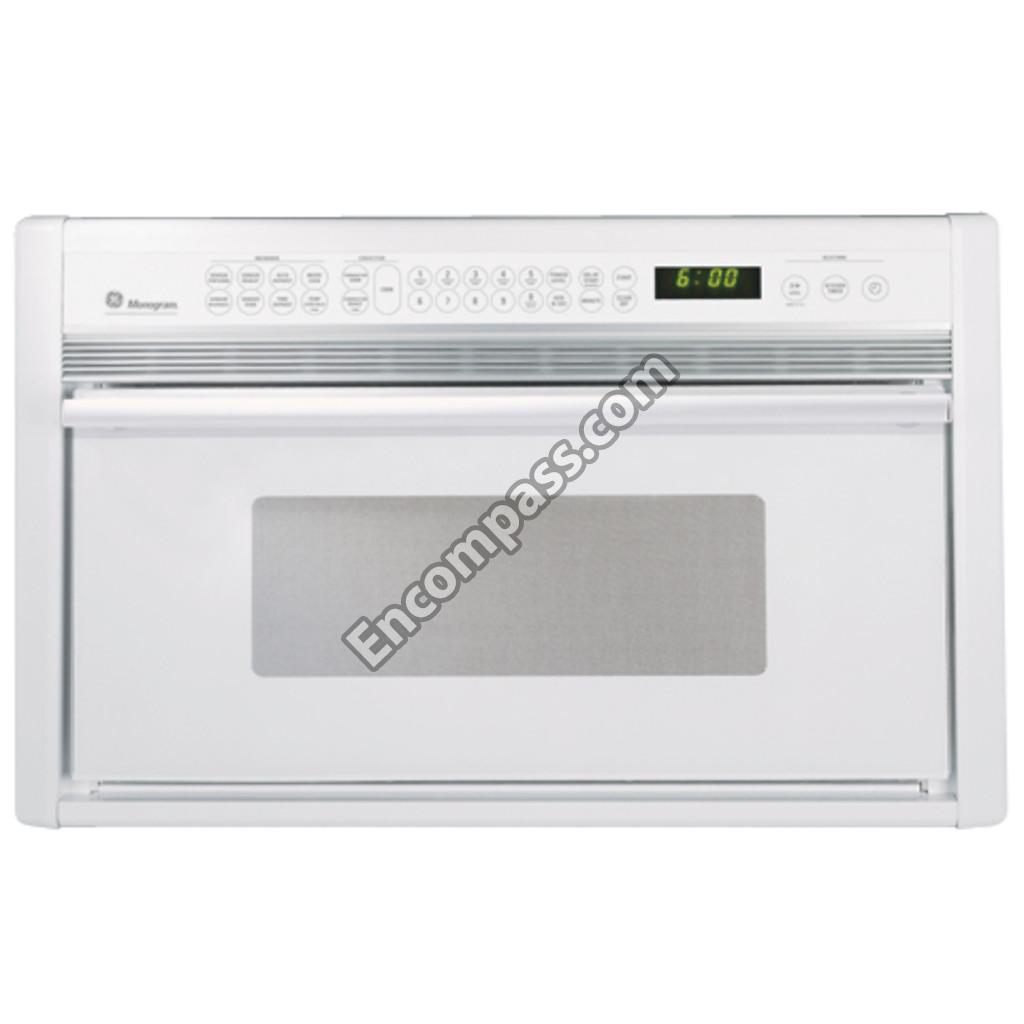

Model Image
Manufacturer

GE

Model Number

ZMC1095WF001

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB26X24340 WB26X24340 120V D-SHA DAMPER MOTOR
WB53X10009 WB53X10009 ADIABATIC-DOOR
WB27X1055 WB27X1055 ASSEMBLY PCB SUB
WB14X177 WB14X177 BKT-HANDLE
WB04X0147 WB04X0147 BKT-HINGE
WB4X147 WB4X147 BKT-HINGE
WB04X0148 WB04X0148 BKT-PANEL
WB4X148 WB4X148 BKT-PANEL
WB06X0376 WB06X0376 BLADE-FAN
WB4X151 WB4X151 BODY-LATCH
WB14X0177 WB14X0177 BRKT HANDLE
WB01X1486 WB01X1486 BUSHING
WB1X1486 WB1X1486 BUSHING
WB53X301 WB53X301 CABINET LEFT
WB53X302 WB53X302 CABINET RGHT
WB53X0301 WB53X0301 CABINET-L
WB53X0302 WB53X0302 CABINET-R
WB02X10818 WB02X10818 CAP-INSERT
WB27X10011 WB27X10011 CAPACITOR
WB49X678 WB49X678 CER TRAY ASM
WB49X0678 WB49X0678 CER TRAY ASSEMBLY
WB26X164 WB26X164 CONV MOTOR
WB06X0347 WB06X0347 COOLING FAN
WB6X347 WB6X347 COOLING FAN
WB26X0162 WB26X0162 COOLING FAN MOTOR ASM
WB06X0342 WB06X0342 COVER DAMPER
WB26X10117 WB26X10117 DAMPER ASSEMBLY
WB27X10597 WB27X10597 DIODE, ASM
WB55X10551 WB55X10551 DOOR COMPLETE ASSEMBLY
WB04X0155 WB04X0155 DOOR LATCH(L) ASM
WB04X0154 WB04X0154 DOOR-KEY
WB4X154 WB4X154 DOOR-KEY
WB24X799 WB24X799 EXPANDED PART
WB26X162 WB26X162 FAN MOTOR
WB6X376 WB6X376 FAN-CONVECT
WB27X10454 WB27X10454 FUSE 250V 15A.
WB36X0867 WB36X0867 GLASS-LAMP
WB36X867 WB36X867 GLASS-LAMP
WB07X1955 WB07X1955 GRILLE
WB15X10081 WB15X10081 H AND LE-DOOR
WB44X10025 WB44X10025 HEATER-CONVECTION
WB02X10600 WB02X10600 HOLDER-ADIABATIC
WB06X10005 WB06X10005 HOLDER-FUSE.
WB55X0830 WB55X0830 IN DR FRAME
WB55X830 WB55X830 IN DR FRAME
WB55X831 WB55X831 INSIDE DOOR ASSEMBLY W/GLASS +
49-8978 49-8978 INSTALLATION ZMC1095 JEB1055 9
WB27X10734 WB27X10734 KEY PANEL
WB36X10003 WB36X10003 LAMP - CAVITY
WB4X155 WB4X155 LATCH ASM LF
WB4X157 WB4X157 LATCH ASM RT
WB04X0157 WB04X0157 LATCH ASSEMBLY RT
WB55X0831 WB55X0831 LINER&CHOKE ASM W\GLASS
WB04X0149 WB04X0149 LVR SLIDE -INCHA
WB04X0150 WB04X0150 LVR SLIDE -INCHB
WB4X149 WB4X149 LVR SLIDE A
WB4X150 WB4X150 LVR SLIDE B
WB04X10011 WB04X10011 MICROWAVE DOOR BRACKET
WB27X10089 WB27X10089 MICROWAVE MAGNETRON
WB04X0174 WB04X0174 MICROWAVE RACK SPACER
WB27X0600 WB27X0600 MICROWAVE TRANSFORMER
31-20088 31-20088 MINI MANUAL
WB26X0164 WB26X0164 MOTOR-SYNCHRONOUS
WB01X1416 WB01X1416 NUT-L
WB1X1416 WB1X1416 NUT-LEFT
WB27X10575 WB27X10575 PCB ASSEMBLY.
WB4X175 WB4X175 PCB SUPPORT
WB04X0175 WB04X0175 PCB SUPPORT.
WB02X9766 WB02X9766 PIN-DOOR KEY
WB2X9766 WB2X9766 PIN-DOOR KEY
WB18X545 WB18X545 POWER CORD
WB18X0545 WB18X0545 POWER CORD ASM
WB20X0159 WB20X0159 PROBE GRAY
WB20X159 WB20X159 PROBE GRAY
WB48X0225 WB48X0225 RACK-WIRE
WB08X0302 WB08X0302 RECEP-PROBE
WB8X302 WB8X302 RECEP-PROBE
WB36X10211 WB36X10211 SCREEN-DOOR-A
WB01X10087 WB01X10087 SCREW-MOUNTING
WB24X0806 WB24X0806 SENSITIVE SW
WB24X806 WB24X806 SENSITIVE SWITCH
WB55X0861 WB55X0861 SLOT CVR DR
WB55X861 WB55X861 SLOT CVR DR
WB08X0300 WB08X0300 SOCKET-LAMP
WB8X300 WB8X300 SOCKET-LAMP
WB4X187 WB4X187 SPACER HANDL
WB4X174 WB4X174 SPACER-RACK
WB1X1475 WB1X1475 SPRING KEY
WB01X1475 WB01X1475 SPRING-KEY
WB6X349 WB6X349 STIR BLD ASM
WB06X0349 WB06X0349 STIR BLD ASSEMBLY
WB26X0154 WB26X0154 STIRRER MOTOR
WB02X10817 WB02X10817 SUPPORTER-BUSH
WB24X0428 WB24X0428 SWITCH
WB24X428 WB24X428 SWITCH
WB27X10588 WB27X10588 SWITCH-MEMBRANE
WB24X10042 WB24X10042 SWITCH-MICRO
WB26X163 WB26X163 SYNCH MOTOR
WB27X877 WB27X877 THERMISTOR
WB24X0807 WB24X0807 THERMOST SW
WB24X807 WB24X807 THERMOST SW
WB27X0877 WB27X0877 THERMOSTAT ASM
WB24X10041 WB24X10041 THERMOSTAT.
WB27X1109 WB27X1109 TRANS-L V
WB27X600 WB27X600 TRANSFRMR-HV
WB07X10242 WB07X10242 TRIMMER-LOWER
WB07X10495 WB07X10495 TRIMMER-SIDE(30-INCH)
WB07X10239 WB07X10239 TRIMMER-SIDE-L
WB07X10241 WB07X10241 TRIMMER-SIDE-R
WB07X10240 WB07X10240 TRIMMER-UPPER
49-10098-2 49-10098-2 USE & CARE
WB7X1955 WB7X1955 WHITE GRILL
WB18X540 WB18X540 WIRE HARN H
WB18X0540 WB18X0540 WIRE HARNESS-H
WB48X225 WB48X225 WIRE RACK
