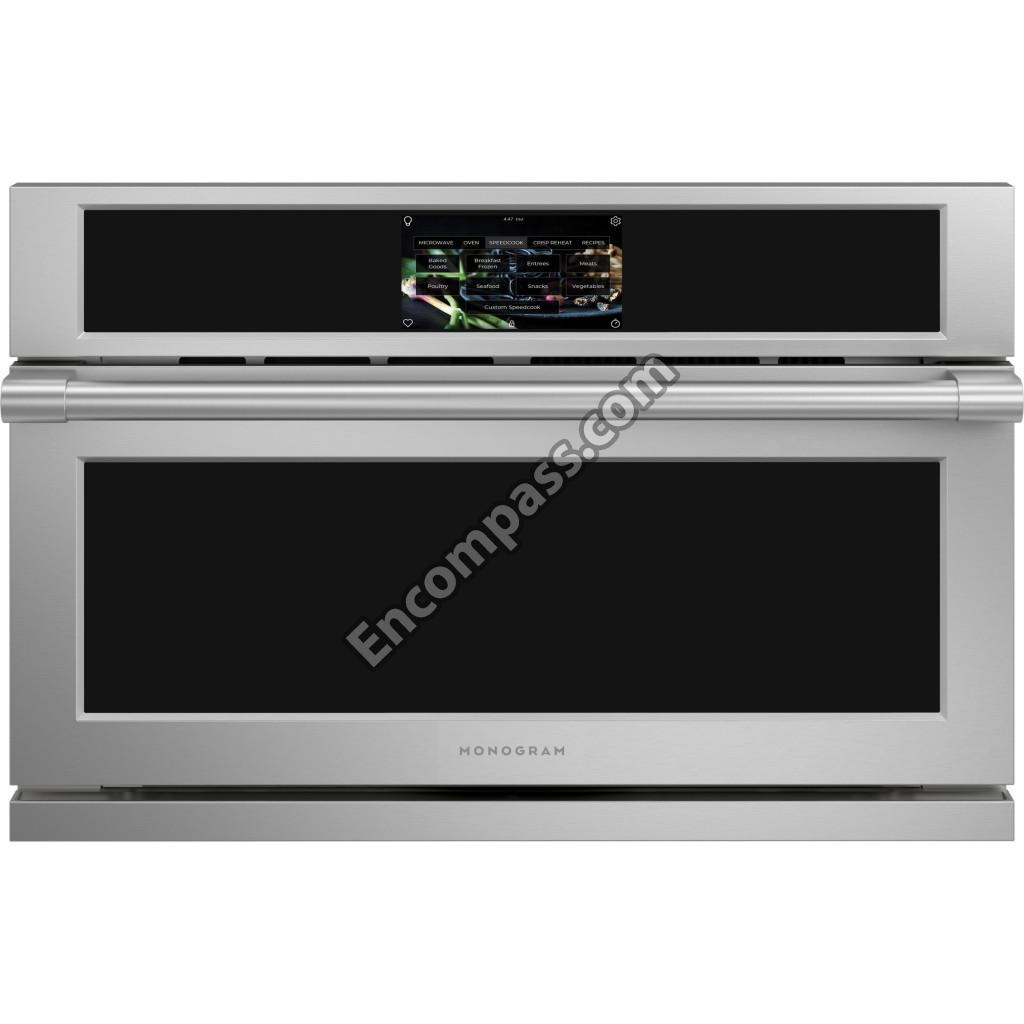

Model Image
Manufacturer

GE

Model Number

ZSB9122V1SS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB49X47646 WB49X47646 ADVANTIUM SPEEDCOOK PAN
WB27X49288 WB27X49288 AIR GUIDE
WB34X32602 WB34X32602 AIR TUNNEL
WB02X32590 WB02X32590 BARRIER BRACKET
WB6X475 WB6X475 BLADE,MTR CL
WB02X32634 WB02X32634 BOARD SUPPORTER
WB56X32579 WB56X32579 BOTTOM PANEL
WB02X32587 WB02X32587 BRACKET
WB02X32591 WB02X32591 BRACKET
WB02X32582 WB02X32582 BRACKET
WB02X32682 WB02X32682 BRACKET HEATER
WB06X10570 WB06X10570 BRACKET,MISC
WB27X49286 WB27X49286 CAMERA MODULE ASSEMBLY
WB06X10638 WB06X10638 CANOPY MICA
WB02X32593 WB02X32593 CAPACITOR BRACKET
WB27X11033 WB27X11033 CAPACITOR, H.V
WB27X50349 WB27X50349 CASE OUTER
WB56X32575 WB56X32575 CHAMBER PANEL
WB34X33405 WB34X33405 CONTROL BOARD BRACKET
WB07X33407 WB07X33407 CONTROL PANEL ACCESS COVER
WB27X49264 WB27X49264 CONTROLLER ASSEMBLY,SUB
WB28X33306 WB28X33306 CONVECTION ASM
49-40579 49-40579 COOKBOOK
WB56X32580 WB56X32580 COVER BACK
WB06X32848 WB06X32848 COVER HEATER
WB27X35382 WB27X35382 DIODE
WB27X50428 WB27X50428 DOOR ASSEMBLY
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB34X32608 WB34X32608 DUCT ASM
WB34X32594 WB34X32594 DUCT ASM
WB26X32609 WB26X32609 FAN MOTOR
WB27X10928 WB27X10928 FUSE
WB06X10650 WB06X10650 GLASS WOOL
WB02X35488 WB02X35488 HALOGEN LAMP
WB27X50826 WB27X50826 HANDLE ASSEMBLY
WB27X49287 WB27X49287 HARNESS
WB27X49258 WB27X49258 HARNESS , SINGLE
WB18X33767 WB18X33767 HARNESS WIRE
WB18X33768 WB18X33768 HARNESS WIRE
WB18X33766 WB18X33766 HARNESS WIRE
WB02X32572 WB02X32572 HEAT SHIELD
WB44X33391 WB44X33391 HEATER ASSEMBLY
WB27X50406 WB27X50406 HEATER ASSEMBLY
WB02X32681 WB02X32681 HEATER BRACKET
WB02X32679 WB02X32679 HEATER BRACKET
WB02X32680 WB02X32680 HEATER BRACKET
WB34X32589 WB34X32589 HEATER COVER
WB21X28572 WB21X28572 HEATER HALOGEN
WB02X32605 WB02X32605 HEATER HOLDER
WB44X41527 WB44X41527 HEATER MIRACLON
WB44X10050 WB44X10050 HEATER SHEATH
WB10X33513 WB10X33513 HINGE ASM
WB27X49919 WB27X49919 HOLDER ASM
WB01X32574 WB01X32574 INSTALLATION HARDWARE
WB10X32573 WB10X32573 LATCH BOARD LH
WB10X32577 WB10X32577 LATCH BOARD RH
WB10X33309 WB10X33309 LATCH BODY ASM RIGHT
WB06X32995 WB06X32995 LATCH BRACKET ASM
WB02X32588 WB02X32588 LEVER
WB34X32583 WB34X32583 LIGHT COVER
WB26X32629 WB26X32629 MAGNETRON
WB34X32628 WB34X32628 MOTOR BRACKET
WB02X32599 WB02X32599 MOTOR BRACKET
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB26X10211 WB26X10211 MOTOR,AC FAN
WB34X32596 WB34X32596 MOUNT
WB02X35865 WB02X35865 NOISE FILTER BOARD
WB01X35369 WB01X35369 NUT COMMON
WB1X1520 WB1X1520 NUT,HEXAGON
WB27X50348 WB27X50348 PANEL FRONT
WB27X49257 WB27X49257 PCB ASSEMBLY, MAIN
WB27X49254 WB27X49254 PCB ASSEMBLY, MAIN
WB27X49250 WB27X49250 PCB ASSEMBLY, MAIN
WB27X49256 WB27X49256 PCB ASSEMBLY,MODULE
WB63X33390 WB63X33390 PLATE BASE
49-40693 49-40693 PM COOKING GUIDE
49-40690 49-40690 PM INSTALL INSTRUCTIONS
49-40686 49-40686 PM OWNERS MANUAL
WB27X43190 WB27X43190 POWER CORD ASSEMBLY
31-7000299 31-7000299 PRINTED AND ONLINEMINI MANUAL AND WIRING
WB49X10213 WB49X10213 RACK
WB02X32581 WB02X32581 REFLECTOR
WB27X49672 WB27X49672 REFLECTOR ASM
WB1X1518 WB1X1518 RING,SHAFT
WB18X33397 WB18X33397 RJ 45 CONNECTOR AND HARNESS
WB02X32600 WB02X32600 ROTATING RING ASM
WB01X35374 WB01X35374 SCREW
WB27X49907 WB27X49907 SCREW
WB02X33509 WB02X33509 SCREW
WB1X1514 WB1X1514 SCREW
WB01X10121 WB01X10121 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB02X10726 WB02X10726 SCREW -LEAD WIRE ASSEMBLY
WB02X32576 WB02X32576 SEAL TAPE
WB27X10857 WB27X10857 SENSOR ASM
WB06X10693 WB06X10693 SHAFT ASM
WB18X33394 WB18X33394 SINGLE HARNESS
WB18X33401 WB18X33401 SINGLE HARNESS
WB18X33398 WB18X33398 SINGLE HARNESS
WB27X38492 WB27X38492 SPEAKER
WB02X32601 WB02X32601 SUPPORT
WB02X32606 WB02X32606 SUPPORT
WB27X50346 WB27X50346 SUPPORTER WINDOW
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB18X10287 WB18X10287 THERMISTOR NTC
WB20X10048 WB20X10048 THERMOSTAT
WB21X10149 WB21X10149 THERMOSTAT
WB07X33409 WB07X33409 TOP COVER
WB17X37265 WB17X37265 TRANSFORMER,HIGH VOLTAGE
WB27X43590 WB27X43590 TRAY GLASS
WB49X10187 WB49X10187 TRAY,METAL
WB07X33408 WB07X33408 TRIM LEFT
WB07X33410 WB07X33410 TRIM RIGHT
WB26X33510 WB26X33510 TT MOTOR W/ GASKET
WB27X49292 WB27X49292 VENT ASM
WB1X1522 WB1X1522 WASHER, SPLK
WB1X1521 WB1X1521 WASHER,PLAIN
WB27X50347 WB27X50347 WINDOW GLASS
