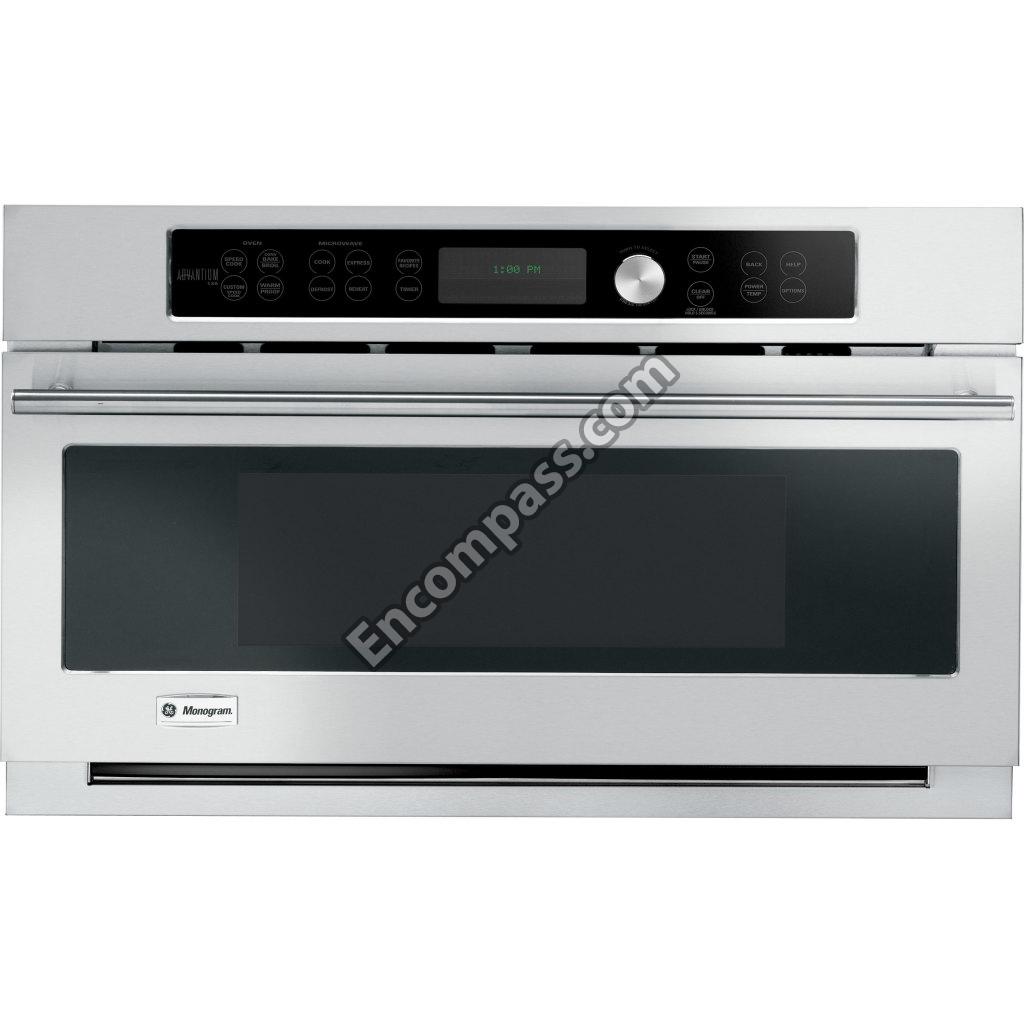

Model Image
Manufacturer

GE

Model Number

ZSC1201NSS01

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB25X10019 WB25X10019 120V MICROWAVE HALOGEN BULB; 20W
WB49X10187 WB49X10187 ADVANTIUM METAL COOKING TRAY
WB6X475 WB6X475 BLADE MTR CL
WB10X32573 WB10X32573 BOARD DOOR LATCH LT
WB10X32577 WB10X32577 BOARD DOOR LATCH RT
WB02X32634 WB02X32634 BOARD SUPPORTER
WB07X33087 WB07X33087 BOTTOM TRIM
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB02X11223 WB02X11223 BRACKET HEATER
WB06X10638 WB06X10638 CANOPY MICA
WB06X10642 WB06X10642 CHAMBER
WB27X10858 WB27X10858 CONTROL BOARD

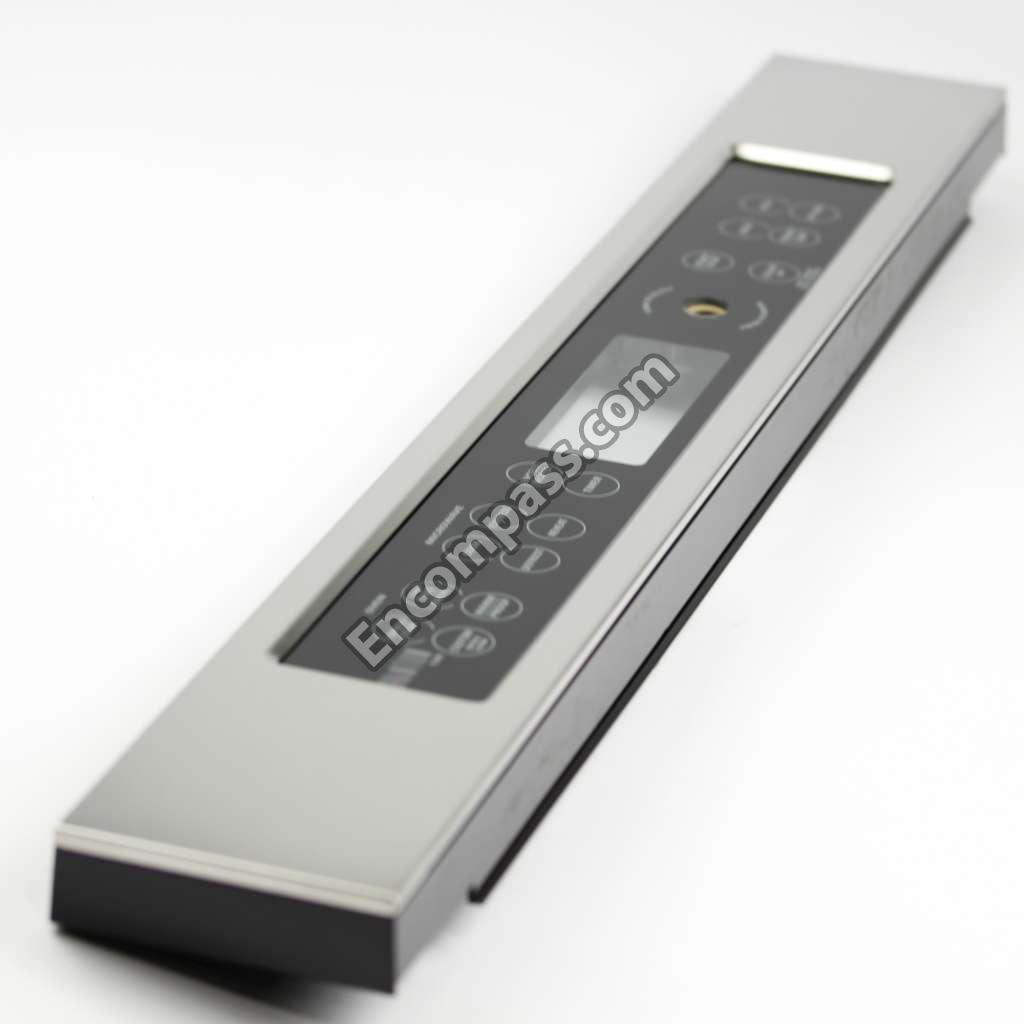

WB07X11254 WB07X11254 CONTROLLER ASSEMBLY STAINLESS STEEL
49-40456 49-40456 COOKING GUIDE
WB27X10856 WB27X10856 DIGITRON
WB56X10872 WB56X10872 DOOR ASSEMBLY STAINLESS STEEL
WB01X34910 WB01X34910 DOOR REMOVAL TOOL
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB06X0475 WB06X0475 FAN BLADE
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB56X10868 WB56X10868 FLAT CASE
WB06X10650 WB06X10650 GLASS WOOL
WB18X33768 WB18X33768 HARNESS
WB18X10439 WB18X10439 HARNESS MAIN
WB18X32597 WB18X32597 HARNESS WIRE
WB34X32589 WB34X32589 HEATER COVER
WB21X28572 WB21X28572 HEATER HALOGEN
WB44X41527 WB44X41527 HEATER MIRACLON
WB44X41528 WB44X41528 HEATER MIRACLON
WB44X10050 WB44X10050 HEATER SHEATH
WB17X10030 WB17X10030 HIGH VOLTAGE TRANSFORMER
WB02X11233 WB02X11233 HOLDER WIRE
WB27X11059 WB27X11059 INDICATOR
WB01X32574 WB01X32574 INSTALLATION HARDWARE
WB34X32583 WB34X32583 LIGHT COVER
WB26X32629 WB26X32629 MAGNETRON
WB49X47646 WB49X47646 METAL BB TRAY
WB06X10641 WB06X10641 MICROWAVE BOTTOM PANEL
WB02X11225 WB02X11225 MICROWAVE BRACKET
WB02X32591 WB02X32591 MICROWAVE BRACKET
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB27X10861 WB27X10861 MICROWAVE CONTROL BOARD
WB02X11320 WB02X11320 MICROWAVE CONTROL PANEL BRACKET
WB02X40028 WB02X40028 MICROWAVE DAMPER BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB34X32607 WB34X32607 MICROWAVE DUCT ASSEMBLY
WB02X32572 WB02X32572 MICROWAVE HEAT SHIELD
WB06X10646 WB06X10646 MICROWAVE HOLDER ASSEMBLY
WB02X32588 WB02X32588 MICROWAVE LEVER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
WB07X32622 WB07X32622 MICROWAVE TRIM - RIGHT
31-41017 31-41017 MINI MANUAL
WB26X10248 WB26X10248 MOTOR
WB26X10084 WB26X10084 MOTOR - CIRCULATION
WB26X10193 WB26X10193 MOTOR TURNTABLE
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB02X32599 WB02X32599 MOUNT
WB18X26911 WB18X26911 POWER CORD ASSEMBLY
WB49X10213 WB49X10213 RACK
WB07X32843 WB07X32843 RANGE BOTTOM PLATE
WB03X10281 WB03X10281 RANGE KNOB - STAINLESS STEEL
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB02X11318 WB02X11318 REFLECTOR
WB27X32849 WB27X32849 RELAY BOARD
WB02X32600 WB02X32600 ROTATING RING ASSEMBLY
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB1X1504 WB1X1504 SCREW TRUSS
WB02X32576 WB02X32576 SEAL TAPE
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB06X10693 WB06X10693 SHAFT ASSEMBLY
WB27X11049 WB27X11049 SUB PCB ASSEMBLY
WB02X32606 WB02X32606 SUPPORT
WB24X10047 WB24X10047 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MICRO
WB18X10287 WB18X10287 THERMISTOR NTC
WB21X10149 WB21X10149 THERMOSTAT
WB06X32851 WB06X32851 TOP COVER
WB17X10021 WB17X10021 TRANSFORMER POWER
WB27X43590 WB27X43590 TRAY GLASS
WB07X32627 WB07X32627 TRIM LH
49-40591 49-40591 USE & CARE
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
