Model Image
Manufacturer

GE

Model Number

ZTD90DSSN4SS

Description

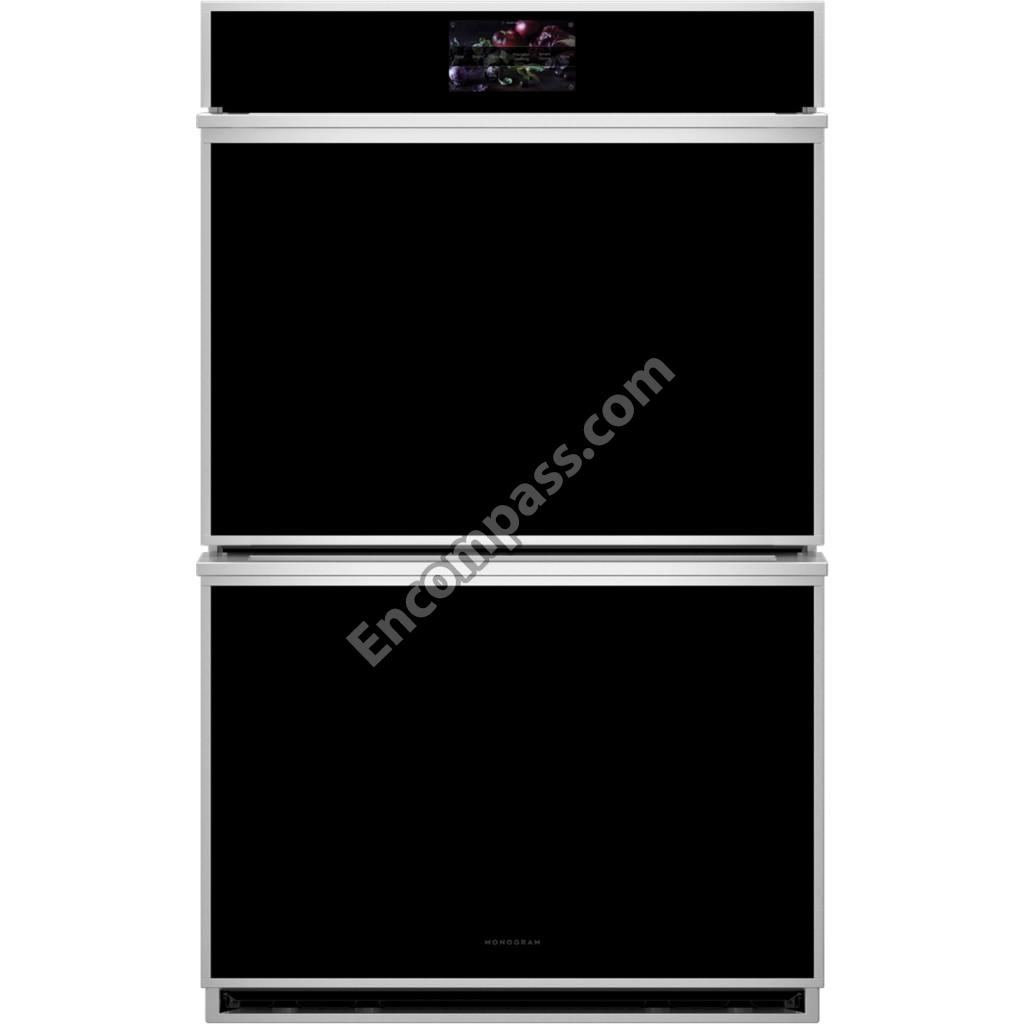

Monogram 30-inch Minimalist Double Wall Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WD02X10129 WD02X10129 GE 6-19 X 1/4 TORX PAN HEAD
WB02T10598 WB02T10598 GE BLADE FAN CONVECTION
WB17K10001 WB17K10001 GE BLOCK TERMINAL
WB27T11463 WB27T11463 GE BOARD FAN SENSOR
WB27X28659 WB27X28659 GE BOARD SENSOR
WB37X35106 WB37X35106 GE BRACKET FAN MOUNTING LOWER
WB37T10026 WB37T10026 GE BRACKET UPPER FAN MOUNT
WB44X48669 WB44X48669 GE BROIL ELEMENT
WB03T10341 WB03T10341 GE BUMPER DOOR
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB34X30789 WB34X30789 GE CAVITY BRACE ASM
WB34T10160 WB34T10160 GE CHANNEL LOWER AIR
WB37T10029 WB37T10029 GE CHANNEL PEDESTAL LEFT
WB37T10028 WB37T10028 GE CHANNEL PEDESTAL RIGHT
WB55X10971 WB55X10971 GE CHANNEL REAR
WB34X35265 WB34X35265 GE CHANNEL REAR
WB34T10150 WB34T10150 GE CHANNEL UPPER AIR VENT
WB18X33486 WB18X33486 GE CONDUIT WIRE ASM
WB56X49892 WB56X49892 GE CONTROL PANEL - STAINLESS
WB07X32471 WB07X32471 GE CONTROL PANEL MOUNTING BRACKET
WB44X48668 WB44X48668 GE CONVECTION ELEMENT
WB26X35089 WB26X35089 GE COOLING FAN LOWER
WB34T10136 WB34T10136 GE COVER - UPPER REAR DUCT
WB56X43352 WB56X43352 GE COVER BOTTOM AIR DUCT
WB37T10023 WB37T10023 GE COVER CONVECTION FAN
WB55T10197 WB55T10197 GE COVER HIDDEN BAKE
WB34X28390 WB34X28390 GE COVER HOUSING FRT
WB44T10126 WB44T10126 GE COVER TOP LEFT EDGE
WB24X32772 WB24X32772 GE COVER TOP REAR
WB34T10164 WB34T10164 GE COVER TOP RIGHT EDGE
WB35T10273 WB35T10273 GE COVER WIRE REAR
WB34T10163 WB34T10163 GE DIVIDER AIR BOTTOM
WB34T10134 WB34T10134 GE DIVIDER AIR CENTER
WB34T10140 WB34T10140 GE DIVIDER AIR DOUBLE OVEN
WB34T10139 WB34T10139 GE DIVIDER AIR DUCT RIGHT
WB34X31516 WB34X31516 GE DOOR INSULATION RETAINER
WB35X31513 WB35X31513 GE DOOR SIDE INSULATION
WB37T10022 WB37T10022 GE DUCT CONVECTION FAN
WB34T10141 WB34T10141 GE DUCT LOWER REAR DUCT
WB34X23621 WB34X23621 GE EXTENSION REAR
WB34T10146 WB34T10146 GE EXTENSION SIDE
WB26X31060 WB26X31060 GE FAN BLOWER
WB35X21972 WB35X21972 GE GASKET BROIL ELEMENT
WB01T10079 WB01T10079 GE GASKET CONV FAN
WB01T10128 WB01T10128 GE GROMMET
WB48X21766 WB48X21766 GE GUIDE OVN RACK LT
WB48X21765 WB48X21765 GE GUIDE OVN RACK RT
WB25X31221 WB25X31221 GE HALOGEN LAMP ASM
WB25X31223 WB25X31223 GE HALOGEN LAMP ASM
WB01X1259 WB01X1259 GE HEX NUT
WB44X48678 WB44X48678 GE HIDDEN BAKE ELEMENT
31-10882 31-10882 GE INSTRUCTION INSTALL
WB35T10259 WB35T10259 GE INSULATION CONVECT FAN
WB35X21737 WB35X21737 GE INSULATION DR TOP
WB25T10102 WB25T10102 GE LAMP HALOGEN BULB G9
WB10X28391 WB10X28391 GE LATCH ASM
WB18X47031 WB18X47031 GE LATCH COM WIRE HARNESS
WB18X46482 WB18X46482 GE LATCH COM WIRE HARNESS
WB34X46746 WB34X46746 GE LINER SUPPORT
WB02T10303 WB02T10303 GE LUBRICANT CLEANER
WB18X46485 WB18X46485 GE MAIN WIRE HARNESS
WB20T10024 WB20T10024 GE MEAT PROBE
WB18X23585 WB18X23585 GE MEAT PROBE AND HARNESS
WB26X44167 WB26X44167 GE MOTOR CONVX
WB02X35585 WB02X35585 GE NUT HEX
WB01T10133 WB01T10133 GE NUT HEX M4-.7 THREAD
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB18T10580 WB18T10580 GE OPTIONAL 6 FT CONDUIT
WB56X43354 WB56X43354 GE OUTER DOOR W/ LOGO-BLACK
WB56X43549 WB56X43549 GE OUTER UPPER DOOR-BLACK
WB35X32825 WB35X32825 GE OVEN DOOR GASKET
WB63X32569 WB63X32569 GE OVEN DOOR LINER ASM
WB34X31317 WB34X31317 GE OVEN LIGHT LENS
WB48X34690 WB48X34690 GE OVEN RACK FLAT 30-INCH
WB63X33361 WB63X33361 GE PEDESTAL ASM
WB37T10024 WB37T10024 GE PLATE - TOP OVEN
49-2000988 49-2000988 GE PM INSERT INSTRUCTIONS
31-11159 31-11159 GE PM INSTALL INSTRUCTIONS
31-2000714 31-2000714 GE PM INSTALL INSTRUCTIONS
31-10957 31-10957 GE PM INSTALL INSTRUCTIONS
31-2000704 31-2000704 GE PM MINI MANUAL AND WIRING
49-2000385 49-2000385 GE PM OWNERS MANUAL
WB01X21270 WB01X21270 GE RACK GUIDE NUT
WB48X34734 WB48X34734 GE RACK SLIDE PACK 30-INCH
WB27X49867 WB27X49867 GE RC17 CONTROL - FLASHED
WB27X49868 WB27X49868 GE RC17 CONTROL - FLASHED
WB01T10107 WB01T10107 GE RETAINER BOLT
WB34X21913 WB34X21913 GE RETAINER INSLN SDE
WB24X33028 WB24X33028 GE RJ45 BRACKET
WB01X21650 WB01X21650 GE SCR 8-18 AB TRT20NBS 5/8
WB34X43346 WB34X43346 GE SCREEN SUPPORT
WB01K5200 WB01K5200 GE SCREW
WB01K5072 WB01K5072 GE SCREW
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10130 WB01T10130 GE SCREW 7-19 1/4HEX 1/2IN
WH2X930 WH2X930 GE SCREW 8-18 AB HXW 3/8
WB01T10134 WB01T10134 GE SCREW 8-18 T20 3/8 IN
WB01T10120 WB01T10120 GE SCREW ST 8-18X.750 (NI)
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16-INCH
WB01X1174 WB01X1174 GE SCREW-NICKLE
WB21X10165 WB21X10165 GE SENSOR ASM
WR01X11014 WR01X11014 GE SET SCREW
WB10X36950 WB10X36950 GE SOFT CLOSE HINGE LEFT DOOR
WB10X36952 WB10X36952 GE SOFT CLOSE HINGE RIGHT DOOR
WB02X34689 WB02X34689 GE SPACER REINFORCEMENT
WB15X34721 WB15X34721 GE STAINLESS HANDLE W/O LOGO 30-INCH
WB07X34906 WB07X34906 GE STAINLESS TRIM VERT SIDE (DWO)
WB01X41366 WB01X41366 GE STOP DOOR DEHYDRATE
WB24X46906 WB24X46906 GE SWITCH HIGH LIMIT
WB24X35587 WB24X35587 GE SWITCH LIMIT
WB24X46907 WB24X46907 GE SWITCH LIMIT
WB07T10791 WB07T10791 GE TRIM BOTTOM CABINET
WB07T10786 WB07T10786 GE TRIM BOTTOM CABINET
WB07T10787 WB07T10787 GE TRIM BROIL ELEMENT (BK)
WB01K5173 WB01K5173 GE TRIM SCREW-BLK
WB07X21783 WB07X21783 GE TRIM VENT LWR
WB07T10799 WB07T10799 GE TRIM VENT MIDDLE
WB18X50227 WB18X50227 GE UI AND RJ45 HARNESS
WB07X32831 WB07X32831 GE UPPER VENT TRIM
WB01X5573 WB01X5573 GE WASHER
WB56X27480 WB56X27480 GE WINDOW PACK ASM
WZ4X416 WZ4X416 GE WZ04X0408
