Model Image
Manufacturer

Husqvarna

Model Number

LC121FH

Description

21 Inch Walk-behind Mower

Interactive Exploded View
Exploded View

Parts List

Part Number Description
590739801 590739801 Husqvarna ADAPTER
586698601 586698601 Husqvarna BAFFLE
586929102 586929102 Husqvarna BAG FRAME
587478302 587478302 Husqvarna BAIL
532198453 Weed Eater BAR DRIVE CONTROL
586560401 586560401 Husqvarna BELT COVER
586859604 586859604 Husqvarna BLADE
588040401 588040401 Husqvarna BOLT
587198901 587198901 Husqvarna BOLT
587015201 587015201 Husqvarna BOLT
582388401 582388401 Husqvarna BOLT
581726101 581726101 Husqvarna BOLT
532431711 532431711 Husqvarna BRACKET
532430034 532430034 Husqvarna BRACKET UPSTOP
532197991 Weed Eater CABLE CLIP
532440385 532440385 Husqvarna CABLE MZR RGD PLUS STRT
587395401 587395401 Husqvarna CABLE.DRIVE.21 EFF.FGD
582261901 582261901 Husqvarna CHUTE
532145006 532145006 Husqvarna CLIP PUSH-IN HINGED
587794002 587794002 Husqvarna COVER
586138001 586138001 Husqvarna DOOR
532404845 532404845 Husqvarna DRIVE PAWL
812000058 812000058 Husqvarna E-RING
532428124 532428124 Husqvarna FASTENER
587100402 587100402 Husqvarna GRASS BAG ASSEMBLY
586698801 586698801 Husqvarna GUARD
581902101 581902101 Craftsman GUDE ROPE BLK ZINC CHROM
532185577 532185577 Husqvarna HANDLE KNOB
589197902 589197902 Husqvarna HANDLEBAR
501064002 501064002 Husqvarna HANDLEBAR
589197802 589197802 Husqvarna HANDLEBAR BRACKET
589197602 589197602 Husqvarna HANDLEBAR BRACKET
532851074 532851074 Husqvarna HARDENED WASHER
596030501 596030501 Husqvarna HCS 5/16-18 X 3/4
586920111 586920111 Husqvarna HEIGHT ADJUSTER
586920109 586920109 Husqvarna HEIGHT ADJUSTER
582261806 582261806 Husqvarna HEIGHT ADJUSTER
582261805 582261805 Husqvarna HEIGHT ADJUSTER
532409149 532409149 Husqvarna HEX FLANGE LOCKNUT
532150406 Weed Eater HEX HEAD THREAD ROLLING SCREW
588610234 588610234 Husqvarna HOUSING ASSEMBLY
586137501 586137501 Husqvarna INSERT
587280402 587280402 Husqvarna KEEPER
532421114 532421114 Poulan KIT.WASH-OUT.PORT
532182398 532182398 Husqvarna KNOB HANDLE PLASTIC STAR BL
596238701 596238701 Husqvarna LOCK WASHER
532415586 Weed Eater LOCKNUT HEX WITH O-RING
586922701 586922701 Husqvarna MULCHING PLUG
587599901 587599901 Husqvarna NUT
532413284 532413284 Husqvarna NUT
594944401 594944401 Husqvarna NUT 5/16-18 NYLOC
532197480 532197480 Husqvarna O-RING
532403849 532403849 Husqvarna PINION
532437516 532437516 Poulan PLUG LOWER HANDLE BAR
586989701 586989701 Husqvarna PULLEY
587438201 587438201 Husqvarna SCREW
587281101 587281101 Husqvarna SCREW
581127601 581127601 Husqvarna SCREW
532178848 532178848 Husqvarna SCREW
532163409 532163409 Husqvarna SCREW 12X5/8
532194189 532194189 Husqvarna SCREW 13-16 X .625
817000510 817000510 Husqvarna SCREW 5/16-18
584299401 584299401 Husqvarna SCREW EHHFT
532701037 532701037 Husqvarna SELECTOR KNOB DELUXE
587250601 587250601 Husqvarna SPRING
587249801 587249801 Husqvarna SPRING
532406558 532406558 Husqvarna SPRING
587147301 587147301 Husqvarna STRAP
587081001 587081001 Husqvarna STRIPPER
581912601 581912601 Craftsman T-KNOB NEW ROPE GUIDE
589486501 589486501 Husqvarna TRANSMISSION
532175436 532175436 Husqvarna V-BELT
532125078 532125078 Husqvarna WASHER
532088348 532088348 Husqvarna WASHER
532067725 532067725 Husqvarna WASHER 1/2X1-1/2X.134
532415585 Weed Eater WASHER LOCK INTERNAL TOOTH
532419735 532419735 Husqvarna WASHOUT PORT KIT

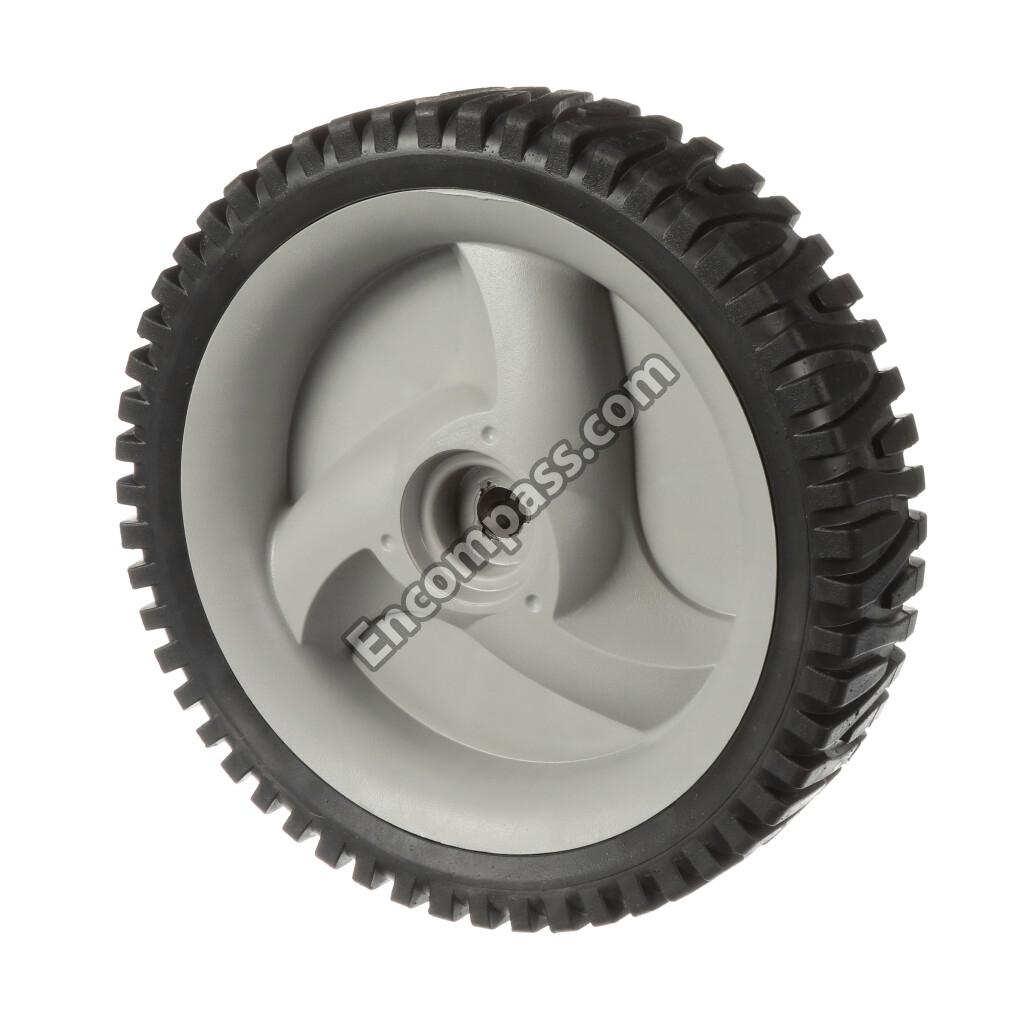

588268602 588268602 Husqvarna WHEEL
532401274 532401274 Husqvarna WHEEL
581840401 581840401 Husqvarna WHEEL DUST COVER
