Manufacturer
Electrolux
Model Number
20462066
Description
20462066 Sarklassig Induction Cooktop 30 -inch Bla
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BOX & WIRES ASSY |
|
|
BOX,BURNER |
|
|
BRACKET, CONDUIT MTG. |
|
|
BRACKET, RETAINER,(2) |
|
|
BRACKET, SPRING,COOKTOP MTG. |
|
|

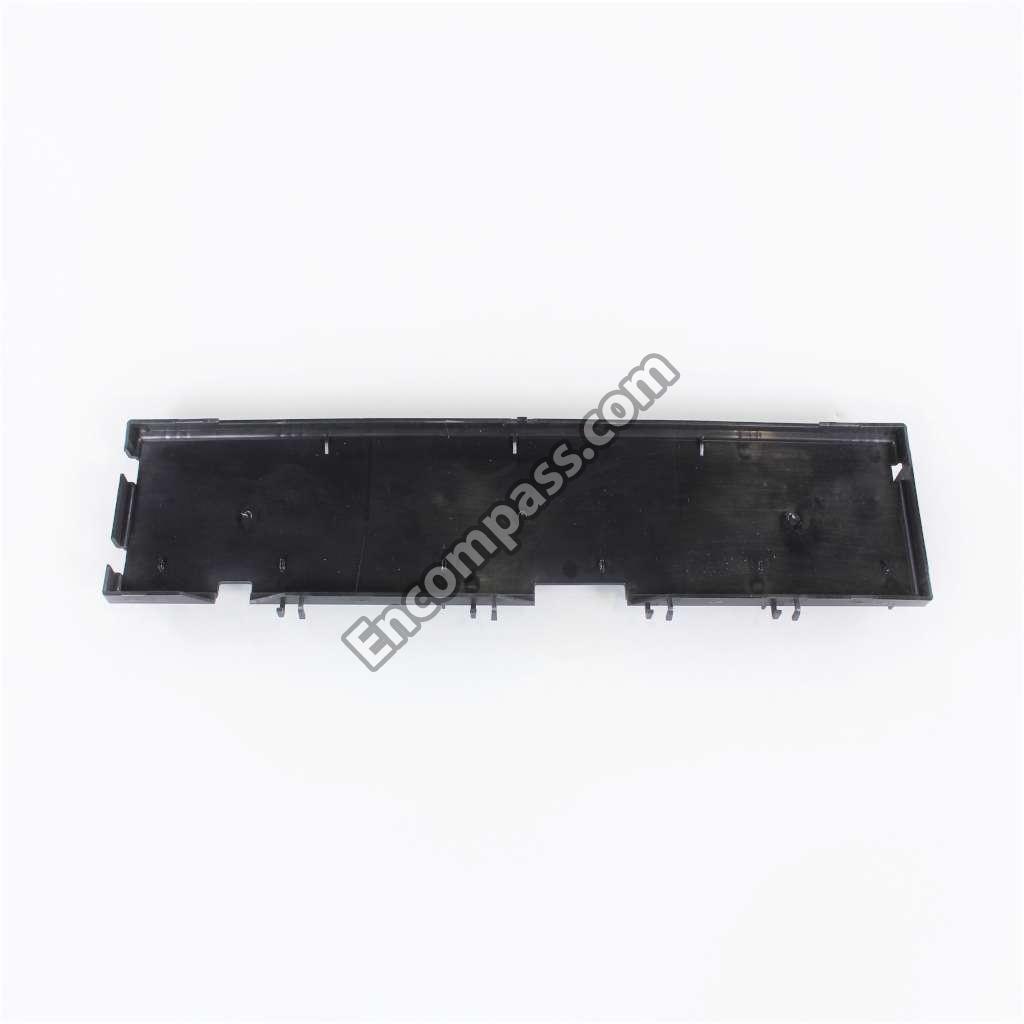

CARRIER, USER INTERFACE |
|
|
CLEANER-COOKTOP |
|
|
CONTROL ASSEMBLY, USER INTERFACE |
|
|
DEFLECTOR, AIR |
|
|
ELEMENT, INDUCTIONCOIL, 140MM |
|
|
ELEMENT, INDUCTIONCOIL, 180MM |
|
|

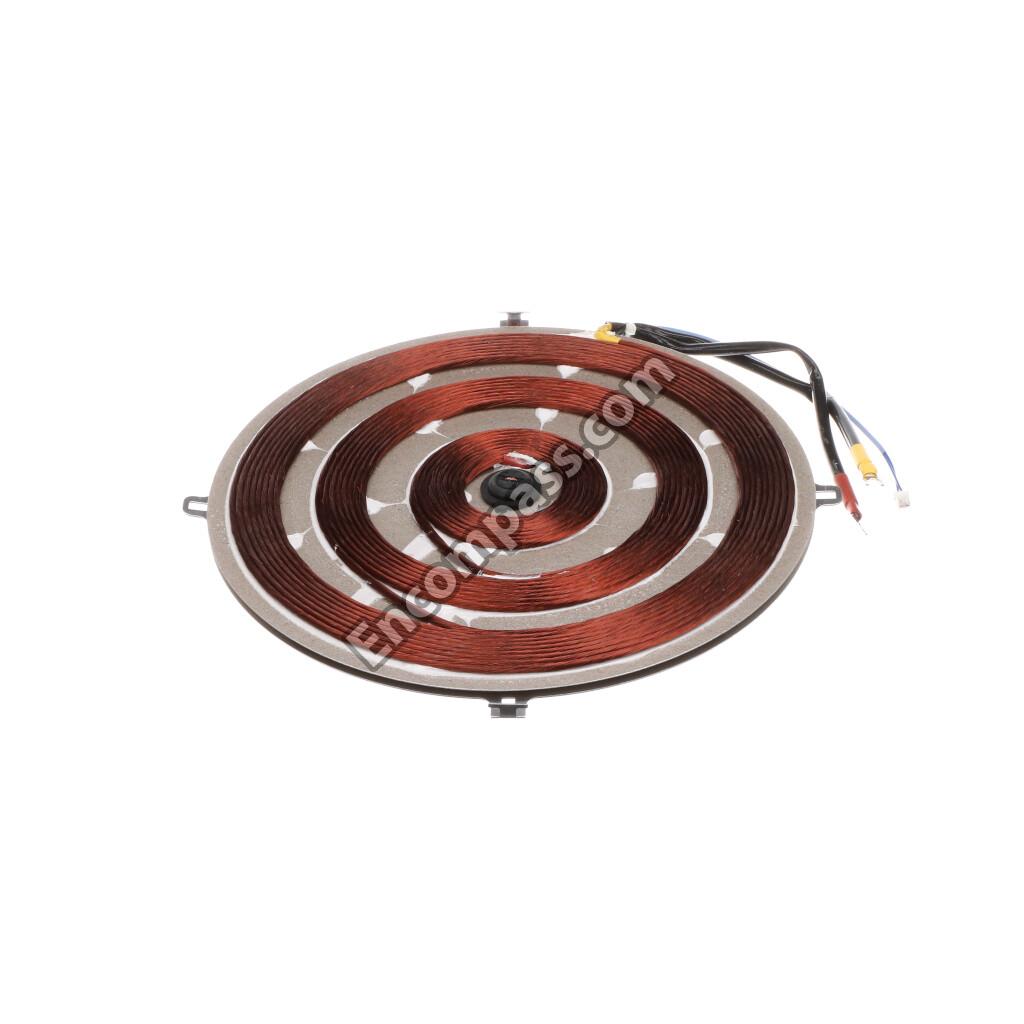

ELEMENT, INDUCTIONCOIL, 260MM |
|
|
FILTER,FERRITE CHOKE |
|
|
FILTER,FERRITE CHOKE |
|
|
GENERATOR, CIRCUIT BOARD,INDUCTION, 2 ZONE |
|
|
HARNESS ASSEMBLY, FILTER, W/CAPACITORS |
|
|
HARNESS, WIRING, BC3-UIBOARD |
|
|
HARNESS, WIRING, COMMUNICATION |
|
|
HARNESS, WIRING, MAIN |
|
|
JUMPER ASSEMBLY, BC1-BC5 |
|
|
MAINTOP,ASSEMBLY,BLACK |
|
|
NUT, TERMINAL BLOCK, (2) |
|
|
PANEL, COIL MOUNTING |
|
|
SCREW, GROUND |
|
|
SCREW, ST, 4 2 12,(9) |
|
|
SCREW,8 X 5/8 |
|
|
SCREW,8-32 X 0437, (4) |
|
|
SCREW,8-32 X 5/16 |
|
|
SCREW,B4, 2 X 9,5 |
|
|
SCREW,M4 |
|
|
TERMINAL BLOCK |
