Manufacturer
Electrolux
Model Number
40462065
Description
40462065 Brannpunkt Gas Cooktop 30 -inch Stainless
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADAPTER, SWITCHMTG. |
|
|
BRACKET |
|
|
BRACKET, VALVE FIXING |
|
|
BRACKET,IGNITOR/ORIFICE, 5K BURNER,MOUNTING |
|
|
BRACKET,IGNITOR/ORIFICE, CENTER BURNER,MOUNTING |
|
|
BRACKET,IGNITOR/ORIFICE, MOUNTING |
|
|
BURNER BOX |
|
|
BURNER, SEALED, 14K |
|
|
BURNER, SEALED, 17K |
|
|
BURNER, SEALED, 5K |
|
|
BURNER, SEALED, 9 5K |
|
|
BUSHING,INSULATING |
|
|
CAP, 14K BURNER, MATTE, BLACK |
|
|
CAP, 17KBURNER, BLACK |
|
|
CAP, 5K BURNER,MATTE,BLACK |
|
|
CAP, 9.5K BURNER, MATTE,BLACK |
|
|
CAP, REGULATOR,RED |
|
|
GASKET, MAINTOP, FOAM TAPE, FRONT/REAR |
|
|
GASKET, MAINTOP, FOAM TAPE,SIDE |
|
|

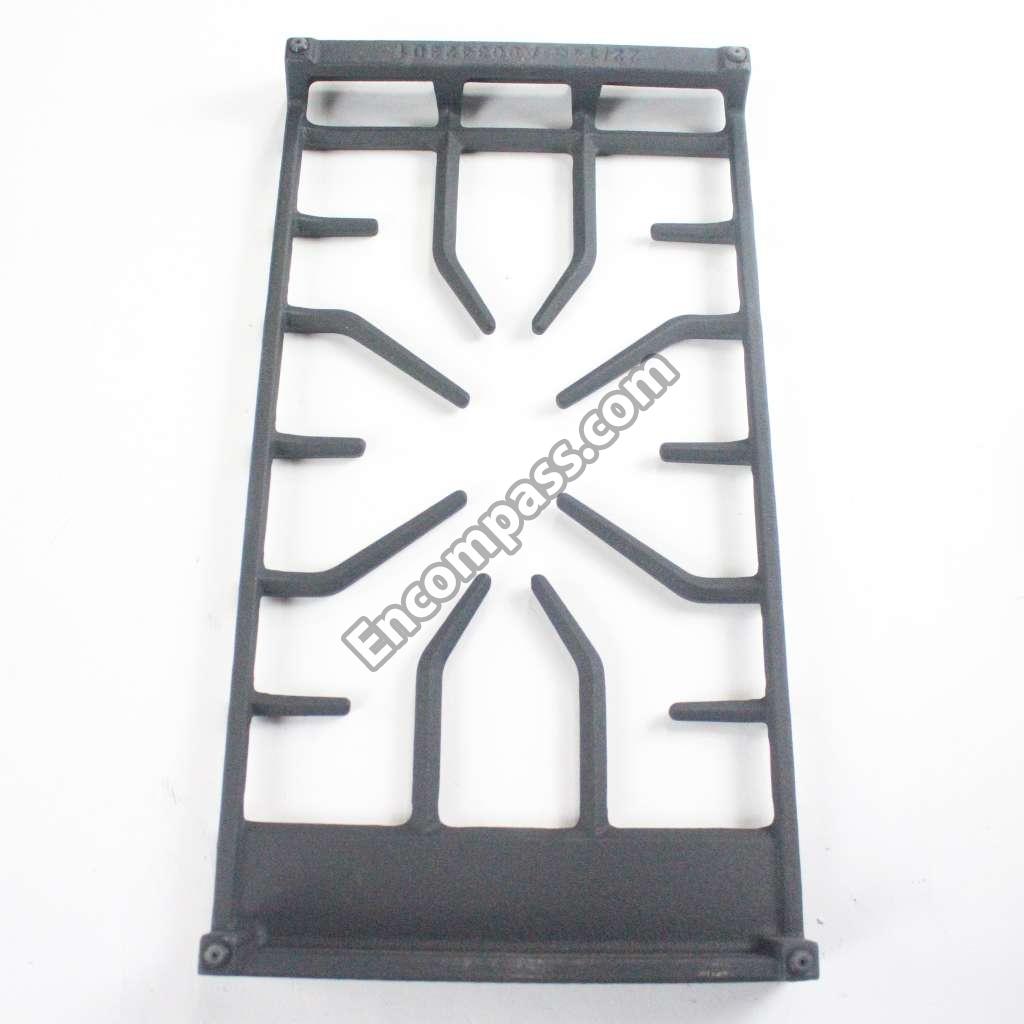

GRATE, BURNER, BLACK,LH |
|
|
GRATE,BURNER, BLACK,CENTER |
|
|
GRATE,BURNER, BLACK,RH |
|
|
HOLDER, ORIFICE/IGNITOR, 5K, W/NAT ORIFICE |
|
|
HOLDER, ORIFICE/IGNITOR, 75K, W/NAT ORIFICE |
|
|
HOLDER, ORIFICE/IGNITOR,18K, W/NAT ORIFICE |
|
|
HOLDER, ORIFICELIGNITOR, 12K, W/NAT ORIFICE |
|
|
HOLDER, ORIFICELIGNITOR, 9.5K, W/NAT ORIFICE |
|
|

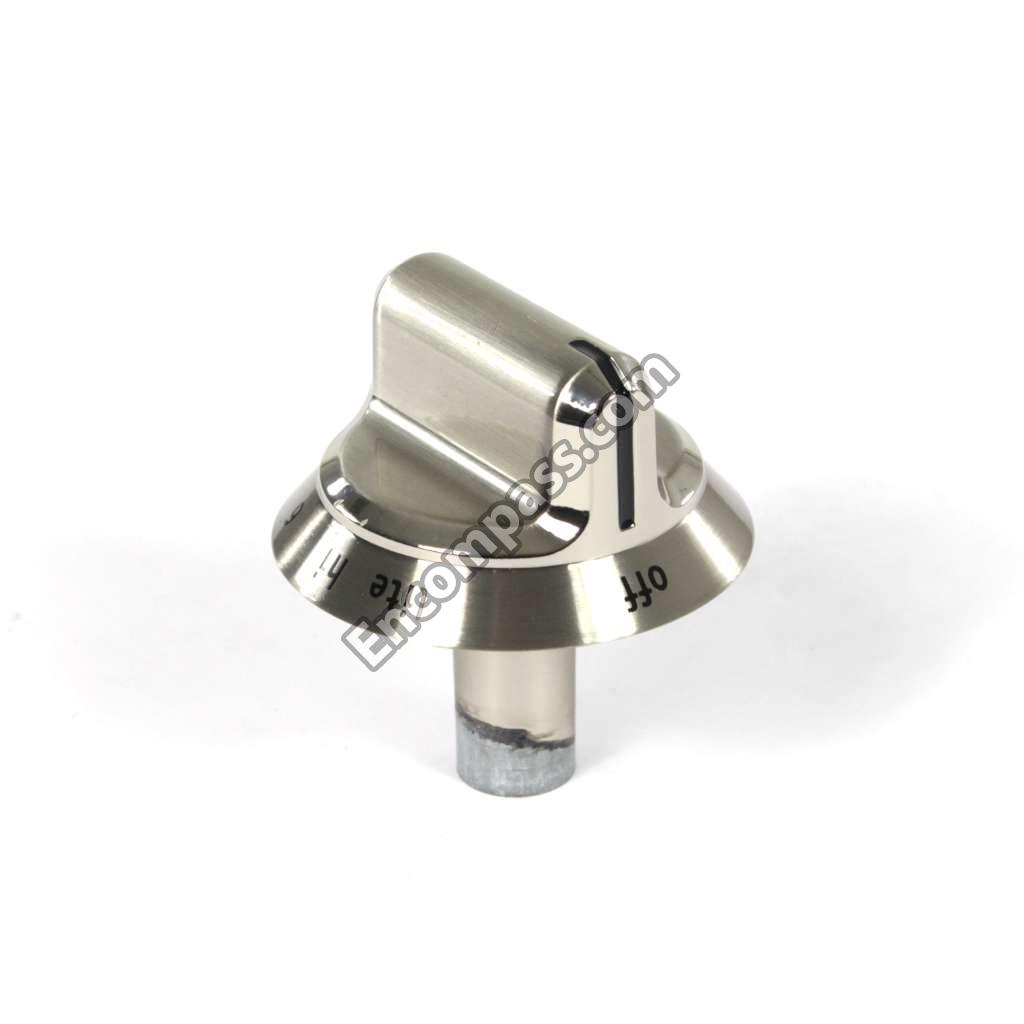

KNOB, BURNER,STAINLESS |
|
|
LGNITOR, TOPBURNER, 380MM,W/WIRING |
|
|
LGNITOR, TOPBURNER, 520MM,W/WIRING |
|
|
LPKIT,GAS CONVERSION |
|
|
MAIN TOP,ASSEMBLY, STAINLESS |
|
|
MANIFOLD PIPE |
|
|
MODULE, SPARK, 6 OUTPUTS |
|
|
POWER CORD,ELECTRICAL,SUPPLY |
|
|
REGULATOR,PRESSURE |
|
|
SCREW |
|
|
SCREW, (2) |
|
|
SCREW, HEX WASH, 6-32X.485 |
|
|
SCREW, HEX ZC, M4 X 16, (8) |
|
|
SCREW, LOCK BRACKET,(2) |
|
|
SCREW, PHII, 4.2 X 6 5,(20) |
|
|
SCREW,GROUND |
|
|
SHIELD, HEAT |
|
|
SPRINGCLIP, IGNITOR |
|
|
STRAINRELIEF |
|
|
SUPPORT, BOX, (2) |
|
|
SWITCHASSEMBLY,IGNITOR, W/HARNESS |
|
|
TUBE,BURNER, CENTER |
|
|
TUBE,BURNER, LH REAR |
|
|
TUBE,BURNER, LHFRONT |
|
|
TUBE,BURNER, RH REAR |
|
|
TUBE,BURNER,RH FRONT |
|
|
VALVE, SADDLE, 1125BTU,BLUE STEM |
|
|
VALVE, SADDLE, 1800 BTU,REDSTEM |
|
|
VALVE, SADDLE, 680BTU, ORANGE STEM |
|
|
VALVE, SADDLE, 850BTU, GREEN STEM |
|
|
WIRE, GROUNDING |
